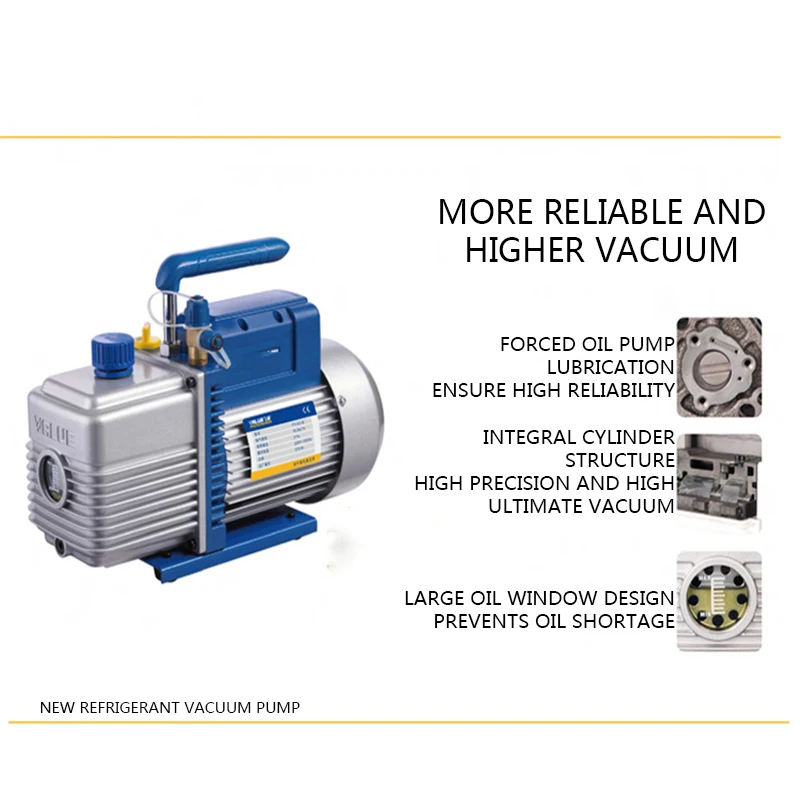

FY-1H-N/FY-1C-N Miniature Rotary Vane Vacuum Pump High-Performance New Refrigerant Air-Conditioning Refrigeration Vacuum Tool

Product parameter

product code：GJ00221

Name: Vacuum Pump

Model: FY-1H-N/FY-1C-N.

Package weight: 8KG.

Packing size: 32*18*26

Voltage: 220V

Power: 150W

Model: FY-1C-N

Rated voltage: 220V~/50Hz

Pumping rate: 3.6m/h

Ultimate pressure: 2 Pa

Motor power: 150 w

Refueling amount: 250 ml

Dimensions: 290x124x224 mm

Weight: 6.5 Kg

Inlet connection thread: 7/16*-20 UNF

Model FY-1H-N

Rated voltage: 220V~/50Hz

Pumping rate: 3.6m2/h

Ultimate pressure: 2Pa.

Motor power: 150 W

Refueling amount: 150 ml

Dimensions: 255x105x202 mm

Weight: 4Kg

Inlet connection thread: 7/16*-20UNF
