Feature:
1. Sturdy Construction: Made from CNC machined aluminum, this car switch panel is built to last and can stand up to impacts and wear and tear.2. Waterproof and Dustproof: With an IP65 rating, this switch panel is fully protected against rain and debris, ensuring reliable operation in any environment.

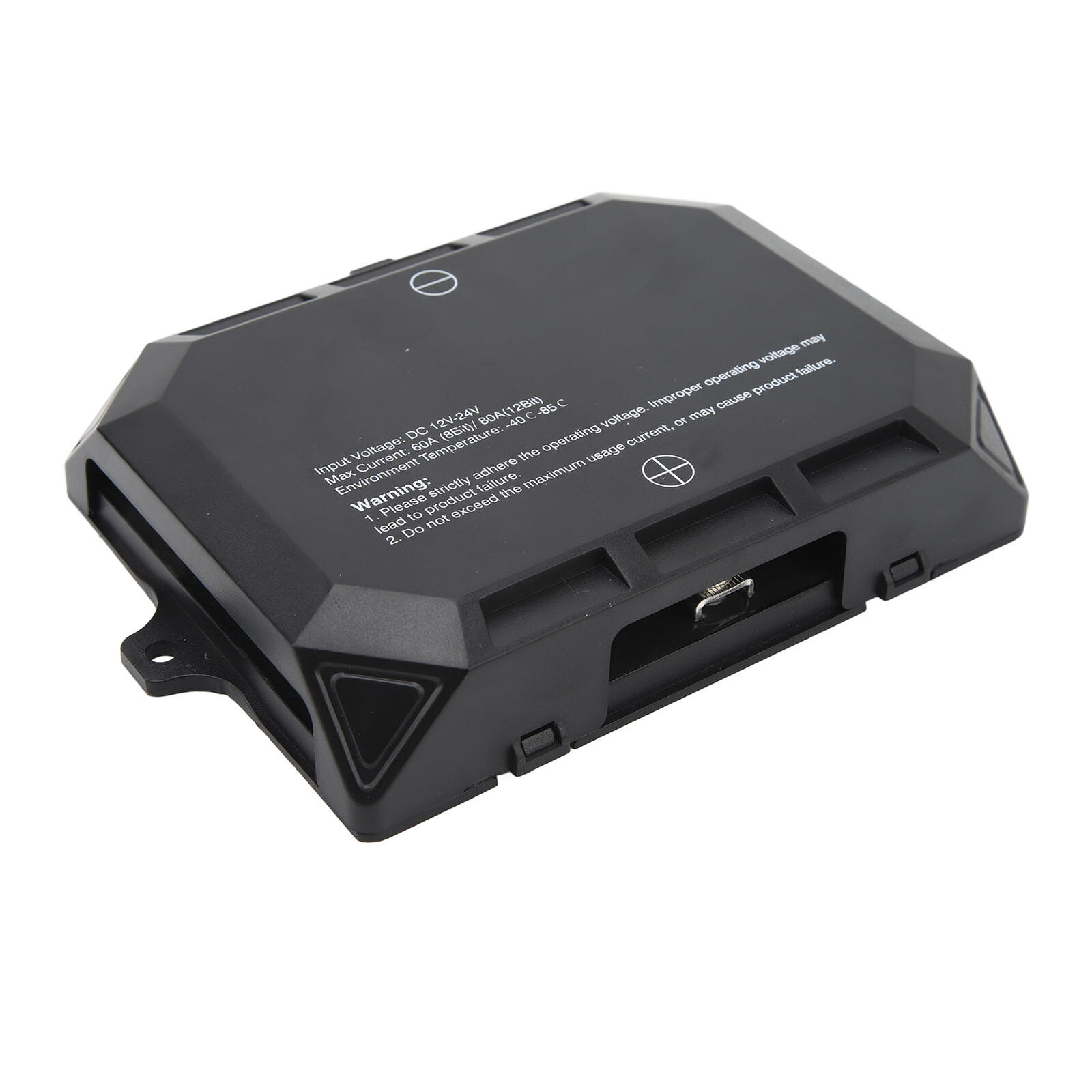

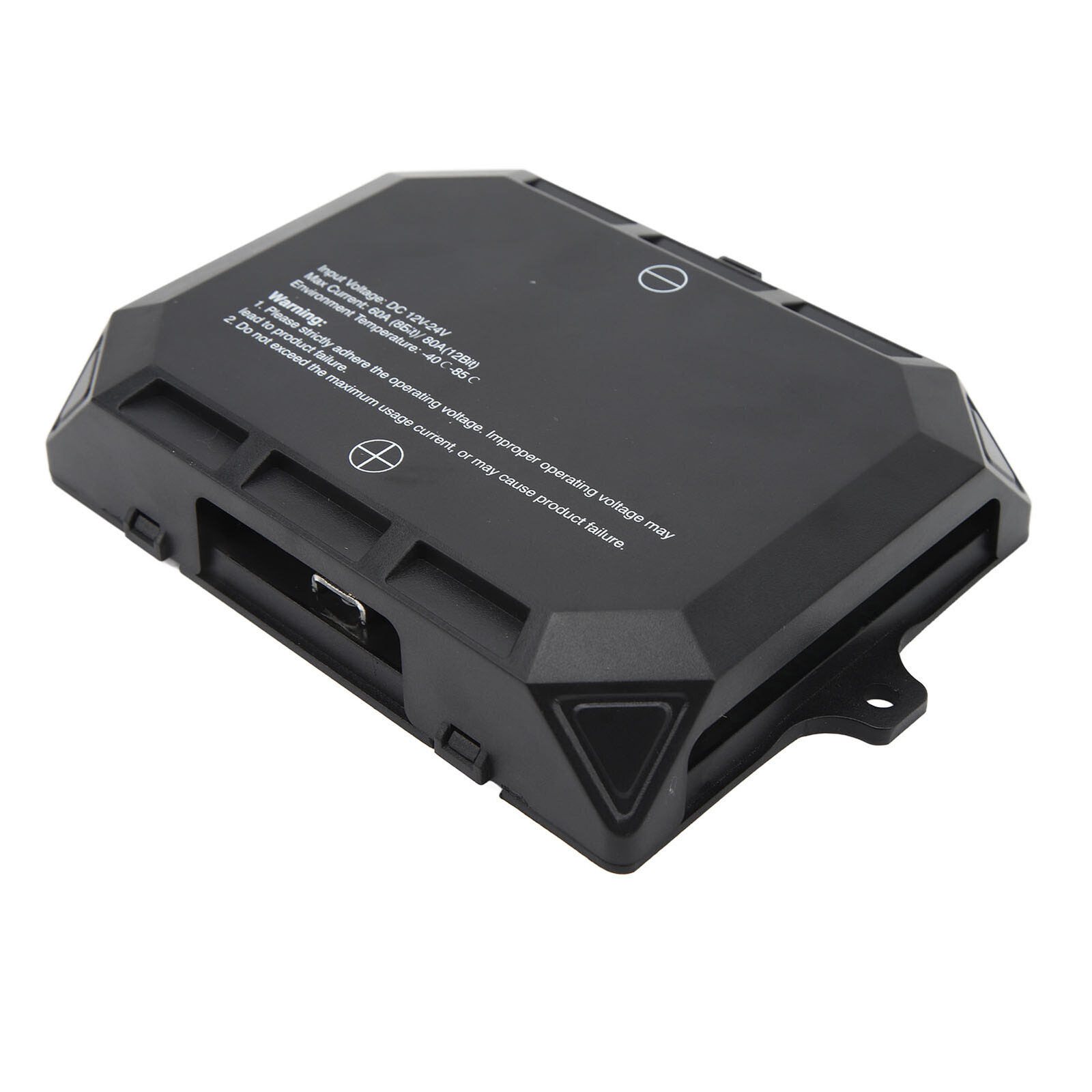

3. Long Lifespan: The plastic housing is designed with space on both sides to help expel heat and keep the controller working efficiently, with a lifespan of up to 30,000 hours.
4. ON OFF Button: A red button is designed on the left side of the switch panel to open and close the system with one key; Take the unexpected in stride.

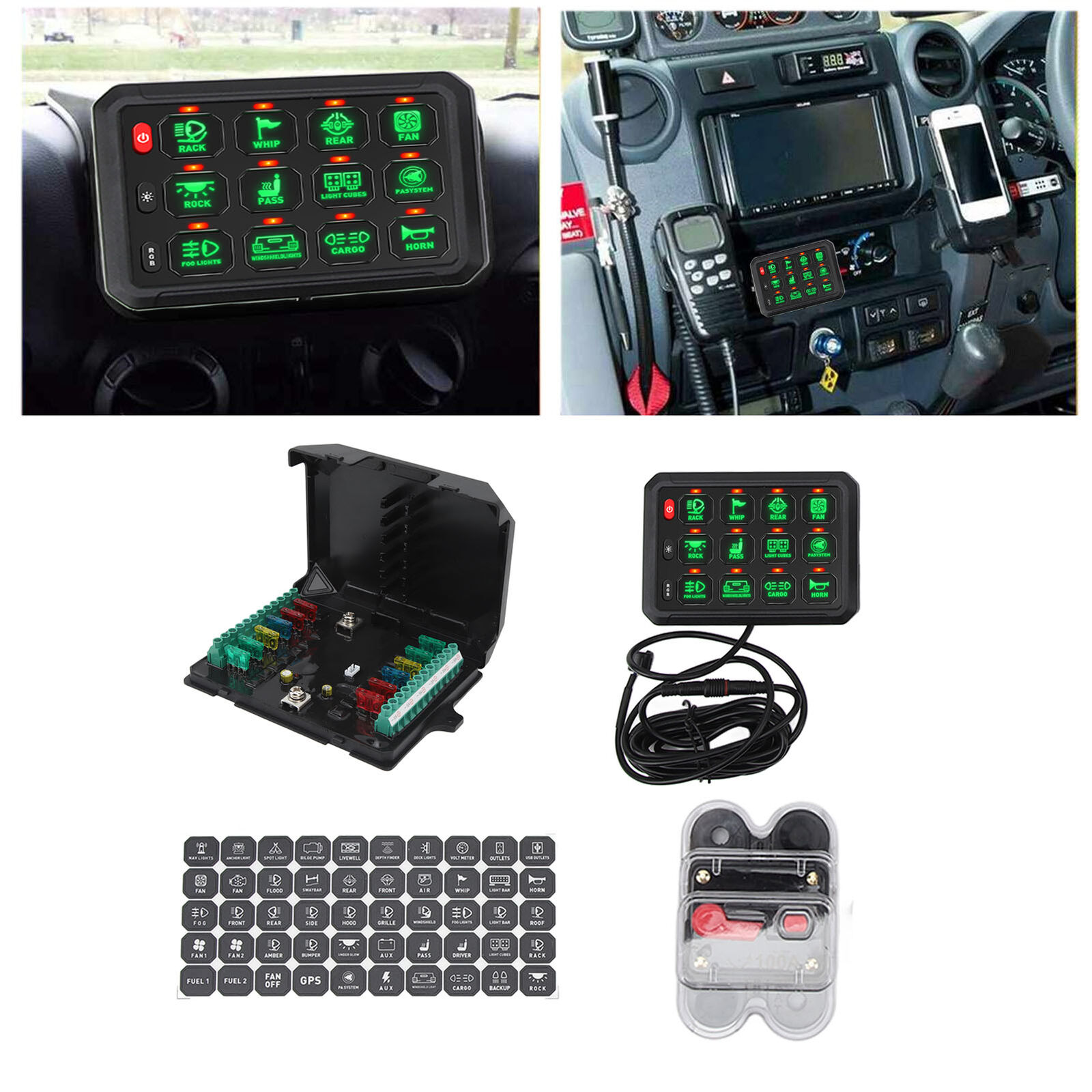

5. Versatile Compatibility: This switch panel is small enough to fit on dashboards, center consoles, and even sun visors, perfect choice for trucks, boats, SUVs, ATVs, cars and more.
Specification:
Item Type: 12 Gang Switch Panel
Material: Plastic + Metal
Backlight: RGB Style
Light Source Type: LED
Protection Class: IP65
DC Voltage: 12V-24V DC
Maximum Current: 85A
Power: 960W/12V, 1920W/24V
Operating Temperature: - 40 ℃ - + 85 ℃
Applicable: Such as trucks, ships, offroad, power sports, ships, atv, utv, suv, cars, buses, heavy duty vehicle etc.
RGB Function Introduction:
Switch: Switch with memory function, automatically remember the last setting
Backlight brightness adjustment
Short press: 5 levels of brightness adjustment (, 75%, 50%, 25%, 10%). With each press, the brightness switches to a different .
Long press: to enter setting mode, choose between momentary mode and strobe mode. Long press again to exit setting mode.
Backlight color adjustment
Short press: switch to single color (loops from 1-8 in order)
1. Red 2. Orange 3. Yellow 4. Green 5. Cyan 6. Blue 7. Purple 8. White
Long press: gradual change, jump, breath switch (cycle 9-11 in sequence)
9. gradual change: red orange yellow green cyan blue violet
10. Jump: red orange yellow green cyan purple
11. Breathing: Red Orange Yellow Green Blue Blue Purple
3 lighting modes
Constant light, instantaneous mode, strobo mode, adjust at will
Step 1: Press and hold the brightness adjustment button for 1 second. When the red backlight flashes, enter the momentary setting state
Step 2: Press the button you want to set (the instantaneous mode can be selected between 12 buttons), then press the ON OFF button to confirm, and the setting is successful.
Step 3: Press the ON OFF button again to exit the setup mode.
Strobe mode
Step 1: Press and hold the brightness adjustment button for 1 second, and the red backlight will flash (Note: This is the instantaneous setting state, please refer to the specific steps).
Step 2: Then short press the brightness adjustment button, and when the blue backlight flashes, enter the strobo setting state.
Step 3: Press the button you want to set (the strobe mode can be selected among 12 buttons), and then press the ON OFF button to confirm, the setting is successful at this time.
Step 4: Press the ON OFF button again to exit the setup mode.

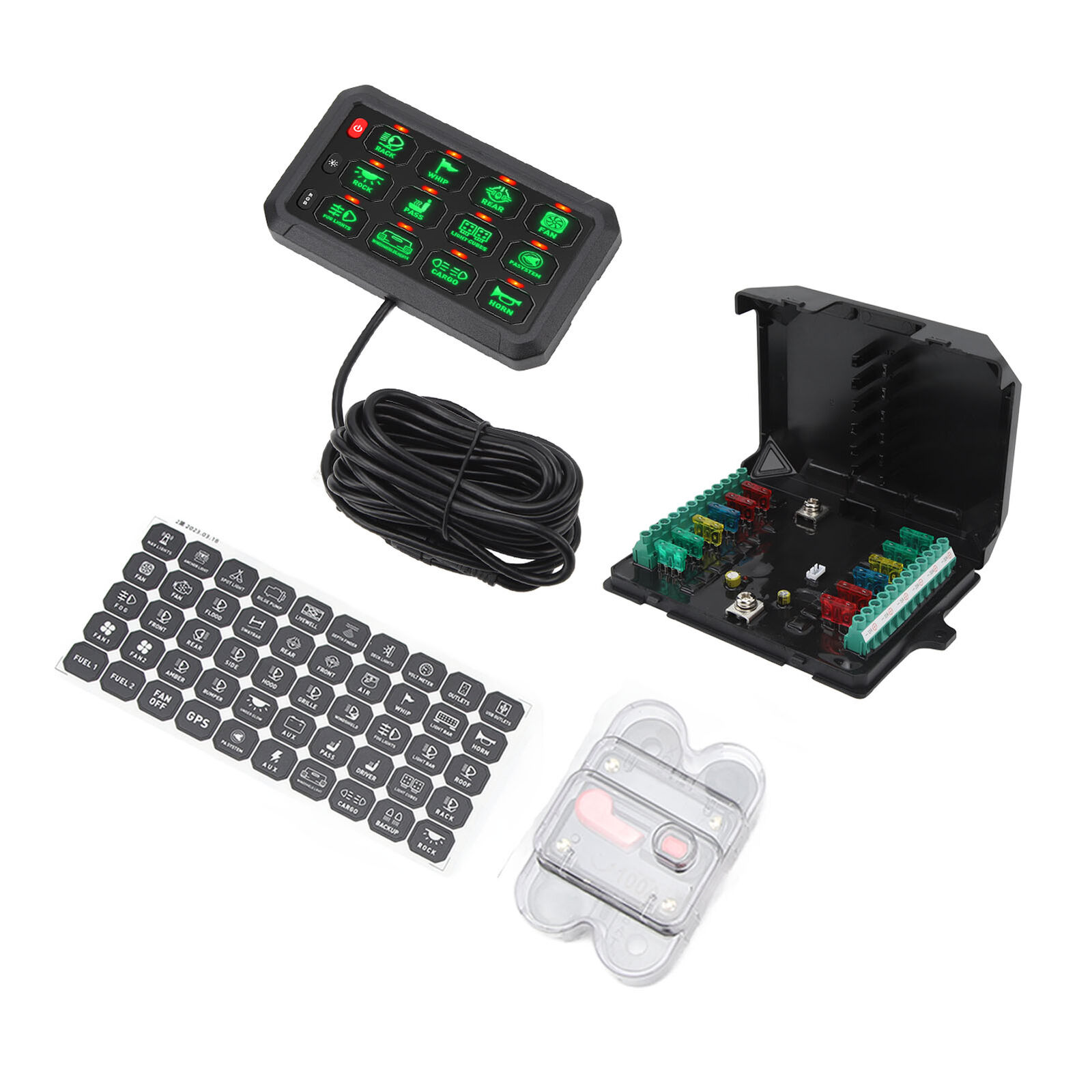

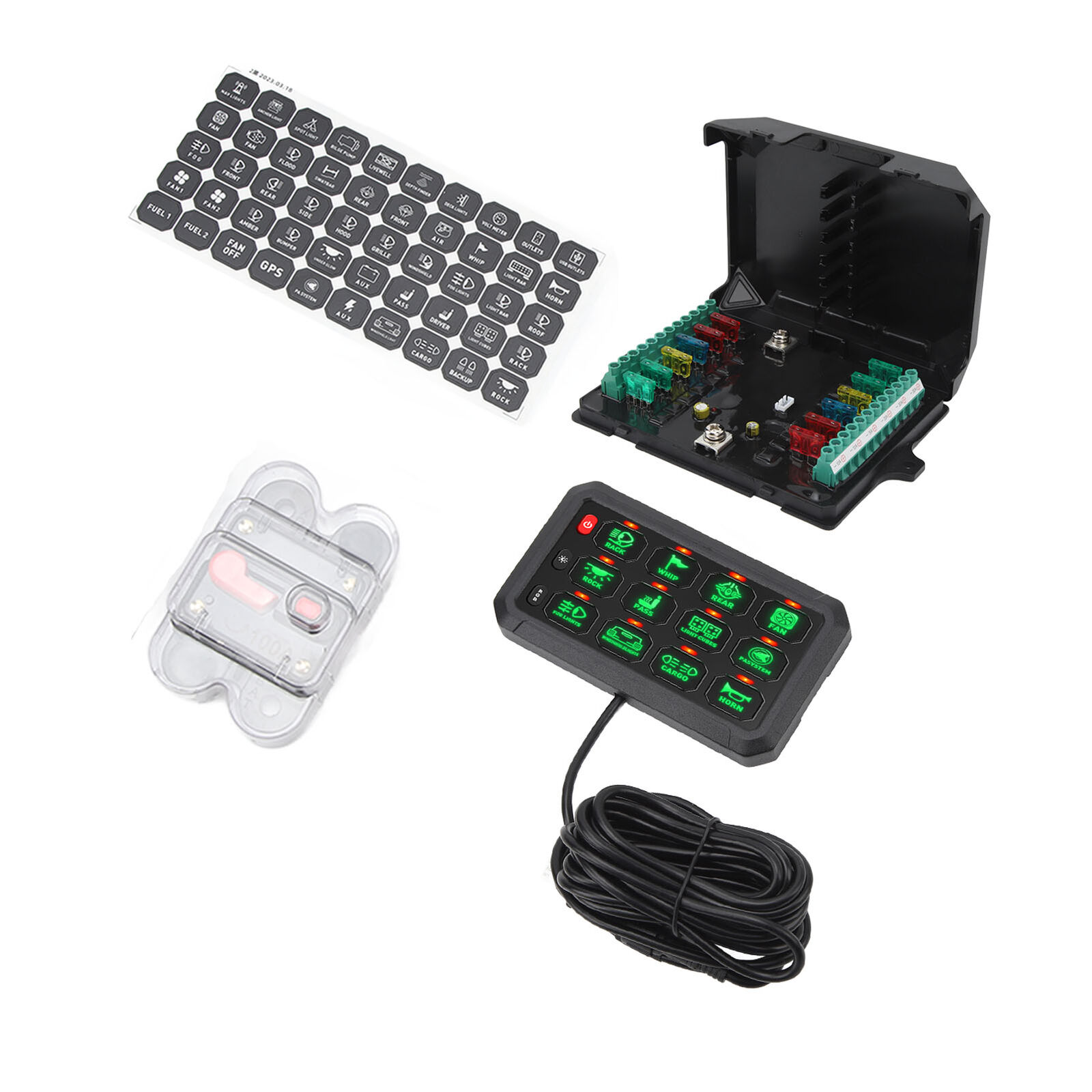

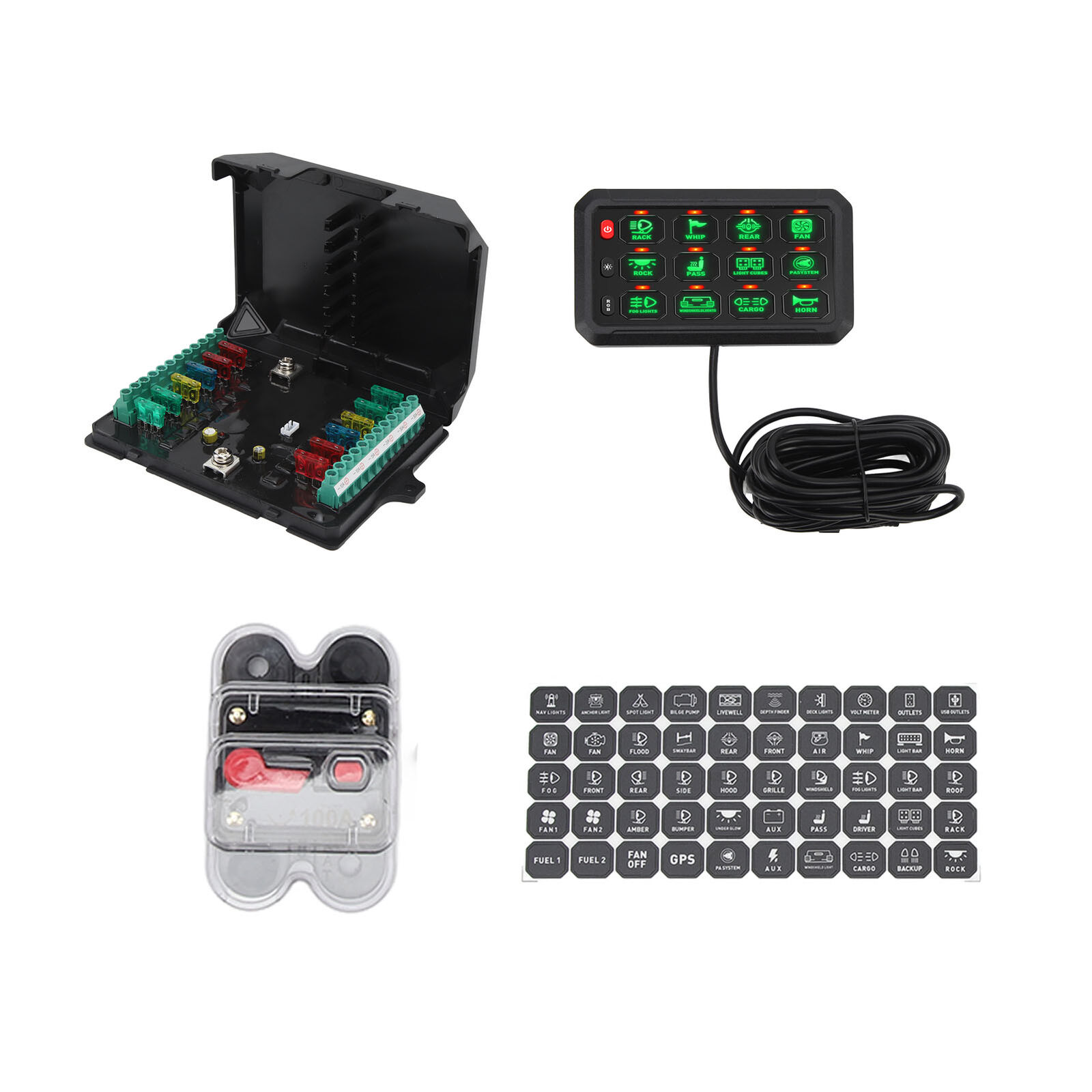

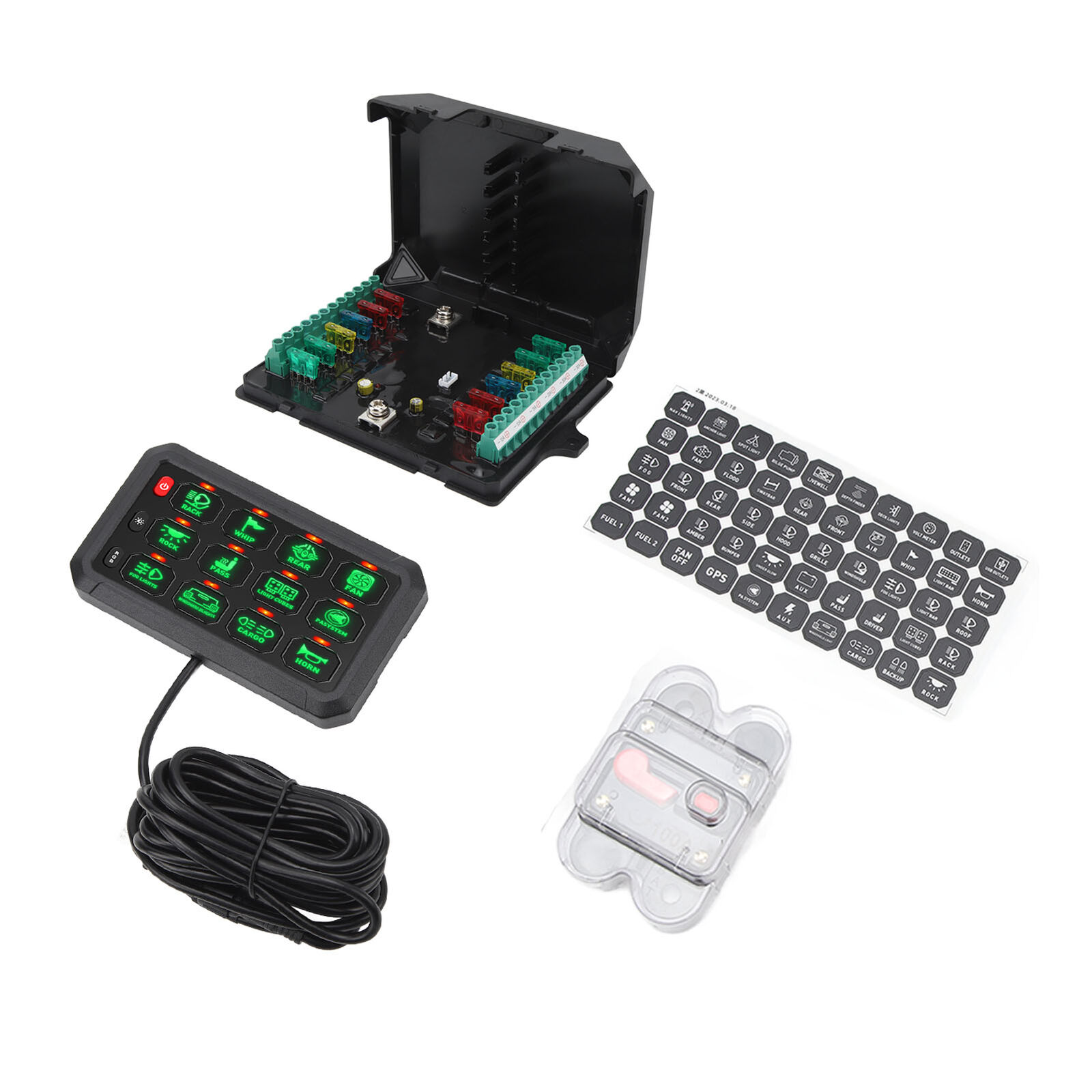

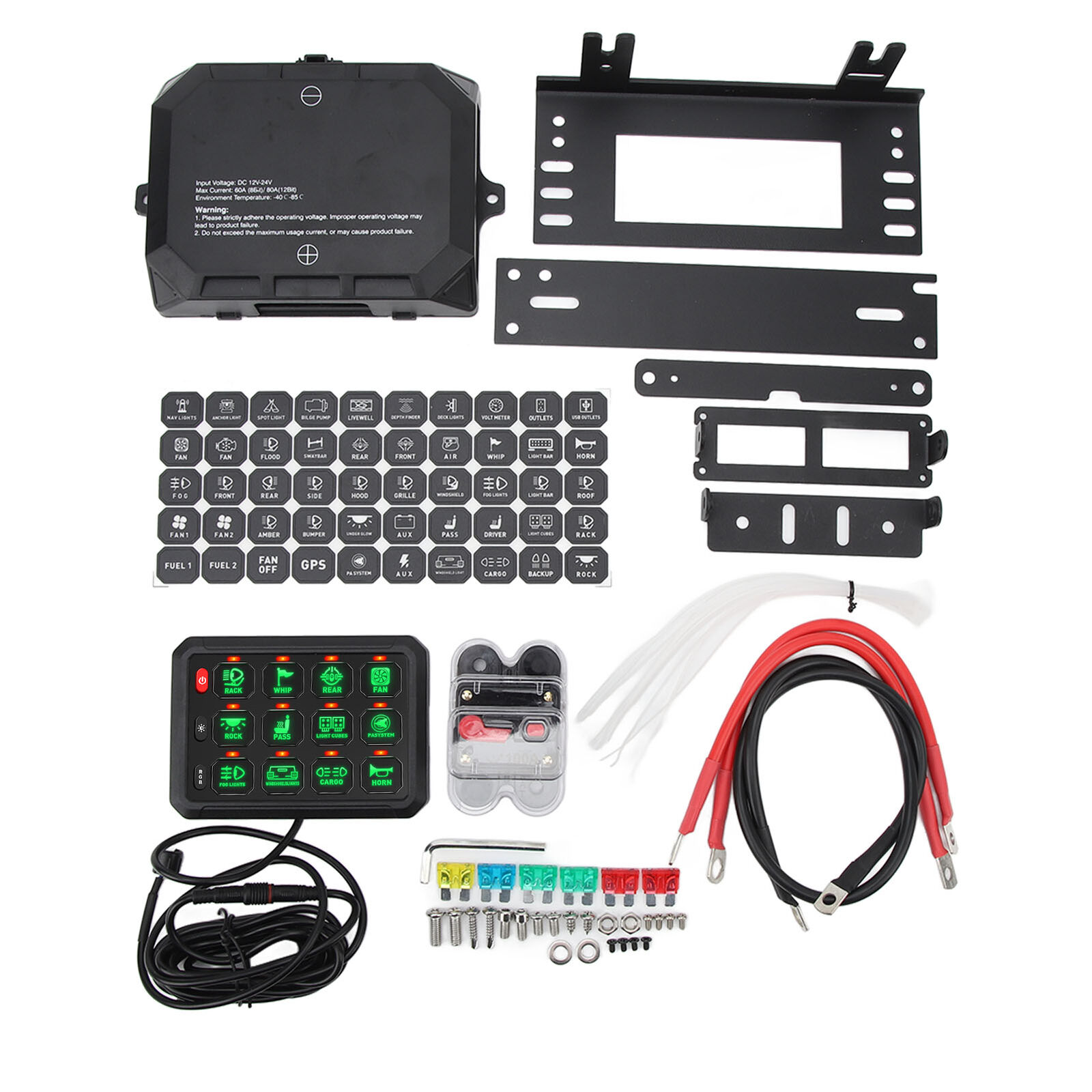

Package List:

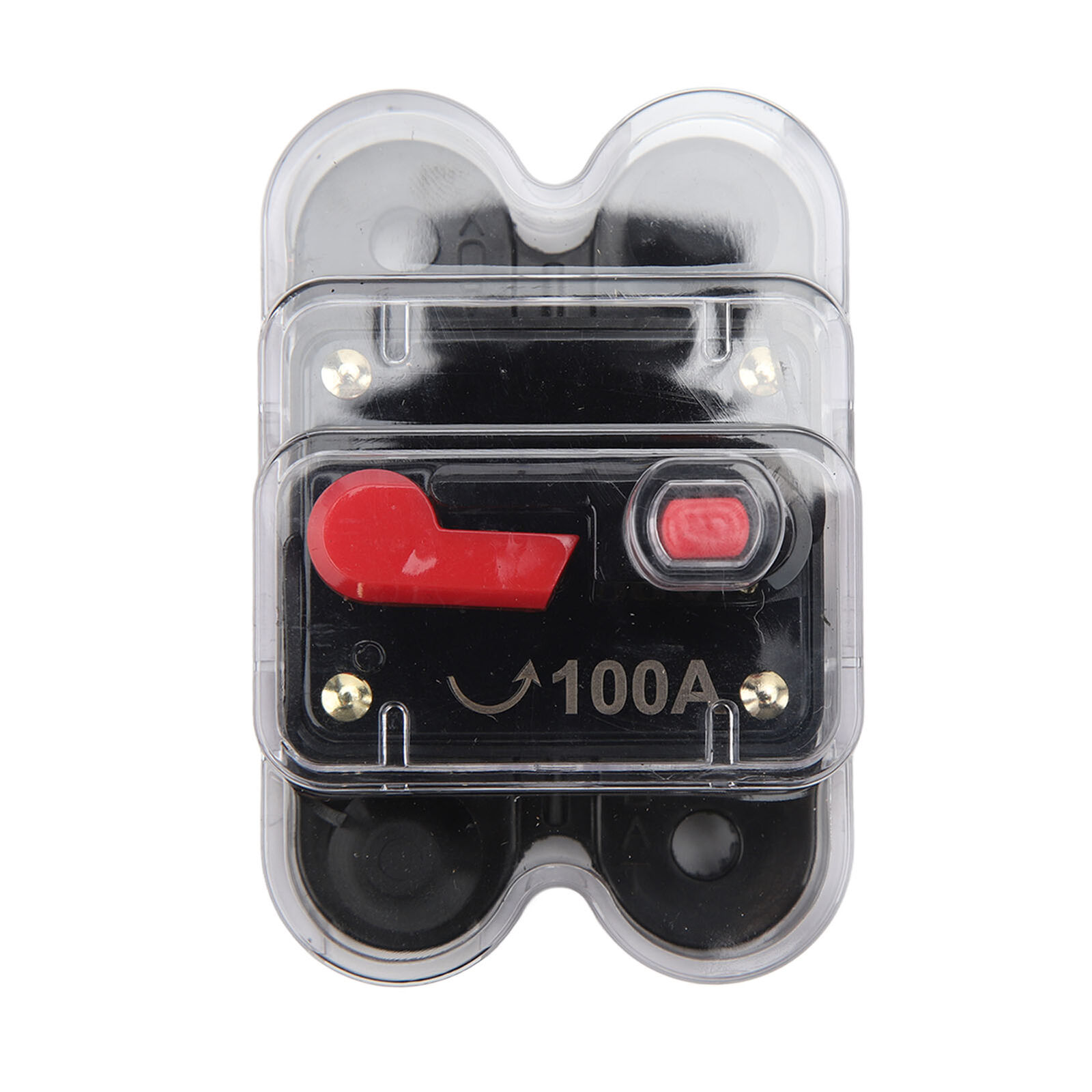

1 x 12 Gang Switch Panel1 x Circuit Breaker
1 x Reset Switch
10 x Cable Ties
1 x Manual
3 x Wiring Harness

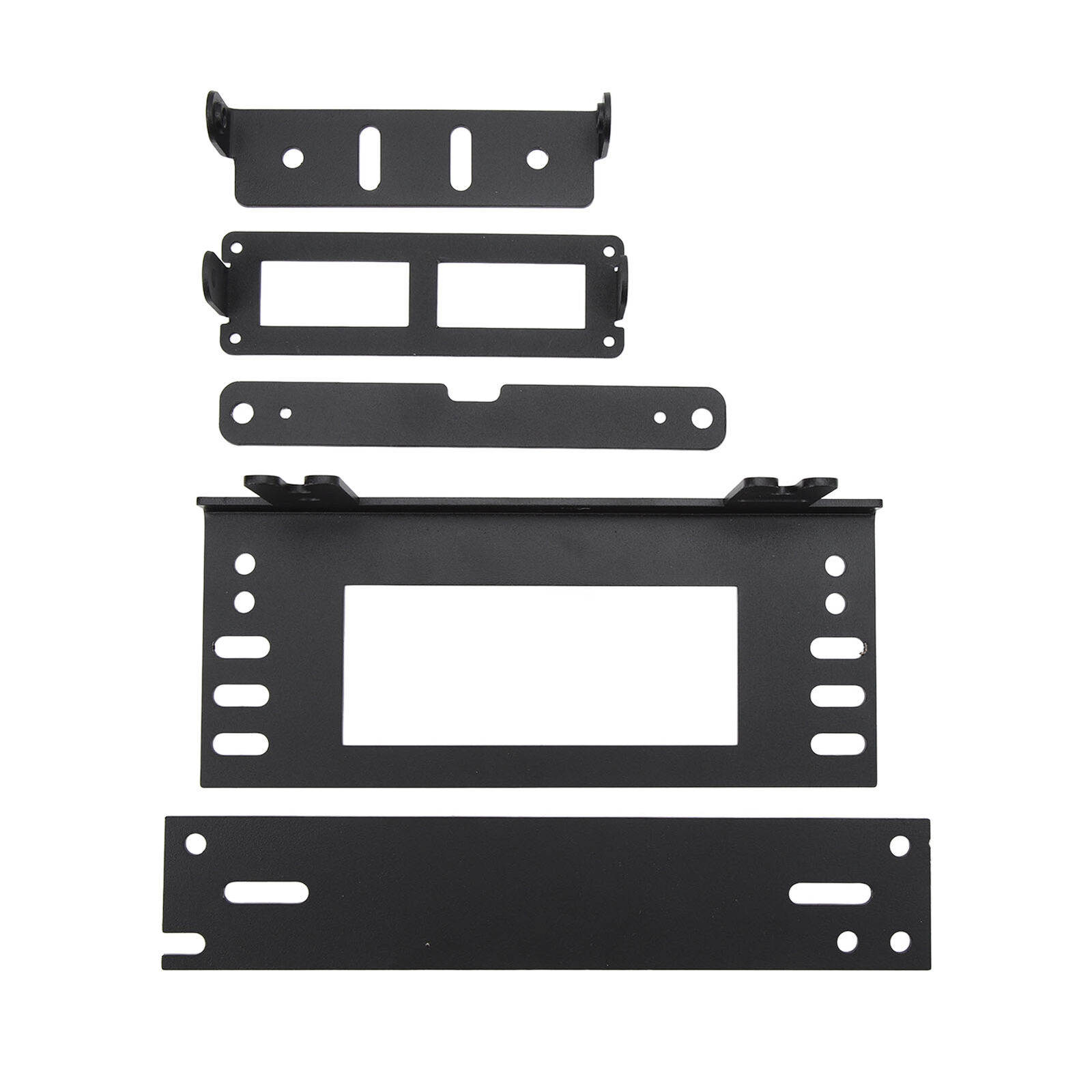

5 x Bracket
1 x Function Sticker
1 x Pack of Accessories (29PCS)
