Package include:

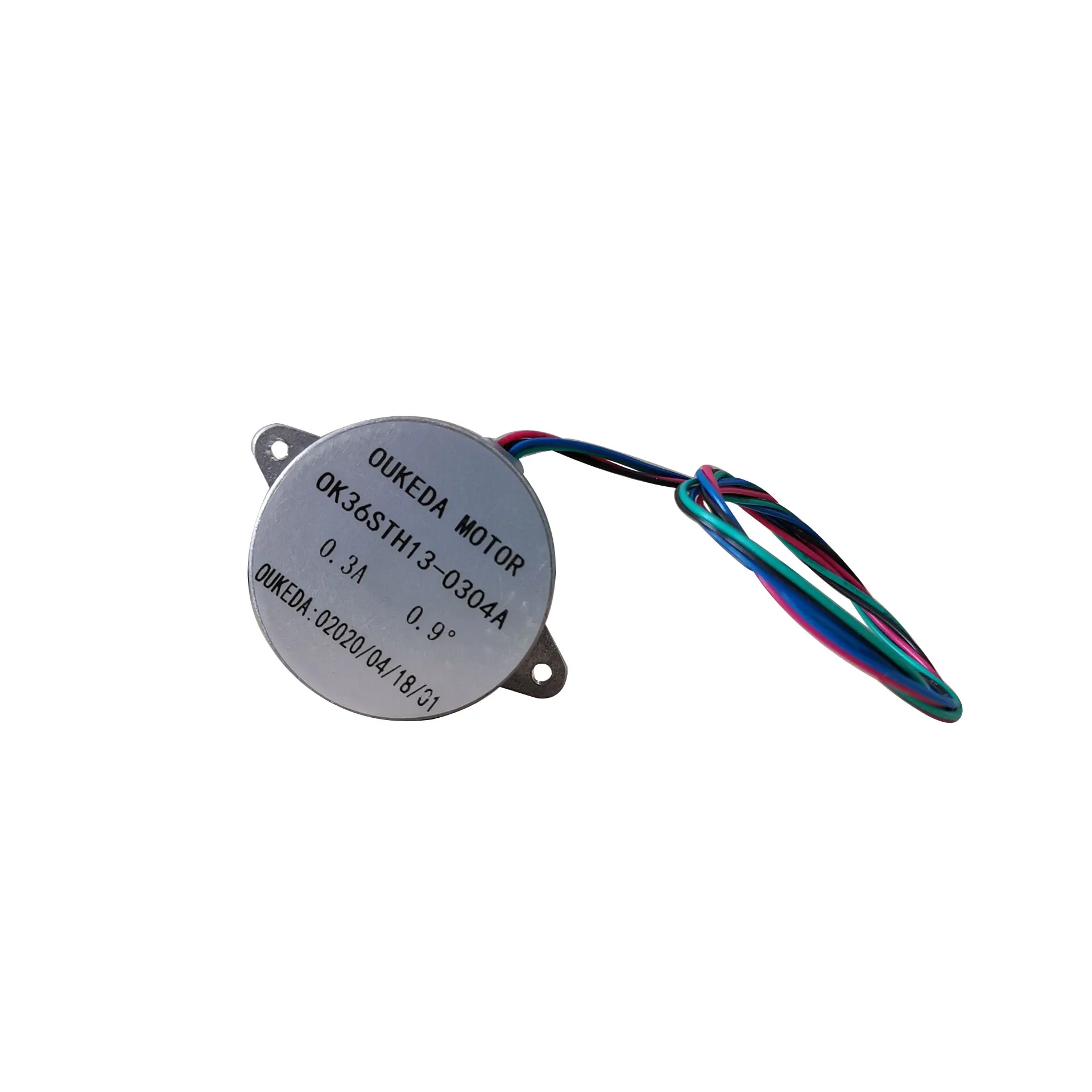

1 x Nema 14 stepper motor with wire.


Package description:


This round size hybrid bipolar Nema 14 stepper motor has a 0.9° step angle (400 steps/revolution).

Draws 500 mA at 8.5 V per phase, allowing 7 Ncm (10.5 oz).



Electrical Specifications:


* Motor Type: Bipolar Stepper

* Stride angle: 0.9°

* Bearing torque: 7Ncm (10.8 oz)

* Rated current/phase: 0.5A

* Phase resistance: 17ohms

* Recommended voltage: 12-24V

* Inductance: 7.5mH±20%( %) 1KHz) Physical Specifications

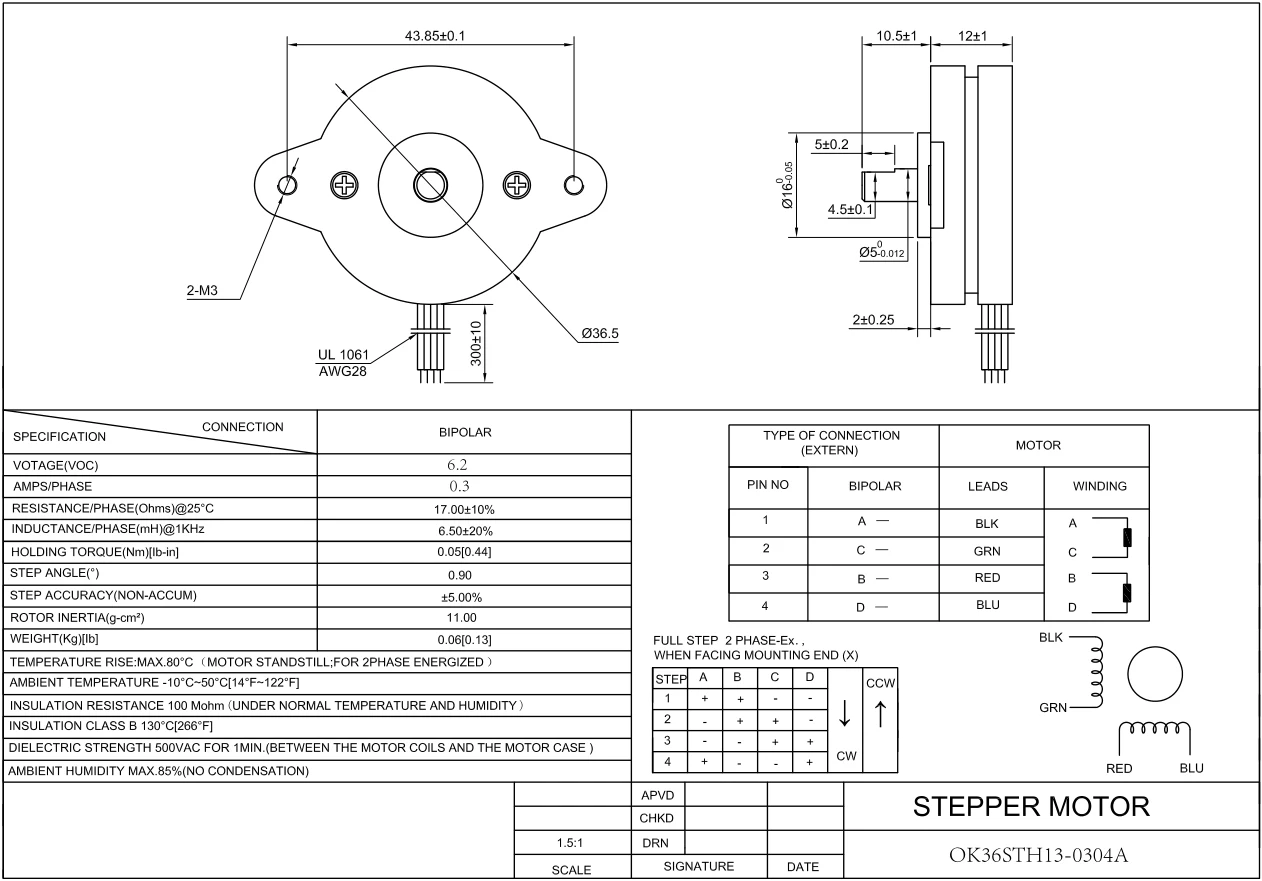

*Frame size:Φ36mm

* Body length: 12.5mm

* Shaft diameter:Φ5mm

* Shaft length: 10.5mm

* D type cutting length: 5mm

* Number of wires: 4

* Wire length: 300mm

* Weight: 50g


Connections: Black (A+), Green (A-), Red (B+), Blue (B-)


Warning: Before testing the motor, make sure the motor is connected to a constant current or chopper drive controller. Connecting the motor directly to the power supply will destroy the motor.
