Package include:
1 Set of Vise Clamp

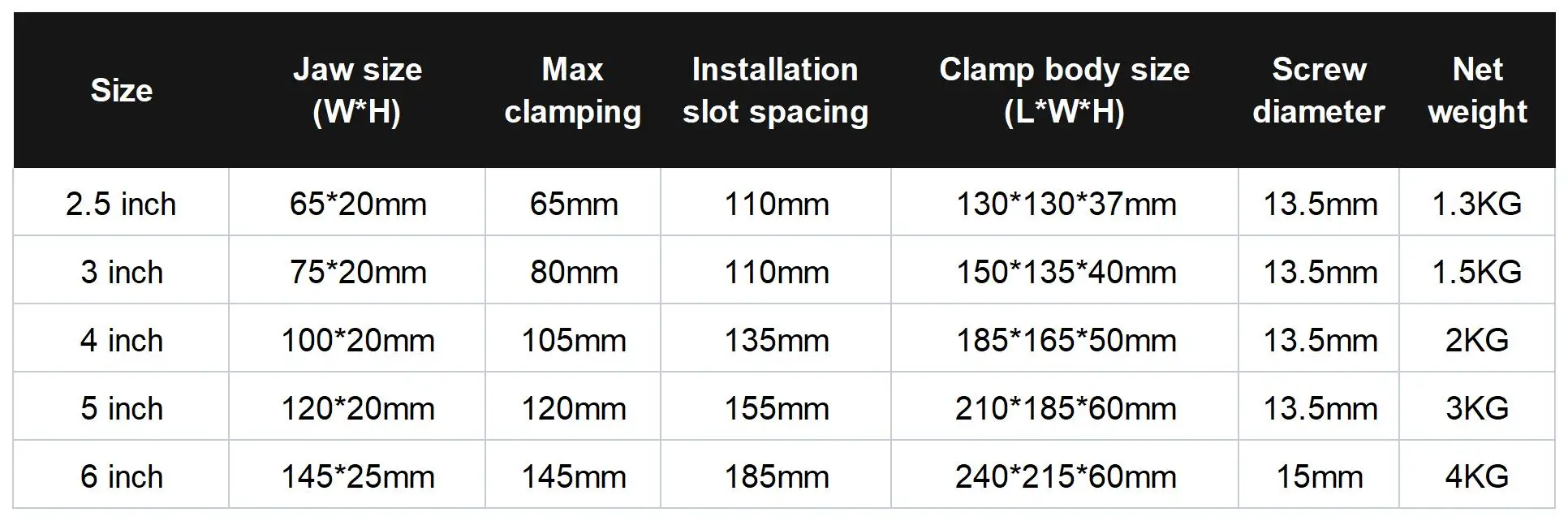

Size | Jaw size | Max clamping | Installation slot spacing | Clamp body size | Screw diameter | Net weight |
2.5 inch | 65*20mm | 65mm | 110mm | 130*130*37mm | 13.5mm | 1.3KG |
3 inch | 75*20mm | 80mm | 110mm | 150*135*40mm | 13.5mm | 1.5KG |
4 inch | 100*20mm | 105mm | 135mm | 185*165*50mm | 13.5mm | 2KG |
5 inch | 120*20mm | 120mm | 155mm | 210*185*60mm | 13.5mm | 3KG |
6 inch | 145*25mm | 145mm | 185mm | 240*215*60mm | 15mm | 4KG |

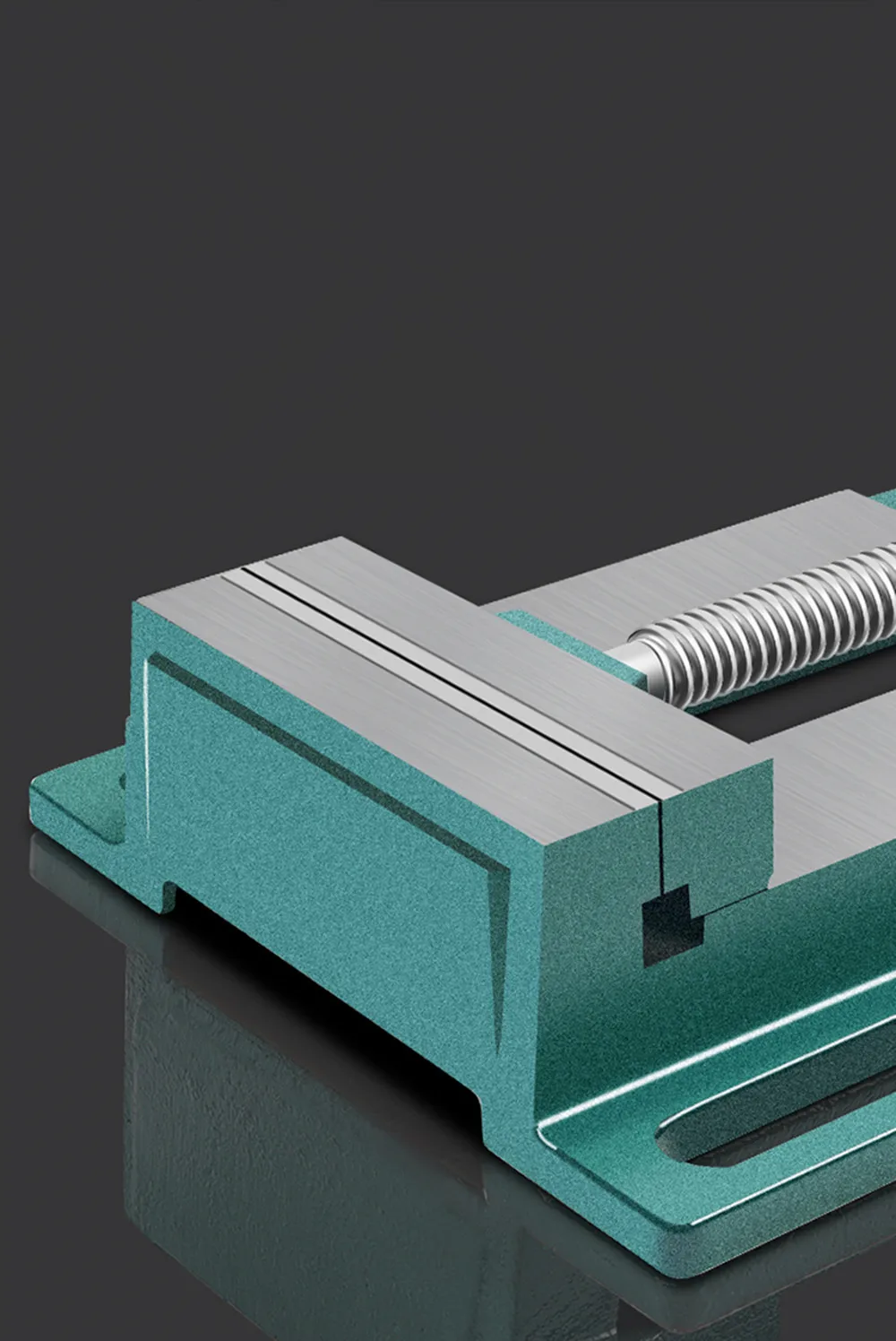

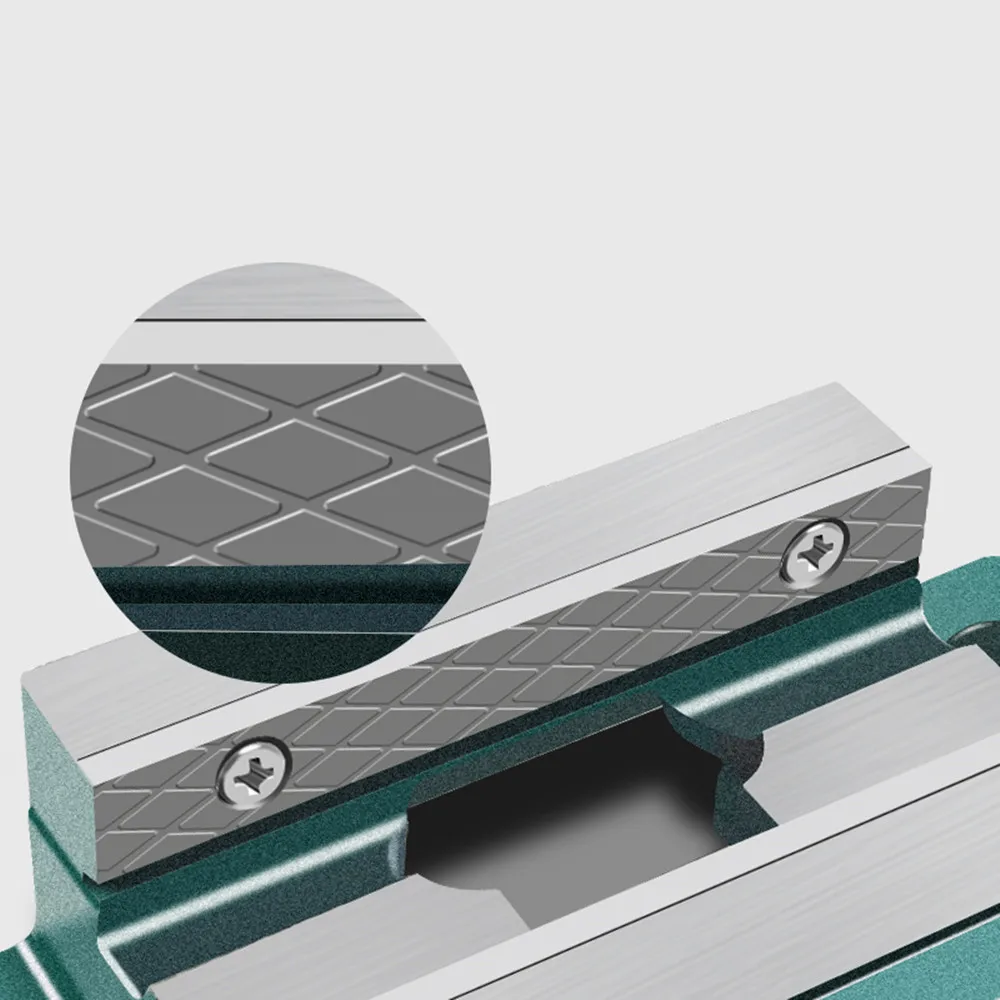

Vise jaws are heightened and widened for more clamping force in order to keep workpiece more stable during machining.

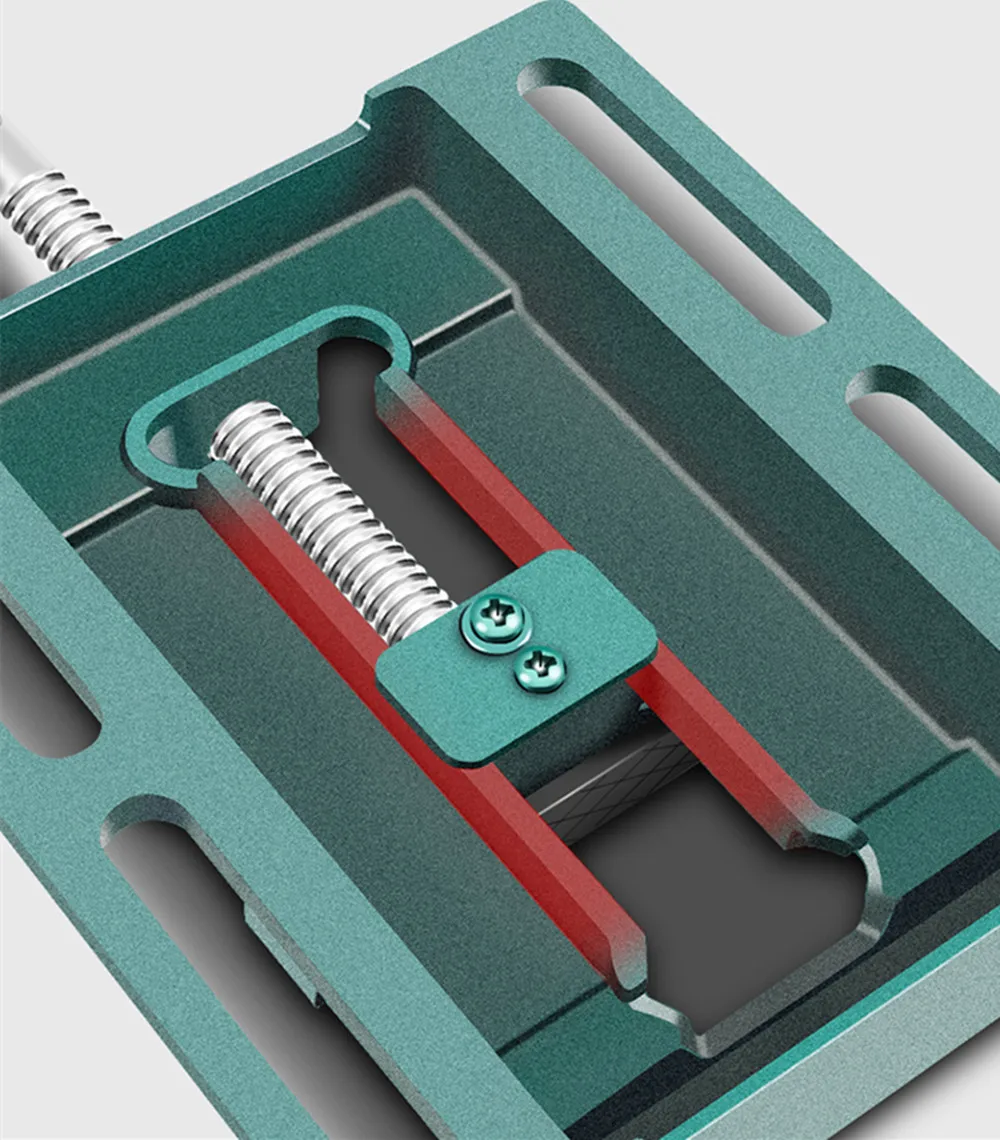

The guiding design for the rod ensures a steady, smooth movement of jaw without deviation.
The vise body is made from heavy duty cast iron for high hardness and durability.
The bottom is finely processed which has improved the precision of the contact surface between vise and machine, to ensure the precision of products.
Special surface paint make the vice beautiful, durable and easy to clean dirt and oil.
Usually used in milling machine, drill press and machinery maintenance, etc.
The guiding design for the rod ensures a steady, smooth movement of jaw without deviation.
The vise body is made from heavy duty cast iron for high hardness and durability.
The bottom is finely processed which has improved the precision of the contact surface between vise and machine, to ensure the precision of products.
Special surface paint make the vice beautiful, durable and easy to clean dirt and oil.
Usually used in milling machine, drill press and machinery maintenance, etc.
Specification:
Material: Cast iron(body), 45# steel(jaw)
