MAKA 94A10 Manual Integration Lift Desk Motor Electric Desk Accessories
Specification:

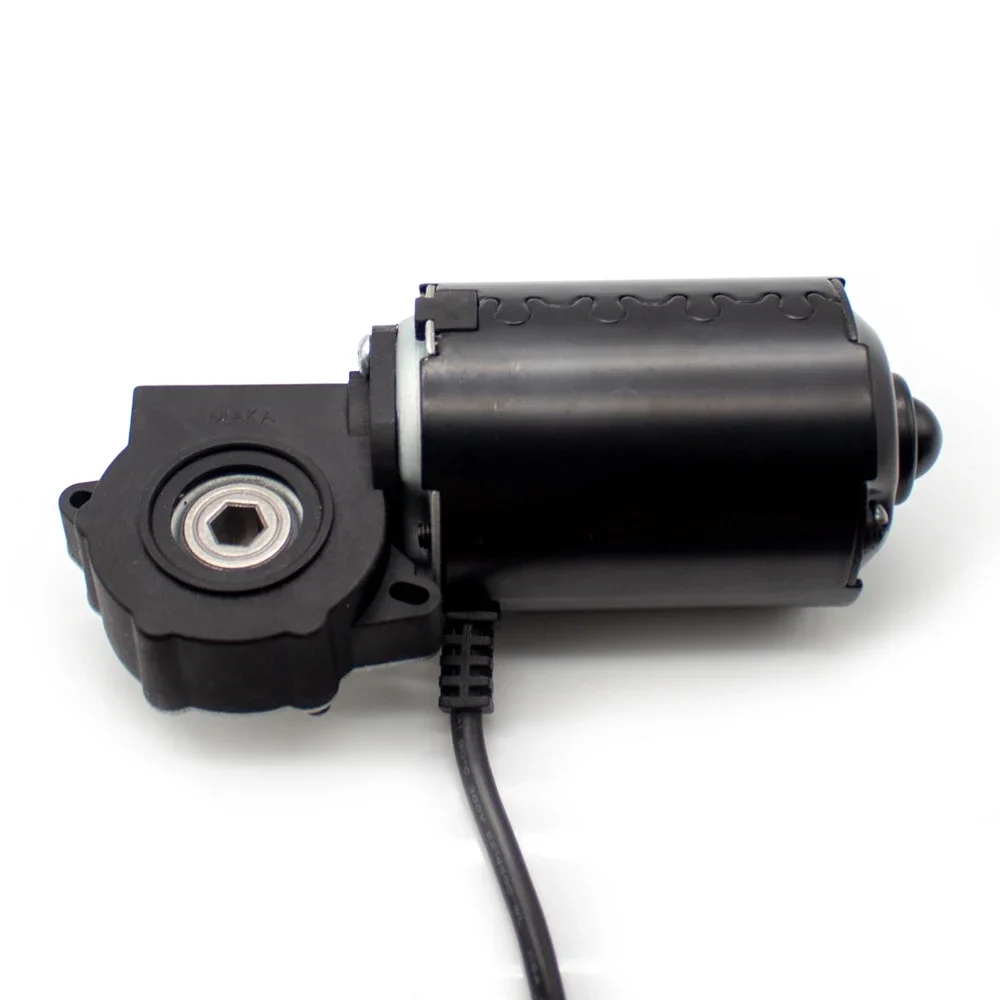

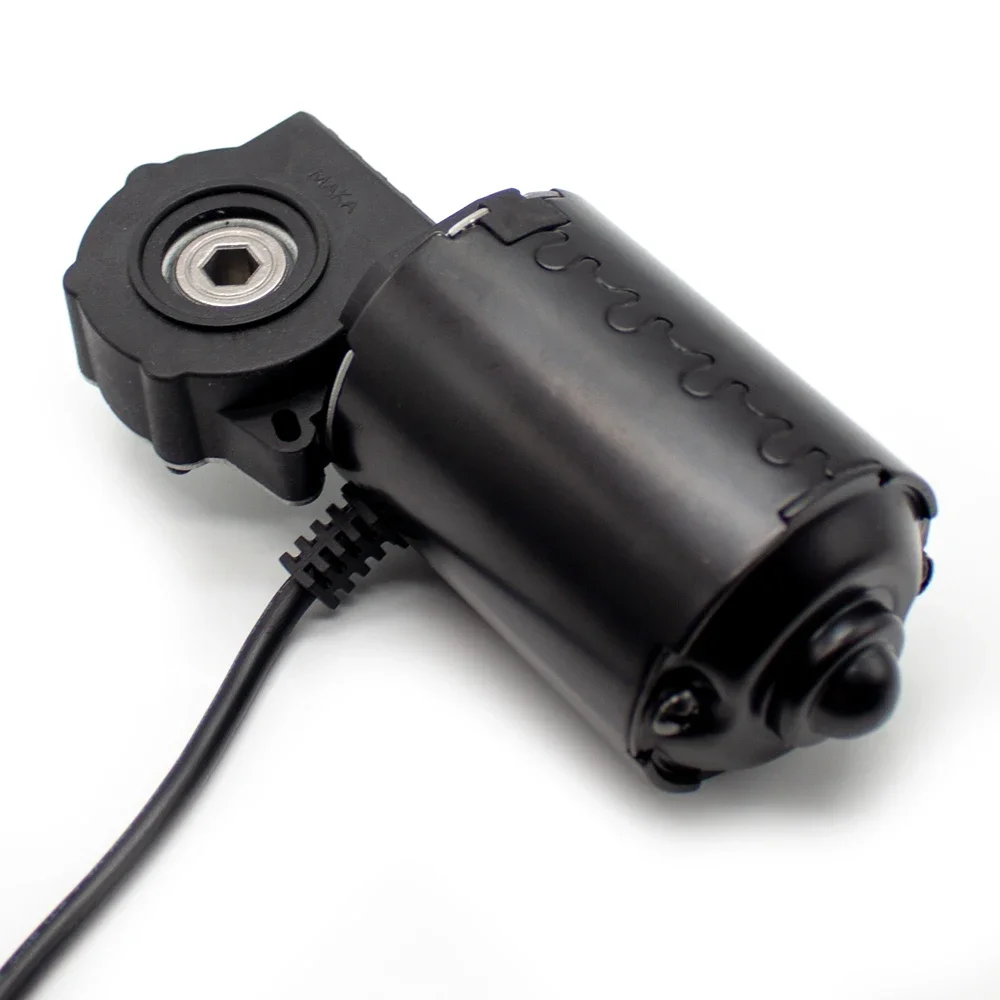

Product name: Electric Lifting Seat Motor
Input Voltage: AC 100-240V
Motor Voltage: DC 24V
Rated current: 0.8A
Rated power: 48W
Rated torque: 5.733NM
Motor turbine reduction ratio：1:39
Length of straight wire: 400MM
Motor bearing: 50KG
No load speed: 95RPM
Hexagonal Hole Size: 6MM/8MM Optional

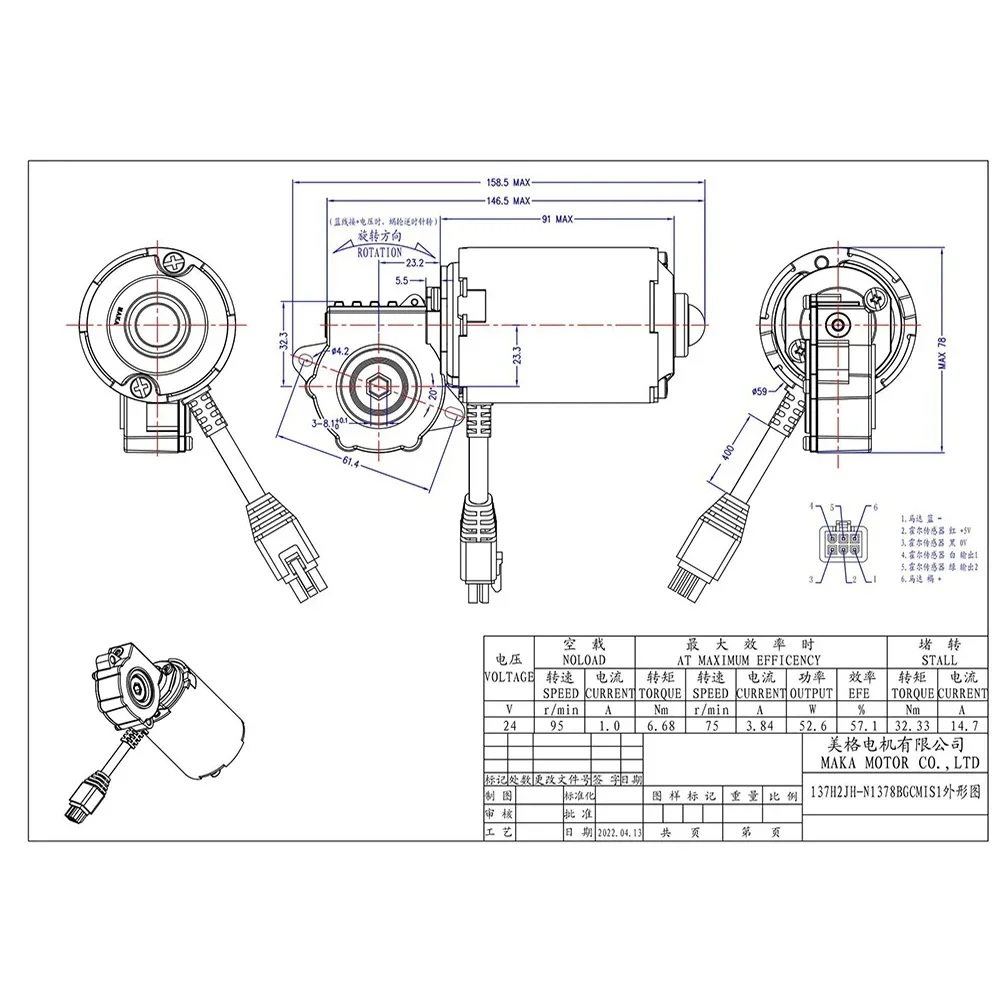

Overall dimension: 78x156MM

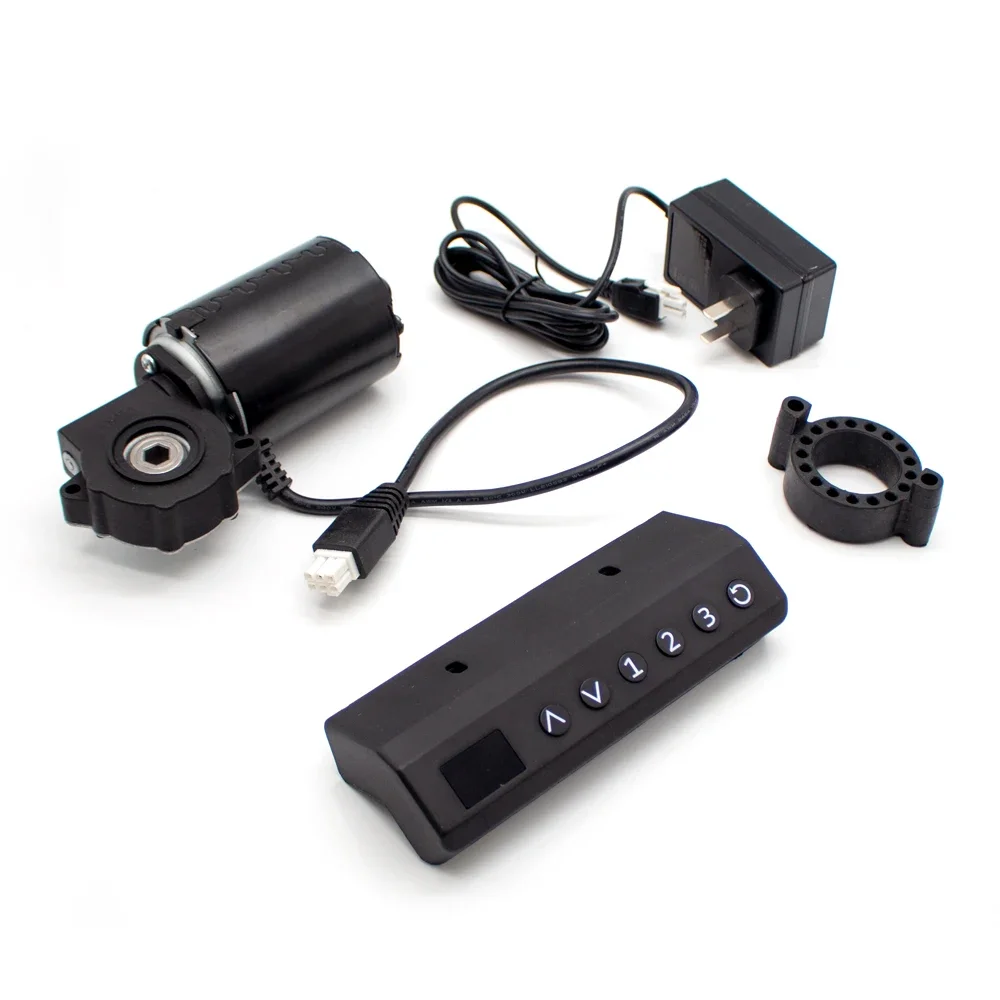

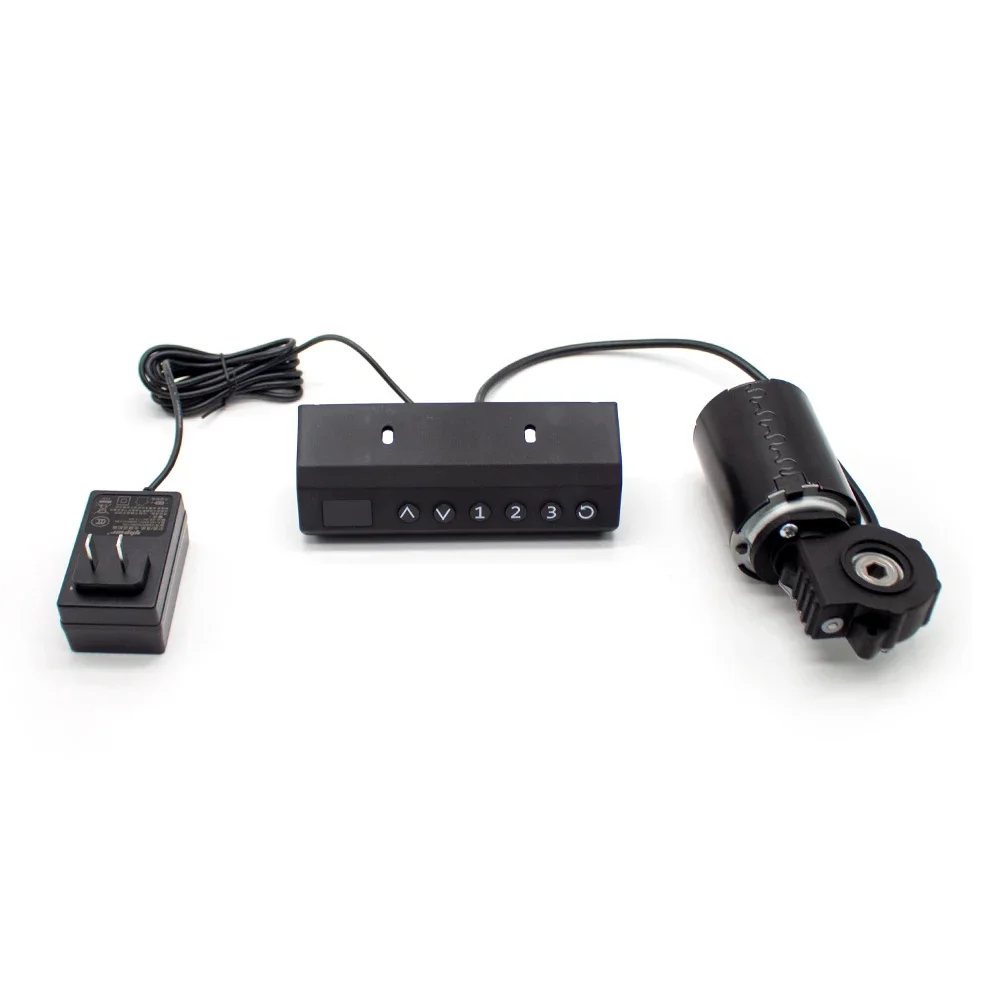

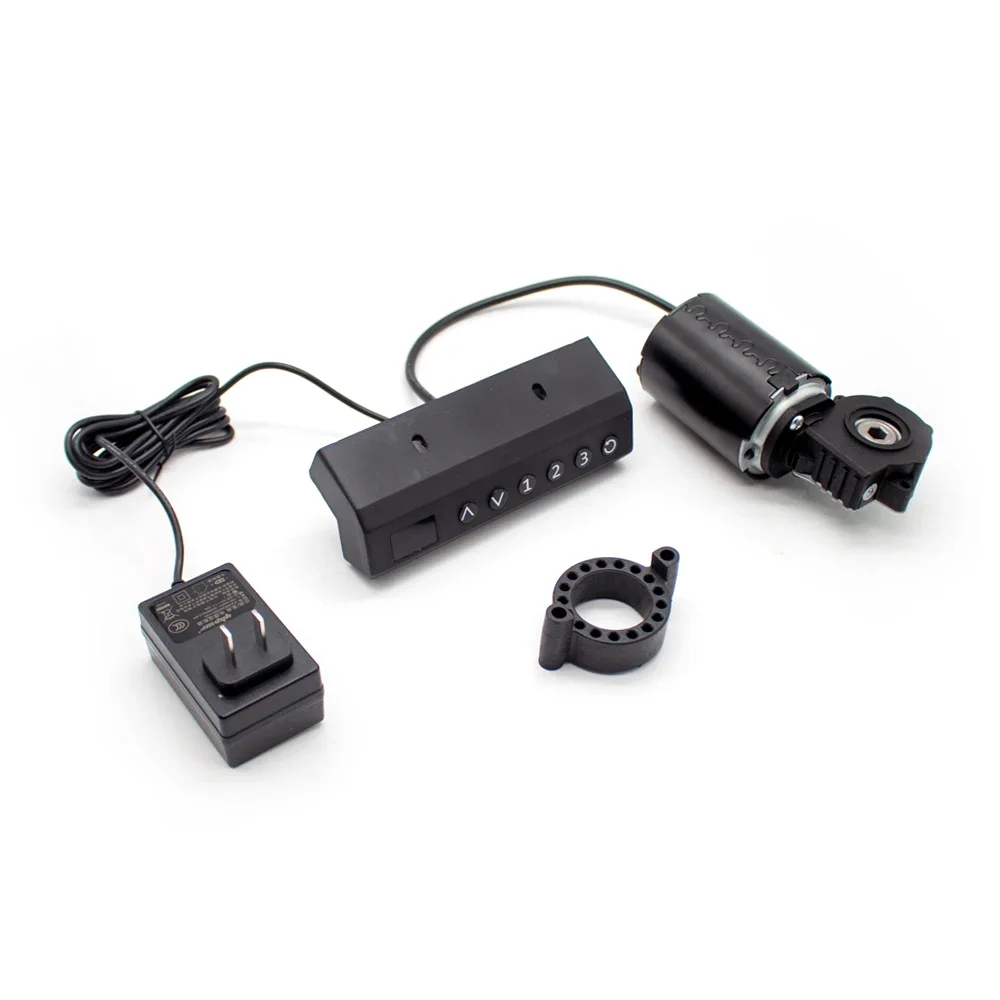

Package Included:

1 x 137H Motor
1 x Six-Button Manual Control
1 x Power Adapter
1 x Rubber mounting bracket

Note:

Question:
If the set stroke does not match the actual stroke, how to adjust it?
Answer:
Display content: H00
Digital range: 40-99
Setting parameters: Base height
Description: Indicates the lowest display height---the lowest display height of the table

Display content: N00
Digital range: 30-99
Setting parameters: Table travel
Description: The height to which the table can be raised and lowered, the length to which the table column can be extended, this value determines the maximum height of the table, and the maximum height display is h00+n00

Display content: L00
Digital range: 3-40
Setting parameters: Screw lead
Description: Indicates the lead-the height of the table when the screw rotates one circle. The lead parameter must be set accurately, otherwise the table travel will be inaccurate
