• All sensors DLVR series is the best airspeed sensor ArduPilot currently support.

Specifications & Features

  • ArduPilot AP_Periph L431/F405/F303 CAN node

  • All sensors DLVR-L10D,  Industrial temperature range

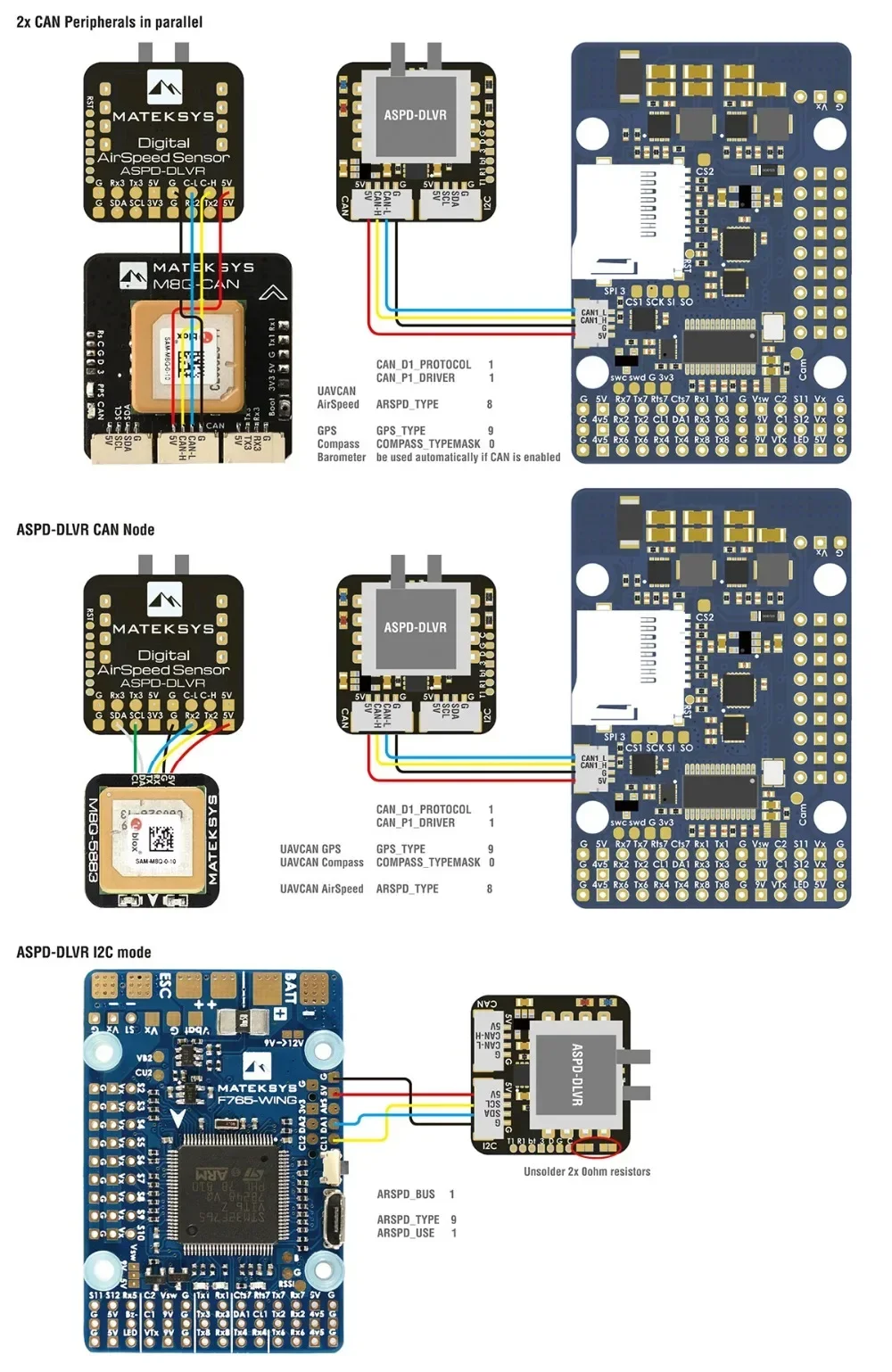

  • CAN  & I2C Interface

  • Typical Platforms: Fixed-Wing, QuadPlane, VTOL

  • CAN JST-GH connector,  DroneCAN Protocol

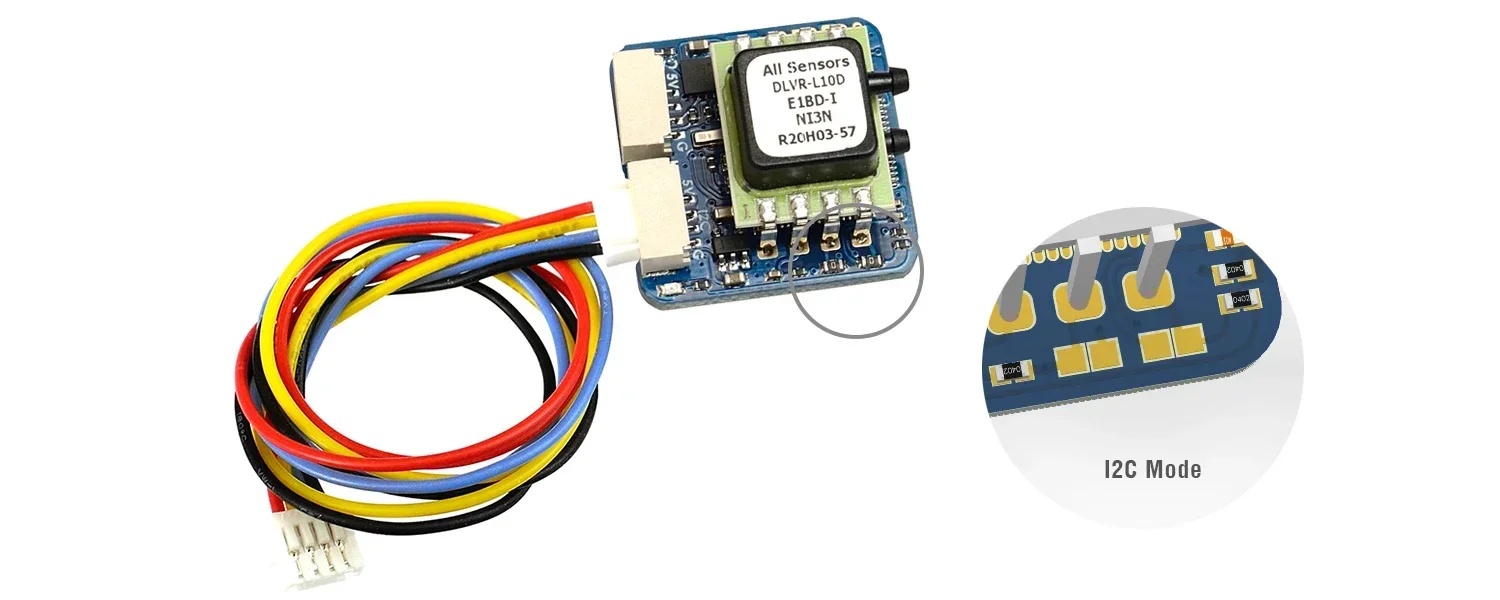

  • I2C JST-GH connector,  DLVR-L10D I2C mode (I2C address 0x28)

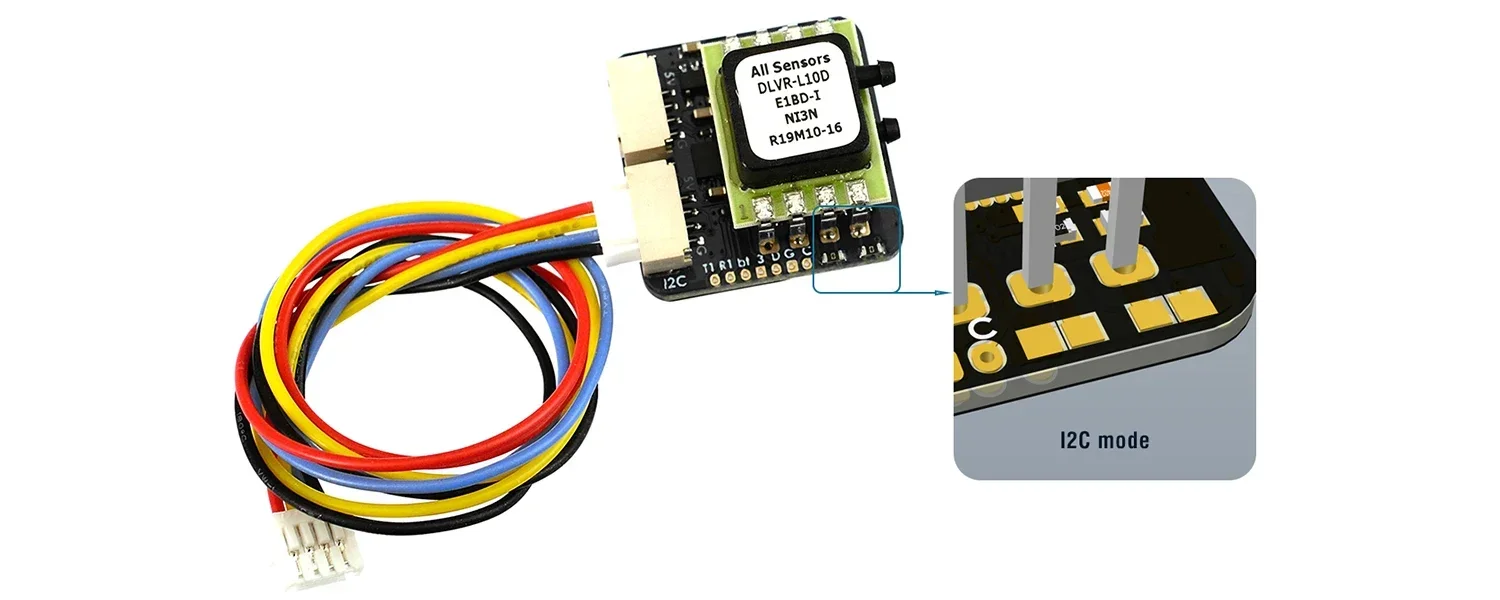

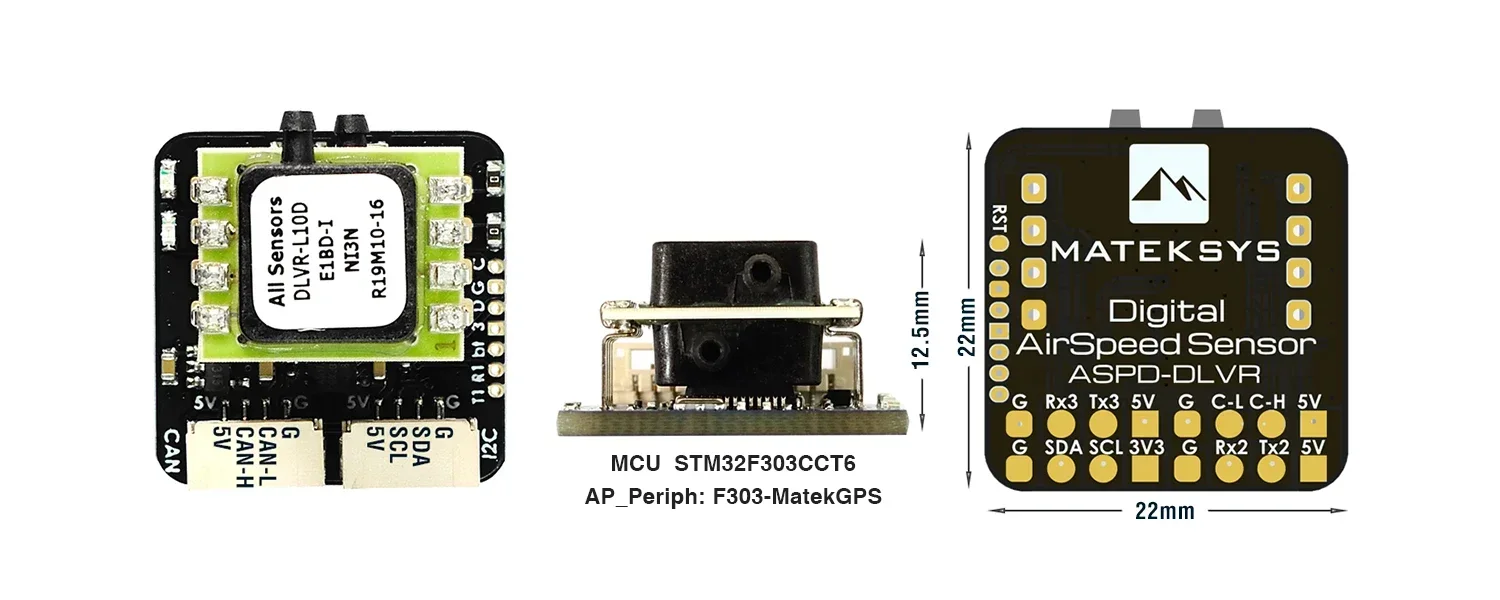

  • F303 ver. (Black PCB)

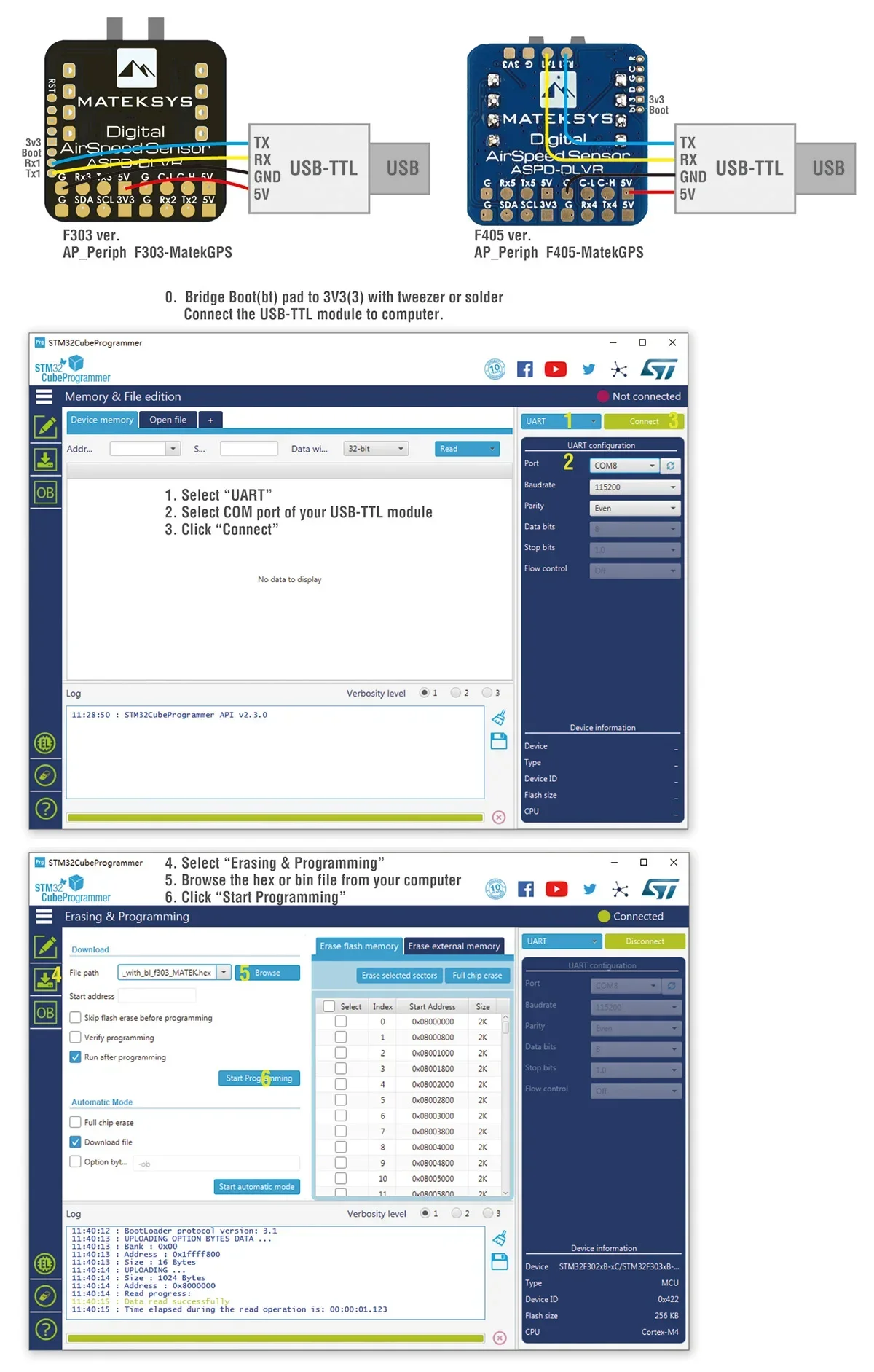

    • UART1, Firmware update

    • UART2, Spare for external GPS

  • F405 ver. (Blue PCB)

    • UART1, Firmware update

    • UART4, Spare for external GPS

  • L431 ver. (Purple PCB)

    • UART2, Firmware update

    • UART3, Spare for external GPS

  • CAN bootloader LED, Blue

    • Fast blinking,  AP_Periph bootloader

    • Slow blinking, CAN Node ready

  • 3.3V Power LED, Red

  • Input voltage range: 4.5~5.5V

  • Power consumption: 60mA

  • Operating Temperatures: -20°C to 85°C

  • Pressure Range:  2500Pa (± 10 inH2O)

  • Burst Pressure: 75kPa

  • Speed Range: ±250 km/h

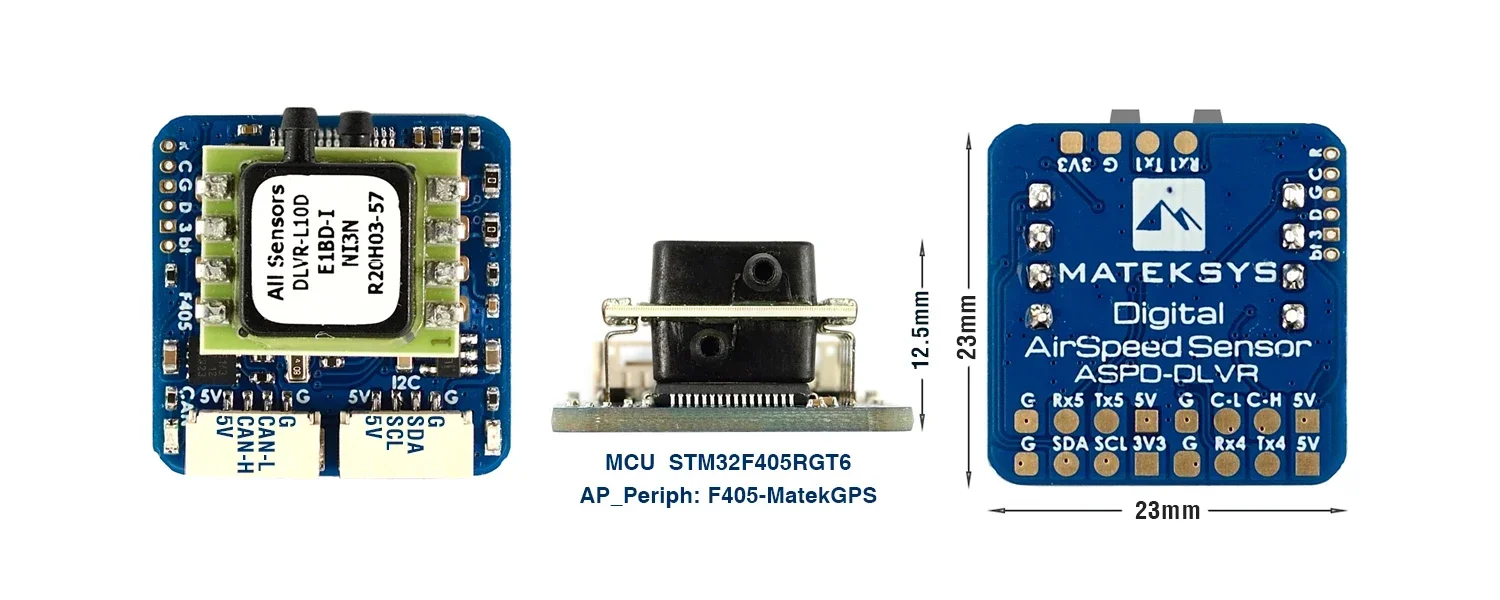

  • 22mm*22mm*12.5mm(F303 ver.)

  • 23mm*23mm*12.5mm(F405 ver.)

  • 4g

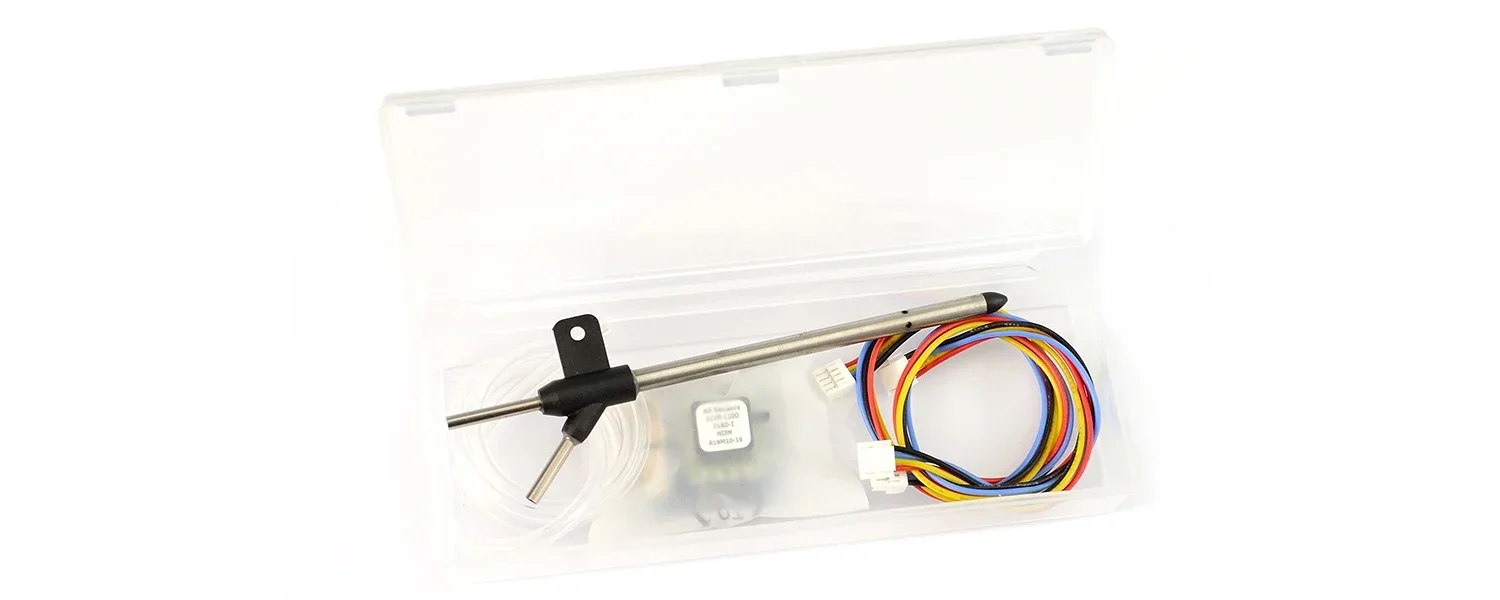

Includes

  • 1x ASPD-DLVR

  • 2x JST-GH-4P to JST-GH-4P 20cm silicon wire

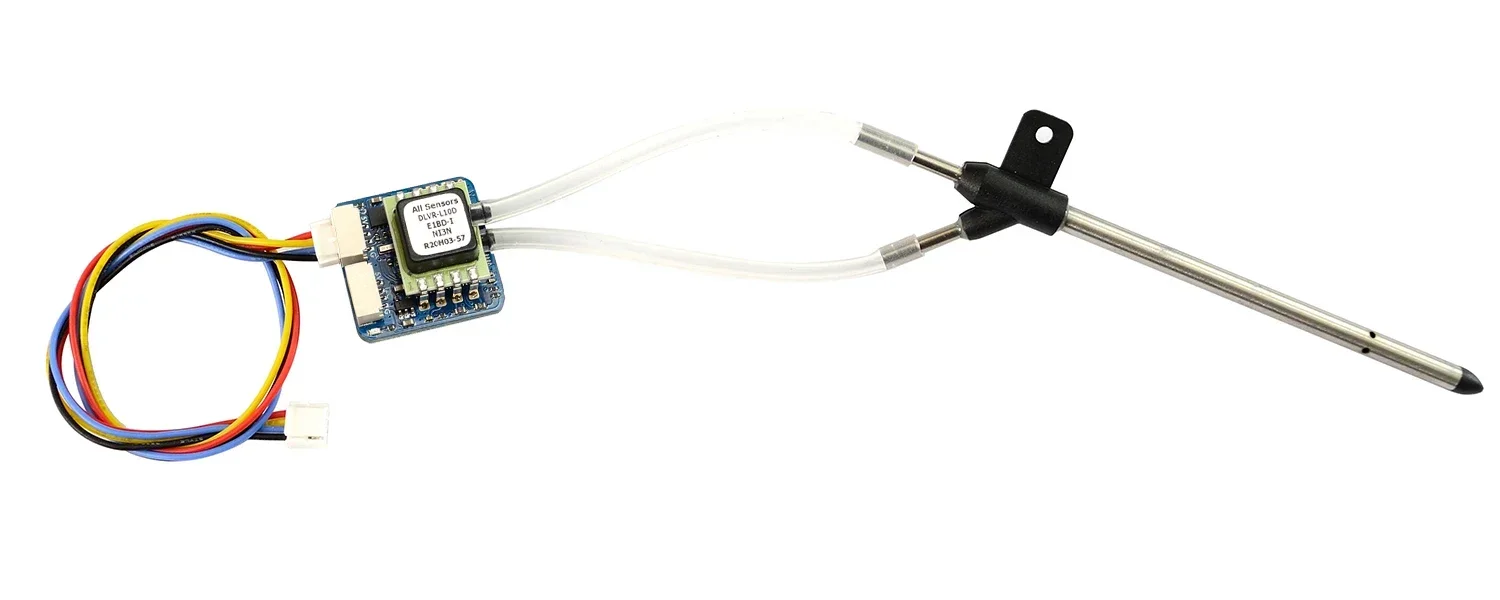

  • Pitot Tube

  • Clear silicon tubing  40cm
