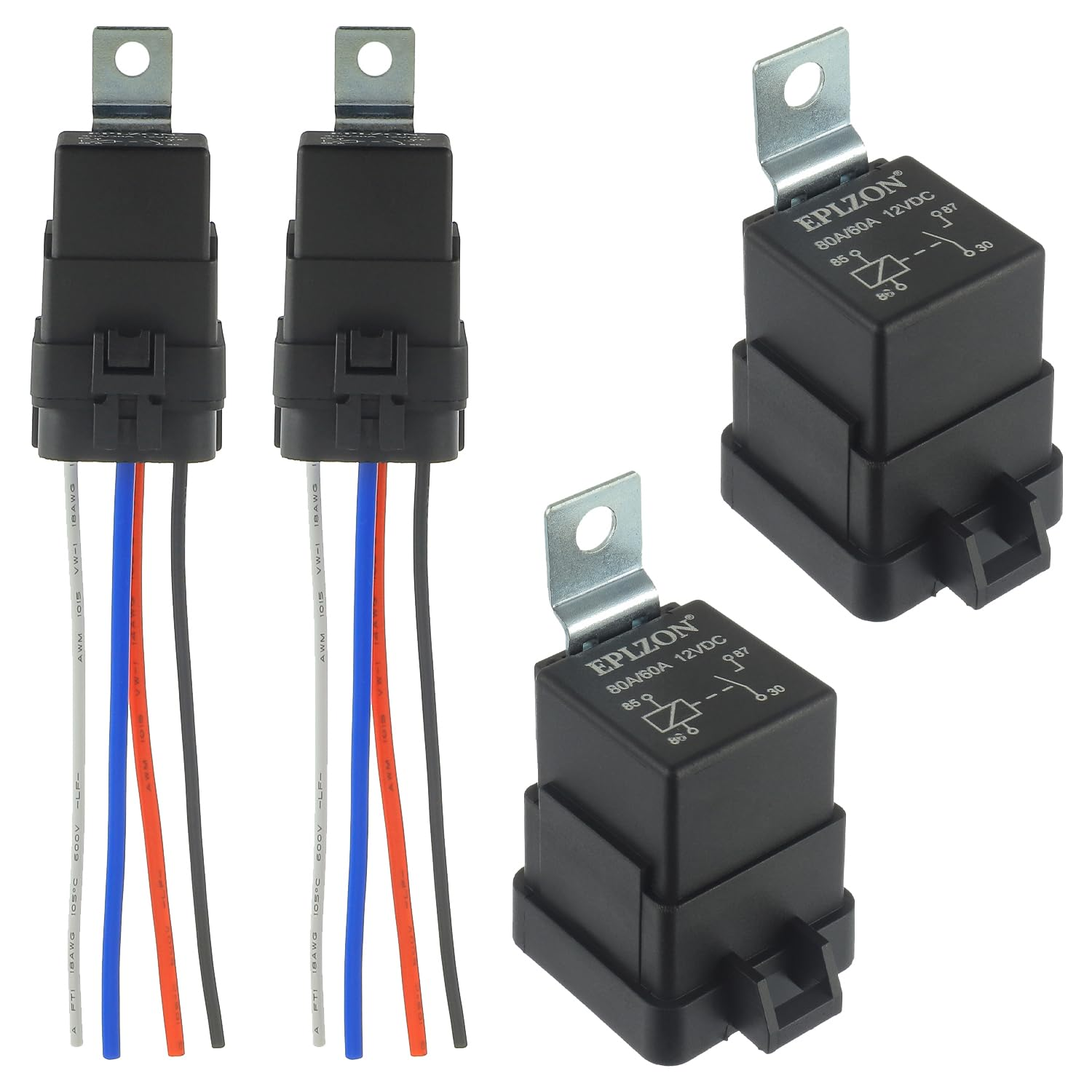

4 PIN 80/60 AMP 12V DC SPST Waterproof Relay Heavy Duty 14 AWG Tinned Copper Wires with Harness Kit for Boats Auto Fan Cars(Pack of 2Pcs)
Description
| Item model number | EP-WIRE-4P80A |
| Current Rating | 8E+1 Amps |
| Mounting Type | Socket Mount |
| Color | 4 PIN 80/60 AMP |
| Country of Origin | China |
| Connector Type | Crimp |
| Contact Type | Both Normally Open and Normally Closed |
| Contact Material | Silver Alloy |
| Package Dimensions | 7.2 x 2.87 x 1.65 inches; 7.05 ounces |
- Rated voltage of 12v 80A/60A (NO: 80A, NC: 60A), SPDT heavy-duty design relay switch, as a bridge between switch and equipment, helps to control high rated equipment through small fixed value switch
- The relay has a built-in diode designed to consume the induced voltage generated by the coil when switching the car relay state, thereby protecting electrical components from damage caused by induced voltage
- There is a sealing ring inside the wire harness socket to improve its waterproof performance and make it safer to use in humid environments. Be careful when inserting the relay into the socket. If too much force is applied, it will cause the female joint to bend
- Pre wired harness - heavy-duty 18/14 AWG harness. Black -18AWG pin 85, red -14AWG pin 30, white -18AWG pin 86, yellow -14AWG pin 87a, and blue -14AWG pin 87
- Pin Specifications: 30-High power feed,85-Relay coil ground,86-relay coil feed(trigger wire),87-high power output(normally open contact),87a-high power output(normally closed contact）
EPLZON 4 PIN 80/60 AMP 12V DC SPDT Waterproof Relay with Harness Kit
⭕Suitable for LED work lights, fog lights, starters, wipers, fans, speakers, central locks, alarms, electric windows, etc.
Flame Retardant Material Shell：The shell is made of flame retardant and fire retardant material, which can work normally in high temperature environment.
Pure Copper Coil：The details are in place, the coil winding is sufficient, the withstand voltage purity is good, the mechanical life is long, the product is stable.
Silver Alloy Contact：Using silver alloy material, strong conductivity, high sensitivity, strong oxidation resistance hardness, can avoid deformation under high temperature working environment.
Specifications:
🔸Nominal Coil Voltage: 12 VDC
🔹Coil Power: 1.8W
🔸Coil Resistance: 80Ω
🔹Must Operate Voltage: 6~8 VDC
🔸Must Release Voltage: 0.6~3.6 VDC
🔹Maximum Applied Voltage: 15.6 VDC
🔸Contact Ratings: NO 80A 14VDC
🔹Contact Resistance: 100mMAX (at 6VDC 1A)
🔸Max Switching Current: 80A
🔹Max Switching Power: 840W
🔸Life Expectancy Electrical: 100,000 Operations (at30 Operations/minute)
🔹Life Expectancy Machanical: 10,000,000 Operations
🔸Temperature Range: -30℃ ~ +80℃
🔹Vibration Resistance: 10~55Hz, 1.5mm
🔸Shock Resistance: Operations Extremes: 10g. Damage Limits: 100g
🔹Hunidity: 40% ~ 85%
🔸Insulation Resistance: 100mΩ Min at500VDC
🔹Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec)
🔸Between Contactw and coil: 750AC (for one minute/sec)
🔹Operate Tice: 7ms
🔸Release Tice: 5ms
Package include:
2pcs * 4PIN 80/60 AMP Relay
2pcs * 4PIN Wire Harness Socket
