Mini Universal Bender Wire Flat Metal Manual Bending Machine 6th Generation

PRODUCT DESCRIPTION

Mini Universal Bender Wire Flat Metal Manual Bending Machine 6th Generation



Most of them are old models that we have eliminated.

 In order to bring a better user experience to users,

 it has been continuously upgraded,

and you can see the difference between them on the pictures.


Specifications:

Made of hardened tool steel,

it can be mounted on a bench or clamped in a vice for operation,

and bend metal wire and strip into complex shapes with ease.

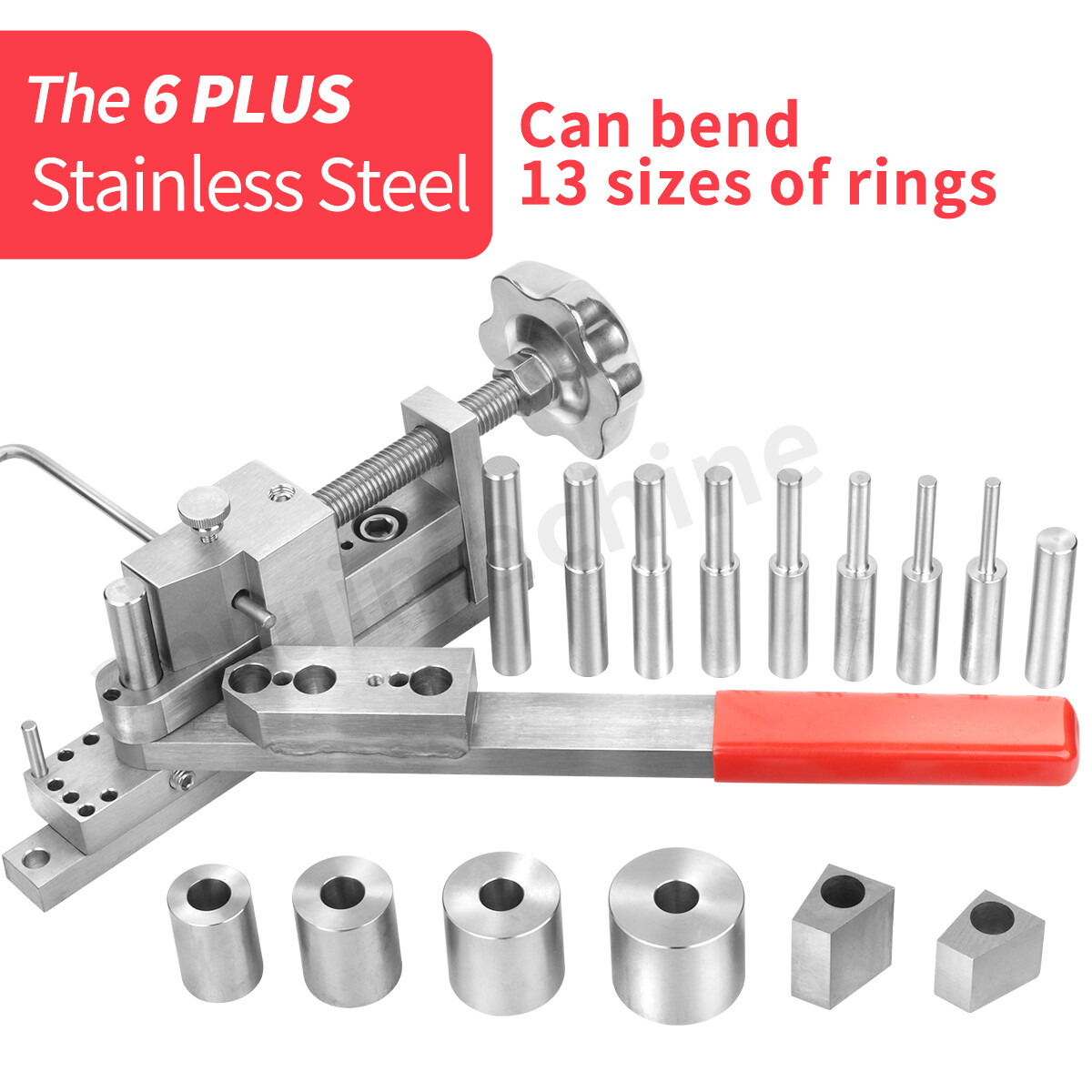

6PLUS  Universal Bender

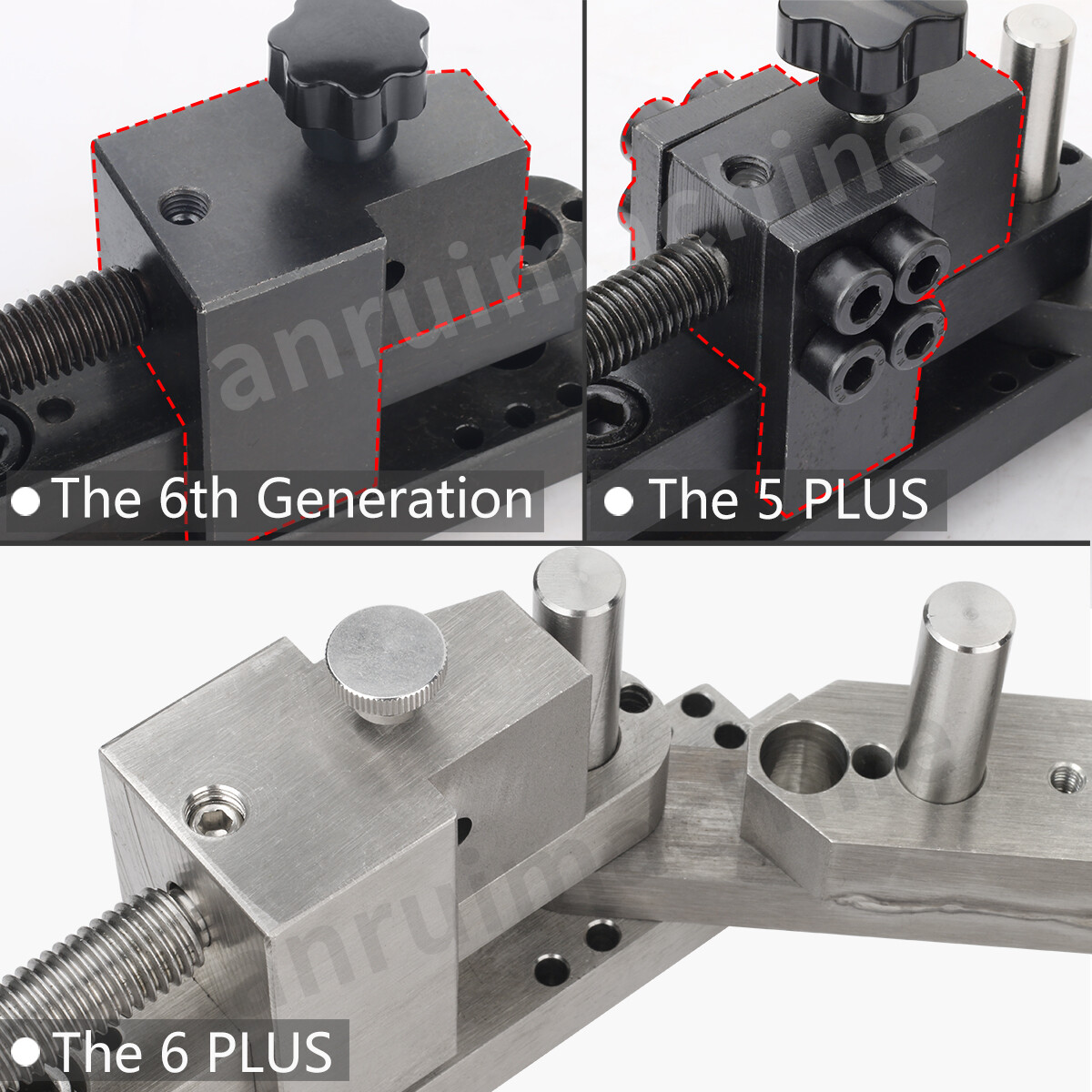

6PLUS and the sixth generation are the same except for the material,

other parameters are the same.

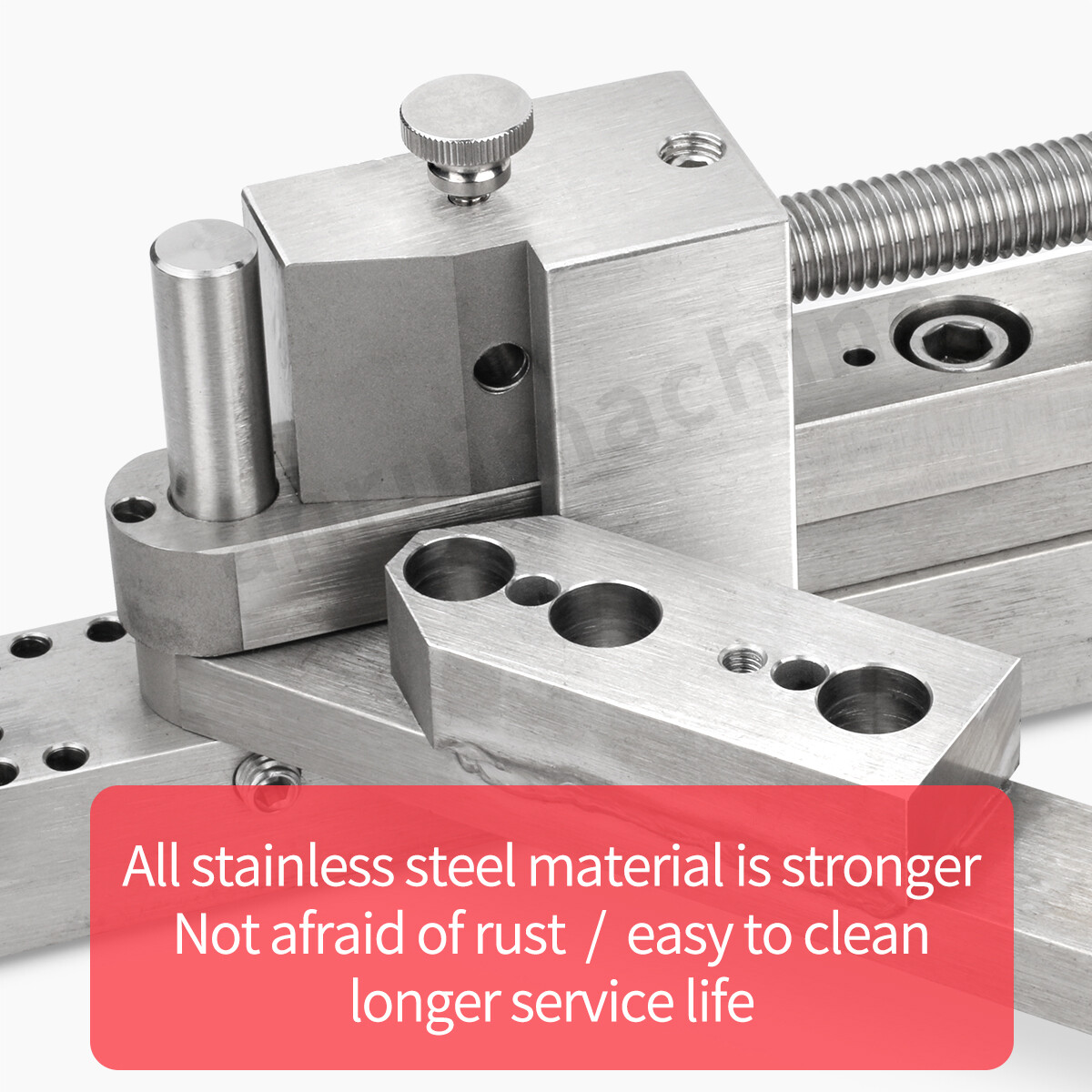

6PLUS is made of 304 stainless steel.




Although the bending capacity of this model is the same as that of the 6th generation,

the 304 stainless steel material has higher hardness and longer service life than ordinary materials.

 There is no need to worry about rust and no additional maintenance.

 If you need to bend some metal with high requirements on appearance cleanliness,

 this bending machine is a good choice for you.


6th Generation Universal Bender


Product capacity:

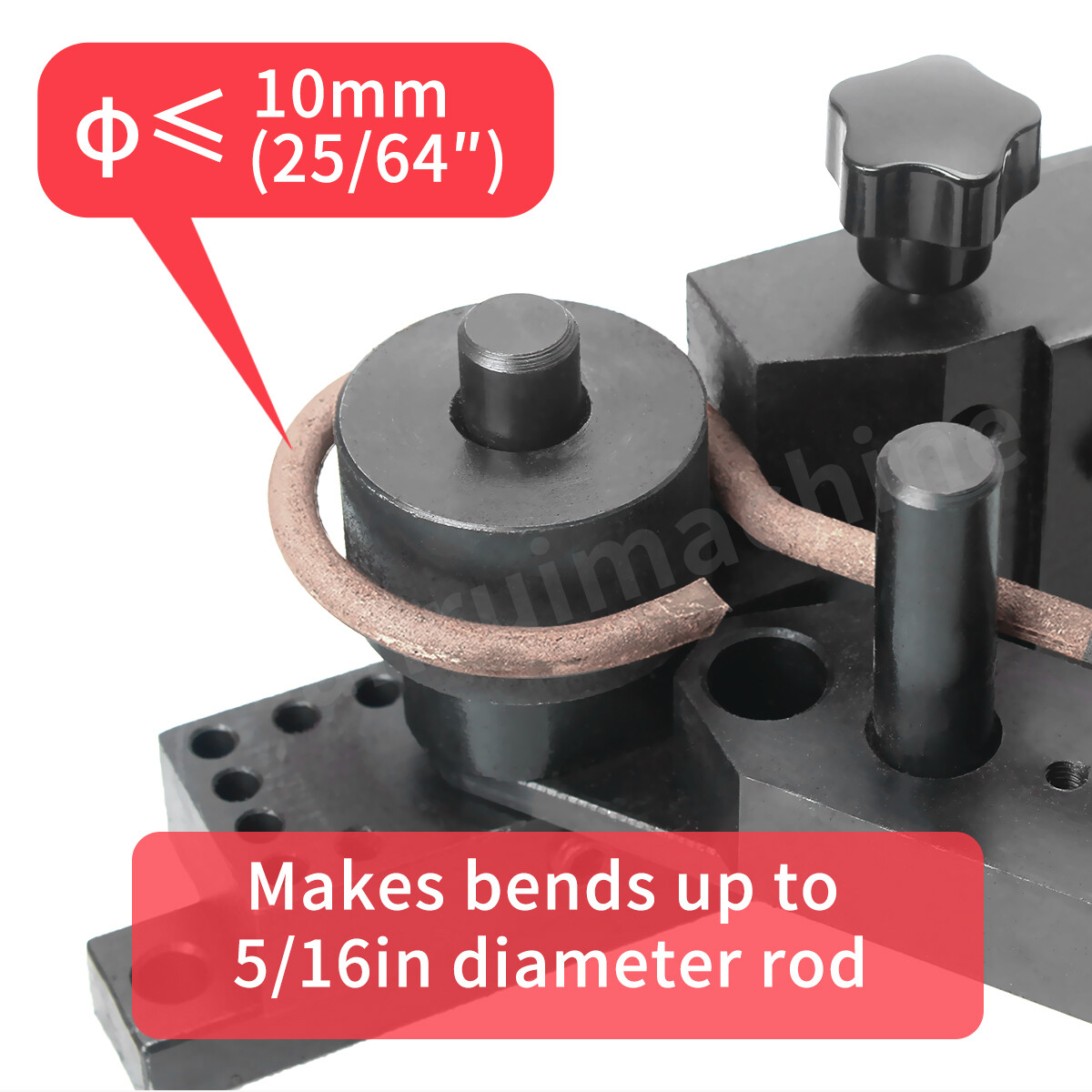

Maximum bend diameter 10mm (25⁄64in) wire

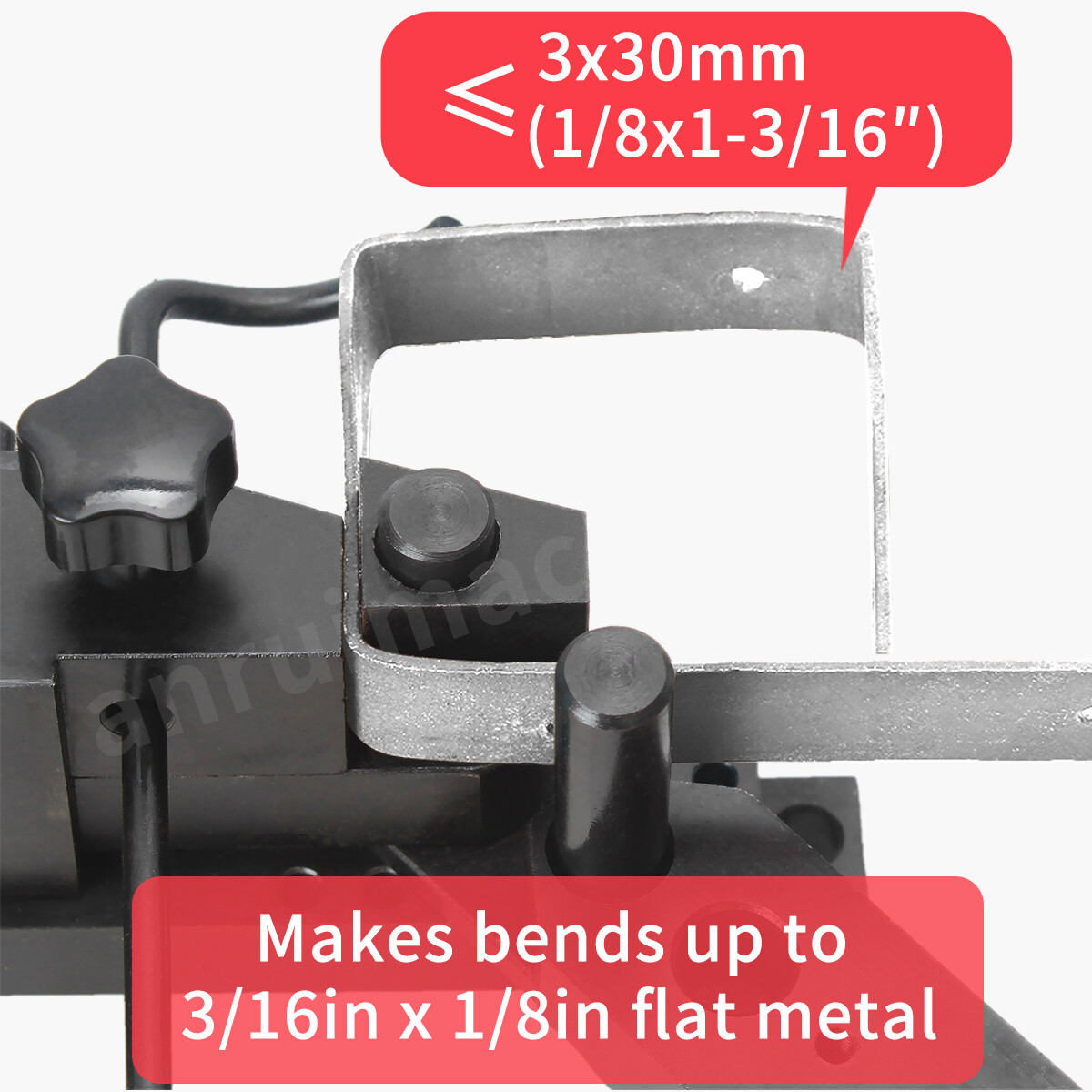

Maximum bending 30x3mm (1-3⁄16x18in) thin iron sheet

13 different diameter rings can be made


Accessories:

With 45# steel die, diameter is 25mm(63⁄64in), 30mm(1-3⁄16in), 35mm(1-3⁄8in), 40mm(1-37⁄64in)

SKD-11 Die Steel Shaft Pin Die, Diameter 5mm(13⁄64in), 6mm(15⁄64in), 7mm(9⁄32in), 8mm(5⁄16in),

 9mm(23⁄64in), 10mm(25⁄2 64in), 11mm(7⁄16in), 12mm(15⁄32in), 13mm-1(33⁄64in), 13mm-2(33⁄64in),

 two angle steel modules, limit pins, limit cups, instructions


Package dimensions:

350(13-25⁄32in)x150(5-29⁄32in)x150mm(5-29⁄32in)



5th Generation  Universal Bender


Product capacity:

Maximum bend diameter 10mm (25⁄64in) wire

Maximum bending 30x3mm (1-3⁄16x1⁄8in) thin iron sheet

7 different diameter rings can be made


Accessories:

With 45# steel mold, the diameter is

5mm(13⁄64in), 6mm(15⁄64in), 13mm(33⁄64in), 25mm(63⁄64in), 30mm(1-3⁄16in), 35mm(1-3⁄8in),

40mm(1- 37⁄64in), two angle steel modules, limit pins, limit cups, instructions


Package dimensions:

350(13-25⁄32in)x150(5-29⁄32in)x150mm(5-29⁄32in)


5PLUS Universal Bender


Product capacity:

Maximum bend diameter 10mm (25⁄64in) wire

Maximum bending 30x3mm (1-3⁄16x18in) thin iron sheet

13 different diameter rings can be made


Accessories:

With 45# steel die, diameter is 25mm(63⁄64in), 30mm(1-3⁄16in), 35mm(1-3⁄8in), 40mm(1-37⁄64in)

SKD-11 Die Steel Shaft Pin Die, Diameter 5mm(13⁄64in), 6mm(15⁄64in), 7mm(9⁄32in), 8mm(5⁄16in),

 9mm(23⁄64in), 10mm(25⁄2 64in), 11mm(7⁄16in), 12mm(15⁄32in), 13mm-1(33⁄64in), 13mm-2(33⁄64in),

 two angle steel modules, limit pins, limit cups, instructions


Package dimensions:

350(13-25⁄32in)x150(5-29⁄32in)x150mm(5-29⁄32in)
