Product Parameter
Material: Mould Steel

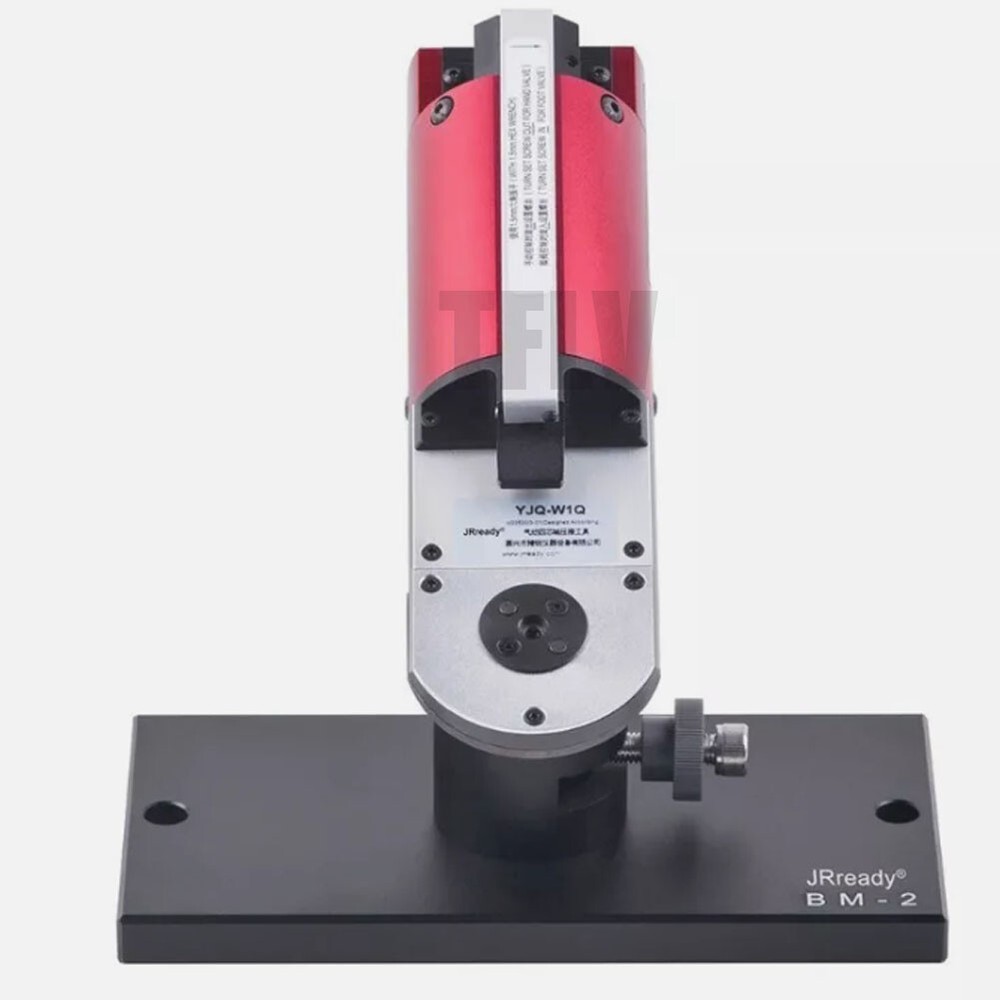

Model YJQ-W1Q
Size 218*59*58mm
Standard M22520/2-01
Weight 1050g(bare)
Number of gears 8 gears

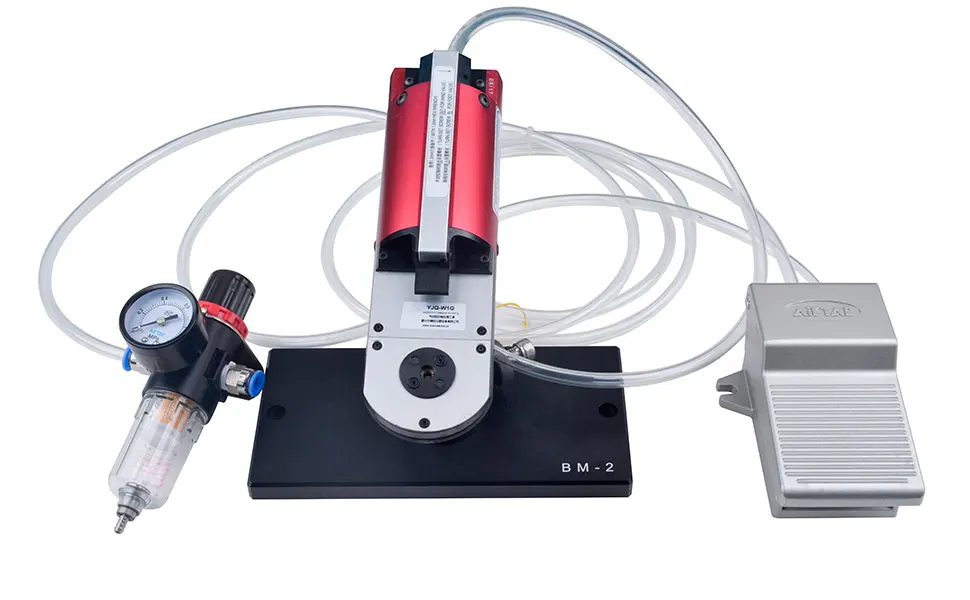

Working air pressure 0.55-0.83Mpa
Crimp type four mandrel eight-point type
Match with G125 8-speed
Tooth mark length 1.74mm
Corresponding to the manual machine YJQ-W1A.
Matching positioner Adaptable to K, KA, SK2/2, HD series.
Through-hole diameter 3.60
Wire range 20-32 AWG (0.52-0.032mm²).
Suitable for crimping round terminals within the range of US Military Standard, HARTING, RWE, TE connectors and other connectors that conform to the crimp range.
