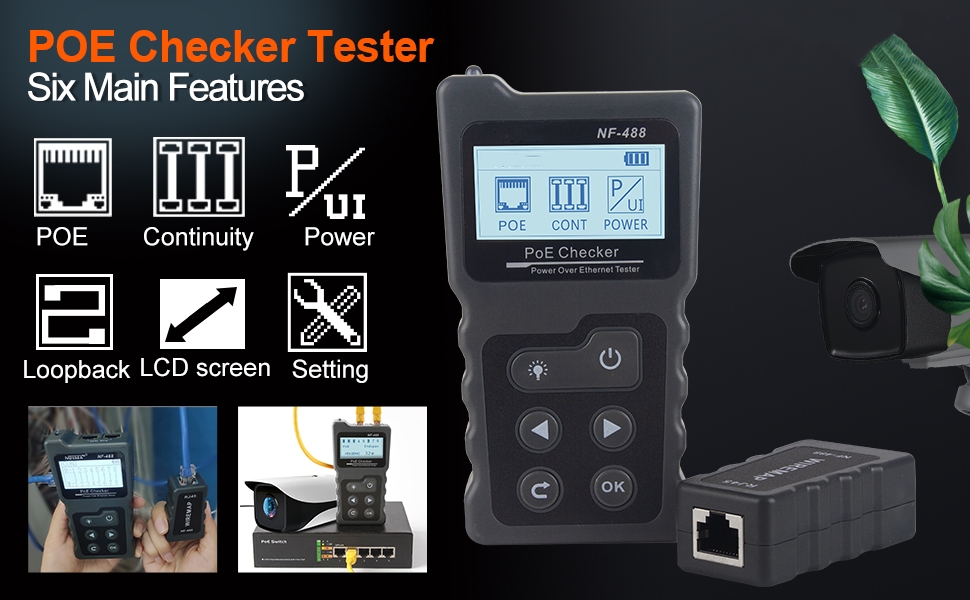

NF-488 PoE Checker Inline PoE Voltage and Current Tester with Cable Tester UK

NF-488 POE Tester for Power Over Ethernet, Network Cable Continuity Checking, Switch Loop-Back POE Detector

NF-488 PoE Tester is a practical tool for installation and maintenance of technical personnel in security monitoring, conmunication wires,integrated wiring and other weak current systems.

Main Functions:

Test the information of the standard/non-standard PoE device, such as voltage, polarity, mid-span or end-span.
Test of real-time power consumed by PD devices in PoE power supply systems.
Test the open, short, cross status in the network cable.
Test the power consumed by DC appliances.
The loop test function of the switch


Power Testing Test the voltage and current between the power adapter and the powered device, and calculate the power consumed by the powered device	LED lighting LED lights can be used at night or in dark environments to meet your testing needs in various environments	Testing Results as Below Figure 1 shows, #12 is short-circuited, #45 is short-circuited Figure 2 shows, #5 broken-circuited, #8 broken-circuited Figure 3 shows, #18 crosses, #56 crosses Figure 4 shows, Good condition

network cable tester(10)

network cable tester（14）

network cable tester(12)

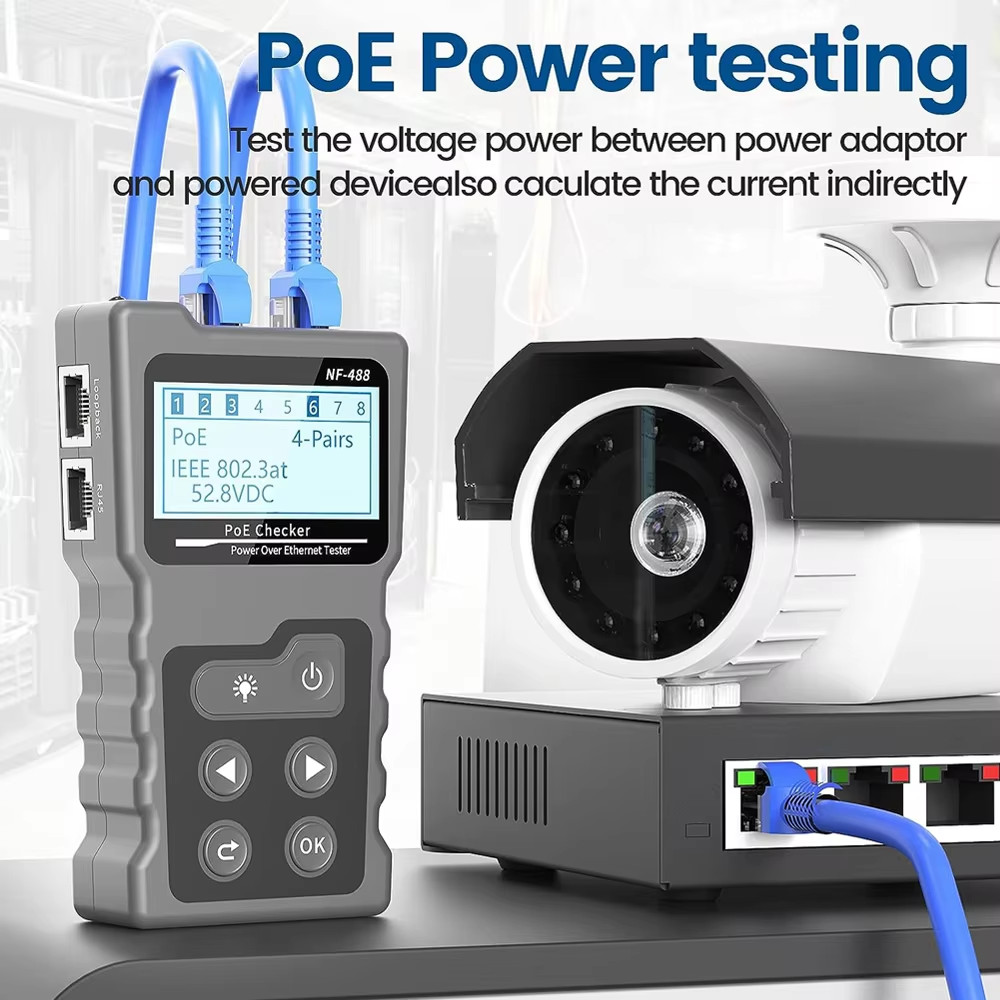

Power Testing

Test the voltage and current between the power adapter and the powered device, and calculate the power consumed by the powered device

LED lighting

LED lights can be used at night or in dark environments to meet your testing needs in various environments

Testing Results as Below

Figure 1 shows, #12 is short-circuited, #45 is short-circuited
Figure 2 shows, #5 broken-circuited, #8 broken-circuited
Figure 3 shows, #18 crosses, #56 crosses
Figure 4 shows, Good condition

network cable tester(3)


POE Testing Test the PoE information such as POE voltage, power supply polarity, power supply mode and the type of PSE(af or at standard).	Loopback Testing Automatically detects and diagnoses loopback issues and switches between 10M/100M/1000M modes	Cable Continuity Testing Automatically detect the short circuit, crossover and open circuit status of the network cable, which is convenient for accurately locating the line and port

network cable tester（99）

POE Function:

Test Range	DC 5-60V PoE Switch
Standard Identify	802.3af/at (Standard/Non-standard)
Test Range Power	0-18W
Voltage Test Range	DC 0-60V
Current Test Range	0-3A
Power Test Range	0-180W

Display	LCD Screen, with Backlight
Input Voltage Protection	DC 48V, 5mA
Maximum Working Current	≤80mA
Loopback	Compatible with 10M/100M Switch
Power Supply	3 x 1.5V AAA Battery

Remote Specification:

Ports	RJ45
Function	Wire Mapping for Network Cable
Input Voltage Protection	DC 48V, 5mA
Features	Portable, Fine Workmanship, LCD Display
Screen Size	128mm x 64mm/5.04" x 2.52" (Approx.)
Total Size	14cm x 4cm x 2cm/5.51" x 1.57" x 0.79" (Approx.)

Package List:

1 X Emitter

1 X Remote Unit

1 x Crocodile Clip Test Line

1 x Network Cable

1 X Carry Bag

3 X AAA Battery (Battery not inlcued)
