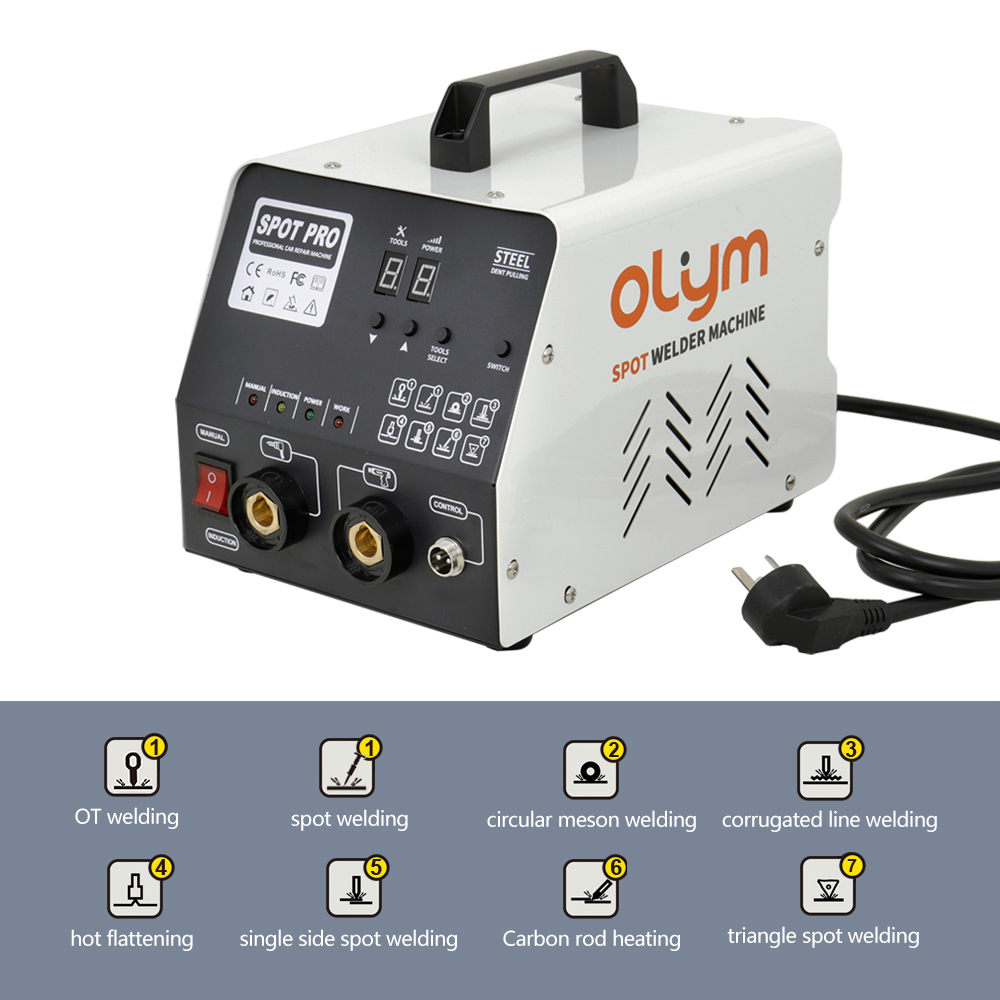

M95E aluminum dent puller spot welder machine car auto repair tool PDR Pulling
✅Product description:

• Adjustable pressure welding gun: Different rules of stud required welding force is different, so the welding gun must be adjustable pressure.

• Pull frame aluminum material: more durable.

• Current knob adjustment: knob adjustment is faster and more convenient than button adjustment.

• All copper transformer.

• Professional workbench: The use of high-strength galvanized plate, tools more convenient storage.

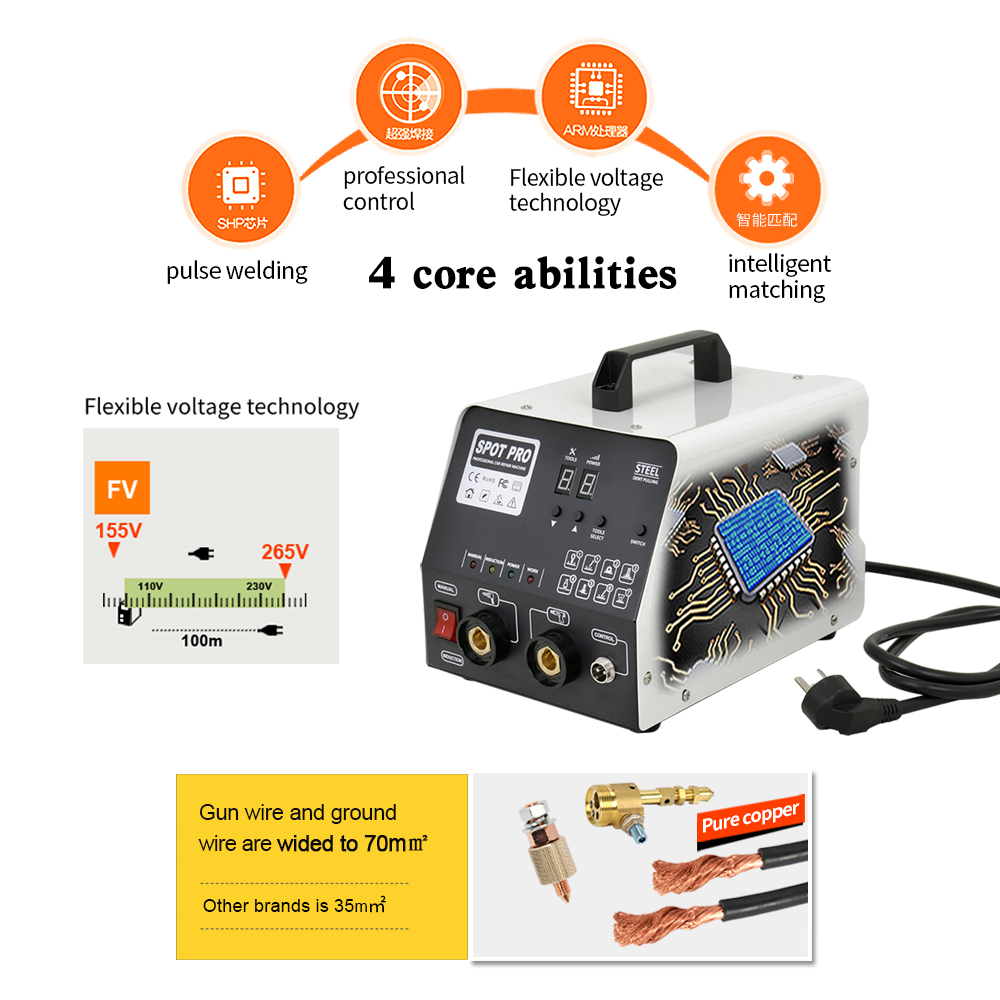

• Cable 50m2 oxygen-free copper: discharge current is faster than double lap iron.

• Intelligent matching welding mode: fast arcing, deep melting pool, solid welding.

• 12mF Large capacity capacitor.

🔍Product details：

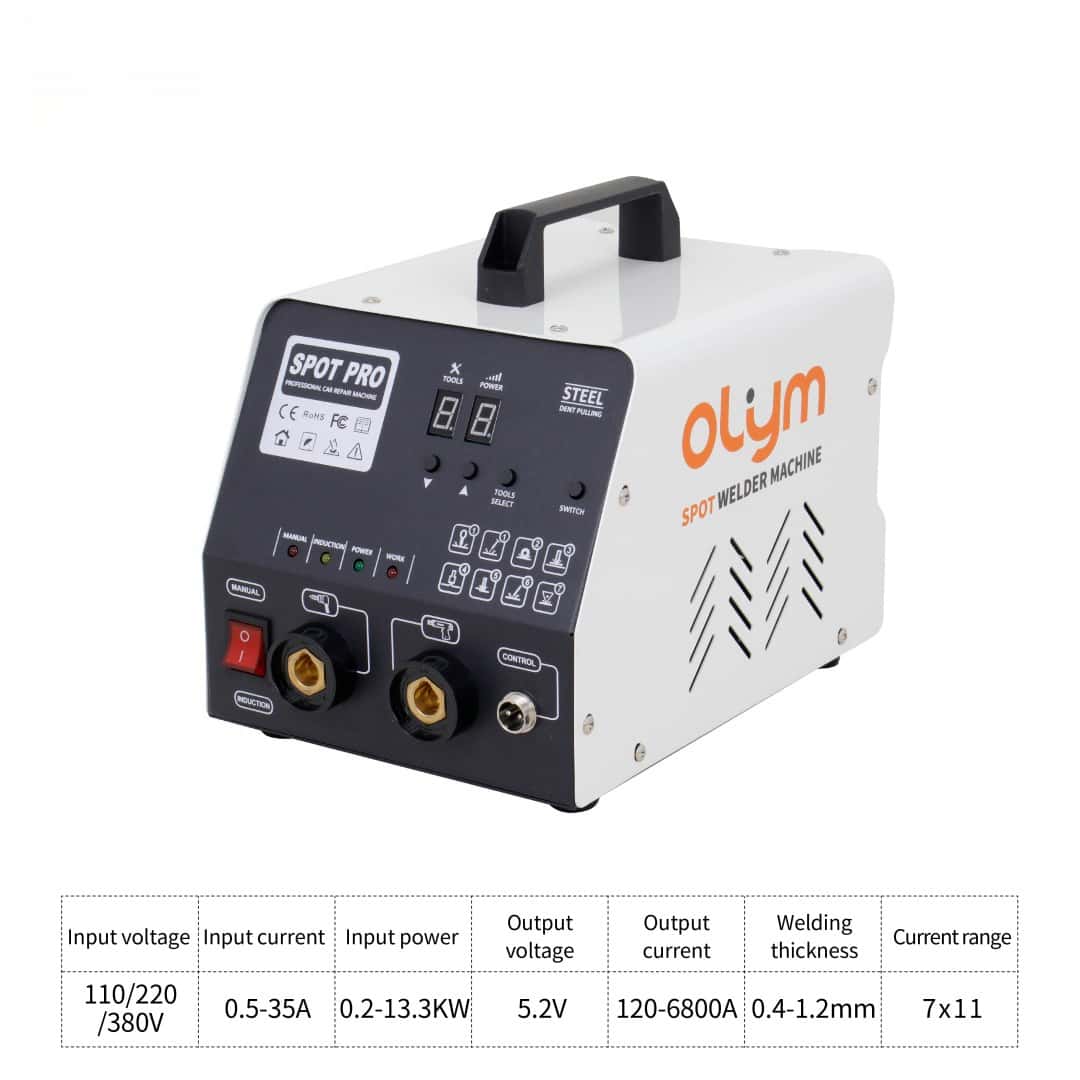

• input voltage: single phase 220V

• power: 3kW

• welding thickness: 0.4+1.2mm

• Instantaneous maximum current:6800A

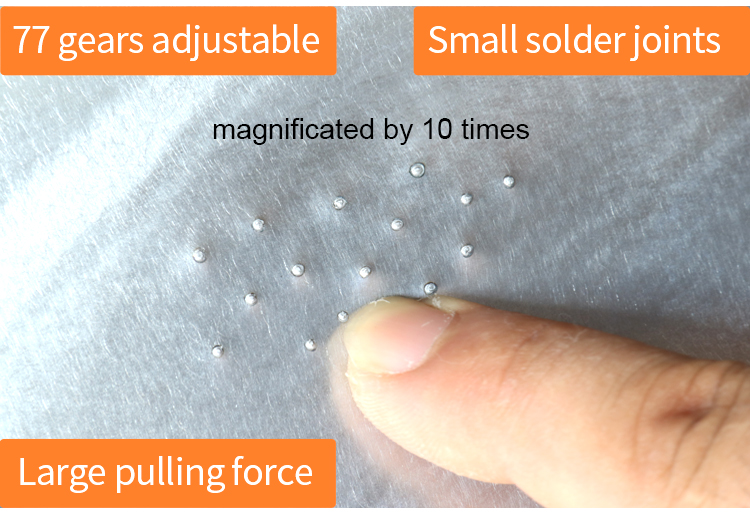

• current stall:77 gears operation mode:intelligent induction

• Output voltage: 5.2V

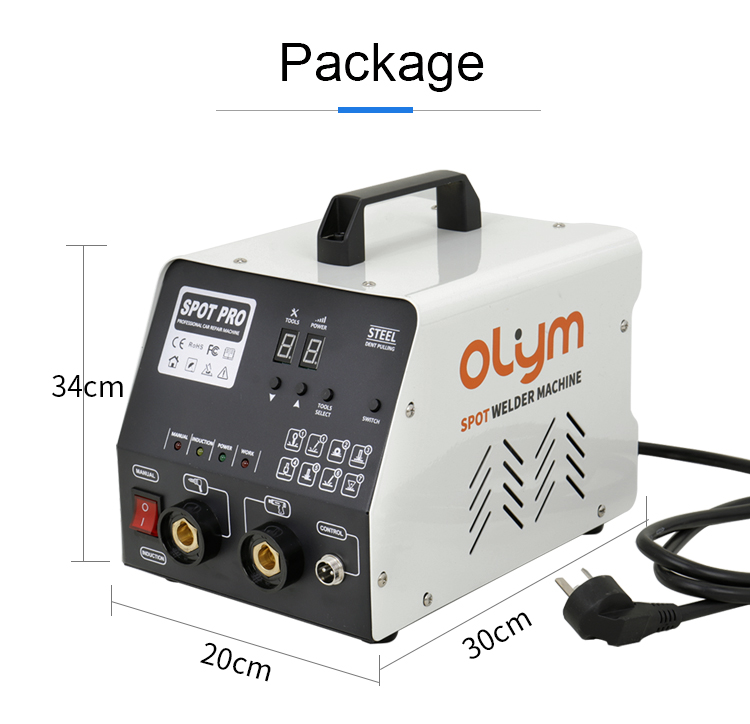

📦Package Includes:

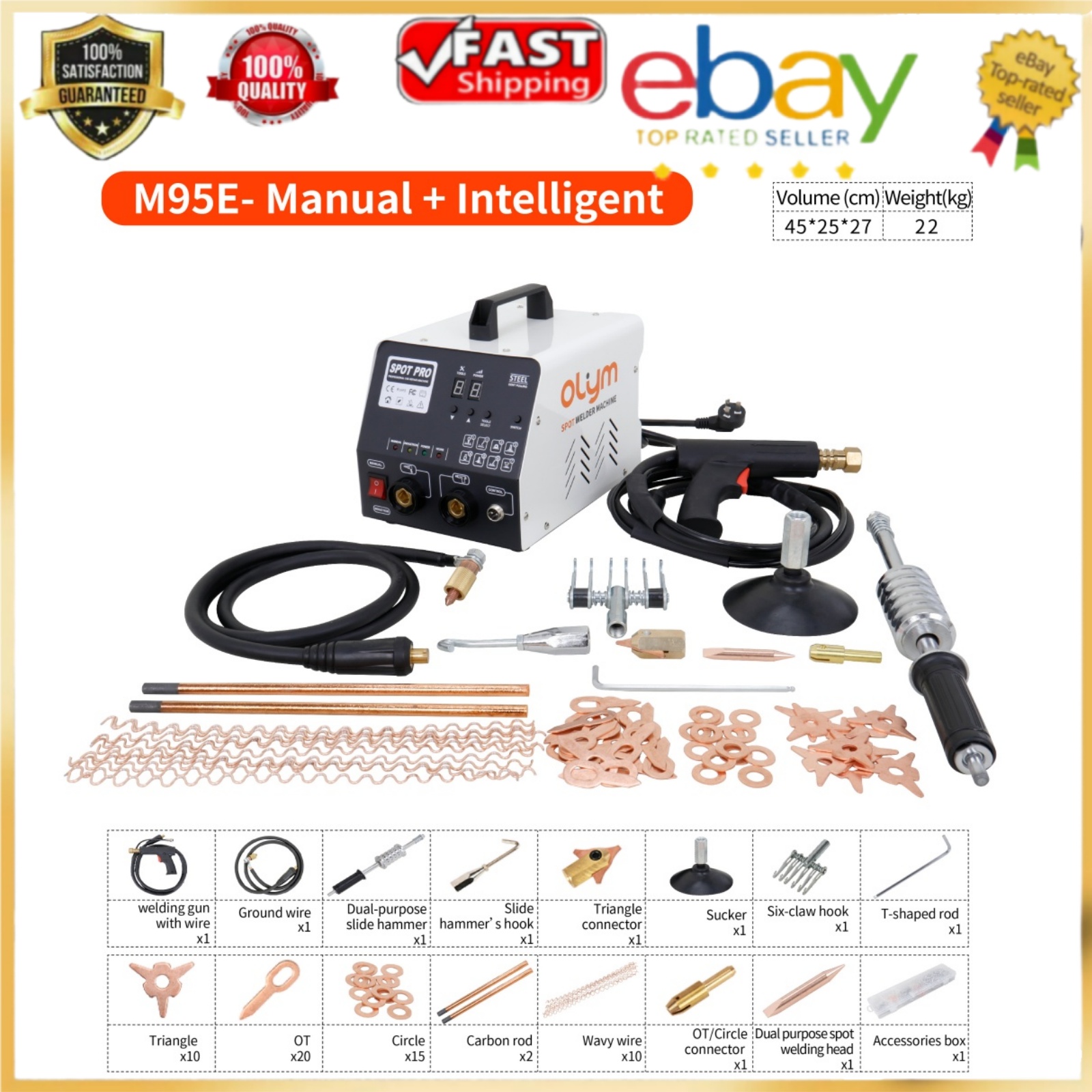

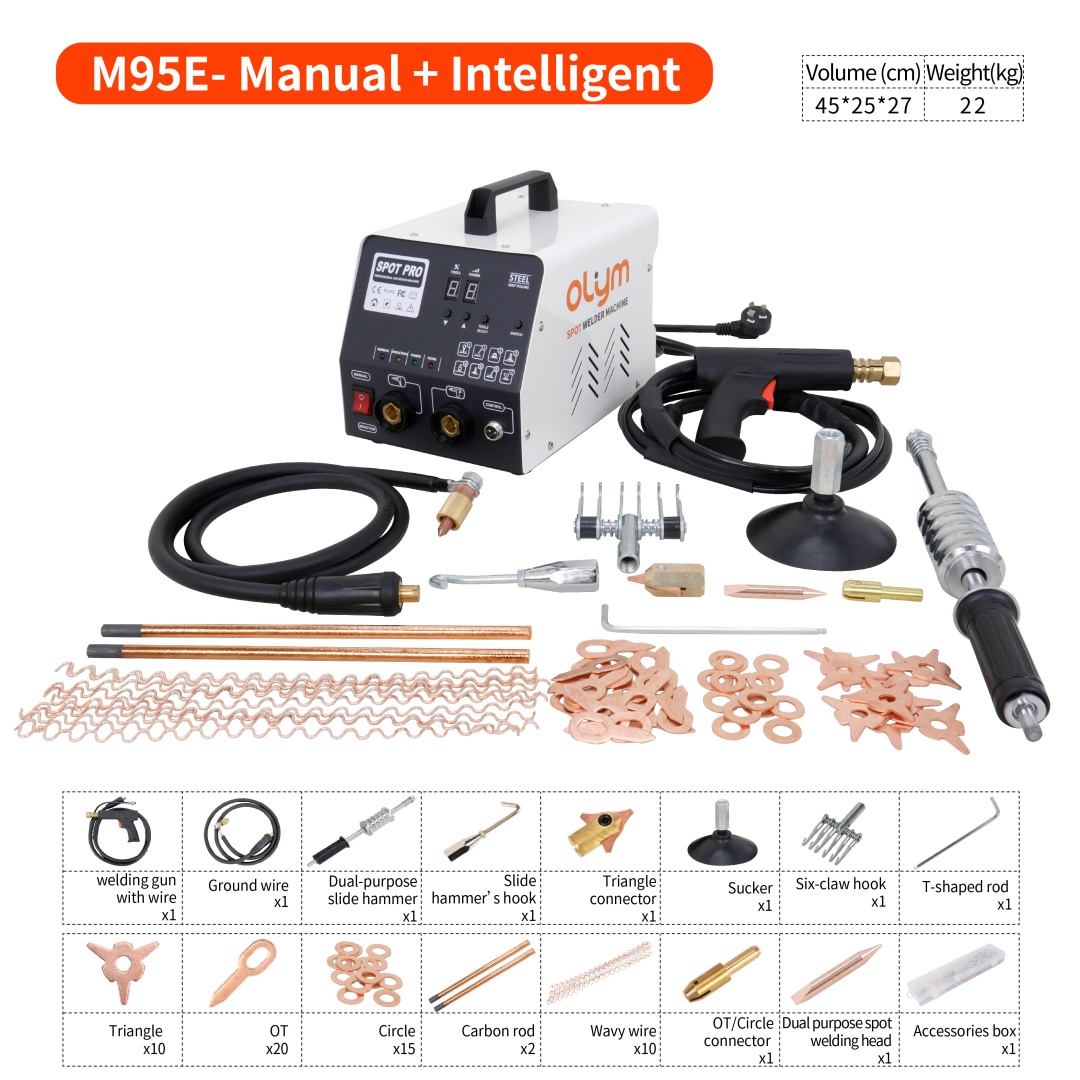

1*Car Body Dent Repair Machine Kit

🔧Installation :

• First select the appropriate welding tip according to the size of the stud, adjust the positioning screwin the welding tip, then insert it into the gun head of the welding torch, and tighten it carefully with awrench. Then insert the stud to observe, the stud should be 5-8mm higher than the three supportrods of the welding torch. Then connect the 220V power supply, and makethe welding machine reliable grounding. Turn on the power switch, the digital meter displays thewelding voltage, adjust the "voltage adjustment" knob to the appropriate voltage according to the sizeof the stud used. The specifications and voltage matching can be fine-tuned as follows:

• Remove oil and rust on the workpiece to avoid spark splashing or weak welding due to poor contact.

• The stud is installed in the gun mouth. Make the welding gun perpendicular to the base material andexerts a slight pressure.

• Press the micro switch on the handle of the torch, and the welding will be completed after a "pop".

• Adjust different voltages and observe the welding effect, subject to the firmness of the welding andthe welding place is well connected and flat.

• Adjust the voltage according to the above experiment results and then welding.

• The larger the output voltage, the larger the diameter of the welded stud.

• As for the repairing of sheet metal, after welding, screw the pulling ring on the stud, and use apulling tools with a thermal spray gun to heat the damaged part and flatten the sheet metal.
