Product parameter

.



Model number

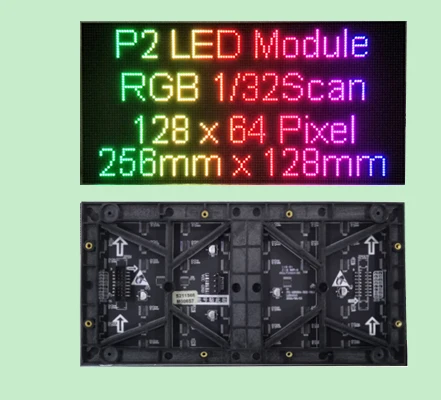

Indoor P2 LED Module
Pixel pitch
2mm
Module resolution
128*64pixels
Module size
256*128mm
Waterproof
IP31
LED configuration
SMD1515
Brightness
≥1300cd/m²
Average consumption
550W/m²
Best viewing distance
≥3m
View angle
120°
Scanning
1/32scan
Max power consumption
1200w/m²
LED Module Voltage
5V
LED Display Voltage
110/220V
Life span
100000h
Working Temperature
20℃ - +60℃
Pixel Density
250000pix/m²

Grey Scale

16384

Display Function

video


Product Details




LAMP BEAD
LED Encapsulation : SMD1515
The pixels are made of 1R1G1B,high brightness,
big angle,vivid color,under the irradiate of sun,
the picture still clear,high definition,
consistancy,it have various colors.
can add the color of background ,can show simple
picture and letters,meanwhile the prie is suitable.



POWER
Our power sucket ,which is powered by 5V,
oneside connects the power supply,
anther side connect the module,
and it has elegant appearance.
We assure it can fix on the module steadily.

TERMNAL
When assemble it,can avoid the copper wire
leakage,high termnal can avoid the positive
and negative of it to be short circuit




Free part





1.Power cable - 1 for 2 modules         2.Date cable : 1 for 1 module


Case Display


.




Product Packaging



According to the different， packing patternsof different ，carton packing,flight case packing.
