Flycolor Lightning Car ESC 18A25A 35A 45A RC Brushless Electronic Speed Controller 2-3S for RC Racing Speeding

Features:

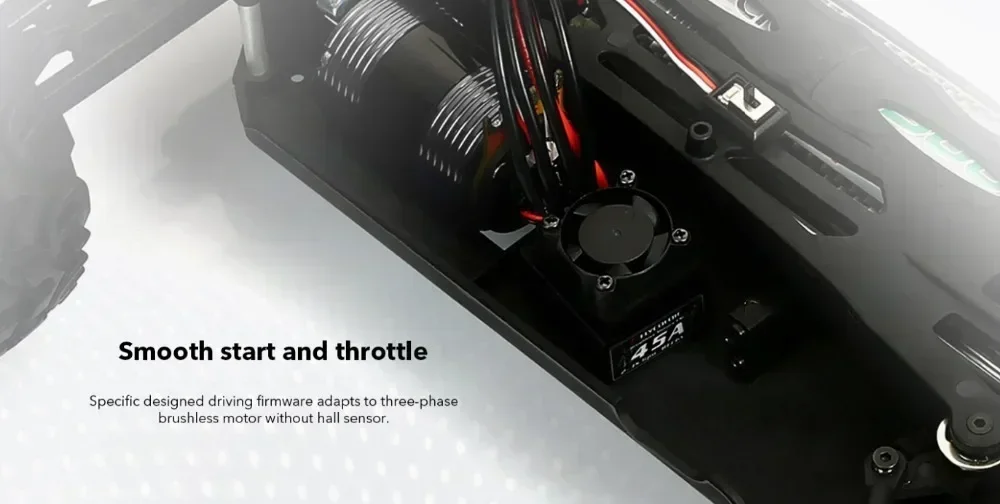

Smooth start

Low battery voltage protection

over heat protection

throttle signal loss protection

locked rotor protection

Low resistance circut design

Well-designed driver firmware for RC vehicles, smooth throttle response.

ESC is compatible with sensorless brushless motor and sensored brushless motor,

9 levels of start acceleration for different vehicles, tires and tracks.

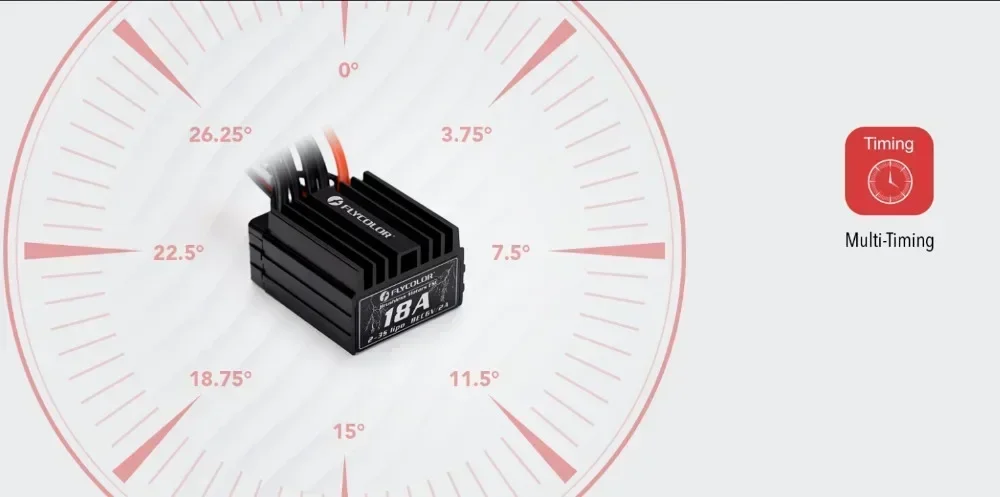

8 timings can be selected , it can motors can work at the best efficiency point.

Proportional brake with 6 levels of maximum brake force and 8 levels of drag brake force.

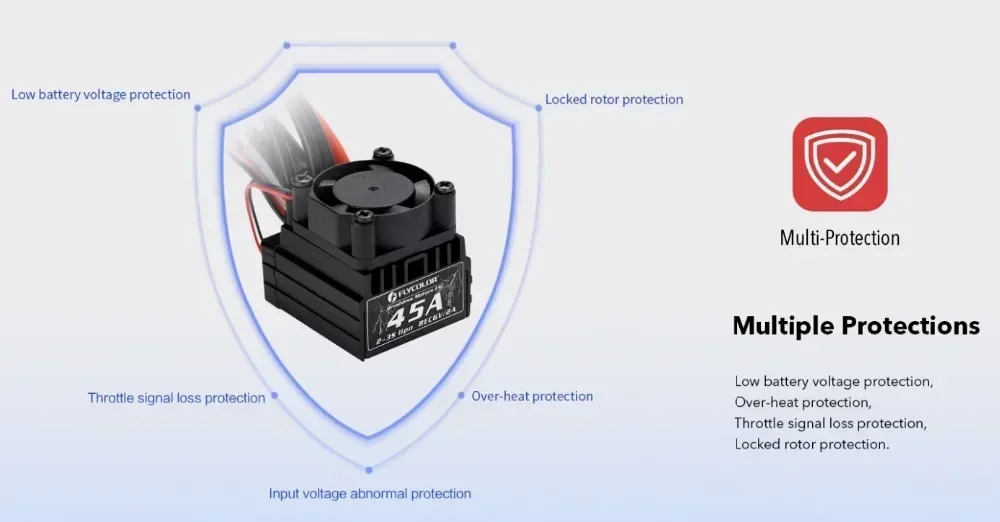

Perfect protections: low voltage protection, thermal protection, throttle signal loss protection and motor stall protection.

Highly reliable electronic switch avoids troubles which may happen to traditional mechanical switch due to dirt,dash,water and etc.

ESC programming or restore the default values via the Power/PRG button on the ESC.

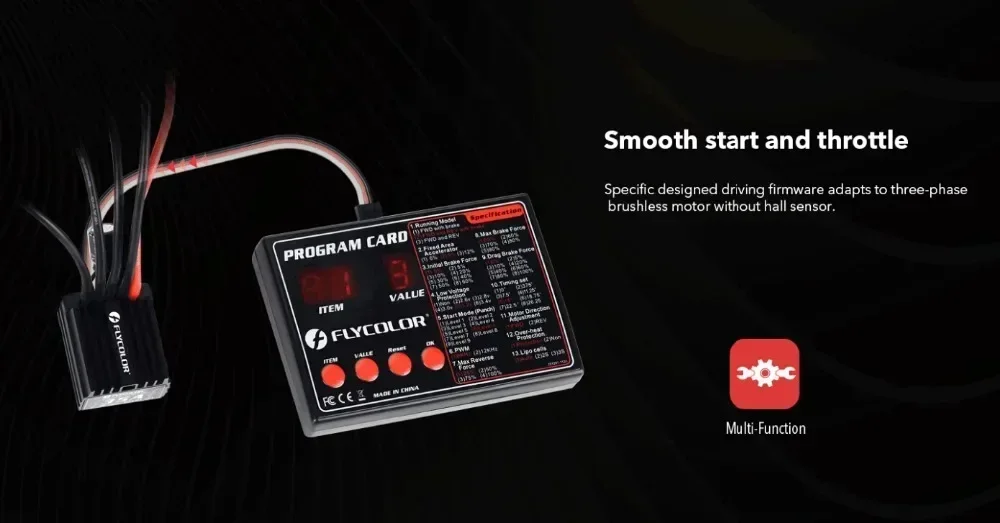

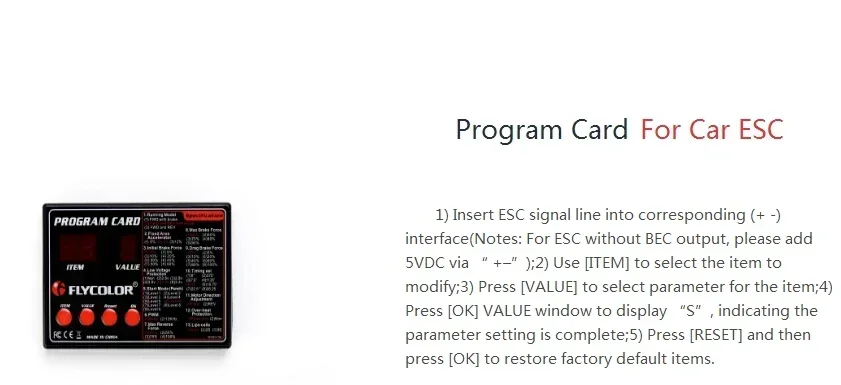

ESC programming also can use the program box(item sold separately)

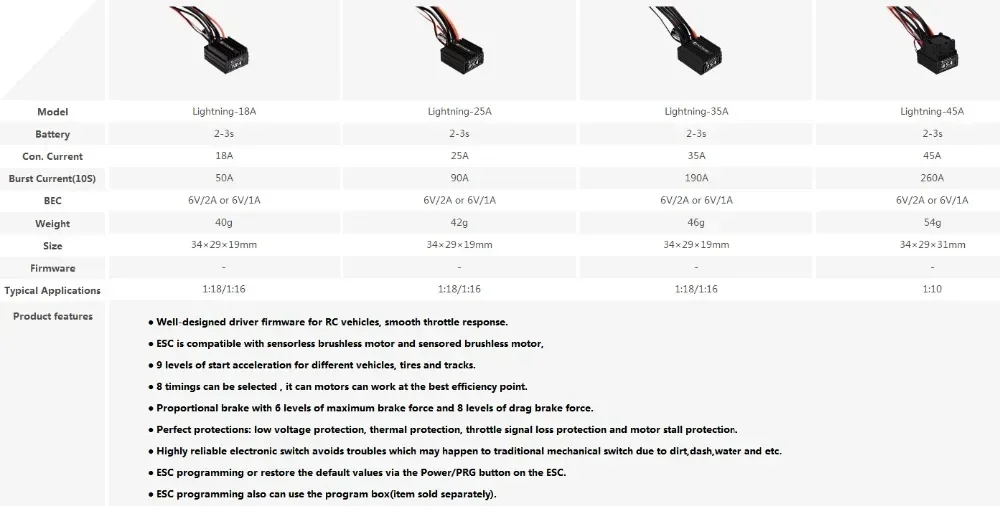

Specifications:

18A:

Output: Continuous 18A, Burst 50A up to 10 seconds.

Input Voltage:  2-3 cells lithium battery or 5-12 cells NiMh battery.

BEC: 6V/2A or 6V/1A

Size: 34*29*19 mm.

Weight: 40g.

25A:

Output: Continuous 25A, Burst 90A up to 10 seconds.

Input Voltage:  2-3 cells lithium battery or 5-12 cells NiMh battery.

BEC: 6V/2A or 6V/1A

Size: 34*29*19 mm.

Weight: 42g.

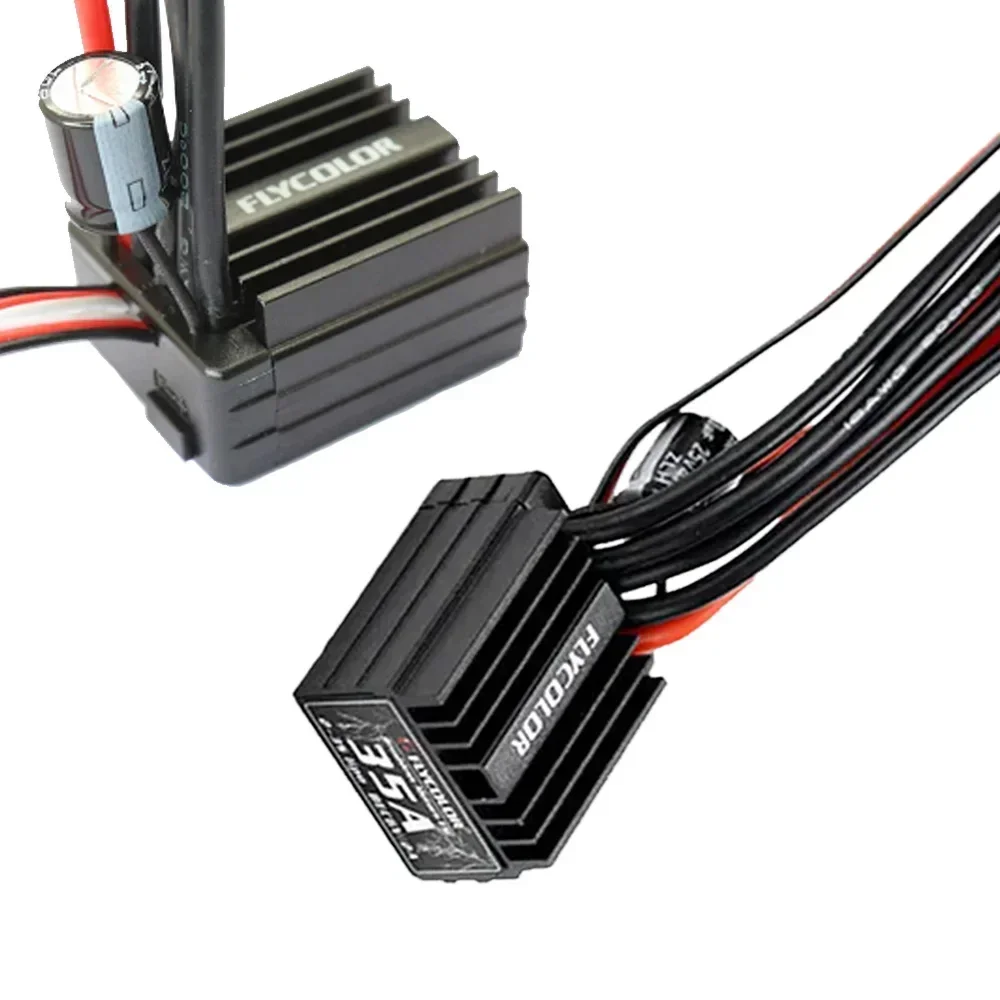

35A:

Output: Continuous 35A, Burst 190A up to 10 seconds.

Input Voltage:  2-3 cells lithium battery or 5-12 cells NiMh battery.

BEC: 6V/2A or 6V/1A

Size: 34*29*19 mm.

Weight: 46g.

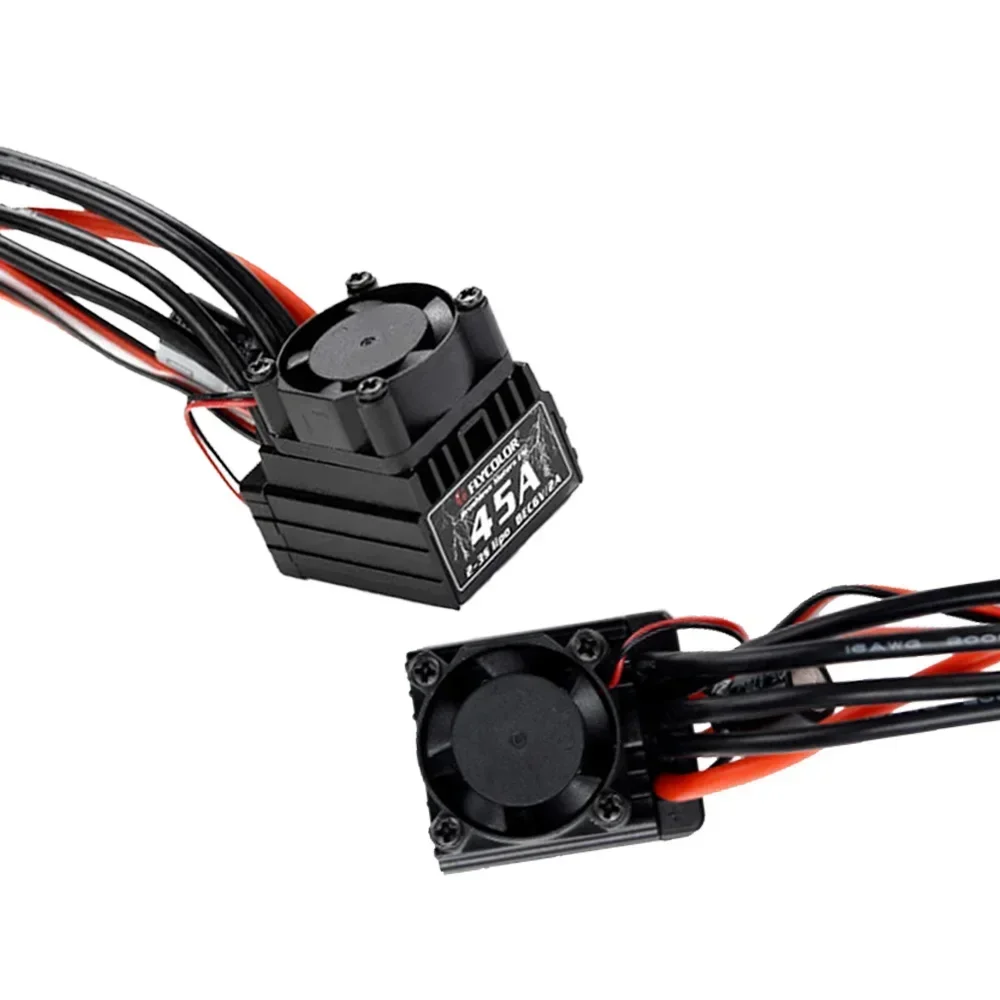

45A:

Output: Continuous 45A, Burst 260A up to 10 seconds.

Input Voltage:  2-3 cells lithium battery or 5-12 cells NiMh battery.

BEC: 6V/2A or 6V/1A

Size: 34*29*31 mm.

Weight: 54g.
