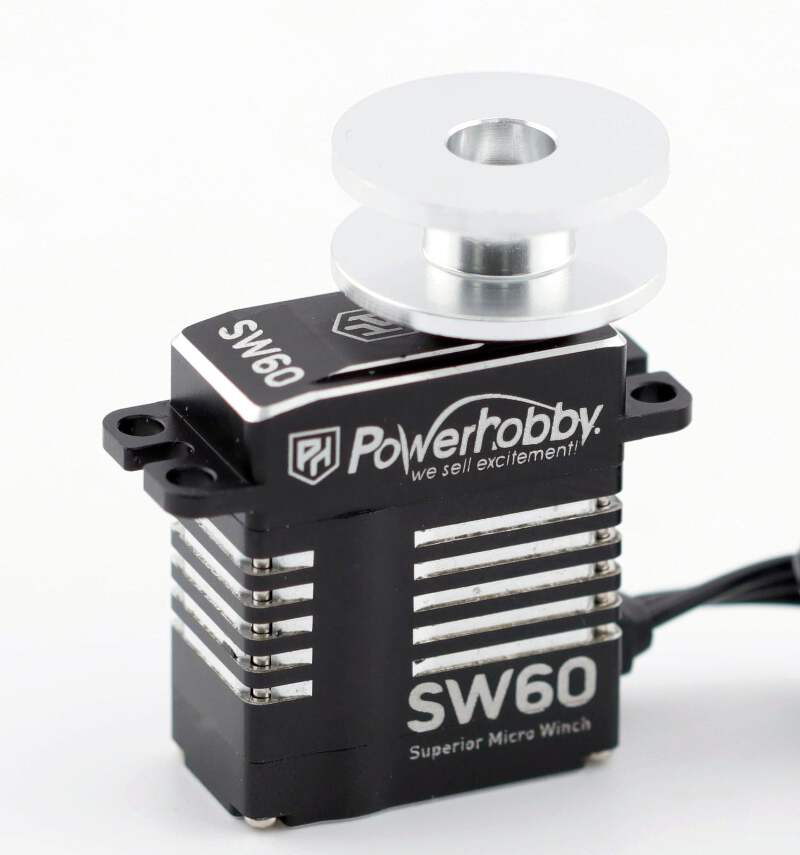

Powerhobby SW60 High Torque Superior Micro Winch Servo

Description

The Powerhobby SW60 is a high-torque micro winch servo designed for compatible 1/18 and 1/24-scale RC crawlers. Its compact size provides strong pulling power while requiring less mounting space than a standard-size winch servo.

The SW60 features a custom oversized brushless motor, heavy-duty stainless-steel gears, dual ball bearings, and an aluminum case for dependable operation under demanding crawler conditions. Its IP65 water-resistant construction provides added protection against dust, splashes, and damp trail conditions.

Supporting 4.8V to 8.4V operation, the SW60 produces up to 205 oz-in of torque at 8.4V. The included aluminum winch spool, line, and scale recovery hook provide the main components needed for a custom micro crawler winch installation.

Features

High-torque micro winch servo
Designed for compatible 1/18 and 1/24-scale crawlers
Custom oversized brushless motor
Heavy-duty stainless-steel gears
CNC aluminum servo case
Dual ball-bearing support
IP65 water-resistant construction
High-voltage 4.8V–8.4V operating range
Standard 25-tooth output spline
Up to 205 oz-in of torque
Aluminum winch spool
Scale recovery hook and winch line included

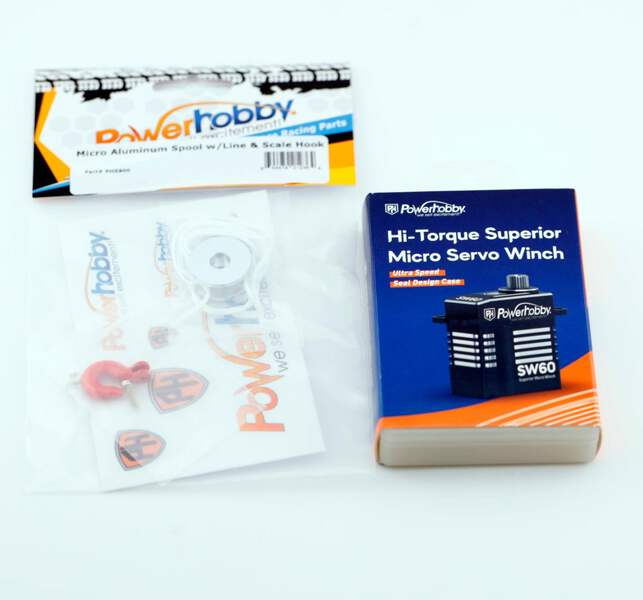

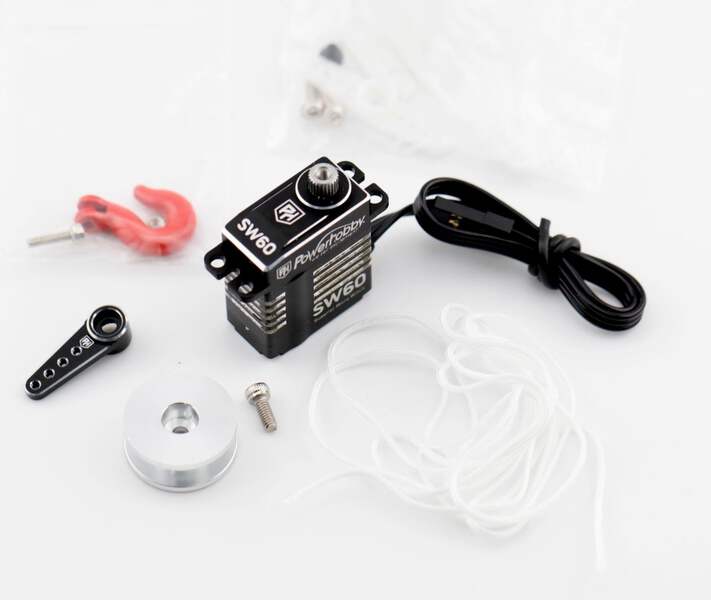

Includes

1 Powerhobby SW60 Micro Winch Servo
1 Aluminum Winch Spool
1 Winch Line
1 Scale Recovery Hook
1 Aluminum Servo Horn
Mounting Hardware

Specifications

SKU: PHB7500 + PHB5900
Barcode: 69038948972
Servo Type: Micro Winch Servo
Operating Voltage: 4.8V–8.4V
Speed at 4.8V: 0.093 sec/60°
Speed at 6.0V: 0.075 sec/60°
Speed at 7.4V: 0.062 sec/60°
Speed at 8.4V: 0.059 sec/60°
Torque at 4.8V: 9.0 kg-cm / 125 oz-in
Torque at 6.0V: 10.9 kg-cm / 151 oz-in
Torque at 7.4V: 12.8 kg-cm / 177 oz-in
Torque at 8.4V: 14.8 kg-cm / 205 oz-in
Motor Type: Brushless
Gear Material: Stainless Steel
Bearings: Dual Ball Bearing
Case Material: Aluminum
Output Spline: 25T
Water Resistance: IP65
Dimensions: 23 × 12.6 × 27mm
Connector: JR
Wire: 26AWG
Wire Length: 180mm

Fits

Suitable for compatible applications including:

1/18-scale RC crawlers
1/24-scale RC crawlers
Custom micro crawler winch installations
Other models accepting a 23 × 12.6 × 27mm servo with a 25T spline

Check the available mounting space, mounting-hole spacing, receiver or BEC voltage, connector type, spool clearance, line routing, and winch-control compatibility before installation. IP65 means water resistant, not fully waterproof or suitable for submersion.
