Leister LE 5000 HT-U / LE 5000 HT-S, 3 x 200V/7.0kW, 3 x 400V/7.5kW
Details Hot air side sealing for liquid packaging

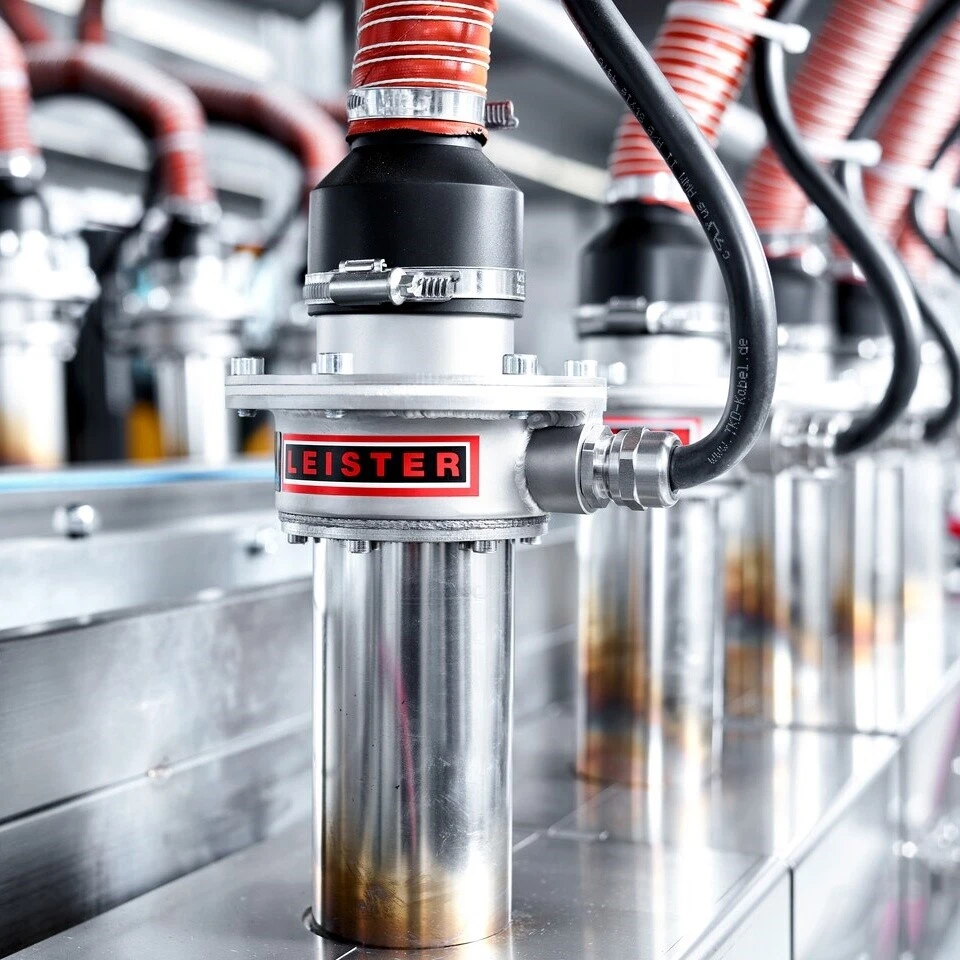

The hot air sealing unit for liquid packaging include two different units: The LE 5000 HT-U air heater has the hot air outlet on the upper side, while the LE 5000 HT-S blows the hot air downwards. The air outlet openings are designed precisely for welding the longitudinal seam in liquid packaging. Thanks to the great thermal insulation on the units, the maximum amount of energy is implemented in the weld seam.

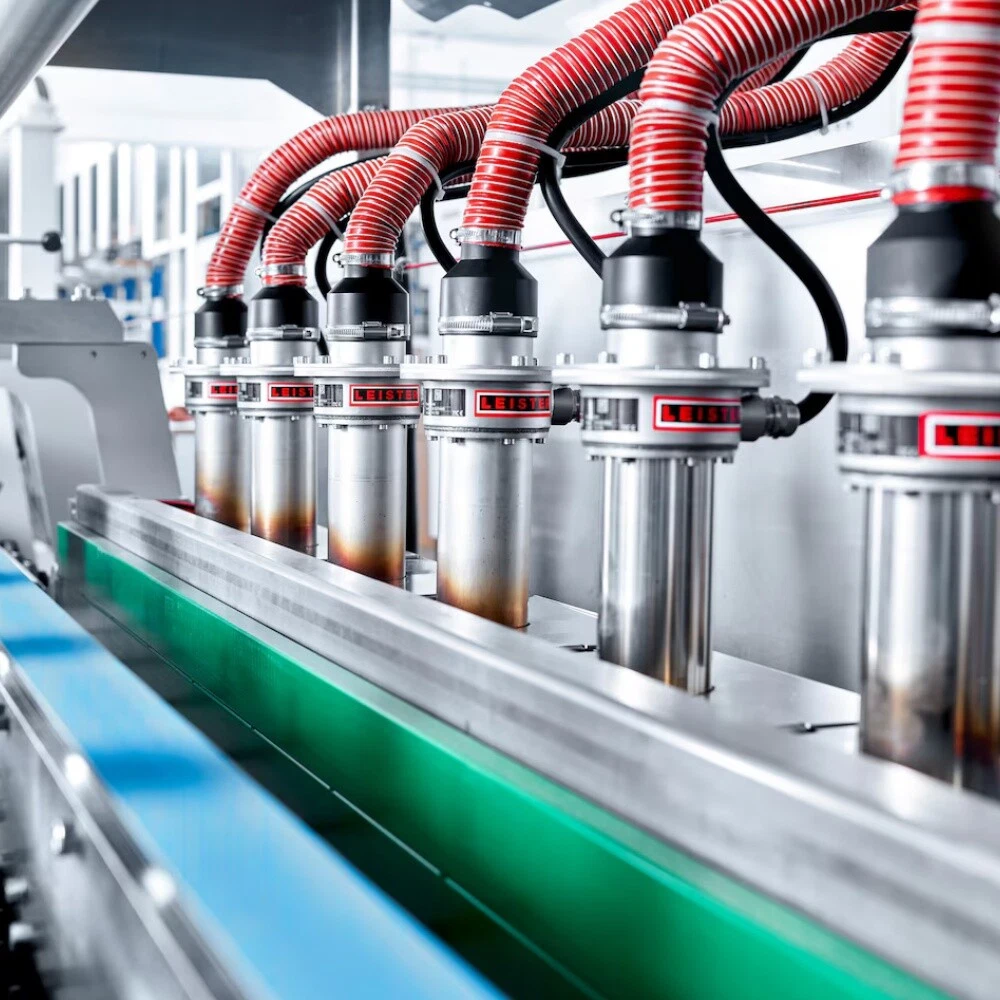

The sealing unit reaches production speeds up to 700 m/min and operates with an air temperature of 900 °C/1652 °F. The temperatures and the air flow can be easily controlled with the sealing units. This makes the hot air process much more precise and climate-friendly than the process with gas flame. The pre sealing units consist of two LE 5000 HT-U devices, which are used in the prefold section of the machine shown by Fortuna Spezialmaschinen GmbH.
Technical Data
Phases：3x
Max. air outlet temperature：900 °C / 1652 ℉
Min. airflow：400 l/min / 14.12 cfm
Max. air inlet temperature：80 °C / 176 ℉
Max. ambient temperature：80 °C/ 176 ℉
Overheating protection：No
Max. inlet pressure：100 kPa / 14.5 psi
Temperature sensor Type：K
Version：Type U
Length：224.5 mm / 8.83 in
Width：234 mm / 9.21 in
Height：326 mm / 12.83 in
Weight：9 kg / 19.84 lb
Power cable length：5 m / 16.4 ft
Additional description：With insulation and thermocouple Typ K
Approvals：CE; UKCA; cURus
Protection class：I
Features
1. Reduces CO2 Footprint
2. Safety requirements resulting in lowered costs
3. Low surface contact temperature for increased safety
4. Energy Efficient
5. Process Reproducability
Highlights Process Reproducability
√ Temperature adjustable up to 900 °C/1652 °F
√ Welding Speed up to 700 m/min
√ Gas replacement with hot air
The hot air sealing unit for liquid packaging include two different units: The LE 5000 HT-U air heater has the hot air outlet on the upper side, while the LE 5000 HT-S blows the hot air downwards. The air outlet openings are designed precisely for welding the longitudinal seam in liquid packaging. Thanks to the great thermal insulation on the units, the maximum amount of energy is implemented in the weld seam.
The sealing unit reaches production speeds up to 700 m/min and operates with an air temperature of 900 °C/1652 °F. The temperatures and the air flow can be easily controlled with the sealing units. This makes the hot air process much more precise and climate-friendly than the process with gas flame. The pre sealing units consist of two LE 5000 HT-U devices, which are used in the prefold section of the machine shown by Fortuna Spezialmaschinen GmbH.
