Tips: If you need Large quantity, please contact us, we can wholesales.

Product features:

The protection board uses the Japanese Ricoh rechargeable lithium iron phosphate battery protection IC;

1) built in high precision voltage detection circuit;

2) the terminal of the charger is using high voltage device;

3) built in the 3 section over current detection circuit

(over current 1, over current 2, load short circuit);

4) through the MOS tube can control the battery charge and discharge;
5) low standby consumption current.

Main function:

Over charging protection, over discharge protection, short circuit protection, over current protection function.

Product Usage:

2 string LiFe iron lithium-ion LiFePO4 phosphate rechargeable battery pack.

Technical parameter:

No.	Test item		Criterion
1	Voltage	Charging voltage	DC:7.3V CC/CV
		Balance voltage for single cell	N/A
2	Current	Balance current for single cell	N/A
		Current consumption	≤6μA
		Maximal continuous charging current	N/A
		Maximal continuous Discharging current	3.2A
3	Over charge Protection	Over charge detection voltage	3.65±0.025V
		Over charge detection delay time	N/A
		Over charge release voltage	N/A
4	Over discharge protection	Over discharge detection voltage	2.0±0.1V
		Over discharge detection delay time	N/A
		Over discharge release voltage	2.5V±0.1V
5	Over current protection	Over current detection voltage	N/A
		Over current detection current	5.2±0.5A
		Detection delay time	5ms - 15ms
		Release condition	Cut load circuit
6	Short Circuit protection	Detection condition	Exterior short circuit
		Detection delay time	≤50us
		Release condition	Cut load circuit
7	Resistance	Protection circuitry（MOSFET）	≤45mΩ
8	Temperature	Operating Temperature Range	-40～+50℃
		Storage Temperature Range	-40～+125℃

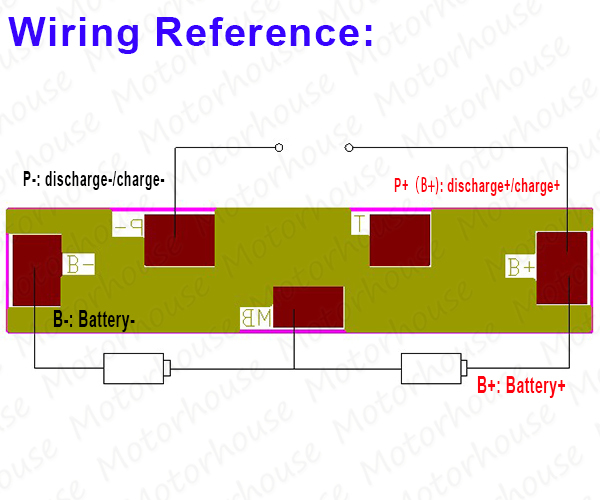

Board size: 29.5*6*2.7mm

Package Include:

Protection Board x 1
