MT-2017N
DC voltage: 0.1/2.5/10/50/250V±3.0%FSD, 1000V±4.0%FSD
Positive and negative DC voltage at intermediate zero: DC±5V/±25V±5.0%FSD
AC voltage: 10/50/250V±4.0%FSD, 1000V±5.0%FSD
DC current; 50μ/2.5m/25m/250mA ±3.0%FSD, 10A ±4.0%FSD
resistance
x1(0.2~2KQ)/x10(2~20KQ)/x100(20~200KQ)/
x1k(200~2MQ)/x10KQ2(2K~20MQ) soil 4.0%ARC
Capacitance; C(Rx1K): 2000uF(Approx.)Max
Battery measurement; 1.5V/9V
Transistor test: yes
Diode & LED Test: Yes
short circuit buzzer

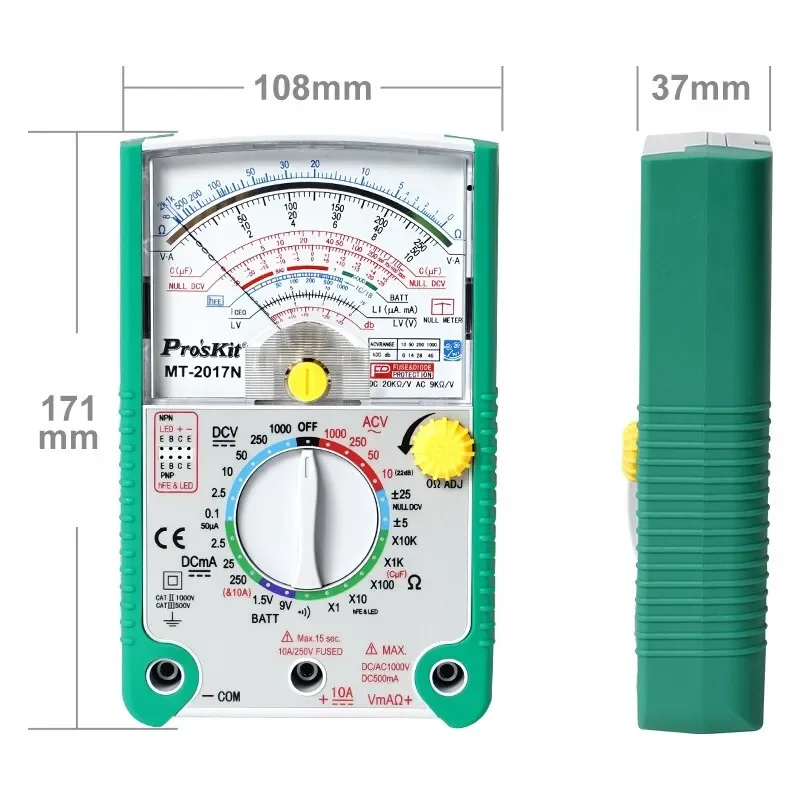

Dimensions; 170 X 108 X 37mm
Packaging; Color Box
Weight; 390g
