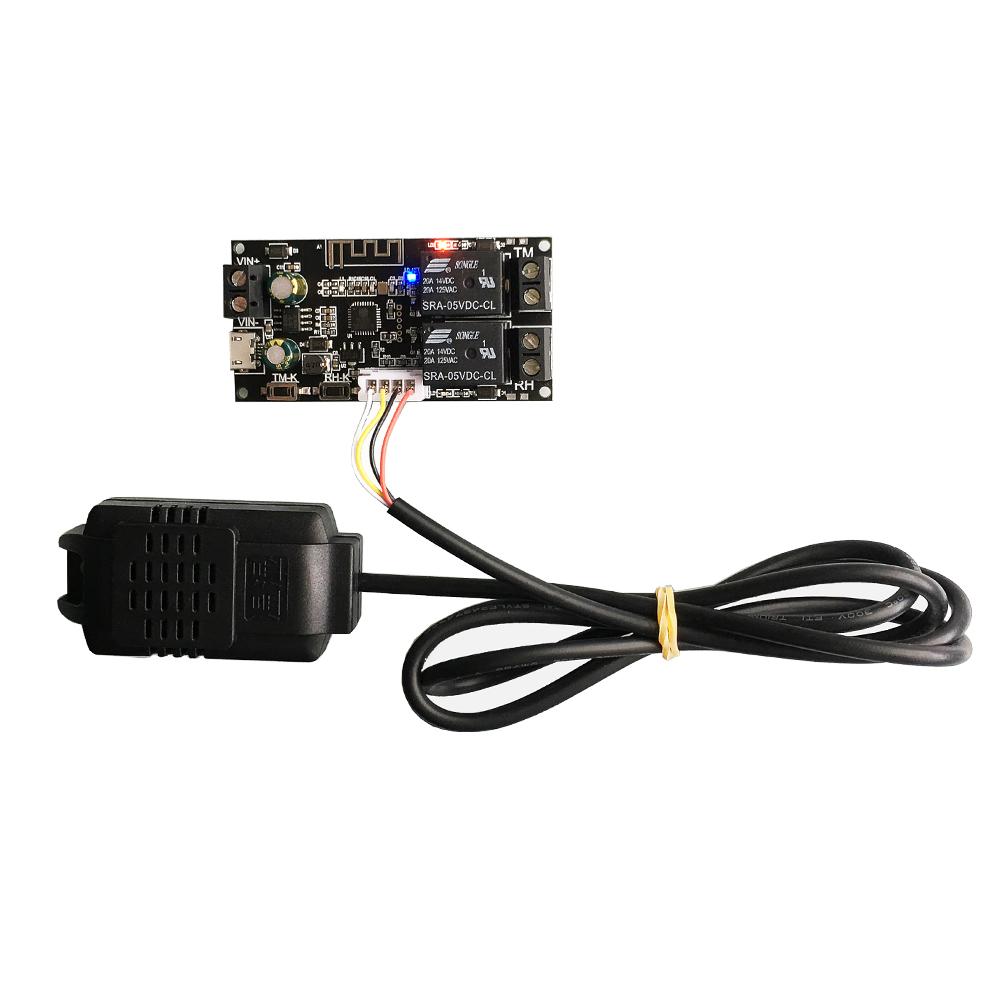

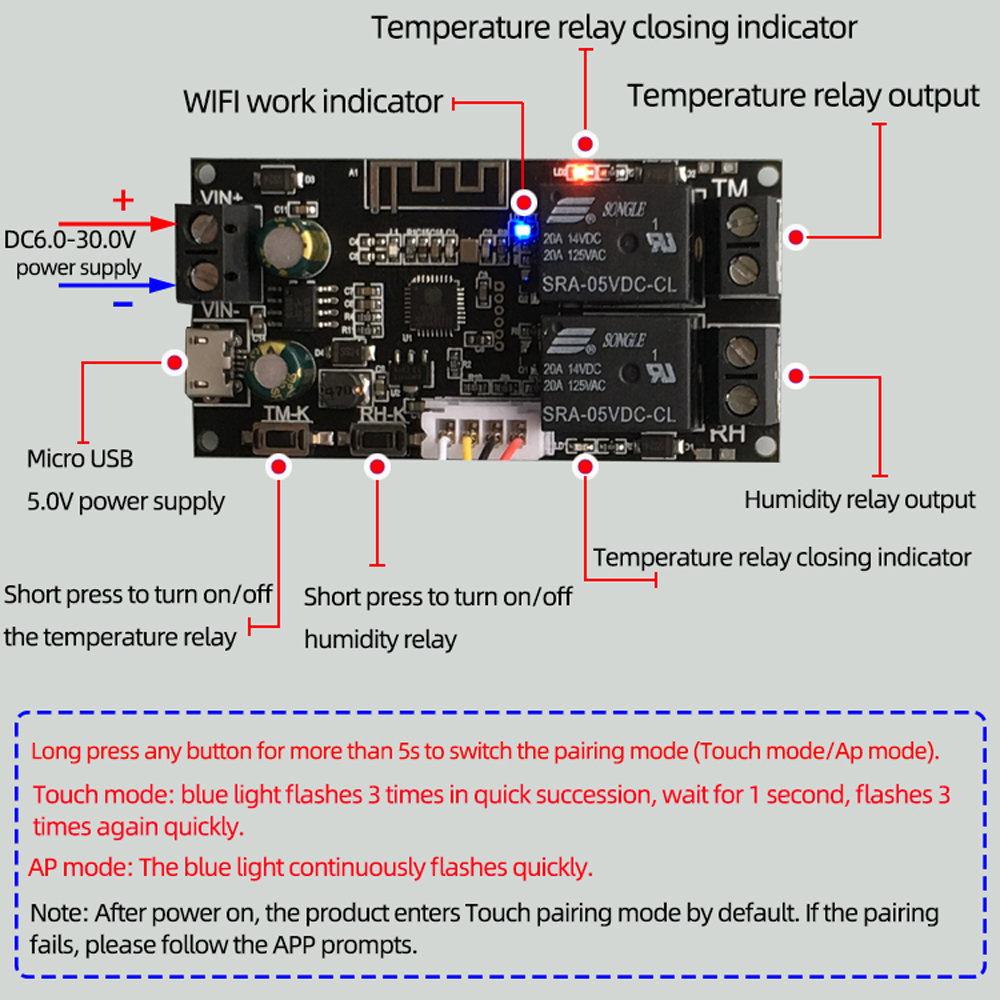

XY-WFWT Temperature and Humidity Remote Controller WIFI Relay Module Dual Output Automatic Constant Temperature and Humidity

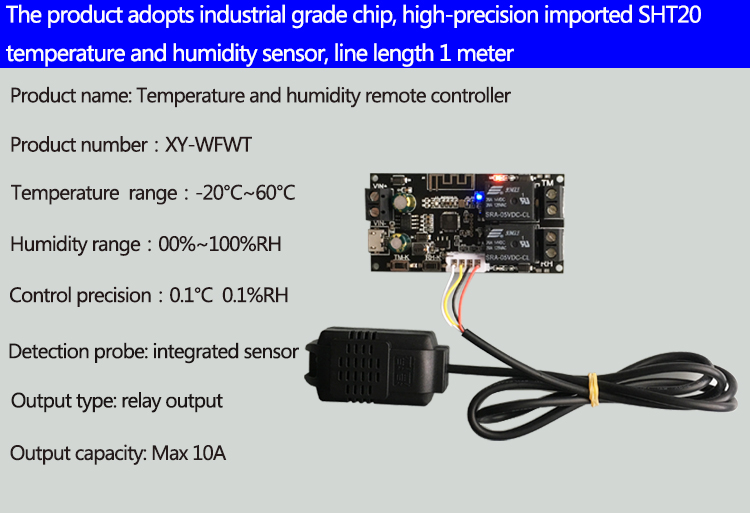

Specifications:

Product model: XY-WFWT

Temperature range: -20°C~60°C

Control accuracy: 0.1°C 0.1%RH

Detection probe: integrated sensor

Output type: relay output

Output capacity: maximum 10A

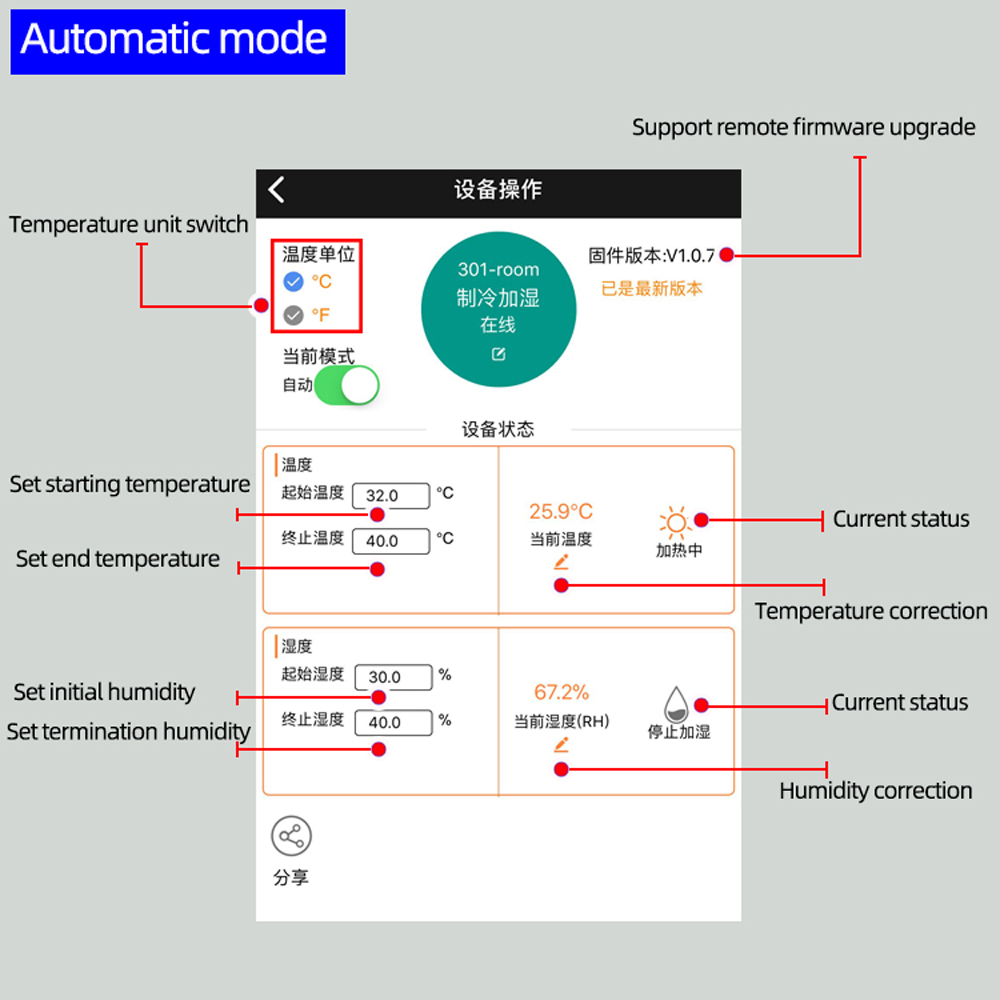

The temperature functions are as follows:

1. Automatic recognition of working mode:

The system automatically identifies the working mode according to the start temperature / end temperature;

When the starting temperature is higher than the ending temperature, the refrigeration mode is adopted; when the starting temperature is lower than the ending temperature, the heating mode is adopted;

2. Refrigeration mode:

When the sensor temperature is greater than or equal to the initial temperature, the relay is on, the red indicator light is on, and the refrigeration equipment starts to work;

When the sensor temperature is less than or equal to the terminal temperature, the relay is closed, the red indicator light is off, and the refrigeration equipment stops working;

3. Heating mode:

When the sensor temperature is less than or equal to the initial temperature, the relay is on, the red indicator light is on, and the heating equipment starts to work;

When the sensor temperature is greater than or equal to the terminal temperature, the relay is closed, the red indicator light is off, and the heating equipment stops working

The humidity functions are as follows:

1. Automatic recognition of working mode:

The system can automatically identify the working mode according to the initial humidity / ending humidity;

Dehumidification mode when initial humidity > end humidity; humidification mode when initial humidity < end humidity;

2. Dehumidification mode:

When the humidity of the sensor is greater than or equal to the starting humidity, the relay is on, the red indicator light is on, and the dehumidification equipment starts to work;

When the humidity of the sensor is less than or equal to the termination humidity, the relay is closed, the red indicator light is off, and the dehumidification equipment stops working;

3. Humidification mode:

When the detection humidity is less than or equal to the initial humidity, the relay is on, the red indicator light is on, and the humidification equipment starts to work;

When the detection humidity is greater than or equal to the termination humidity, the relay is closed, the red indicator light is off, and the humidification equipment stops working.

Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.

2. Please allow 1-3cm differences due to manual measurement.

Package Included:

1x Temperature and Humidity Remote Controller Module
