PRODUCT DESCRIPTION

Launch X431 O2-2 Scope Box Oscilloscope 4 Channels 100MHz USB Fit PRO3S+ PADV

For international customer please note: ( Non-international buyers please ignore )

a) Import duties, taxes and charges are the buyer’s responsibility. It is not include in the price.
b) Before you buy Please check with your post office to know if the additional fee will more than you expect.

NOTE

Provide Your brand, model, year, function to customer service before buying, otherwise you may buy the wrong product.

If you have any questions, Lisa will help you solve them, please contact her from ebay message.It is better than open the return request.

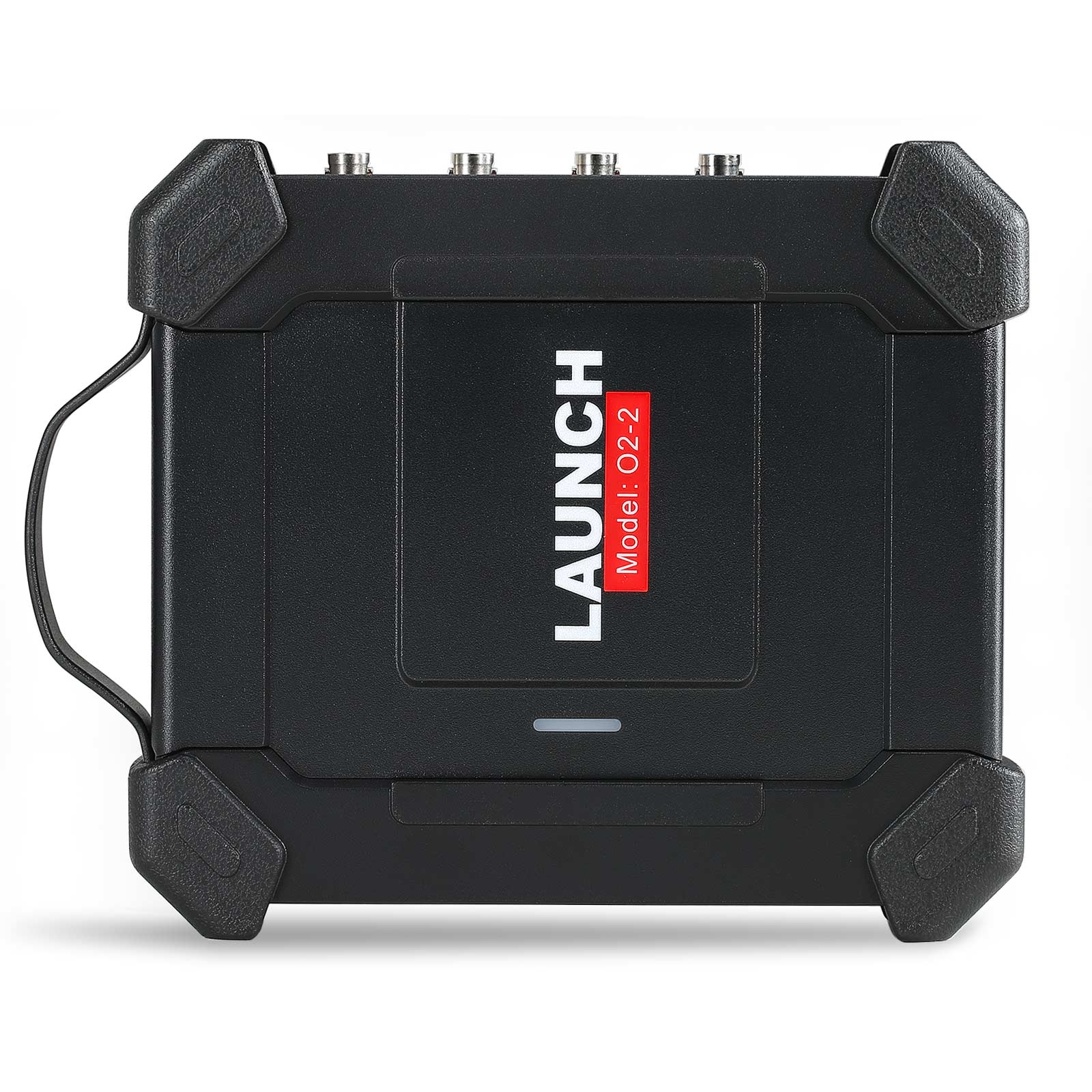

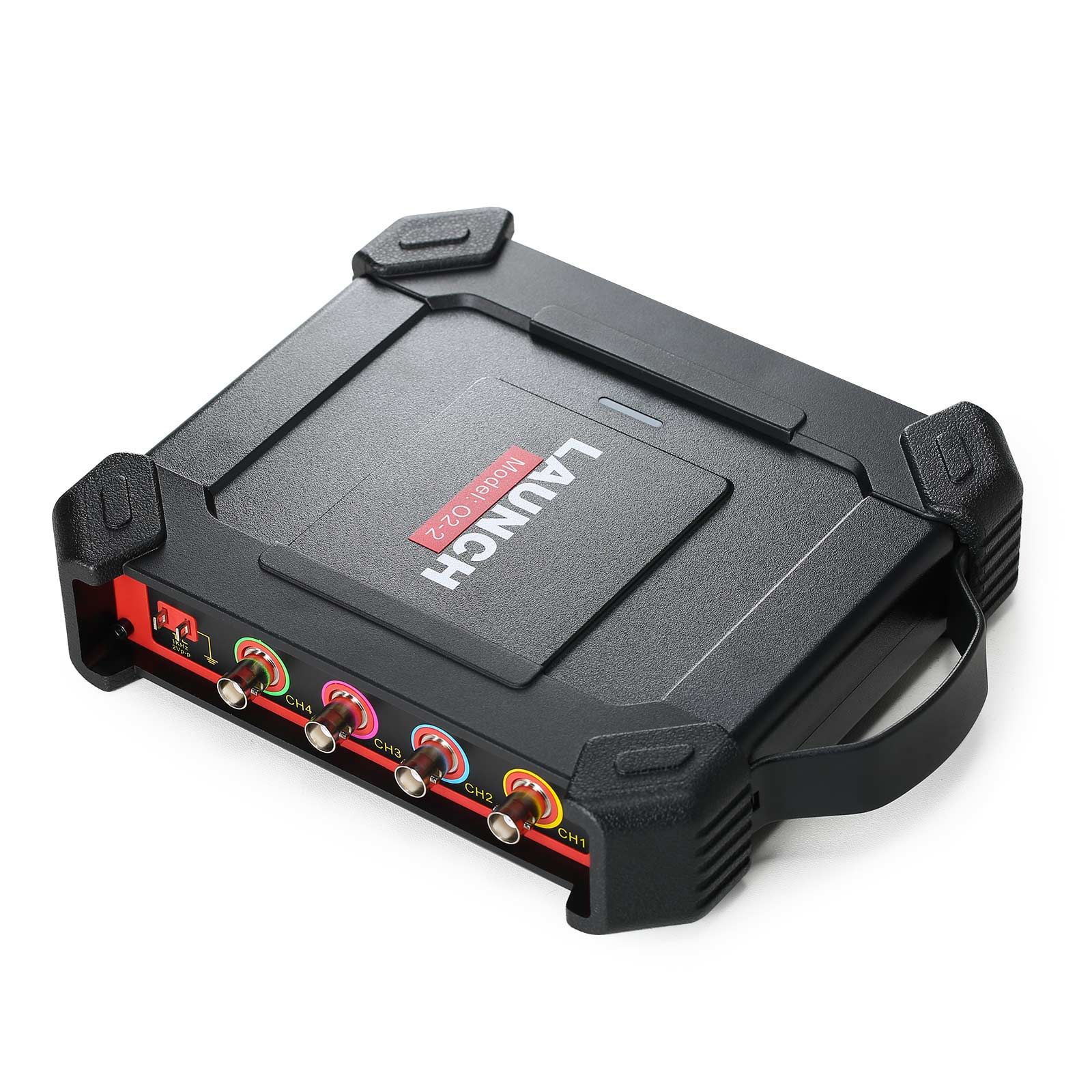

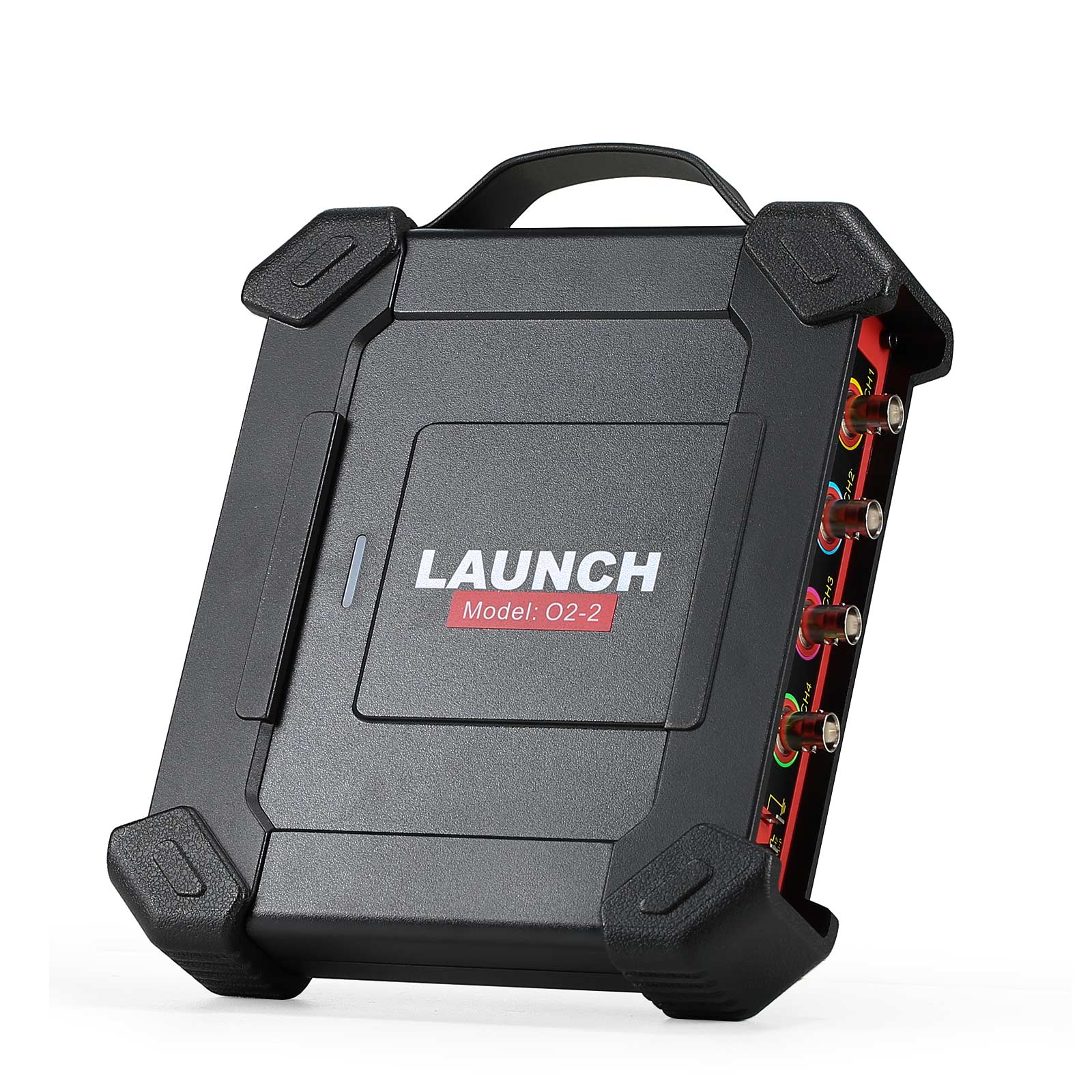

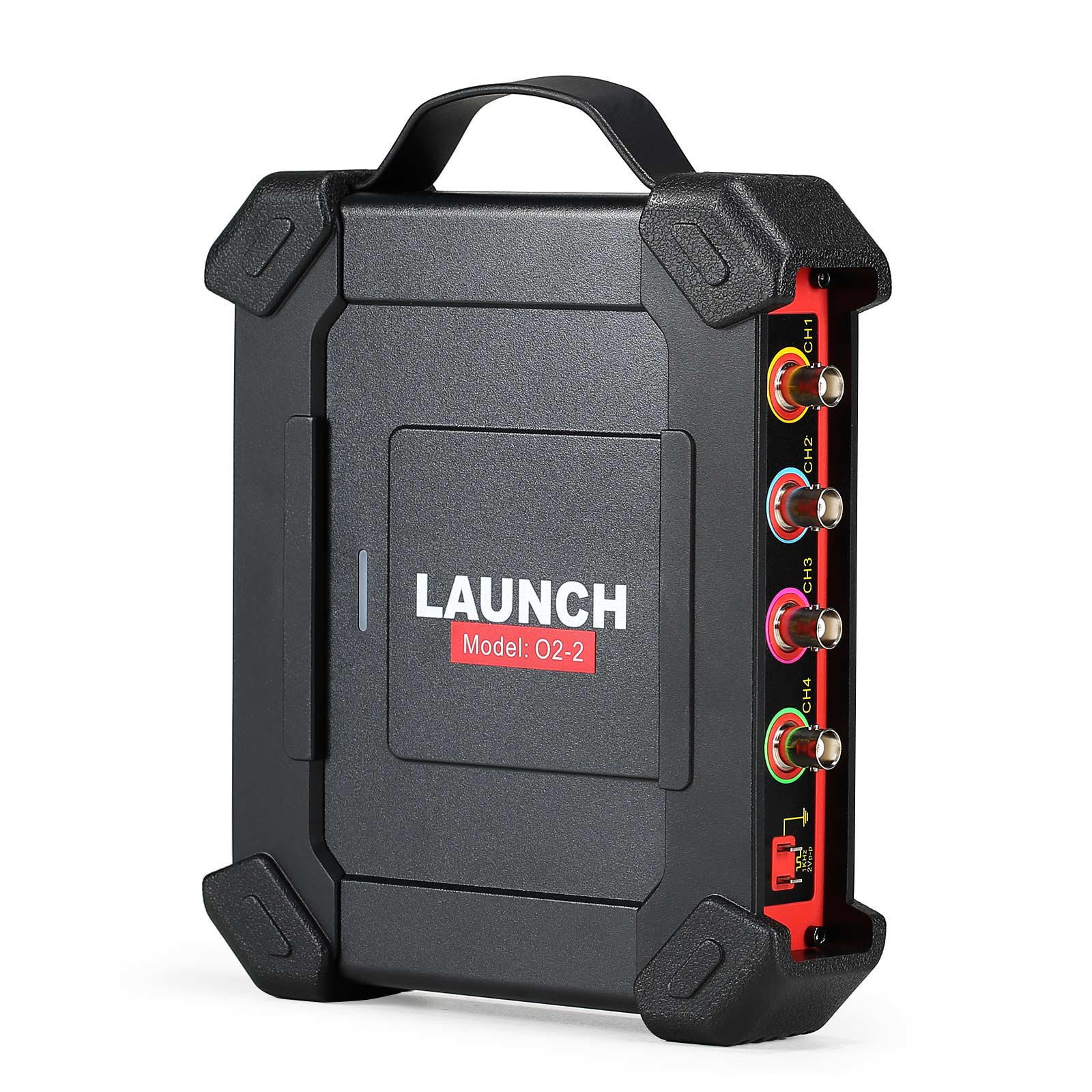

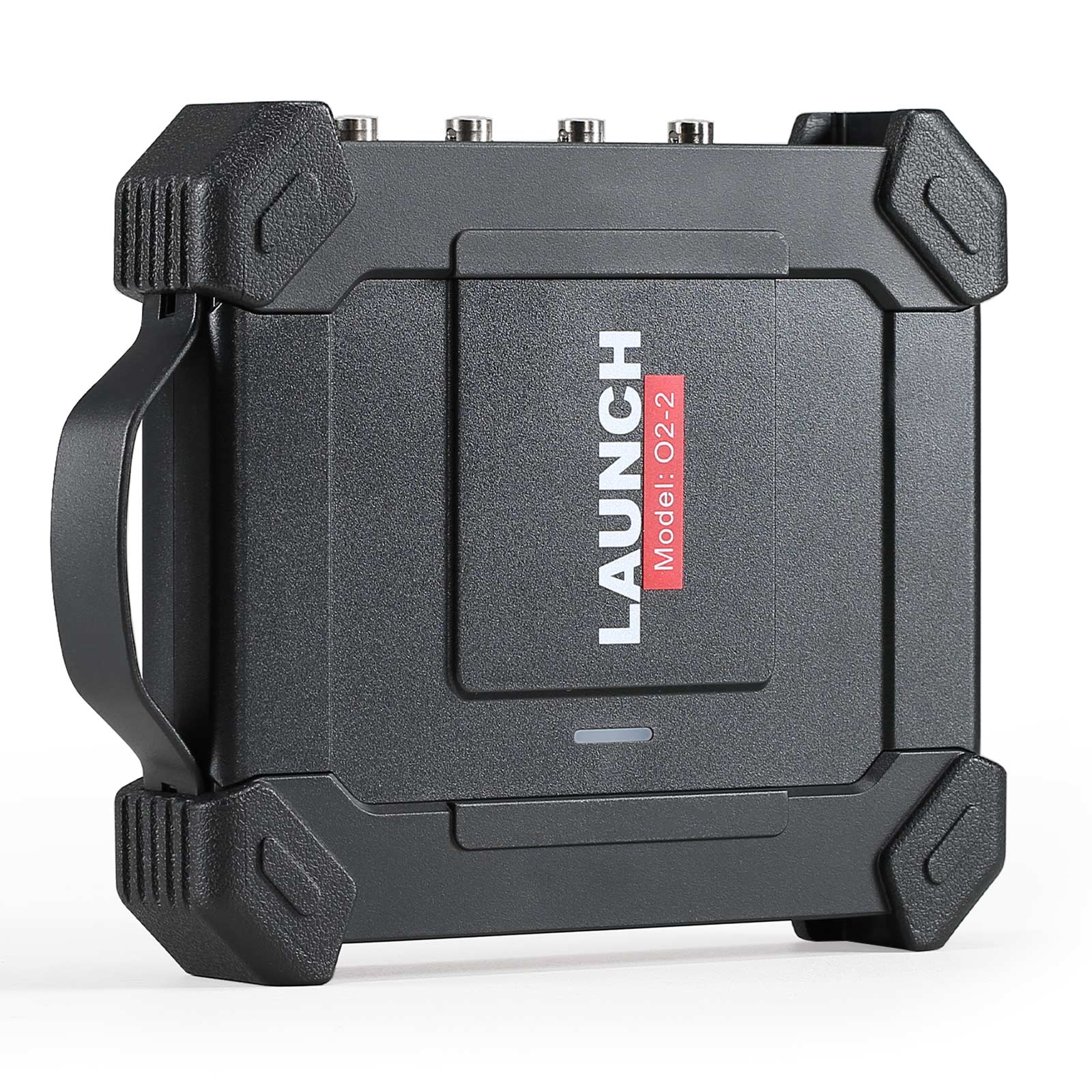

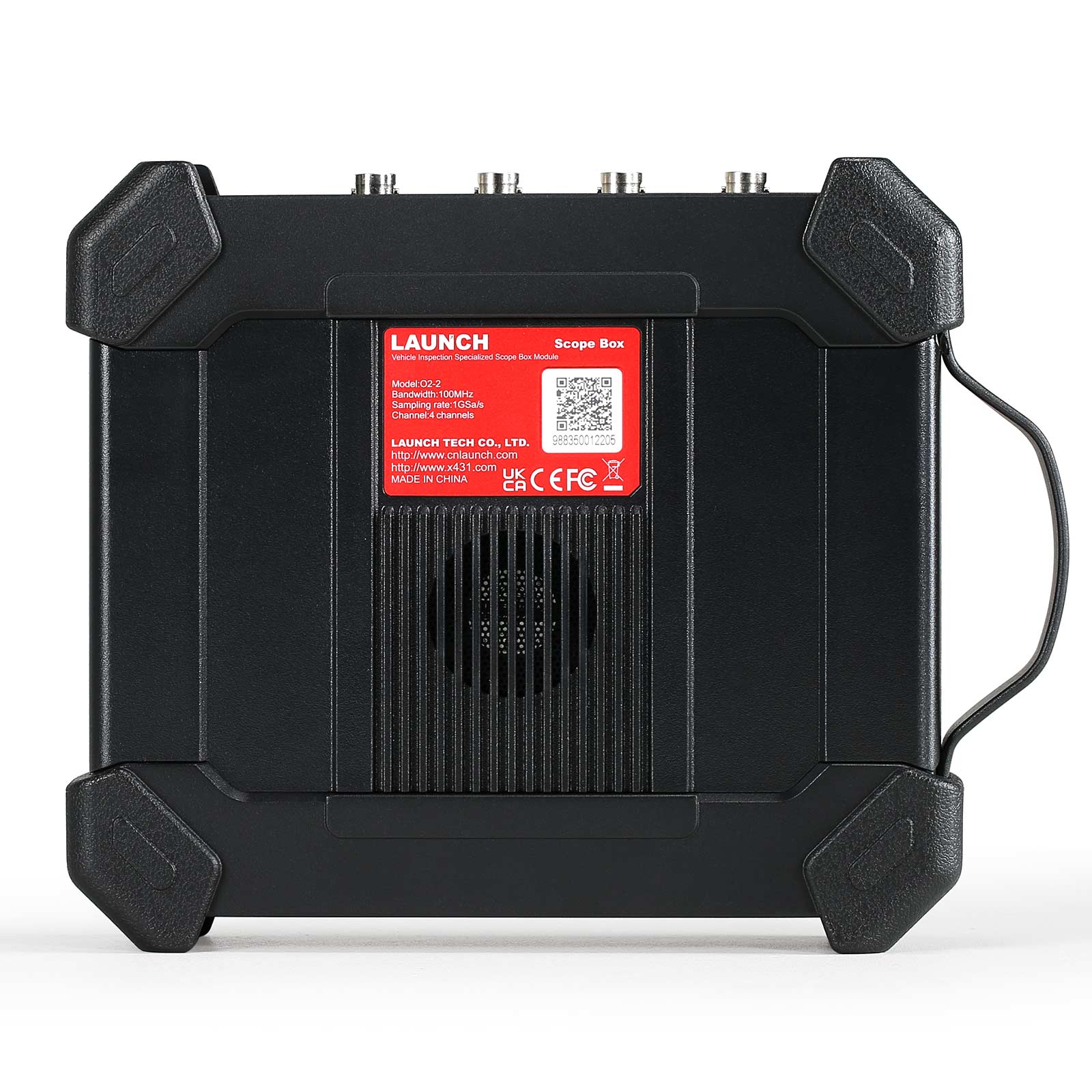

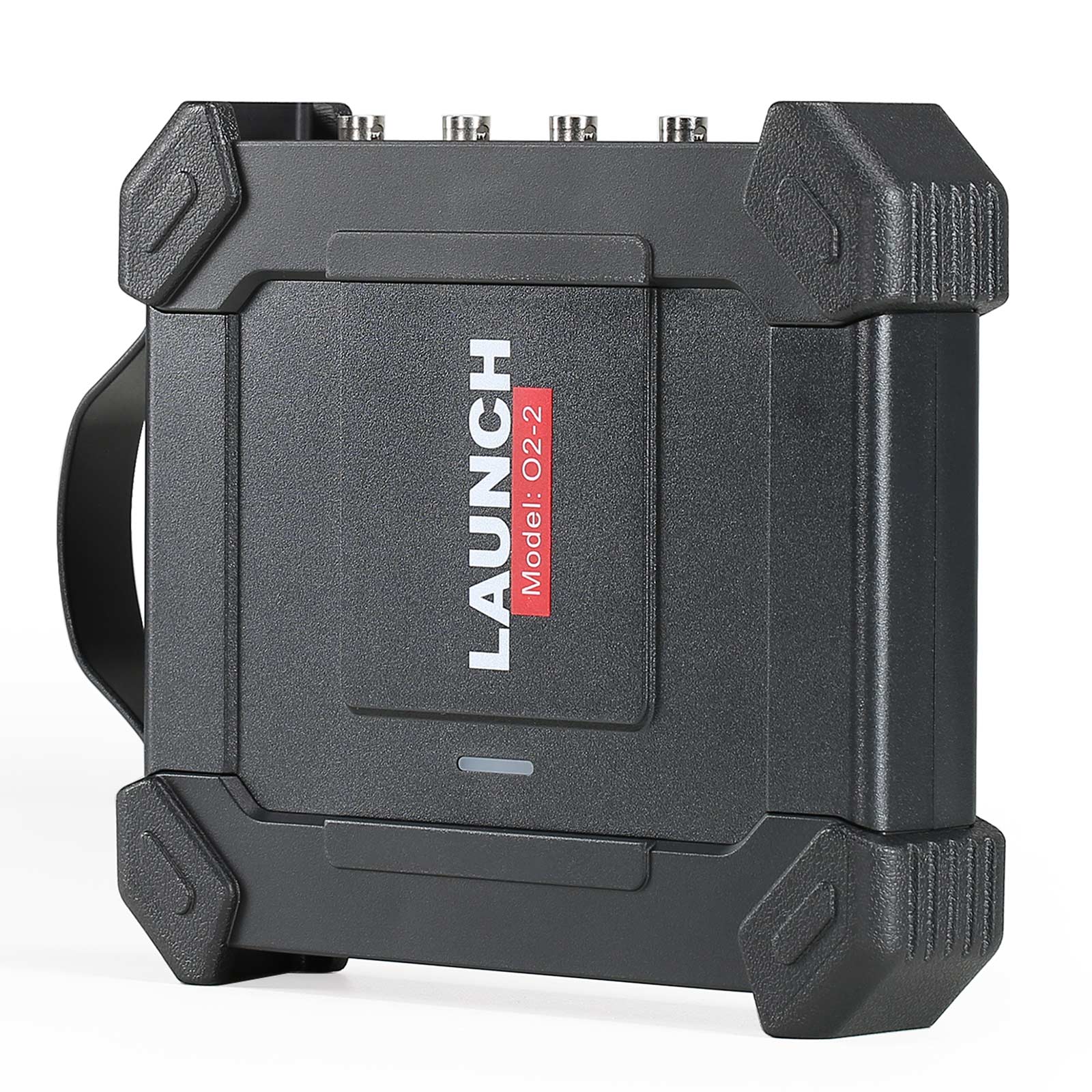

Launch O2-2 Scope Box Oscilloscope 4 Channels 100MHz Bandwith Work with Launch PRO3S+ V5.0/PAD V

Launch O2-2 Scope Box allows the user to capture a particular waveform which makes the process 70% more dfficient as compared to other scopes. It features the ability to record and playback high-resolution waveform data for future analysis. Its ability to input names and characters directly by clicking on the virtual keyboard streamlines the process and contributes to 90% of efficiency improvement.

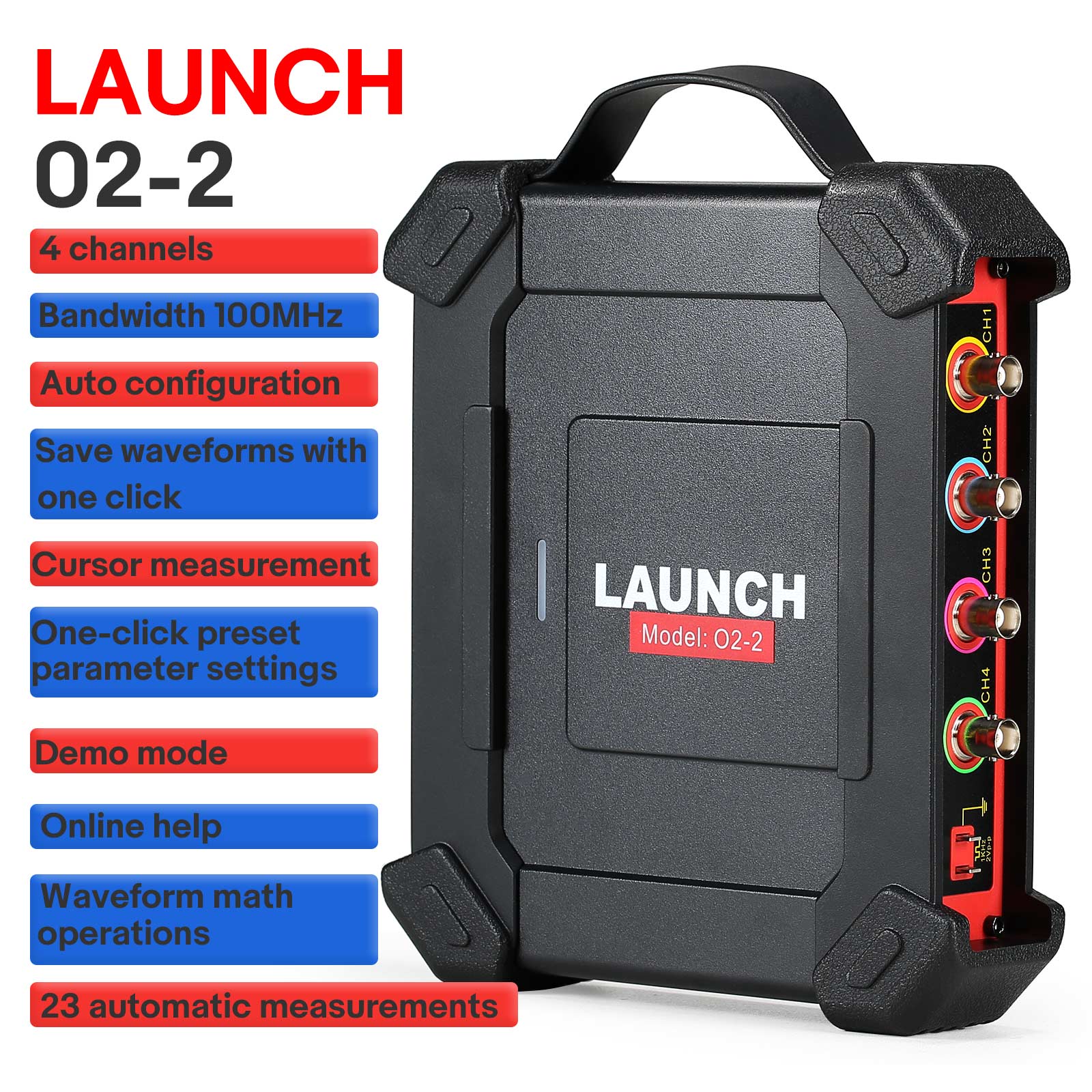

Product Highligts:

4 channels

Bandwidth 100MHz

Auto configuration

Save waveforms with one click

Cursor measurement

One-click preset waveform parameter settings

Demo mode

Online help

Waveform math operations

23 automatic measurements

Product Features:

One key enable function

Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch.

Buffer memory up to 50M.

Use the zoom in/out feature to review precise details

Customizable personal system settings that can be saved as configuration files for viewing

Self-calibration function allows optimization of the oscilloscope signal path for maximum measurement accuracy.

Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high level waveform analysis.

Multiple automotive tests that include circuits, sensors, actuators, ignition tests and more.

Multi language user interface.

USB Sync Data Transfer to external devices such as laptop, tablet, etc....

Product Functions:

Supports multiple vehicle preset project tests

Supports a variety of automotive preset project tests, such as circuits, sensors, actuators, ignition tests, communication tests and combination tests, and presets various parameters and specific connection methods for each test.

23 automatic measurement settings

23 automatic measurement settings are displayed on one screen, which is clear at a glance and can be clicked with a light touch. It supports one-click clearing, eliminating the tediousness of turning pages and searching multiple times, making automatic measurement easy to use and convenient.

Quick trigger source switching

Supports edge, pulse and other triggers. Simple and intuitive trigger settings and fast trigger source switching methods make the most difficult part of oscilloscope application extremely easy.

Quickly create waveform preset parameters with one click

When testing waveforms, you can save the existing settings on the current interface as waveform preset parameters with one click. When testing similar waveforms later, you can directly load the preset parameters without repeated settings.

Quickly save waveforms with one click

Quickly save the waveform currently displayed on the screen with one click and automatically save it in the specified format. It can be directly used as a reference channel waveform for display later.

Convenient cursor operation

Turn on the horizontal and vertical cursors with one click respectively. Each cursor can be dragged independently, and cursor tracking is also directly implemented through simple highlight touches, improving overall efficiency by more than 80%.

Support cursor/phase ruler changes accordingly

When the waveform is zoomed in/out, the cursor and phase scale can change accordingly, keeping the measurement range unchanged.

Supports 2-point touch, the waveform can be zoomed in or out vertically or horizontally

Drag horizontally or vertically with 2 points to zoom in or out the waveform horizontally or vertically.

Support demonstration function

Preset sine waveforms to demonstrate common functions without connecting an oscilloscope.

Supports waveform math operations

Supports addition, subtraction, multiplication and division calculations of two channel waveforms, in addition to fast Fourier transform.

Detailed Comparison Between Launch O2-2 Scope Box and Launch O2-1 Scope Box

Model	O2-1	O2-2
Channel	4	4
Bandwith	100MHz	100MHz
Rise Time	≤3.5ns(typical)	≤3.5ns
Maximum sampling rate	1Gbps(for four channels)	1Gbps
Input resistance	1MΩ±1.5%	1MΩ±1.5%
Storage depth	50M	10M
Number of sampling bits	8bit	8bit
vertical accuracy	3%	3%
Vertical gear	5mV~10V	5mV~10V
Inverting	Support	Support
Channel coupled	DC, AC	DC, AC
Time base gear	5ns~1ks	1ns-1ks
Time base accuracy	20ppm	20ppm
Sampling mode	Normal	Normal
CANBus decoding	CAN, LIN	CAN, LIN
Trigger type	Edge, Pulse width	Edge, Pulse width
Trigger mode	Normal, Auto and Single SEQ	Normal, Auto and Single SEQ
Trigger coupling	DC, Noise rejection	DC, Noise rejection
Math	Double wave\FFT	Double wave\FFT
Display	YT、Zoom、Roll	YT、Zoom、Roll
Roll mode	200ms/div~1000s/div	200ms/div~1000s/div
Auto configuration	Support	Support
Auto measurement	23	23
Cursor	Horizontal cursor, Vertical cursor	Horizontal cursor, Vertical cursor
Powered by	USB port, DC IN port	USB port, DC IN port
Data transmission method	USB	USB
Vehicle configuration options	Circuits, sensor, actuators, ignition	Circuits, sensor, actuators, ignition
Operating temperature	0℃~50℃	0℃~50℃
Power supply range	USB:5V/1A DC:12V/24V	USB:5V/1A DC:12V/24V
Compatibility	Different tablet resolutions require different APPs	One APP can be compatible with multiple tablet resolutions
Multi-touch gestures	No	Supports 2-point touch, the waveform can be zoomed in or out vertically or horizontally
Vehicle configuration	No	Each test project can support online help documentation (help documentation will be compiled according to needs later)
Firmware upgrade	Manual upgrade	Support online upgrade
Trigger	Waveform observation cannot be expanded during normal trigger waiting.	Can be used normally during normal trigger waiting.
Demo function	No	Yes
Split-screen	No	Yes
Sampling rate	Single channel 1G/s, more than 2 channels only 250M/s	Single channel 1G/s, 2 channels 500M/s, multiple channels 250M/s
Start time	2-3S	about 16s
Power consumption	about 6W	about 7.5W

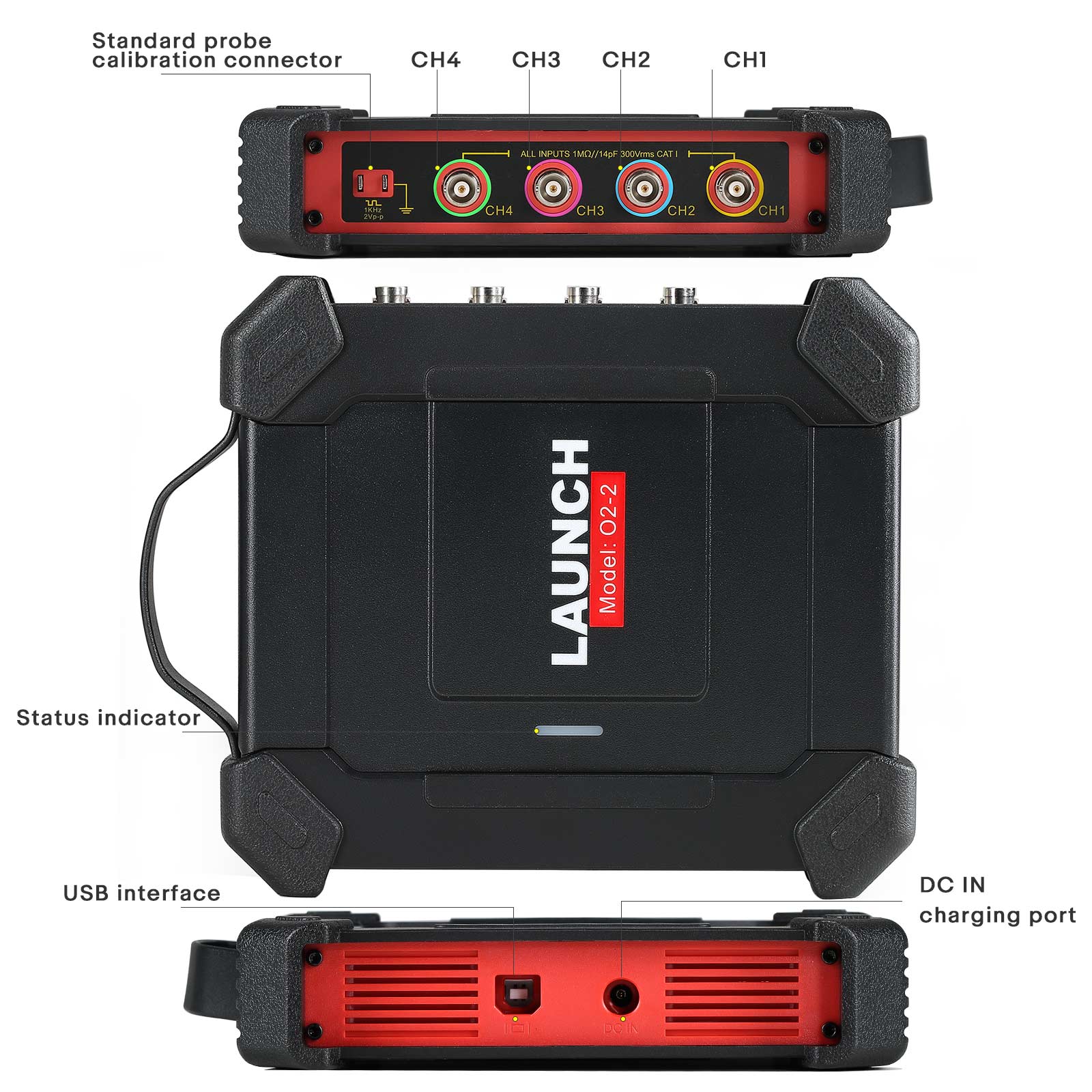

How to Connect the Cables?

Different application scenarios require different connection methods (no matter which application scenario, the following connections are required):

1. power the oscilloscope box through the double-clip power cable: Connect one end of the double-clip power cable to the power interface of the oscilloscope box, and the other end to the vehicle battery to draw power (red is connected to the positive pole, black is connected to the negative pole).

Note: * PADVII series tablets support USB power supply.

2. Connect the Type B terminal of the USB cable to the Type B interface of the oscilloscope, and connect the other end to the USB interface of the diagnostic device.

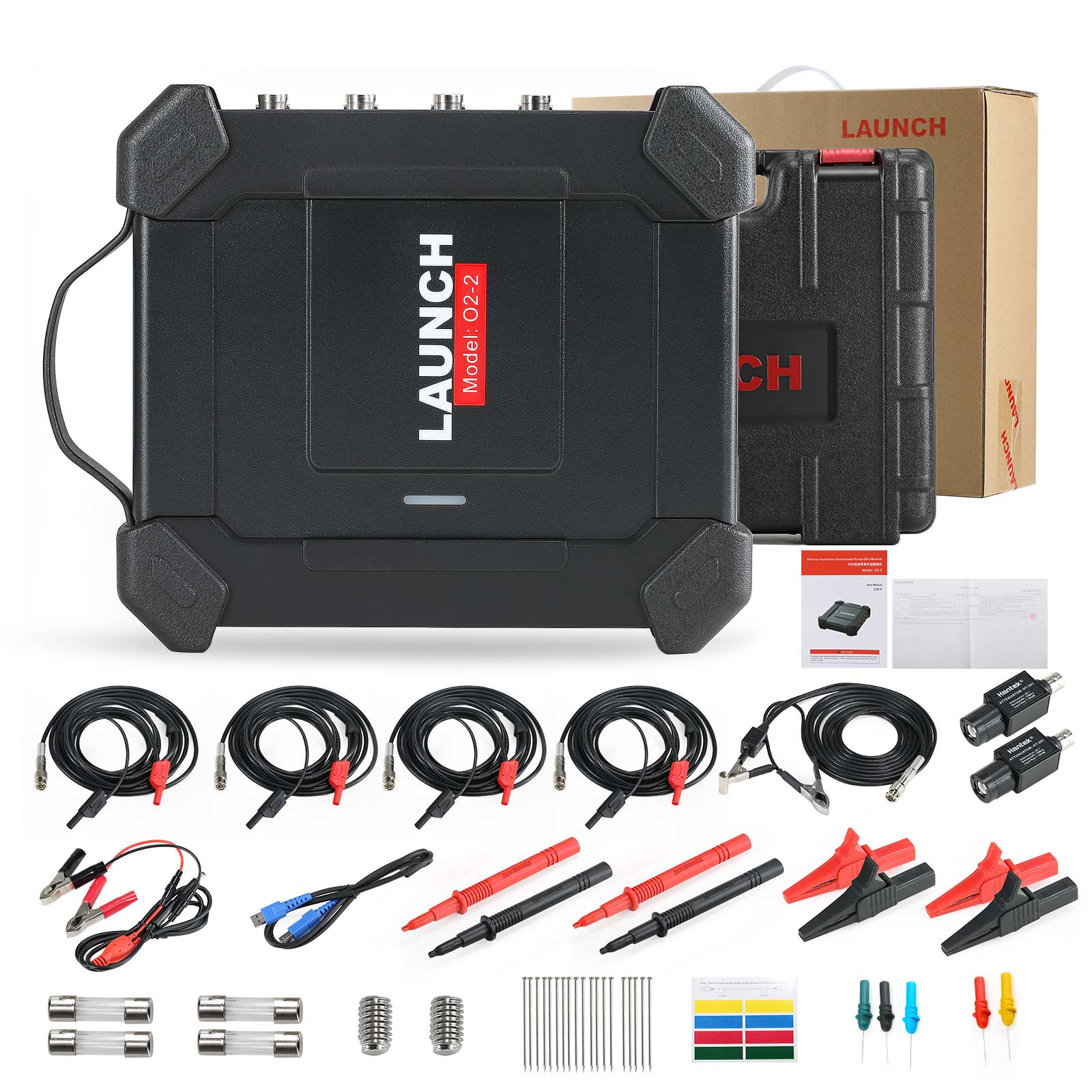

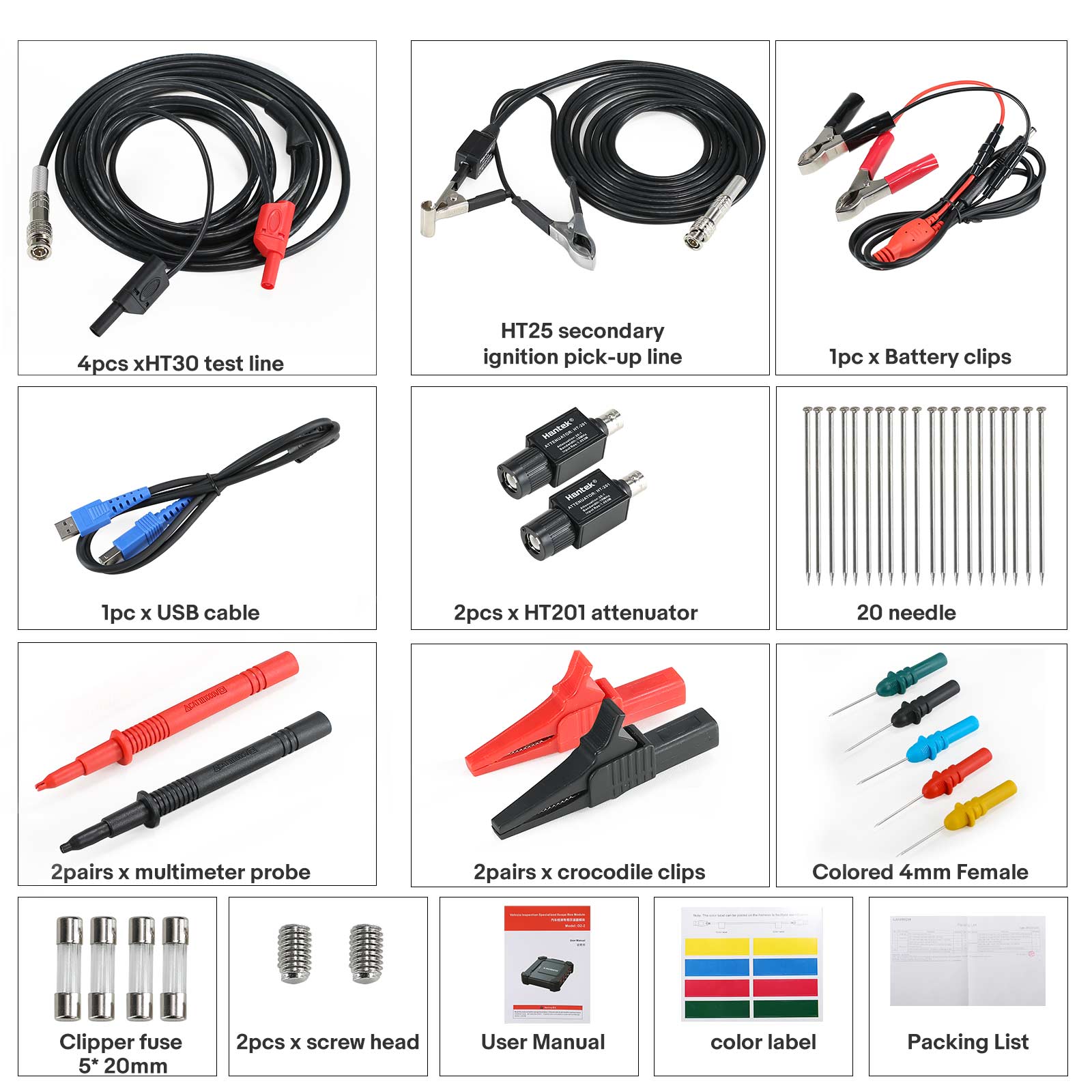

Package Includes:

1pc x Launch O2-2 main unit

4pcs x HT 30 test lines

1pc x HT25 secondary ignition pick-up line

1pc x battery clip cable

1pc x USB cable

2pcs x HT201 attenuator

20pcs x piercing needles

2 pairs x multimeter probes

2 pairs x crocodile clips

5pcs x colored 4 female probes

4pcs x clipper fuses(5*20mm)

2pcs x screw head

1pc x user manual

1pc x color label

1pc x packing list
