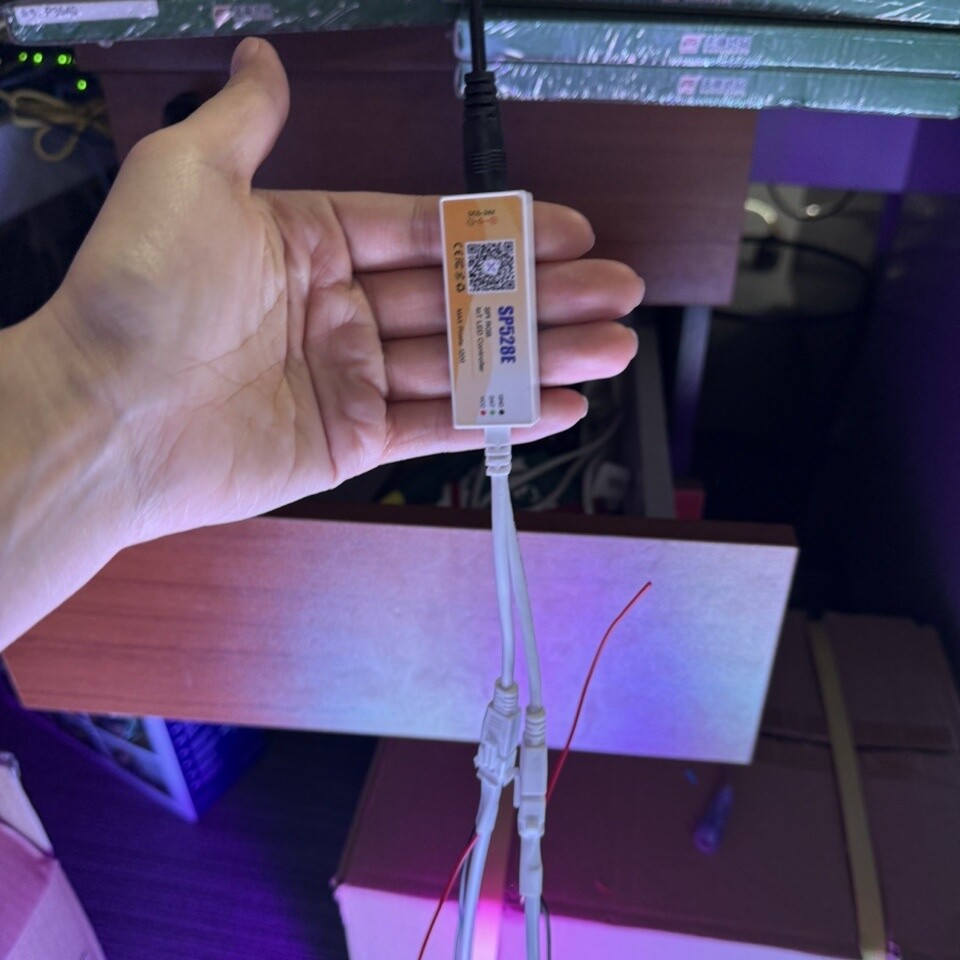

SP528E Magic RGB IoT LED Controller, with WiFi, Bluetooth, Cloud Connectivity, and Smart Voice Control

Product Description

Rated Voltage: DC 5-24V (V)

Connection Methods: WiFi, Bluetooth, Cloud Connectivity

Control Methods: Mobile App, 2.4G Remote Control

Control Range: Up to 30 meters in open areas

Interface Type: 3-Pin Aviation Connector

Signal Method: SPI

Certifications: CE, FCC, RoHS

Dimensions: 56mm x 21mm x 12mm (excluding cables) (mm)

Operating Temperature: -10°C to 60°C

Operating Current: 12mA to 45mA

Maximum Number of Controlled Nodes: 1200

Description：

The SP528E is an SPI three-channel RGB chaser IoT LED controller. It utilizes a dual-mode chip supporting both Bluetooth and Wi-Fi, enabling Bluetooth, Wi-Fi, and remote cloud connectivity. Through the "Banlan Cloud" platform, it facilitates remote control and voice control via smart speakers. The SP528E offers unique dynamic, music-reactive, and customizable effects, allowing users to effortlessly achieve their desired scene ambiance.

Product Features:

- BanlanX App

Dual-mode chip, simple network setup, supporting Bluetooth, Wi-Fi, and remote cloud connection.

- 2.4G RF Remote Control

Optional RD32.4G RF Controller available for selection.

- Smart Speaker Voice Control

Integrated with Alexa, Google Home, Xiaodu, XiaoAI, and other smart platforms, enabling voice command control of lighting.

- Driver IC Type

Supports a 1200 regular reset code three-channel single-wire LED driver IC.

- Rich Dynamic and Music Effects

Music effects are captured through the smartphone microphone or streamed from music players.

- Customizable Effects

Customization of solid colors, gradient colors, as well as static and dynamic effects is supported.

- Diverse Switching Effects and Timing Functions

Offers multiple switch animation effects and scheduled on/off timing functions.

- OTA Firmware Upgrade Support

Capable of over-the-air firmware updates.

- Stable IoT Cloud Connectivity

Connects with "Banlan Cloud" to achieve stable IoT cloud services.

- Group Management of Multiple Devices

Facilitates organized management of multiple devices through grouping.

- Automatic Connection and Reconnection

Supports automatic connection establishment and reconnection capabilities for devices.
