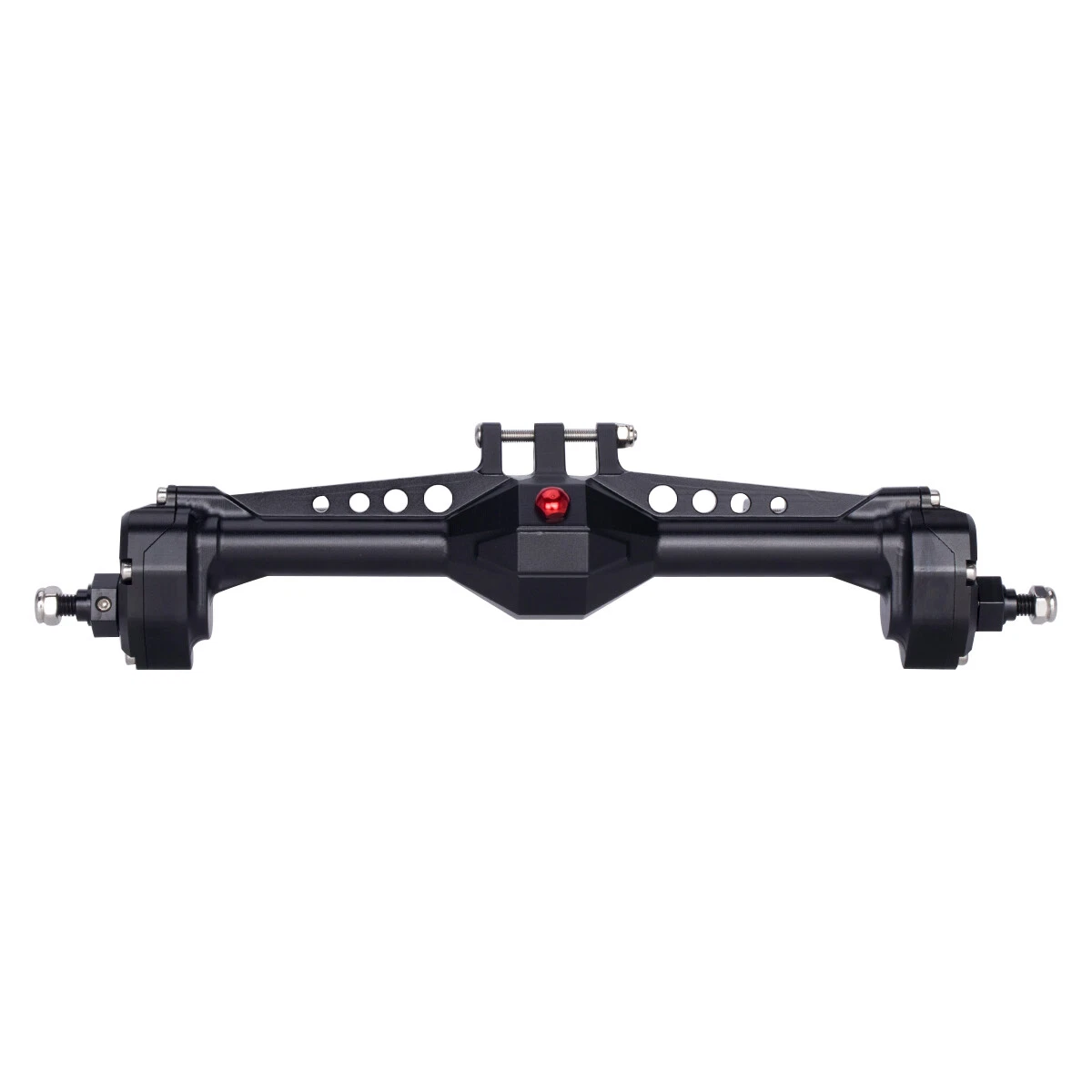

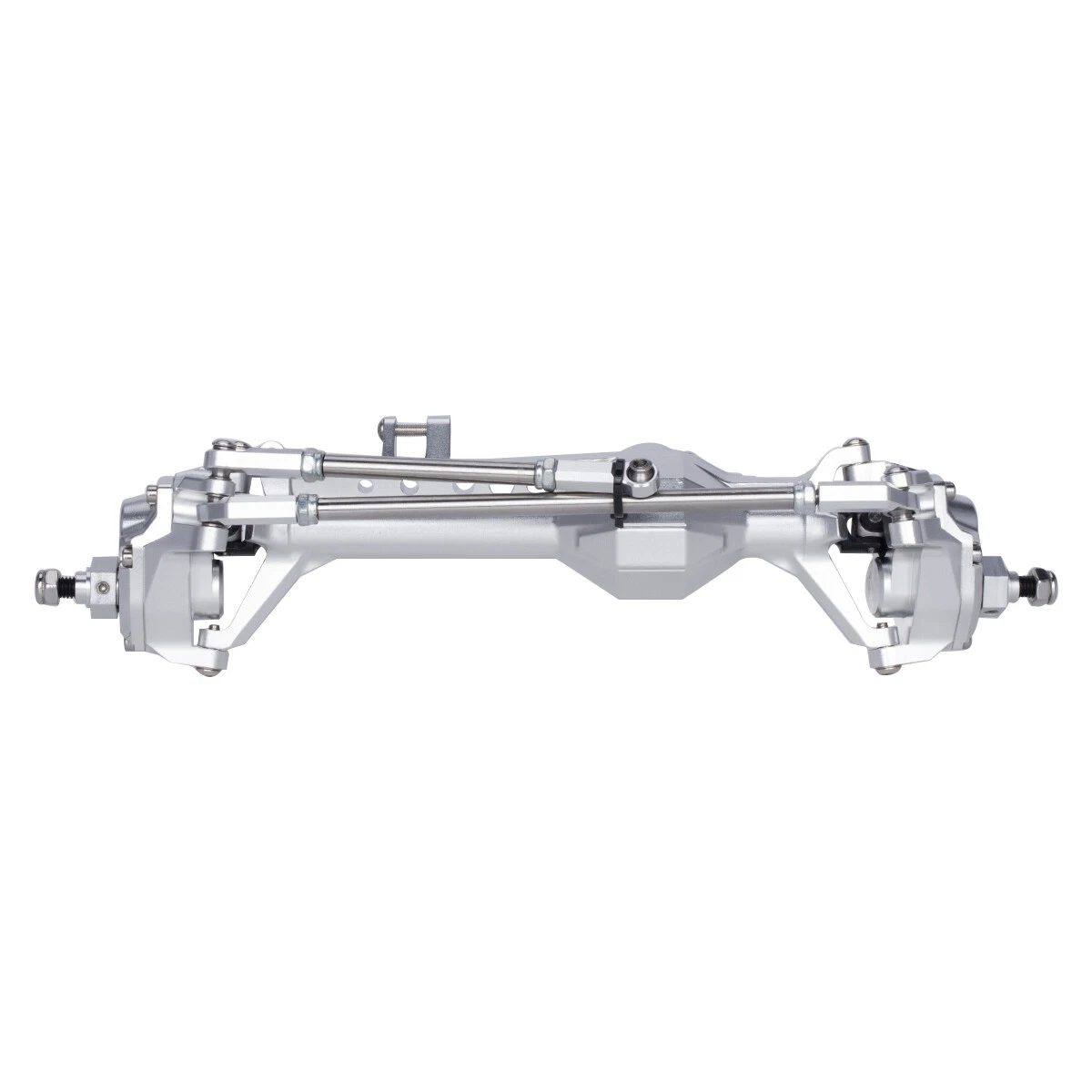

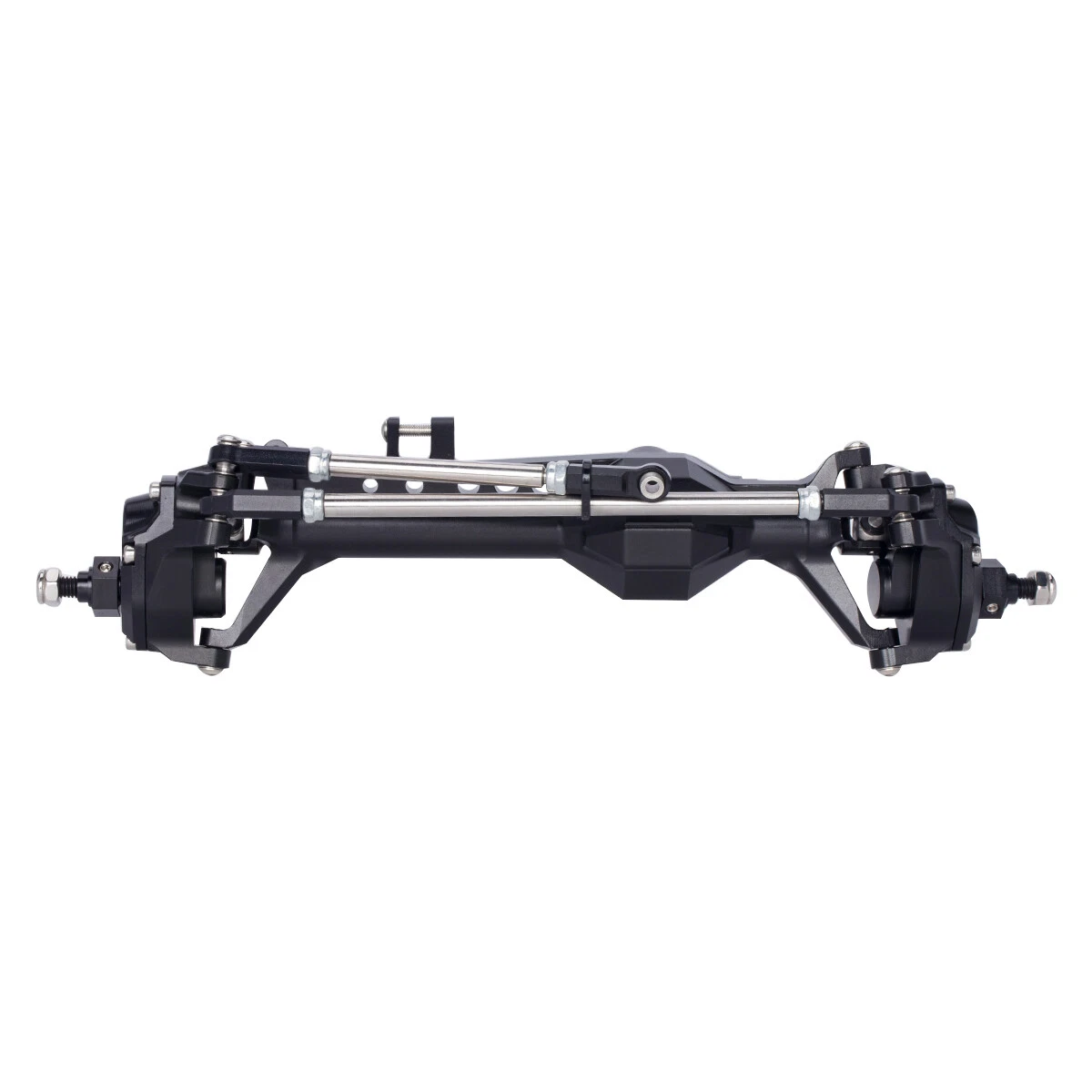

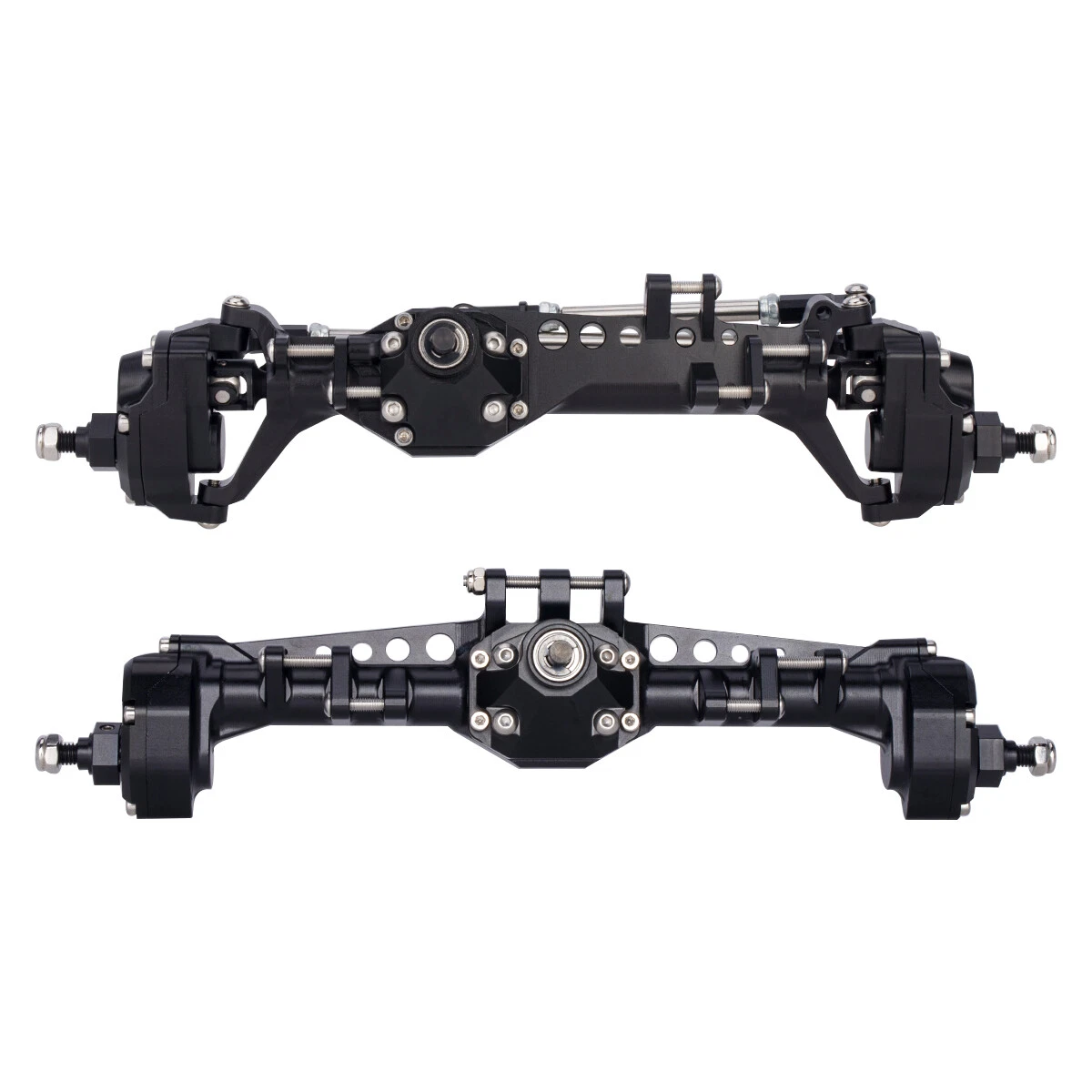

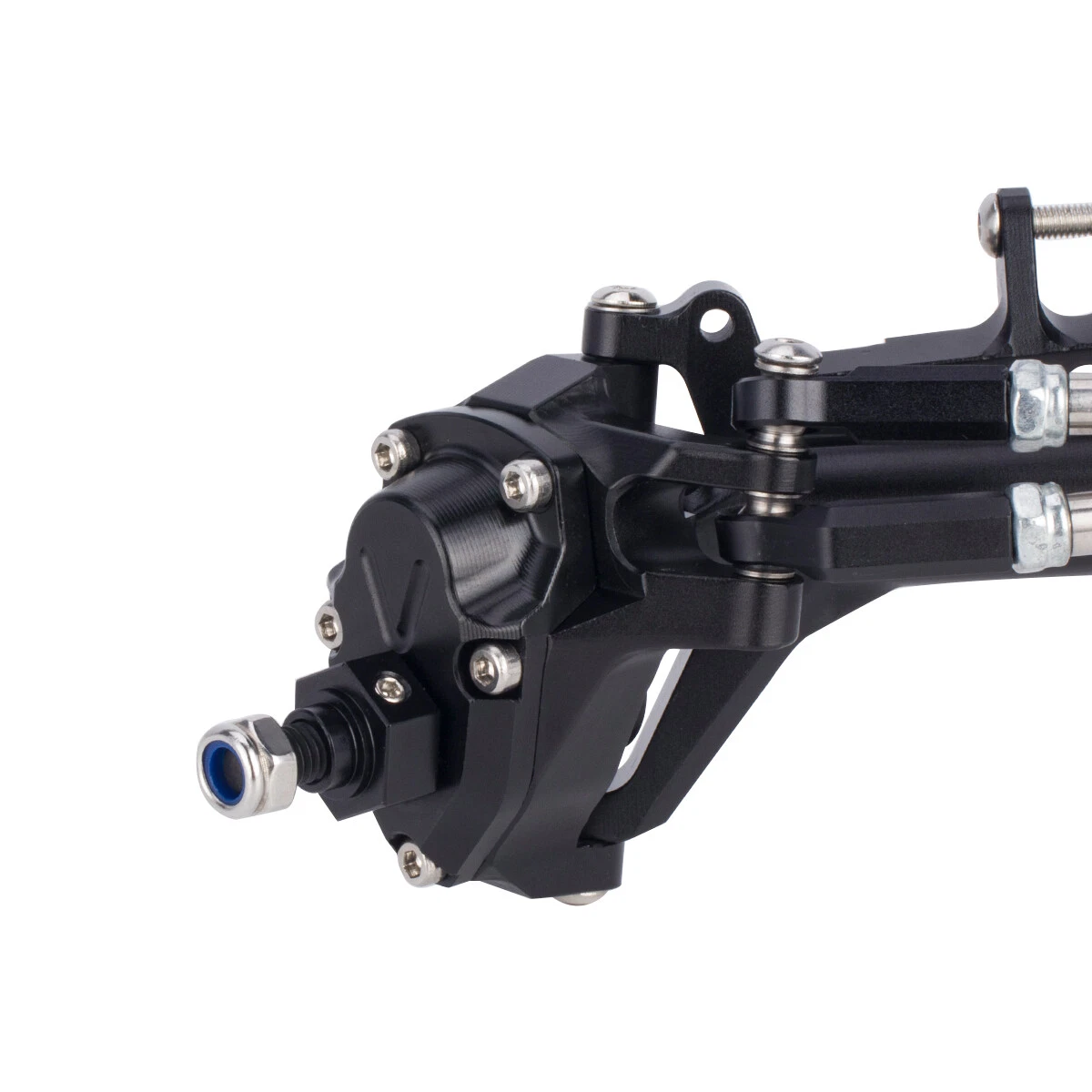

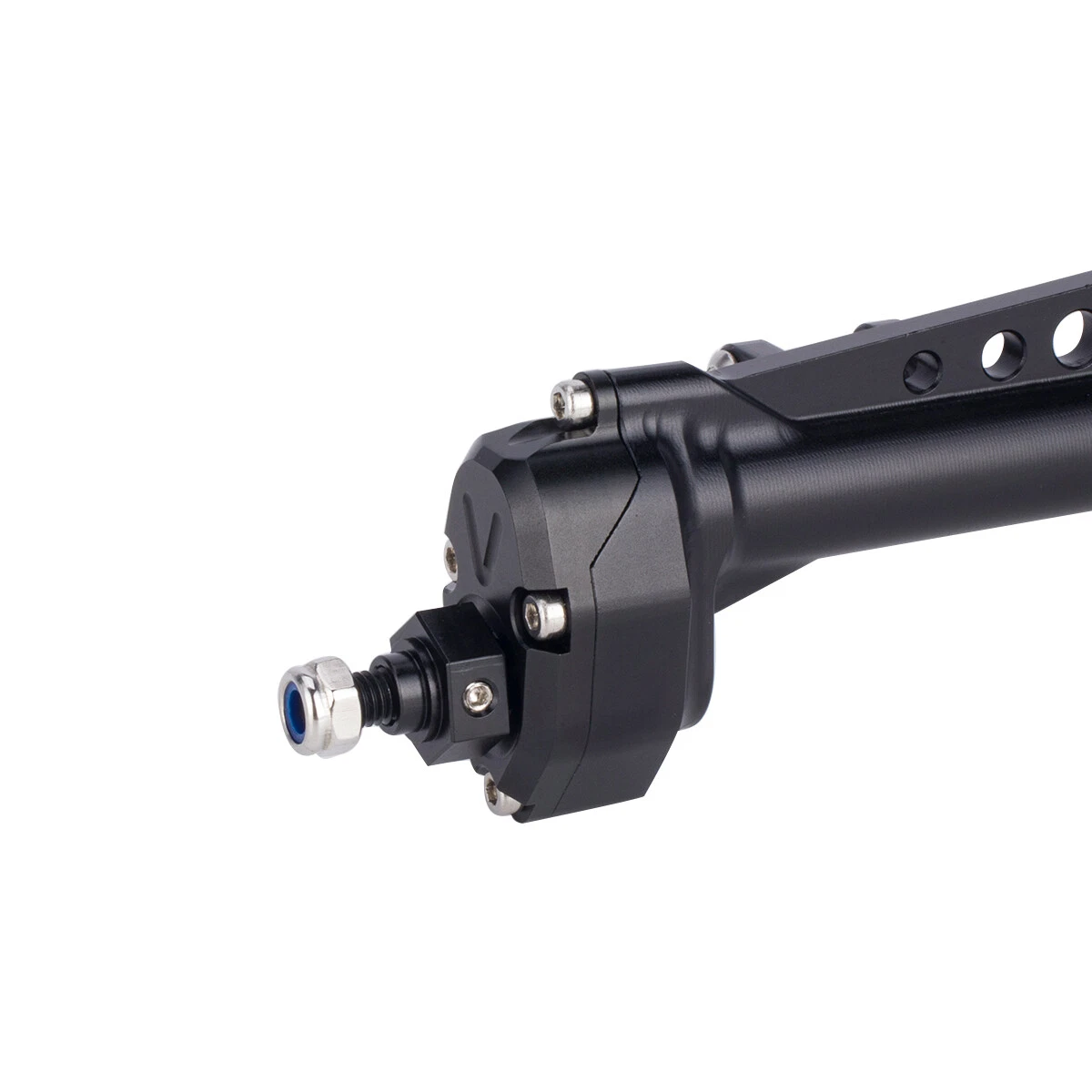

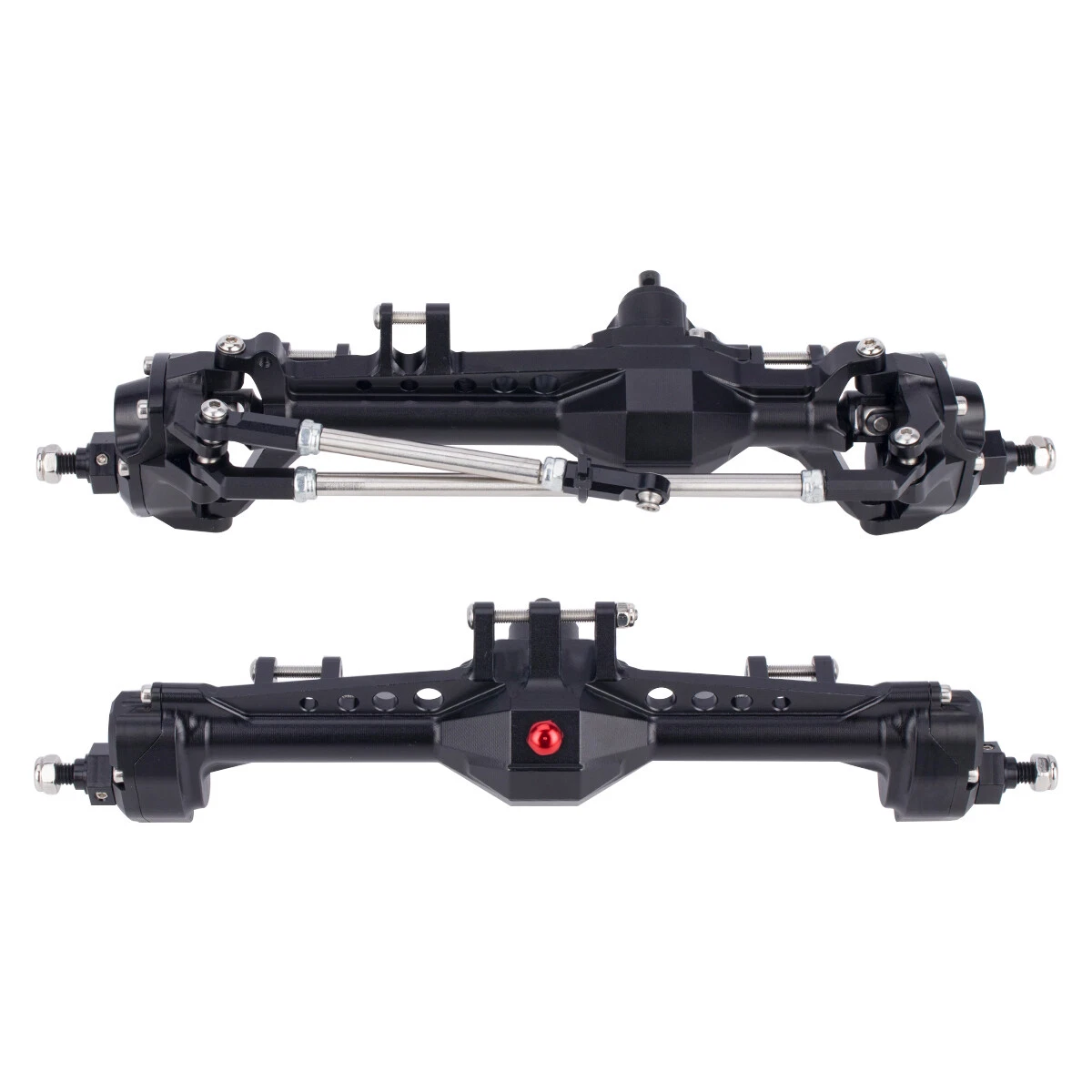

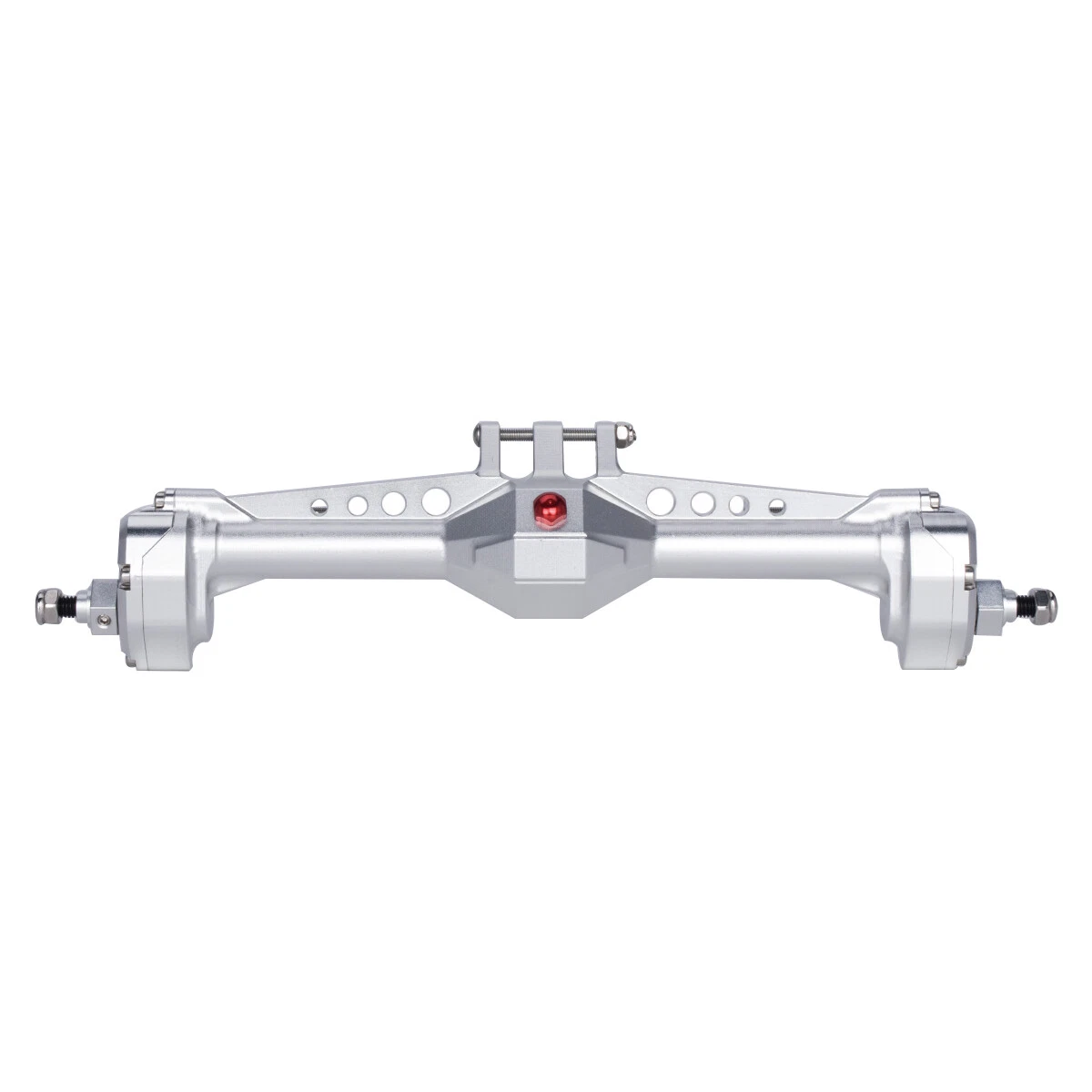

Aluminum Front And Rear Portal Axle Complete Set For 1/8 1/10 RC Crawler Car Vanquish Phoenix F10 VS4-10 LCG Chassis DIY Upgrade Parts
Features:
Made of high-quality aluminum material, CNC machined for precision, Black Silver anodized, improves the overall performance.
Machined hard steel Portal Gears(28T/20T),High-Pinion Hypoid Machined Axle Gears (30T/8T),stainless steels Construction Driveshafts.
Up to 45 Degrees of Steering,High Caster reinforced C-Hub
One-Piece Molded Bearing RetainersAdjustable Lower Shock Mounting Position (S8E Offset Pivot Ball)
2 Upper link mount tuning positions
The Portal axle Complete includes front and rear axle, Steering rods, adapters, etc., which can be directly upgraded.
Compatible with brass counterweights sold in our store,Optional replacement brass counterweights,increase the lower body's weight and improve stability.
Specification:
Material: Aluminum alloy (bridge housing), medium carbon steel (inner shaft/output shaft/gear), stainless steel (ball head/servo rod/screw)
Bevel Gear Set: 30T/8T
Portal Gear Set: 28T/20T
Portal Gear Ratio:1.4:1
Axle Gear Ratio: 7.19:1
Steering angle: approximately 45 °
Output shaft: 5mm
Input shaft: 5mm
Union specification: 12mm
Thickness of the Hex connector: 5.6mm
Color: Black, Silver
Net weight: approximately 320g (front axle), approximately 237g (rear axle)
Packaging box size: 28.5 * 7.5 * 7.5CM
Application:For Vanquish Phoenix F10 Portal Axle replacement/For Vanquish VS4-10 Chassis kit Upgrade/For 1/8 1/10 RC Crawler Car DIY
Package List:(optional)
1*Rear Axle
1*Front & Rear Axle
