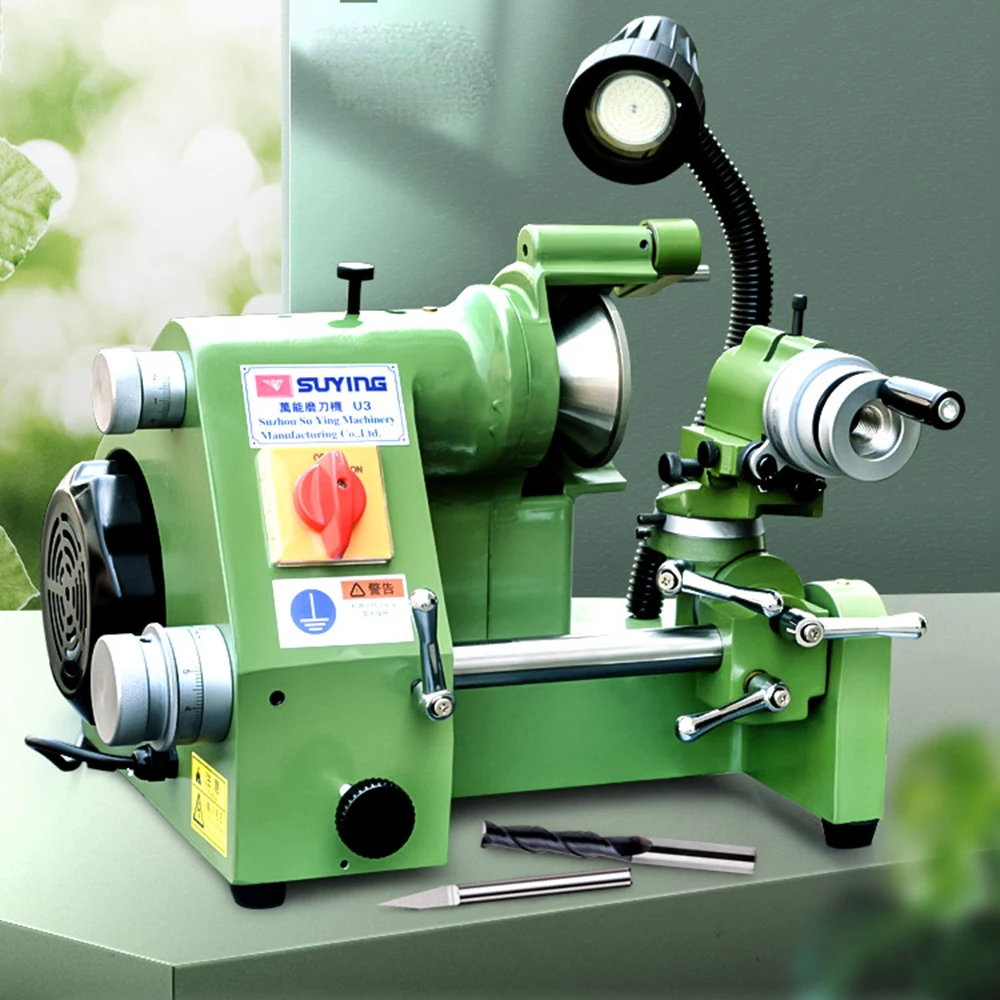

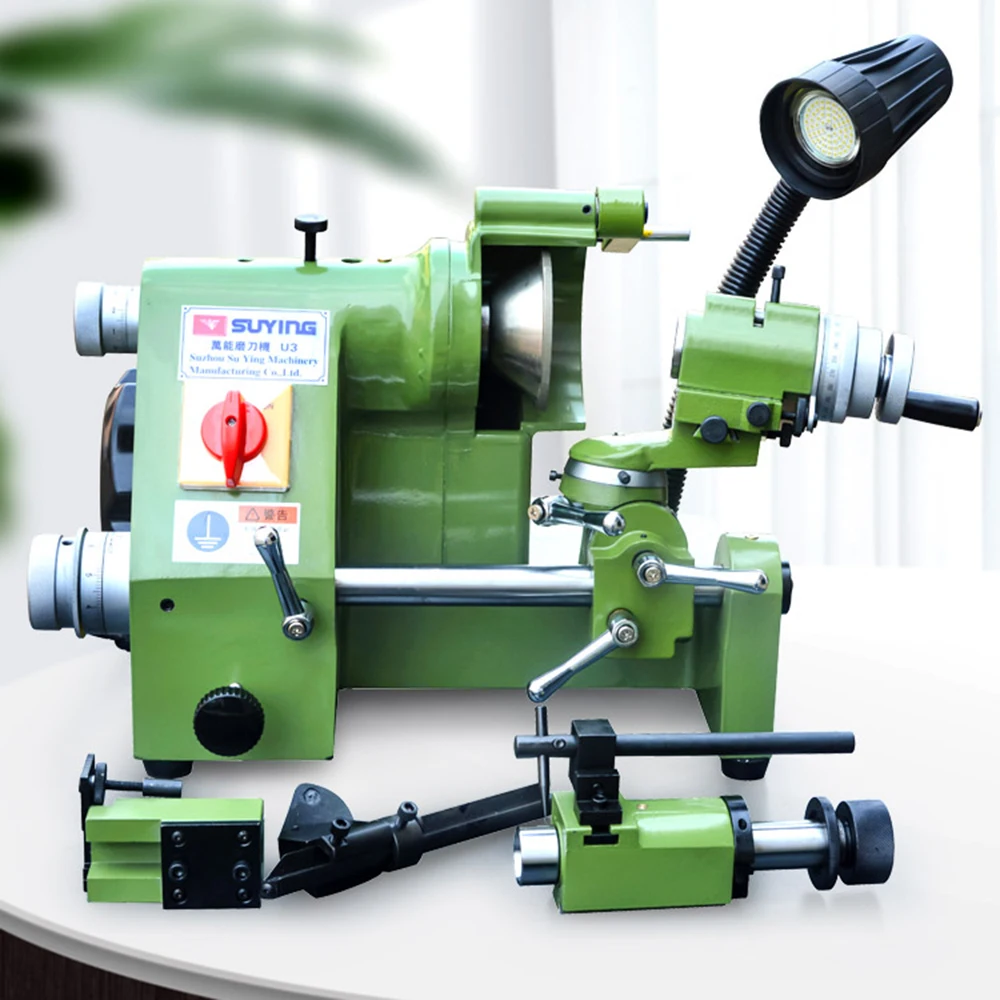

U3 Universal Cutter Grinder, with development of the carved industry, precisely designed by engineers. It is made up by main unit, wheel, spindle, drives, micro-feed and the grinding wheel dresser, knife the composition, structure, novel, modeling beautiful, high precision, good performance, easy to use, easy maintenance, applicable: computer engraving machine, machine engraving machine, engraving machine and high-speed rotary die knife cone head, edge grinding, and milling cutter blade cutting edge, grinding angles accurately. Universal Grinder is equipped with more advanced type of sharpener, my company is quality first, service-oriented for the purpose, sincerely for the majority of mold engraving machine, computer engraving User Services

Technical specifications

Wheel φ100×φ20×50
speed of spinde 5200r/min
Max.Collect Dia. φ3mm-16mm
Longitudinal travel of cutter index 140mm
Cross travel of cutter index 18mm
Longitudinal travel of Spindle 6mm
Grinding cone angle range 0°-180°
Grinding negative angle range 0°-25°
Grinding back angle range 0°-44°
Motor 0.37KW 50Hz 220v
Net weight 50Kg
Packing dimension 550*480*470mm
