Features:

-【Safety】Prevent short circuit and leakage. Suitable for internal use and connection to insulated equipment

-【High Performance】High current carrying capacity, durable, long-term use

-【HIGH QUALITY】Anti-UV, water, ozone, fluid, oil, salt and general weathering

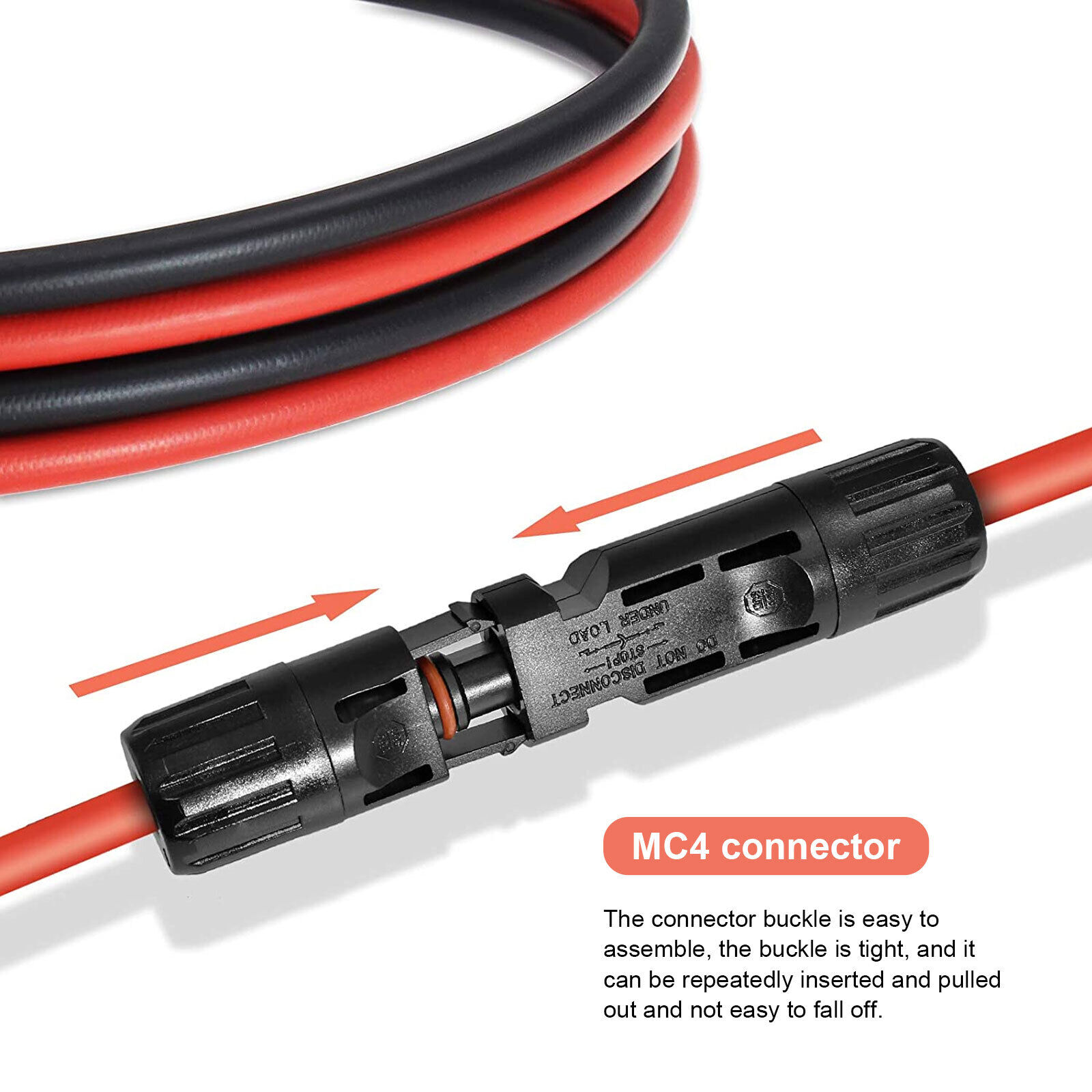

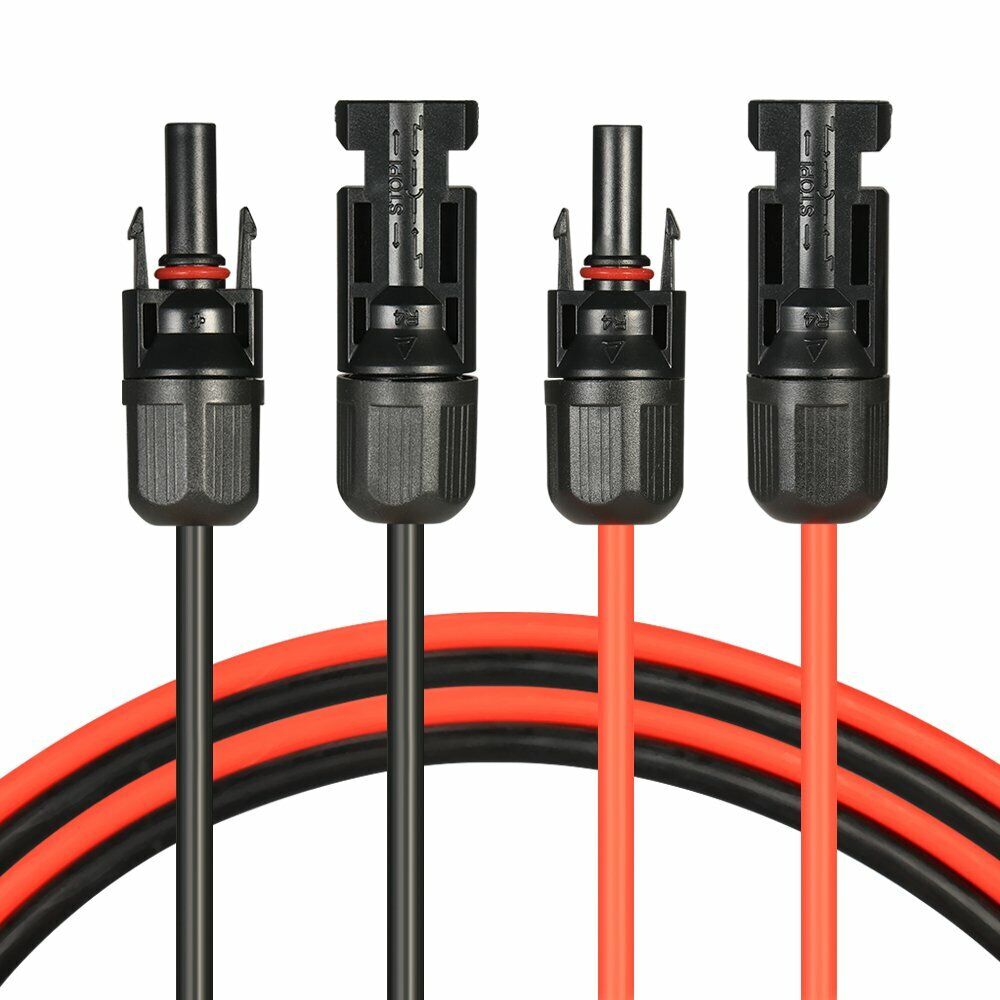

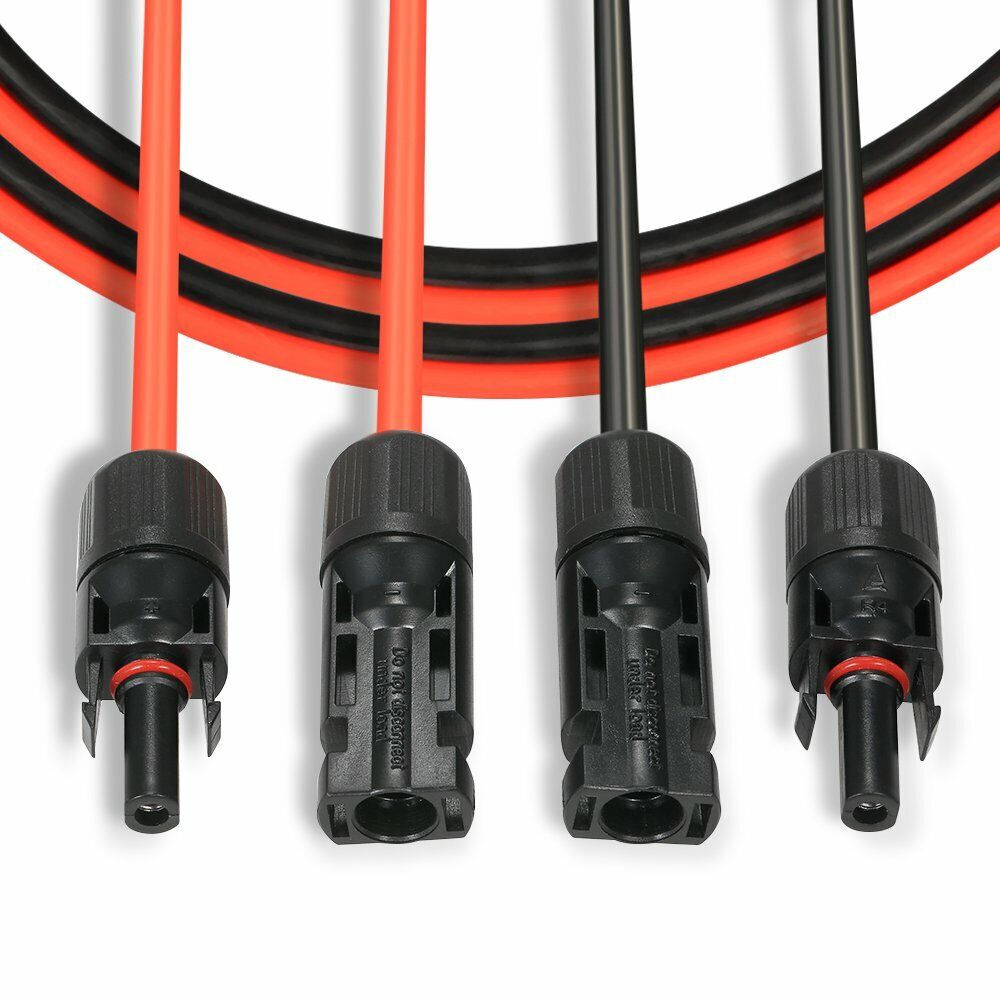

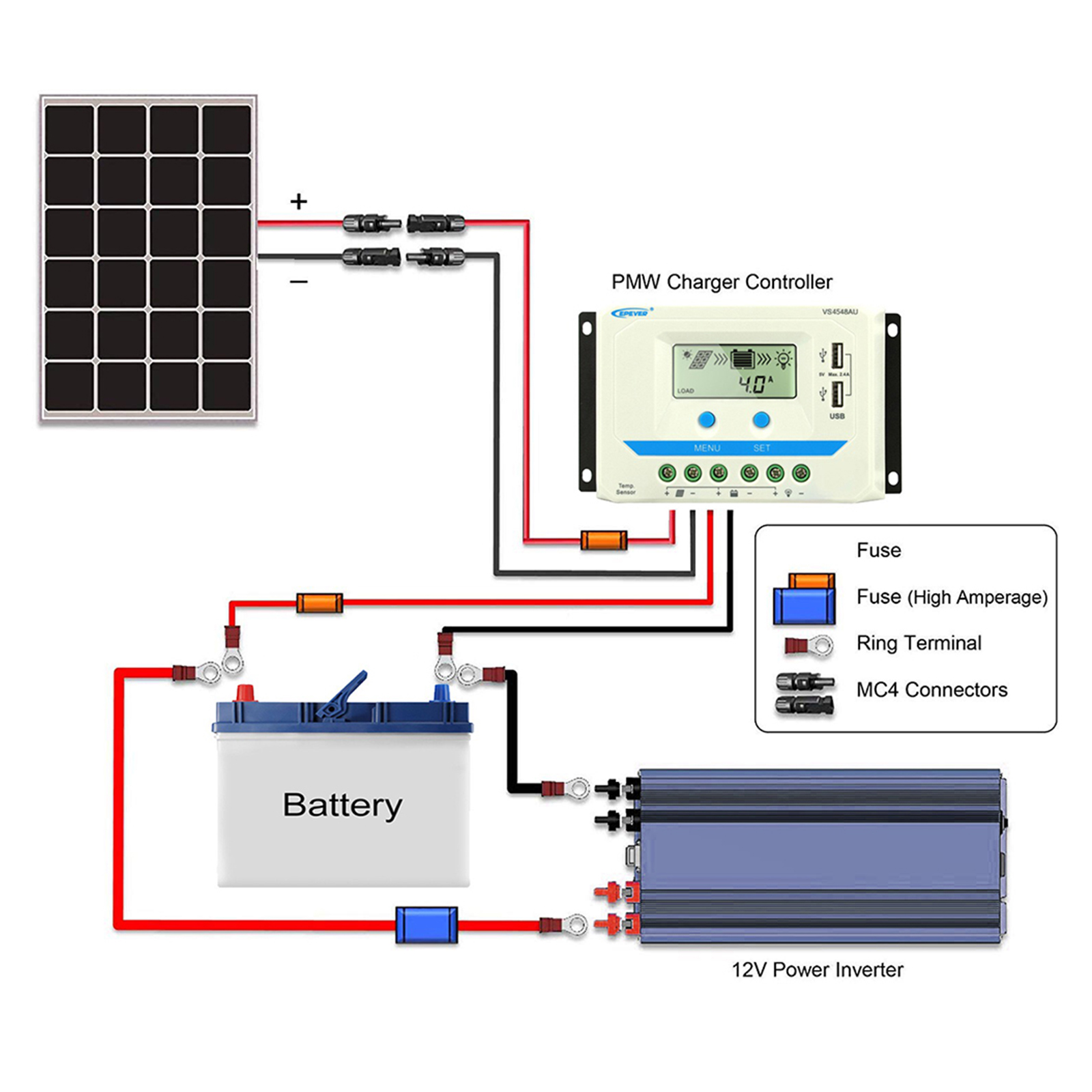

-【VERSATILE USE】Hard plastic connectors on each end. Suitable for solar panels, DC circuits, inverter wiring

-【LONG LIFE】Designed for long life and outdoor applications. Good abrasion resistance, excellent softness and peel performance connector

Notice:

- Actual color may be slightly different from the image due to different monitors and lighting effects. Due to manual measurement, please allow slight deviation error

- Due to the test inspection, there will be slight abrasion marks on the wire shell, please allow slight abrasion marks, there is no problem with the internal fiber

Specification:

-Color: Black + Red

-Connector insulation material: PC/PA

-Connector contact material: copper, silver plated

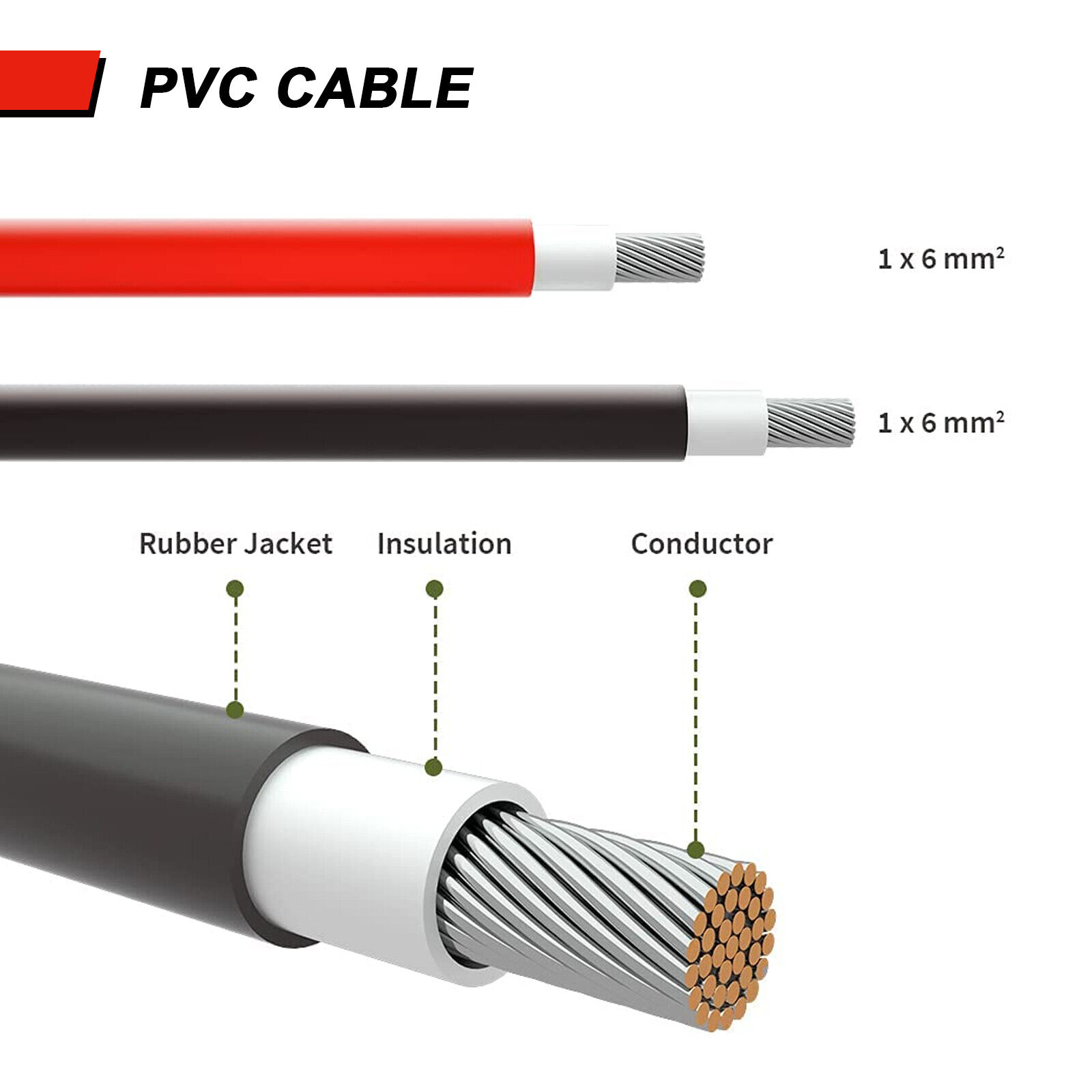

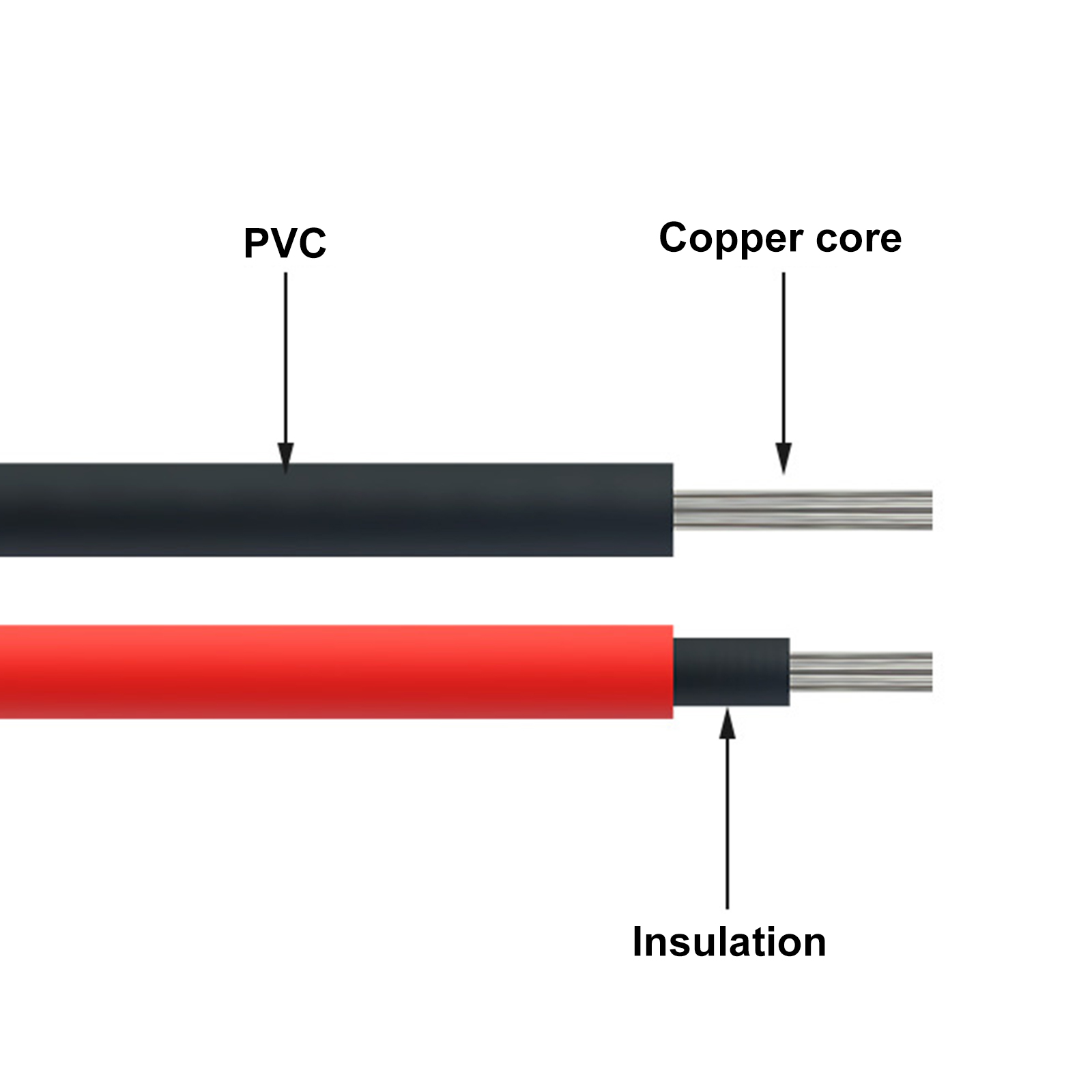

-Wire conductor material: bare copper

-Wire insulation material: Cross-linked polyethylene (XLP)

-Test voltage: 6 kV (50 Hz)

-Working temperature: -40°C ~ 85°C

-Certification: IP 67 protection class, safety class ii, flame retardant class UL94-V0

-Contact resistance: ≤5mΩ

-Insertion/Extraction force: ≤50N/≥50N

-Locking system: snap-in

10AWG wire

-Diameter: 10AWG 6mm²

-Maximum. Amperage per conductor: 55A/70A

-Maximum. Voltage: 600 volts

-Temperature Rating: -104°F to 194°F

12AWG wire

- Diameter: 12AWG 4mm²

-Maximum. Amperage per conductor: 55A/70 A

-Maximum. Voltage: 600 volts

-Temperature Rating: -104°F to 194°F

14AWG wire

-Diameter: 14AWG 2.5mm²

-Maximum. Amperage per conductor: 55A/70 A

-Maximum. Voltage: 600 volts

-Temperature Rating: -104°F to 194°F

Packaging includes:

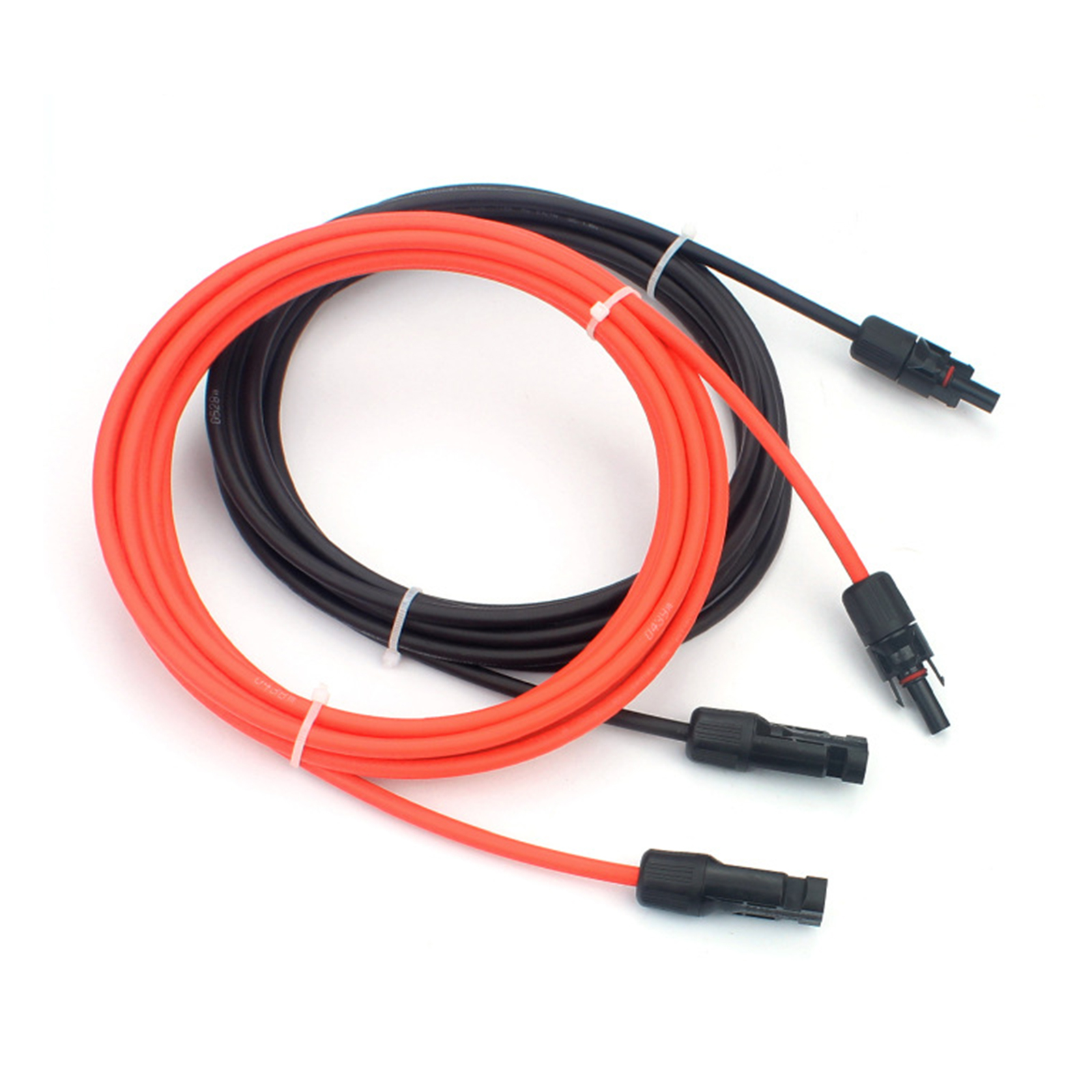

1x Solar Panel Extension Cable(1 pair)
