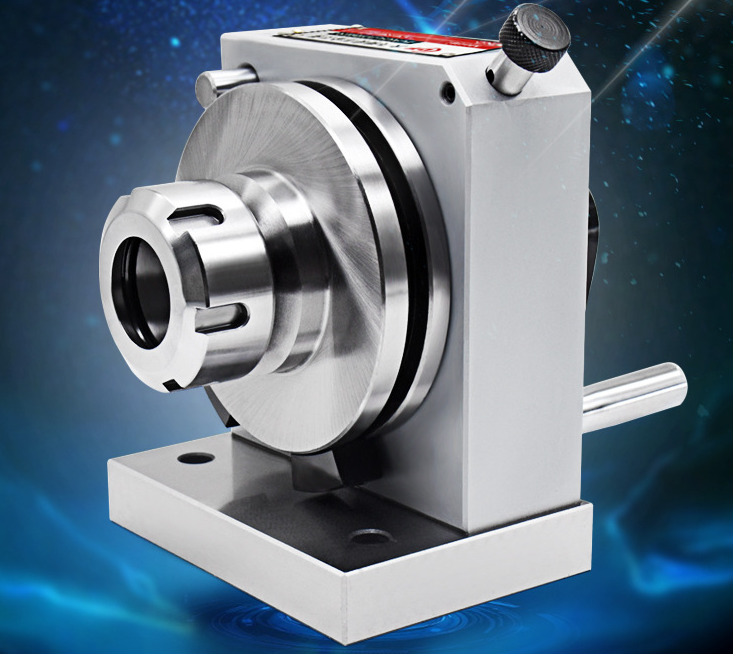

1PCS High Precision ER32 Collet Punch Former Grinder 0.005 Precision NEW

Product Description:

High Precision ER32 Collet Punch Former with its features front-loaded ER cylinder clamps can be used without correcting the center position. Designed with level and concentricity adjustment function, machine operator can DIY adjust accuracy within 0.01mm.

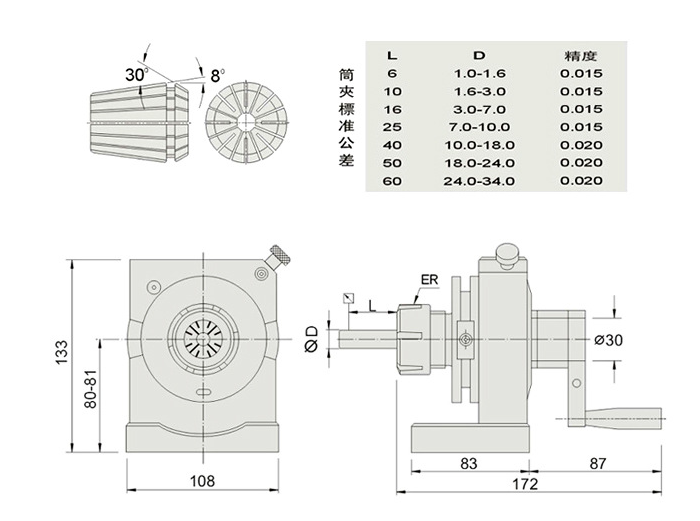

Specification:

Centre high: 80-81mm

Dividing disc: 24DIV15° ±5"

Clamping range: 1 - 20mm

Accuracy: within 0.01mm

Hardness: HR60-62°

Weight: 5.6kg

It clamps working quickly and steadily when processing without checking the center.

Features:

The punch former with ER collet, there are ER32 (ER16, ER40 for option) three sizes, each with standard collets.

Processing without checking the center.

Processing with adjustable horizontal and concentricity function, can adjust within 0.01mm.

It can clamps Mini. 2mm in Collet Chuck outer diameter Φ20.

Package:

1 x ER32 Collet Punch Former Tool Kit
