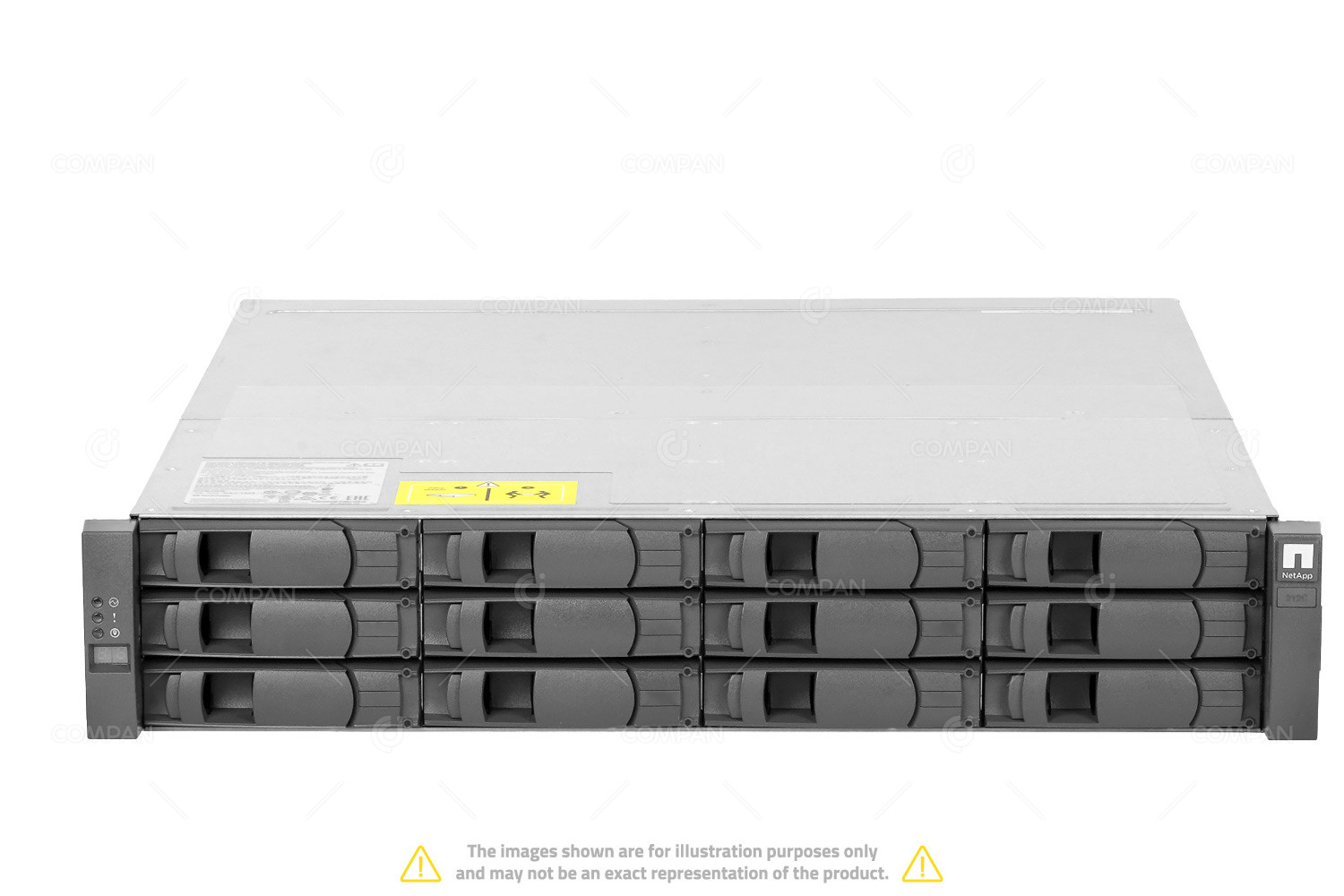

The NetApp DS212C is a disk shelf (or storage shelf) that is part of the NetApp Storage solutions. It is designed to provide additional storage capacity for NetApp's FAS (Fabric-Attached Storage) and AFF (All Flash FAS) systems, which are commonly used in enterprise IT environments. The DS212C is a compact, efficient, and scalable storage shelf that can hold multiple drives and connect to NetApp's controller systems to expand storage capabilities in a flexible and high-performance manner. Key Features and Characteristics of the NetApp DS212C: Form Factor & Design The DS212C is a 2U (two rack units) disk shelf, which is designed to be installed in a standard 19-inch server rack. It supports up to 12 drives in a 3.5-inch form factor, typically SATA, SAS, or SSD drives, depending on the configuration. This shelf allows for high-density storage, enabling a significant amount of capacity in a compact physical space. Drive Types Supported The DS212C can support a variety of drive types, including: SATA HDDs (for high capacity, less expensive storage) SAS HDDs (for better performance and reliability) Solid-State Drives (SSDs) (for very high performance, low-latency access) It can mix different types of drives within the same shelf, allowing for flexible storage configurations and tiering. High Availability NetApp's storage systems are designed for high availability, and the DS212C is no exception. It supports features like: Dual power supplies: Redundant power supplies to ensure that the disk shelf remains operational in the event of a power failure or hardware issue. Hot-swappable drives: Drives can be replaced without shutting down the system, minimizing downtime. Connectivity The DS212C connects to NetApp's FAS systems or AFF systems using SAS (Serial Attached SCSI) connectivity. It typically connects to the storage controllers via 12Gb/s SAS links, which provide high data transfer speeds for better overall performance and low latency. Cabling and SAS ports are designed for simplicity and efficiency, allowing for easy scalability as storage requirements grow. Scalability The DS212C is part of a scalable solution, allowing users to expand their storage as needed. Multiple DS212C shelves can be daisy-chained together to create a larger pool of storage connected to a NetApp controller. This ability to add additional shelves as your storage needs increase makes it an ideal solution for growing enterprises or organizations with changing data storage requirements. Data Protection Features As with other NetApp storage solutions, the DS212C is built with data integrity and protection in mind. It supports features like: RAID configurations: The connected NetApp controllers can manage RAID levels to protect against data loss. Common RAID levels include RAID 0, RAID 1, RAID 5, and RAID 6. NetApp Snapshot technology: Provides efficient, space-saving point-in-time copies of data, which can be used for backups or to restore data in the event of corruption or user errors. Management and Monitoring The DS212C can be managed and monitored through NetApp’s ONTAP software, which is used for configuring storage systems, setting up data management policies, monitoring health, and performance. It is also compatible with NetApp's Cloud Data Services, enabling hybrid and multi-cloud deployments. Energy Efficiency NetApp is known for creating energy-efficient storage solutions, and the DS212C is no exception. It is designed to be power-efficient, offering features such as variable-speed fans that adjust based on the system’s temperature, helping to reduce energy consumption. Data Efficiency The DS212C supports NetApp's advanced data management technologies such as: Data deduplication: Reduces storage requirements by eliminating redundant copies of data. Compression: Helps save space by compressing data stored on the drives. Thin provisioning: Allows for more efficient use of storage by allocating space dynamically as needed, without over-provisioning. Use Cases The NetApp DS212C is used in environments where: Businesses need to scale storage capacity in a modular and cost-effective manner. Data storage must be reliable and highly available. There is a requirement for fast and flexible data access with low latency (when using SSDs). It fits into enterprise-class storage infrastructures and integrates well with NetApp's ONTAP OS for unified data management. Common use cases include enterprise applications, virtualization environments, backup and archival, and cloud storage integration. Conclusion The NetApp DS212C is a highly versatile and reliable disk shelf designed to extend storage capacity in NetApp FAS and AFF systems. Its ability to support a range of drive types, redundant components, and its modular scalability make it a good fit for businesses looking to expand their storage infrastructure in a cost-effective yet high-performance manner. Whether you're dealing with large amounts of data or high-performance workloads, the DS212C is engineered to provide high availability, efficient data management, and seamless integration with other NetApp products.
