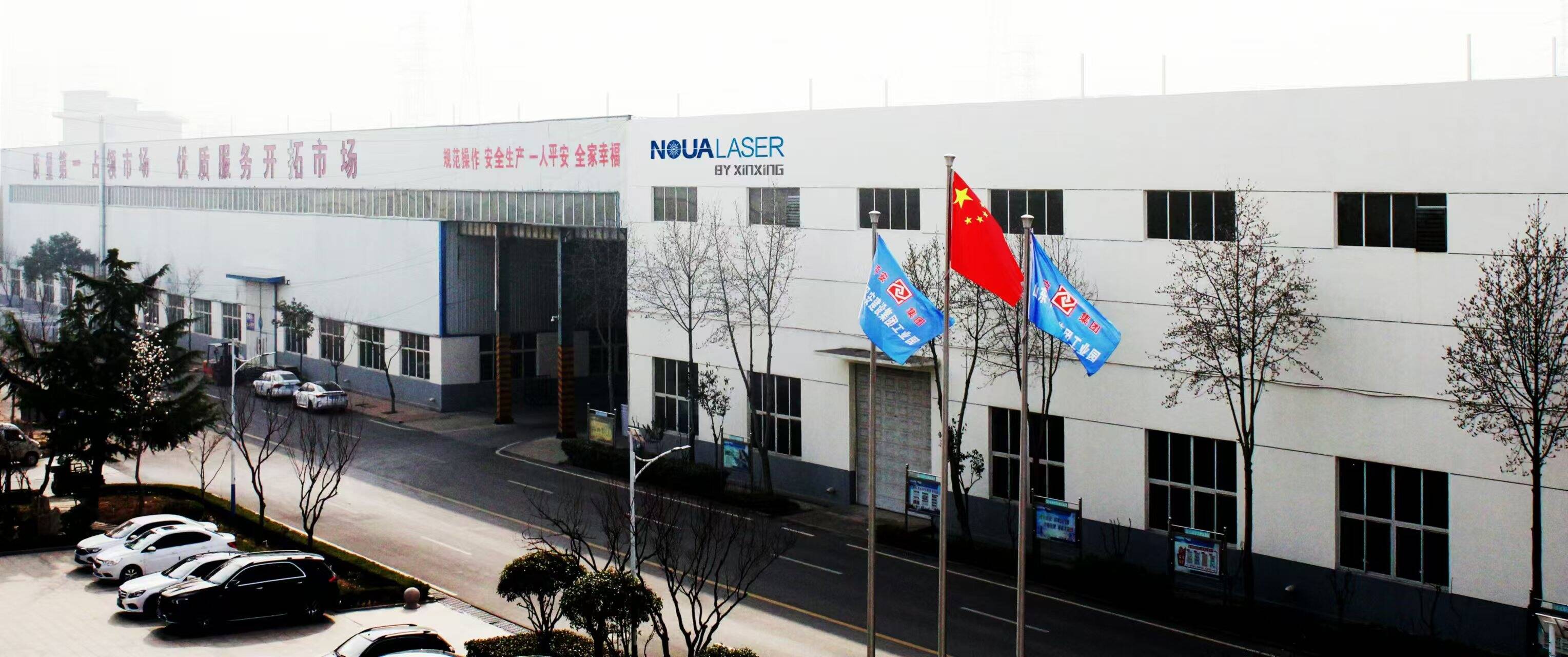

About us
Established in 2008, NOUALASER has more than 15 years experience in laser machinery manufacturing. With a professional and experienced R&D team, we have dedicated to providing intelligent laser equipment solutions and enabling our customers in various branches around the world to become more efficient and competitive. Innovation lead future

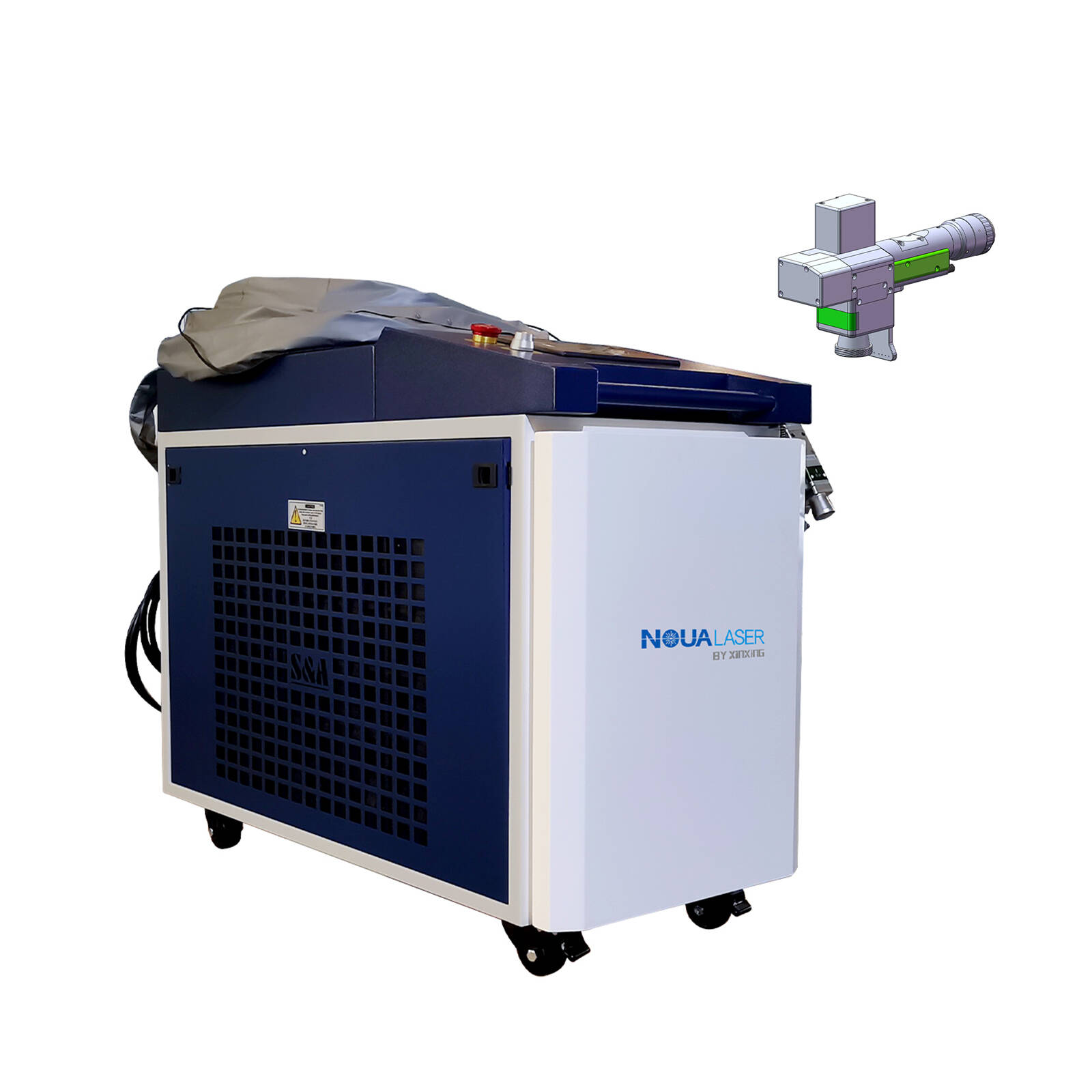

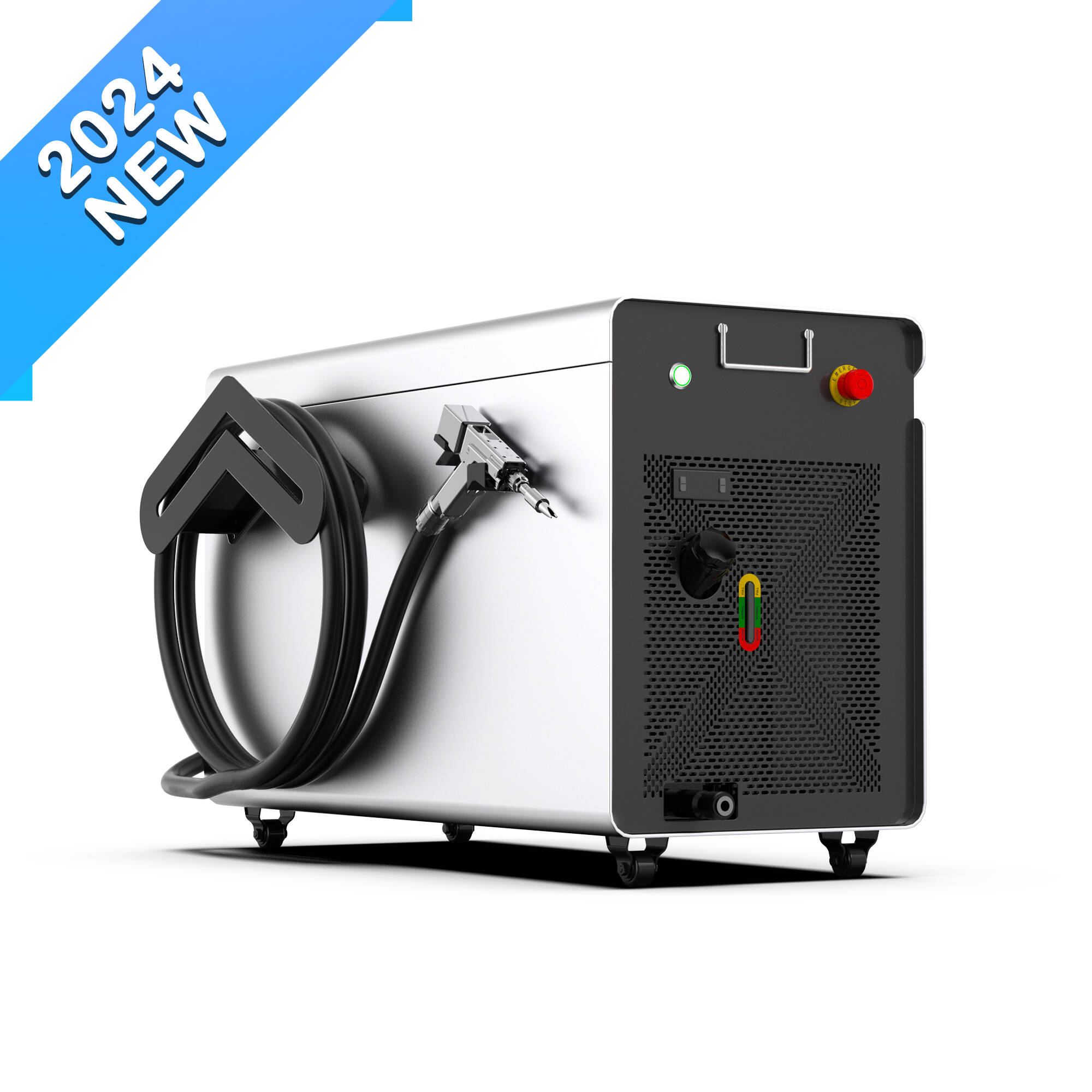

4IN1 Handheld Laser Welding & Cleaning Systems
High-quality Guarantee & Lifetime Tech Support
Support Customization & Upgrade Solution
Product Specifications:
Laser source:2000W Raycus/MAX;
Laser Wavelength:1080±10nm;
Max. Modulation Frequency:20kHz;
Maximum Output Power: 9000W;
Weld Width:0.1~8mm;
Input Voltage:AC220V±10% 1PH.
Visual Positioning:Red Dot;
Fiber Length: 10 meters(Customizable 15m);
Water cooler:S&A
Laser Cooling Method: water-cooled;
Operating Mode:Continuous or modulated;
Water tank capacity:10L.

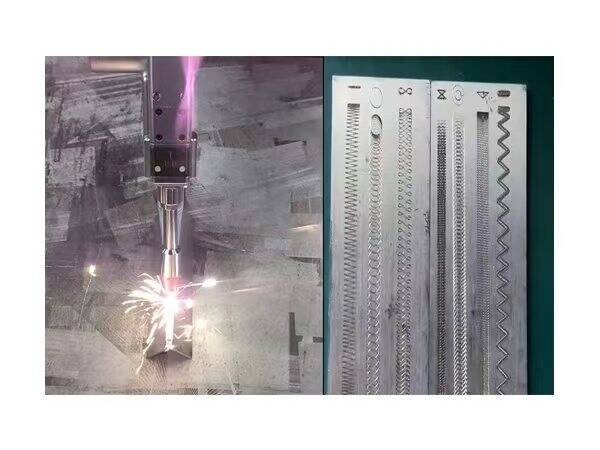

(1)Double wobble welding:

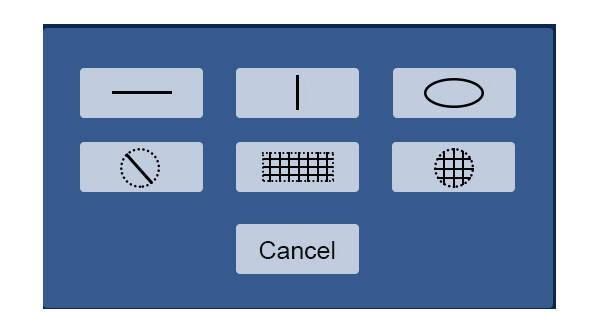

Driven by two motors on the X and Y axes, with 7 swing patterns, suitable for complex shapes and structures. Compared to single pendulum welding, it has a larger coverage area, higher fault tolerance, and more aesthetically pleasing welds.

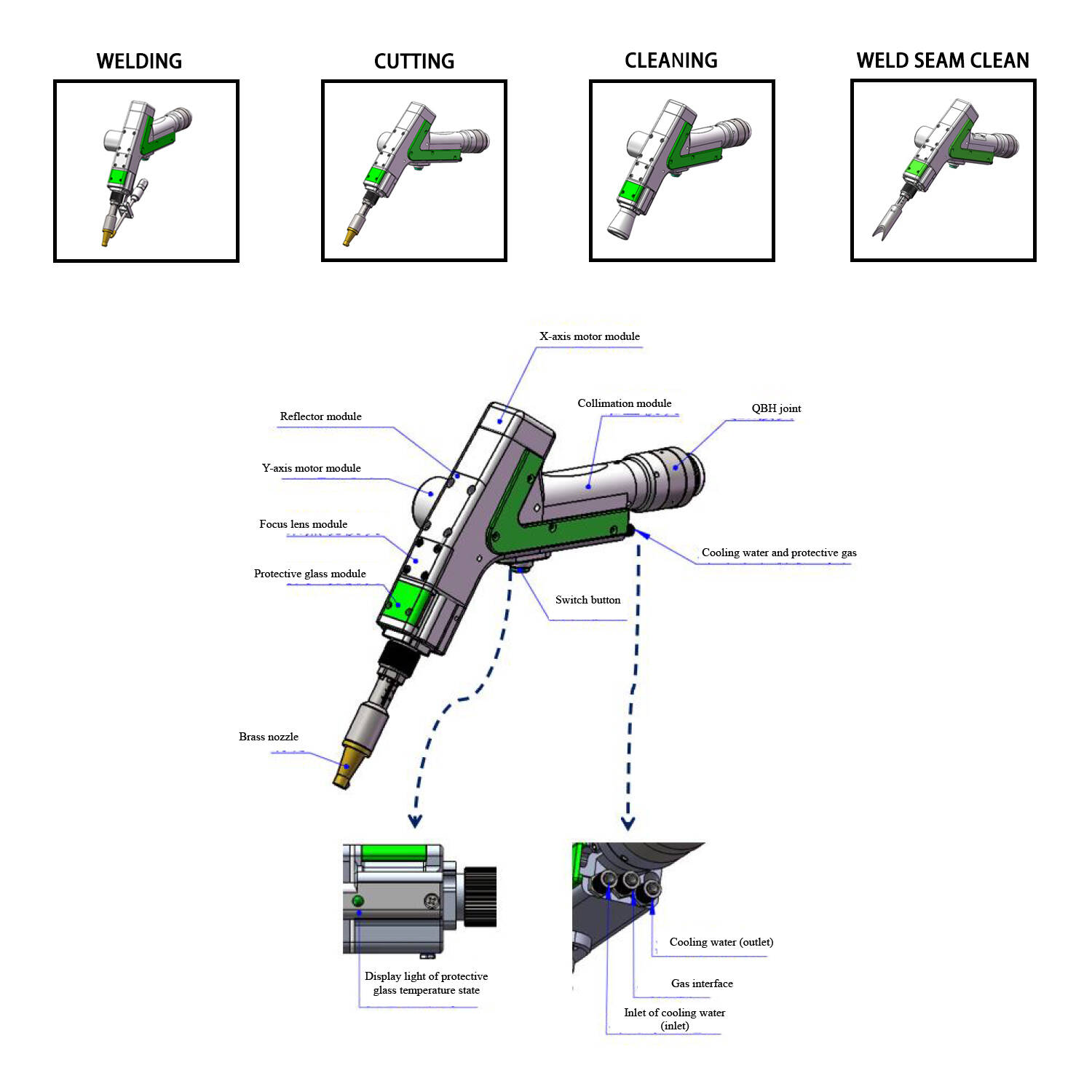

(2) 4in1 laser head:
Temperature control alarm: When the temperature of the protective lens rises due to welding dirt, the system will quickly alarm and the gun head will stop working, reminding us to replace the protective lens and reduce losses.
Dual lens protection: Our four-in-one laser welding head gun has two protective lenses. It provides better protection for the focusing lens at the rear end of the welding head gun.

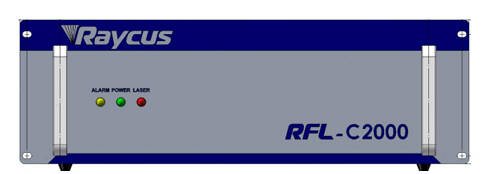

(3) Raycus Laser
Long Service Life: The service life of fiber lasers exceeds 100,000+ hours.
Compared with Traditional Lasers: More stable, Energy-saving, Maintenance-free, and Lower equipment usage costs.
(4) Intelligent control panel
Intelligent Alarm System: including temperature control alarm, under-voltage alarm, flow alarm, laser alarm and other multiple protections
Multi-language support: English, Spanish and other 24 languages supported.
System process library: Aluminum, carbon steel, stainless steel and other materials each have 10 different thicknesses and 5 custom thicknesses, which can be adjusted according to your own needs. Set it up once, use it for life.

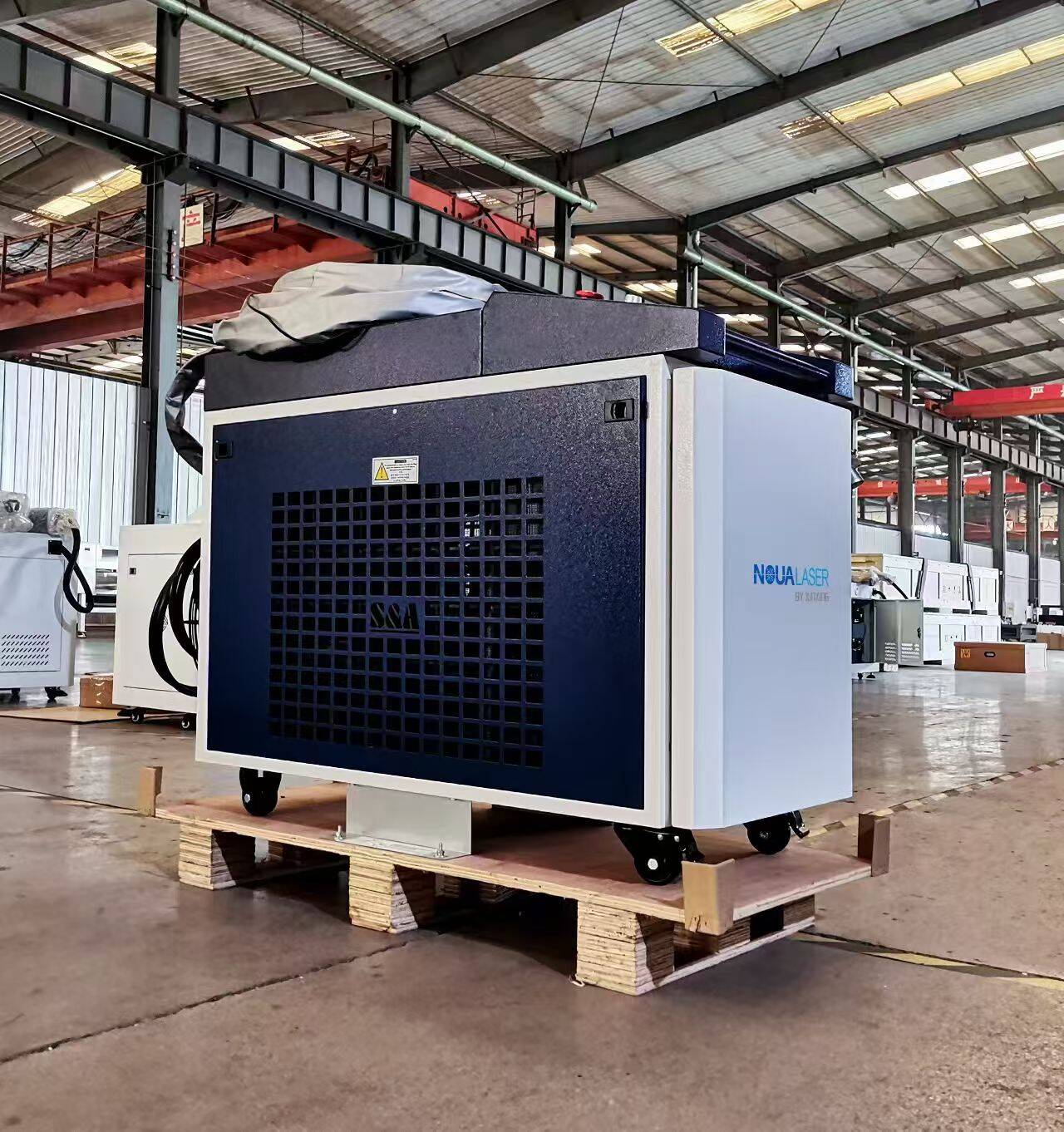

(5) S&A Water chiller
Water Cooling: Water cooling has a longer continuous working time than air cooling and can work 24 hours a day.
Ambient Temperature: -20 ± 40
The cooling media allowed for the chiller: purified water, distilled water, high-purity water and other softened water.

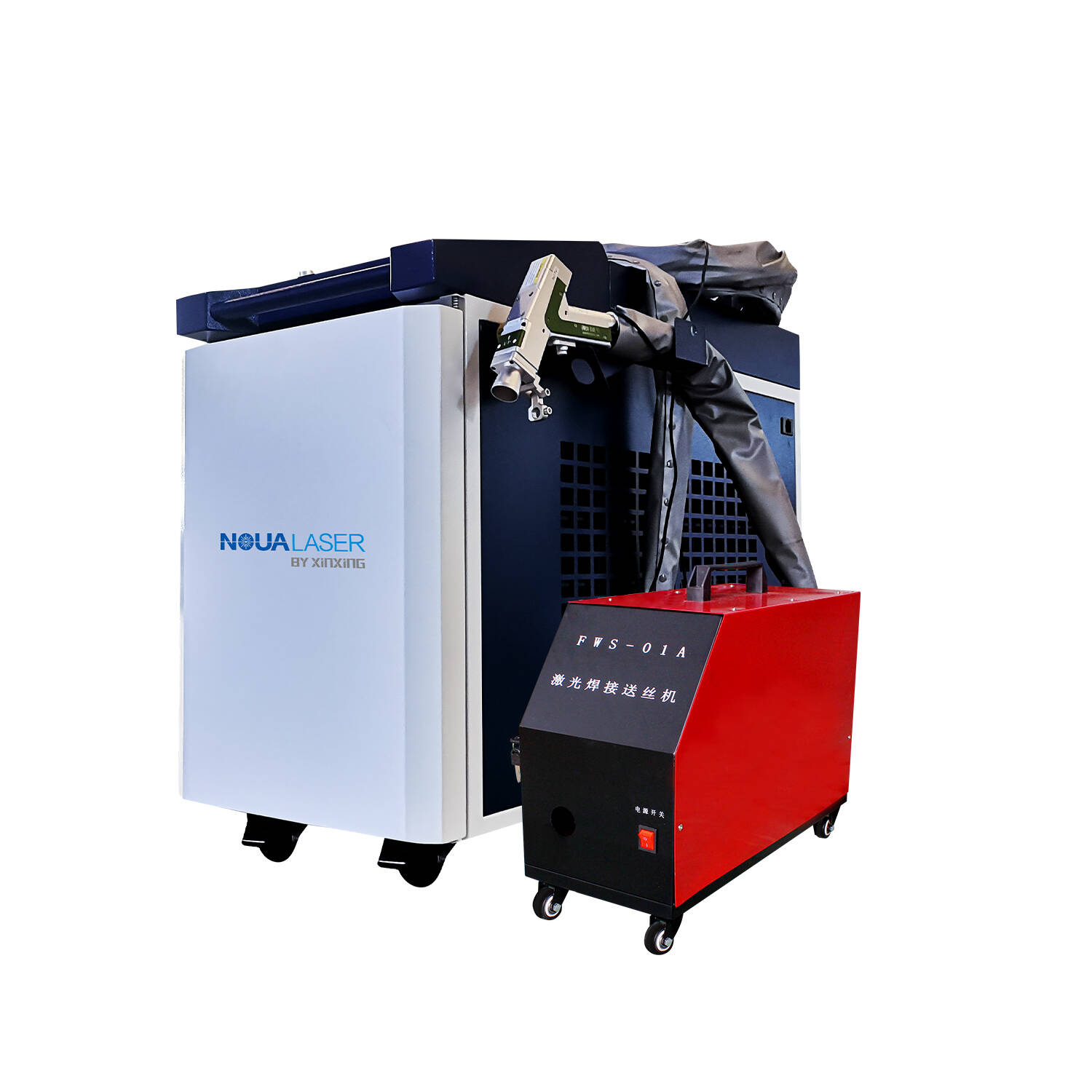

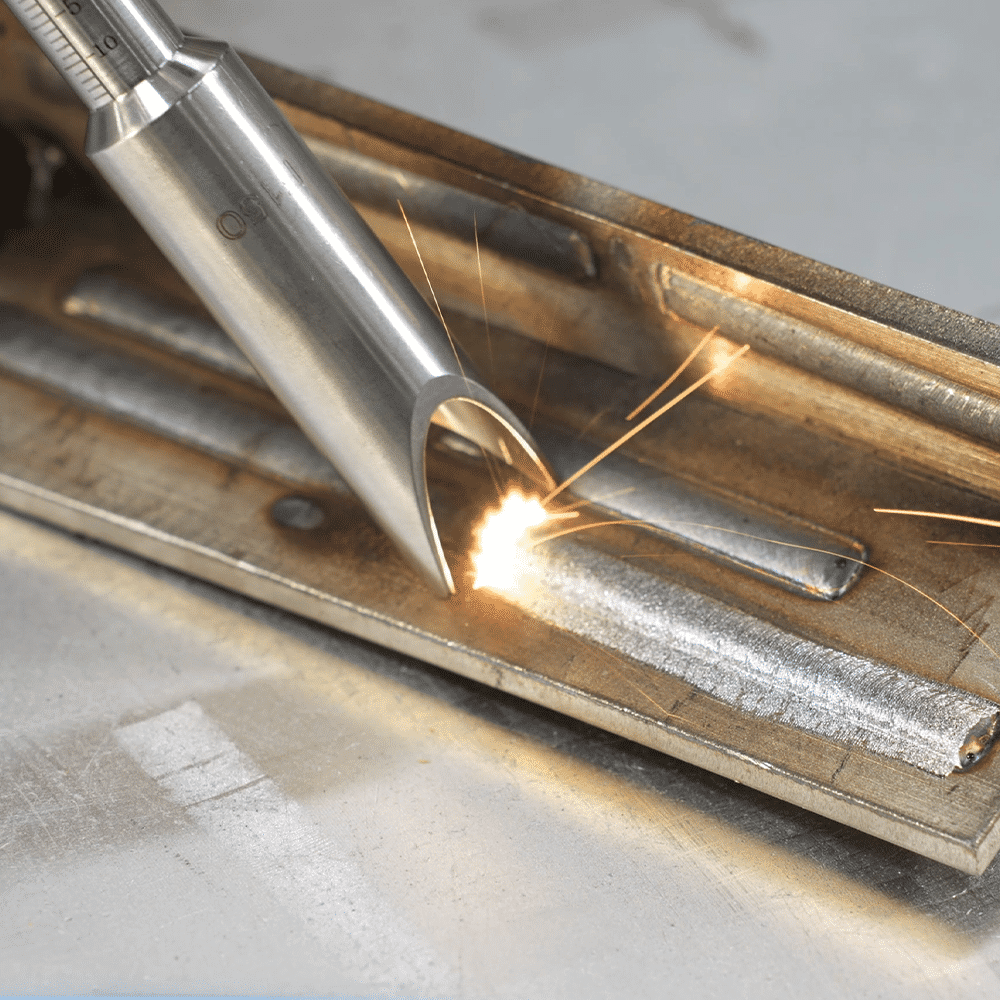

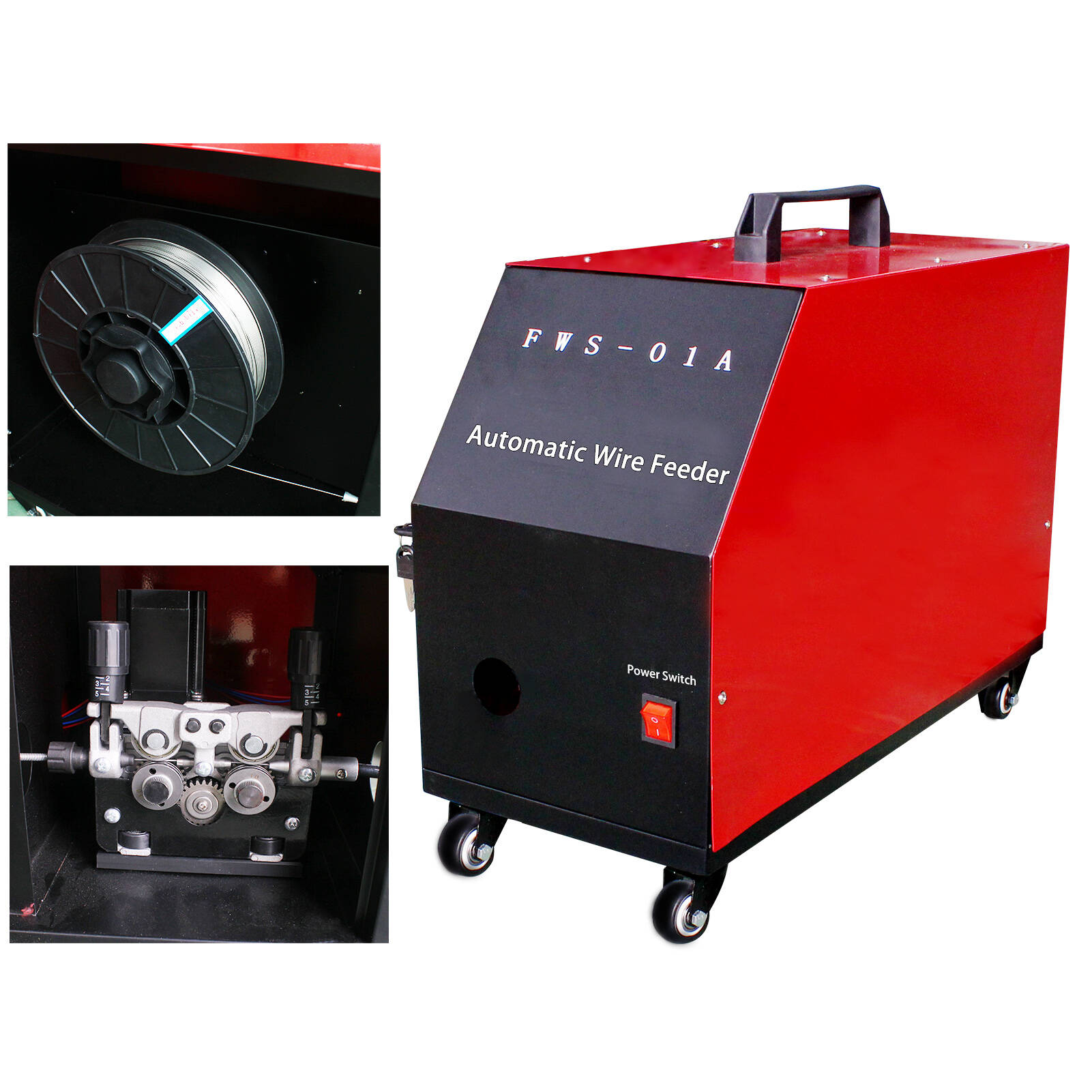

(6) Auto Wire Feeder
Suitable for large welding gaps or where stronger welding strength is required
Advantages: High fault tolerance, Good filling effect

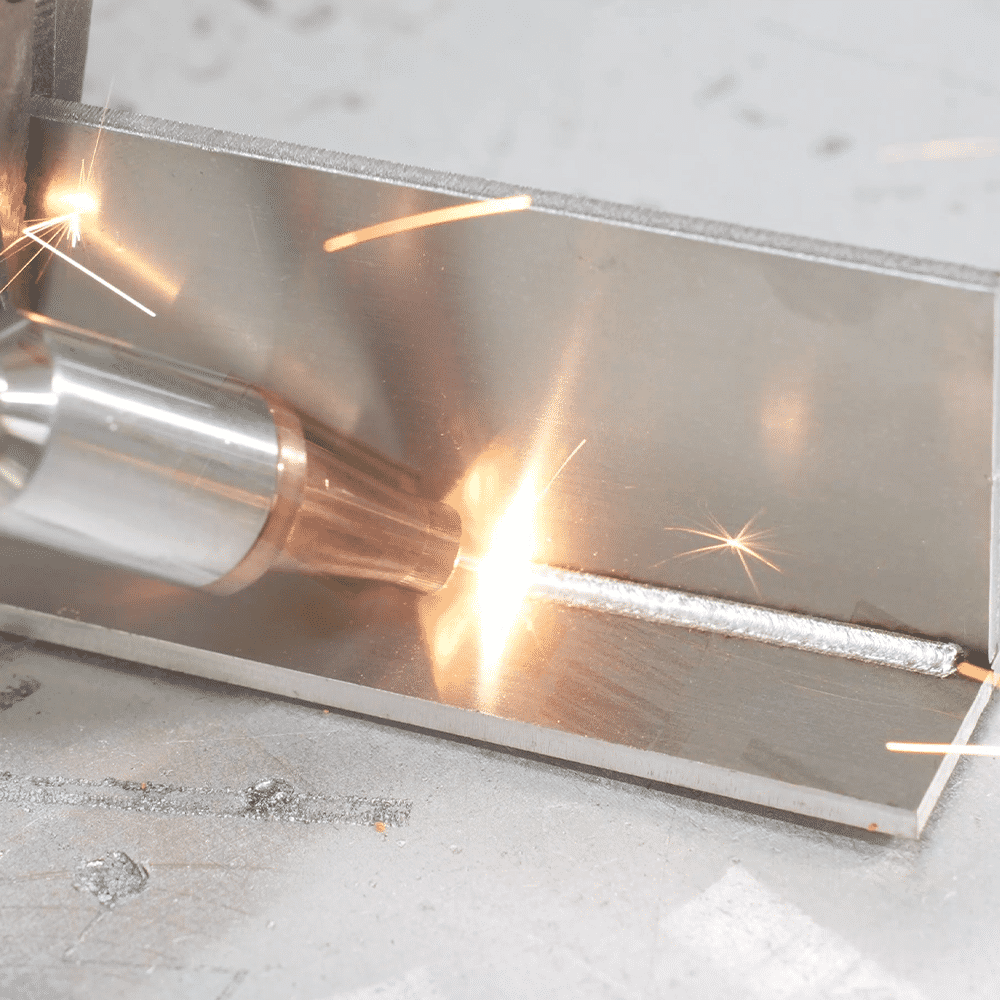

- LASER WELDING
1) Suitable for aluminum,high-speed welding of steel, copper, titanium, nickel alloy and other materials and thicknesses.Maximum thickness of 8mm
2) Easy operating do not require any training.Optimized presets reduce learning curve. half hour - 2 hrs, from beginner to expert.
3) Fast welding speed, 4 times faster than traditional welding.
4) Low Heat, Low heat input for minimal part distortion or deformation
5) Widely Used.
Laser welding machines are widely used in metal materials, including aluminum, stainless steel plates, aluminum alloy plates, iron plates,galvanized plates, carbon steel and other metals.
It can replace traditional processes such as argon arc welding and electric arc welding.

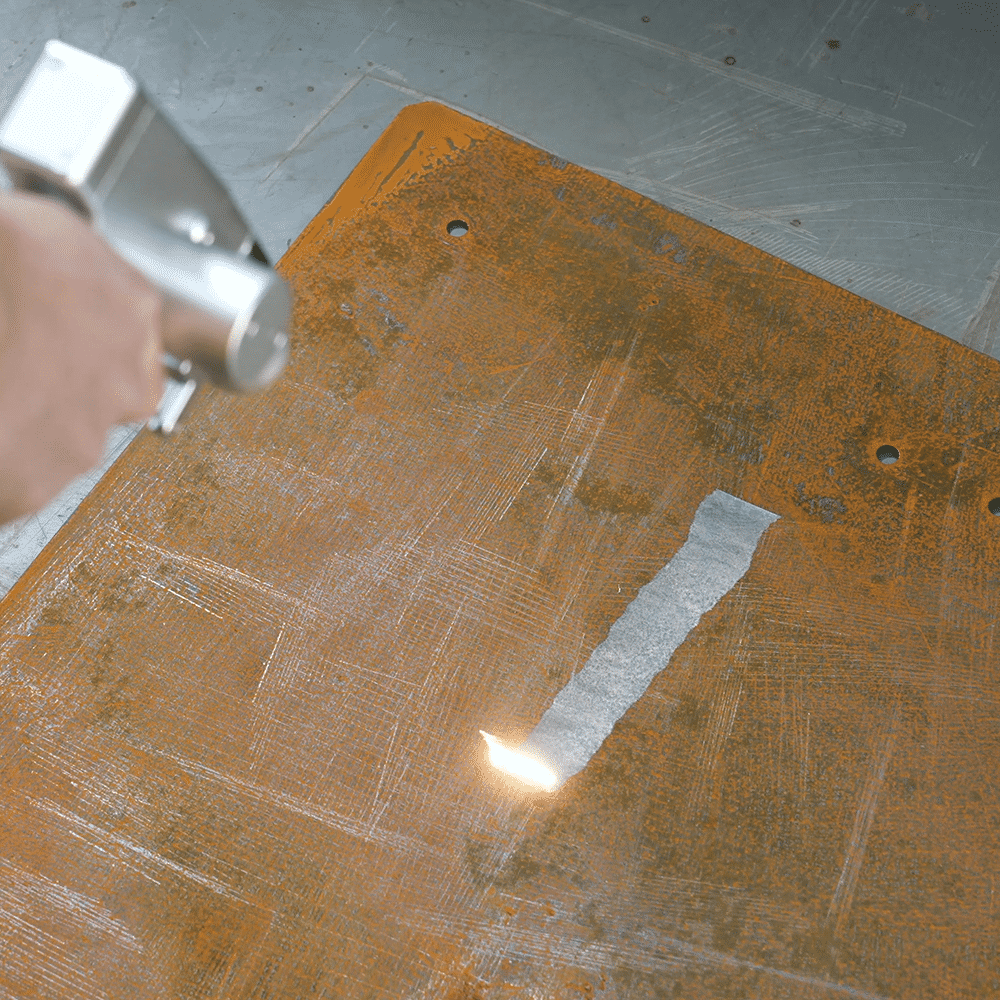

- LASER CLEANING
1) Post-weld cleaning removes soot, debris, or any sign of localized heating
2) Dramatically reduces time, cost, and scrap
3) Create visually appealing welds while eliminating need for post-grinding
4) Up to 4"(100mm) of adjustable cleaning width in one pass
- WELD SEAM CLEANING
1) Contaminants can enter the weld pool and compromise weld integrity
2) Fast and effective removal of contaminants such as oxides, rust, paint, oil, or grease from surface without the use of chemicals or abrasives
3) Up to 0.47" (12mm) of adjustable cleaning width with one pass
- LASER CUTTING
1) Can cut aluminum, stainless steel, carbon steel and other types of metals.
2) Disconnect from the wire feeder and select a swing width of 0.1mm in welding mode to start cutting.
3) Cutting thickness up to 3mm.
Shipping Police
1. Sea shipping is free, about 35-45 days can be delivery at your nearest sea port.
2. Provide UPS, DHL, FEDEX, etc. door-to-door shipping methods, and delivery can be made in about 3-5 days. Please contact us before placing an order.
Contact us
Phone: +86 13505311172
WhatsApp: +86 15863133122
Warranty
1. The machine warranty is 2 years.
2. 24 hours technician online service.
3. Order spare parts
FAQ
Q:Is laser welder really faster than MIG and TIG welding?
A:Yes, laser welder travel speed is up to four times faster than traditional methods, fixturing is simpler or not necessary, and post-weld grinding or sanding is not needed or significantly reduced.
Q:How long is the delivery time?
A:For standard machines, it would be 7-14 days; For non-standard machines and customized machines according to client's specific requirements, it would be prolong.
Q:Is laser welder really that easy to learn?
A:Yes, compared with MIG and TIG welding, either of which can take a lifetime to master, LightWELD is quick to learn, allowing new users to make high-quality welds in just a few hours.
Q:The controls look confusing. How do I know what to adjust?
A:Laser welder comes preloaded with optimized welding parameters for the most common materials and thicknesses.You can adjust the power up or down to match your travel speed and desired penetration,and you can save those settings.
