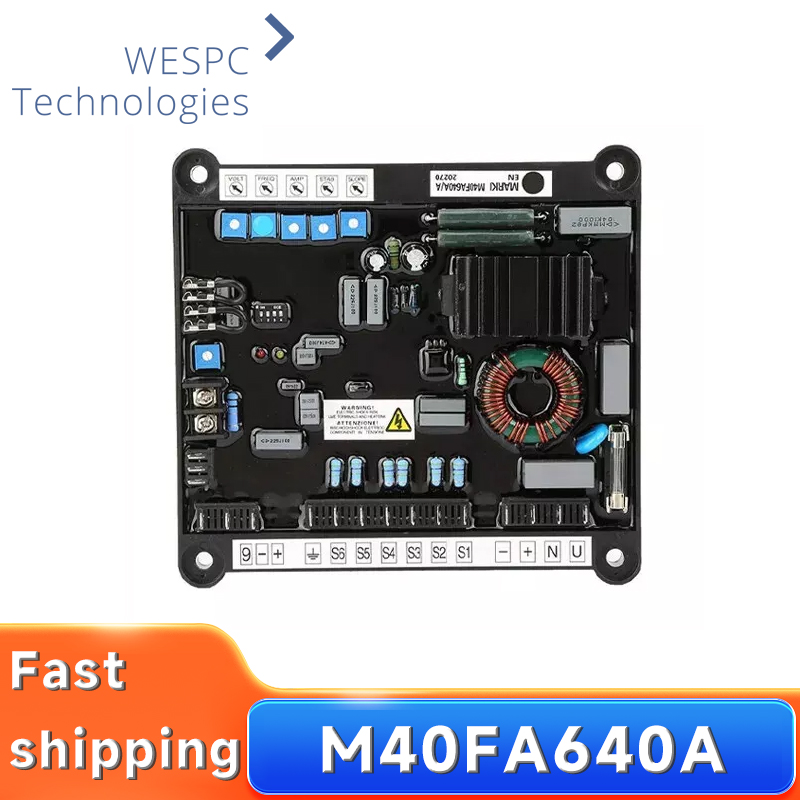

AVR M40FA640A Brushless Alternator Replacement Marelli Automatic Voltage Regulator

• The whole body of regulator is insulated and is safer to use in harsh environments.

• The product uses high-quality electronic components to maintain high reliability under harsh environmental conditions (high humidity, dust, salt environment).

• This regulator is suitable for single and three phase generators.

• The adjustment accuracy of the regulator is high, and the theoretical fluctuation is only 0.5%.

• The board of the regulator is made of flame retardant and high temperature resistant material, which is safe and durable.

Specification:
Power supply voltage:50/60Hz 170-277 V(±10% of range tolerance)
Voltage sensing(single-phase): 50/60Hz 170-277 V(±10% of range tolerance)
Maximum continuative field current: 5 A
Maximum forcing field current (1 minute): 8A
Maximum field voltage: 100 V
Field resistance: 8 Ω-20 Ω
Regulation accuracy: ±0.5 %(steady state conditions, rated, balanced and non deforming load, constant frequency)
Thermal Drift: ±0.5 %( voltage change for 50°C change from TAMB, after 10 minutes)
Response time: 1 Cycle
Operating temperature: -30°C / +70°C
Weight: 687g / 24.2oz

Package list:
1 * Voltage Regulator Board
