Planet IPOE-E174 1-Port Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender

Physical Port
5-port 10/100/1000BASE-T Gigabit RJ-45 interface
- 1-port data + power input
- 4-port data + power output

Power over Ethernet
1-port data + power input
- Complies with ultra Power over Ethernet end-span and mid-span PD
- Complies with IEEE 802.3 at High Power over Ethernet end-span / mid-span PD
- Supports PoE input power up to 60 watts
4-port data + power output
- Complies with IEEE 802.3 af / IEEE 802.3 at Power over Ethernet / end-span PSE
- Up to 4 IEEE 802.3 af / 802.3 at devices powered
- Supports PoE power up to 30.8 watts for each PoE port
- Auto detects powered device (PD)
Extends the range of PoE to an additional 100 meters (328ft.

)
Forwards both Ethernet data and PoE power to remote device

Layer 2 Features
Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control, auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3 x flow control for full duplex operation and back pressure for half duplex operation
Integrates address look-up engine, supporting 8K absolute MAC addresses
9K jumbo frame support in 1000Mbps duplex mode
Automatic address learning and address aging
Supports CSMA/CD protocol

Industrial Case / Installation
IP30 aluminum case
DIN rail and wall-mount design
Supports EFT protection for 6000V DC power, and 6000V DC Ethernet ESD protection
-40 to 75 degrees C operating temperature
No external power cable required for installation
Plug and Play installation

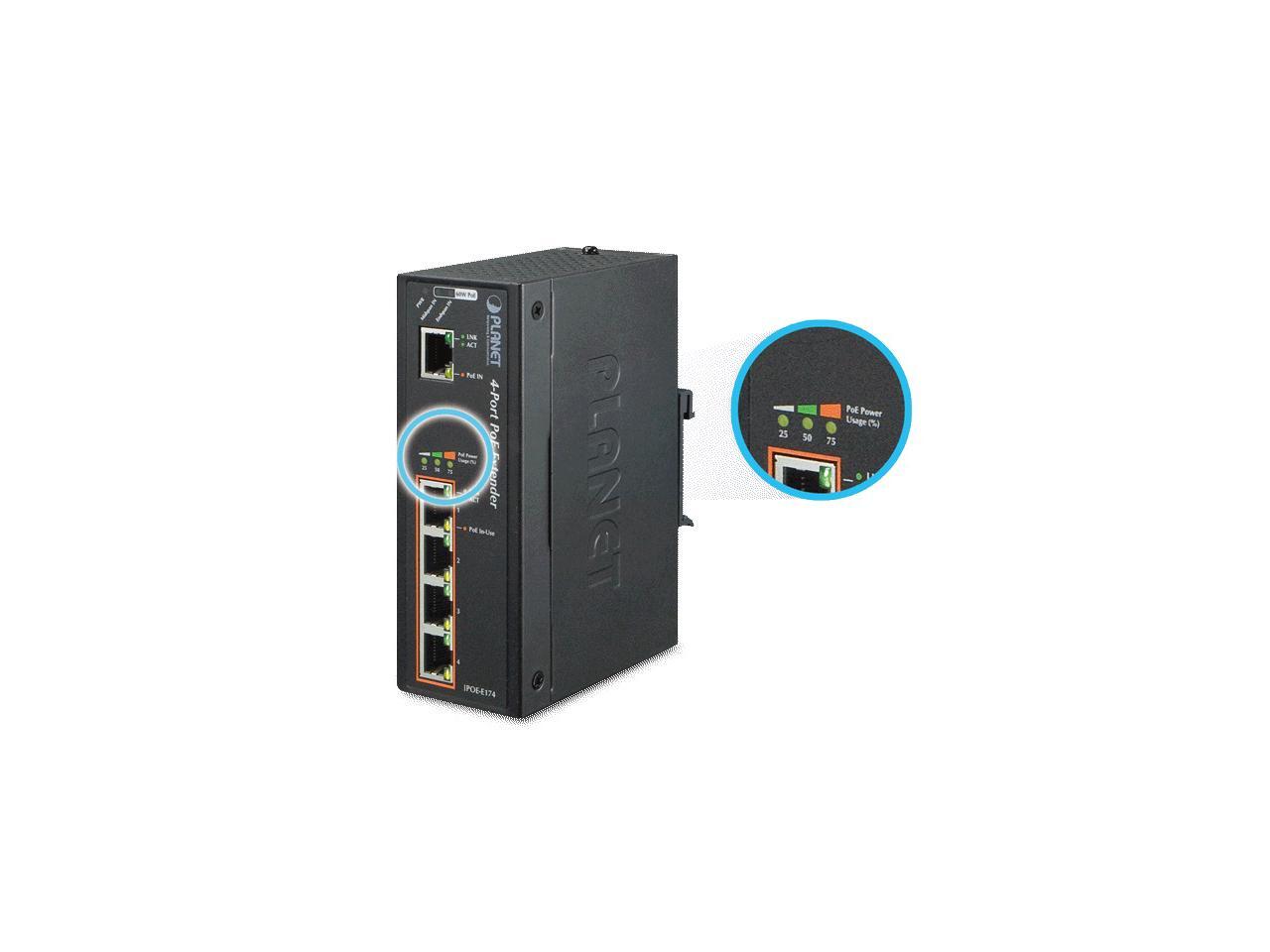

LED indicators for per port PoE In-Use and PoE Power Usage (25%, 50% and 75% )

Standards Compliance
IEEE 802.3 10BASE-T
IEEE 802.3 u 100BASE-TX
IEEE 802.3 ab 1000BASE-T
IEEE 802.3 x Flow Control
IEEE 802.3 at High Power over Ethernet
IEEE 802.3 af Power over Ethernet
FCC Part 15 Class A, CE

Learn more about PLANET IPOE-E174

Model
Brand
PLANET
Model
IPOE-E174
