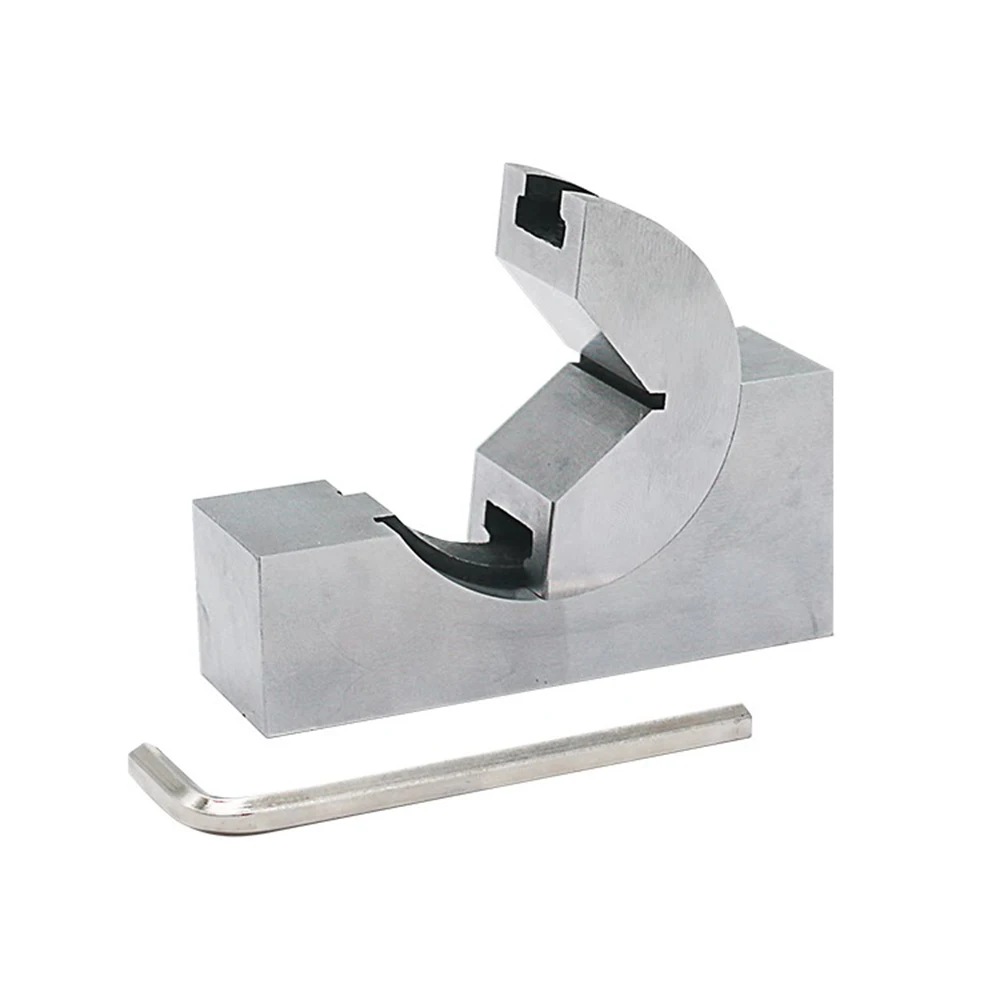

HUAXIA XINGGUANG adjustable angle pad grinder adjustable angle gauge milling machine angle pad iron precision V-shaped pad

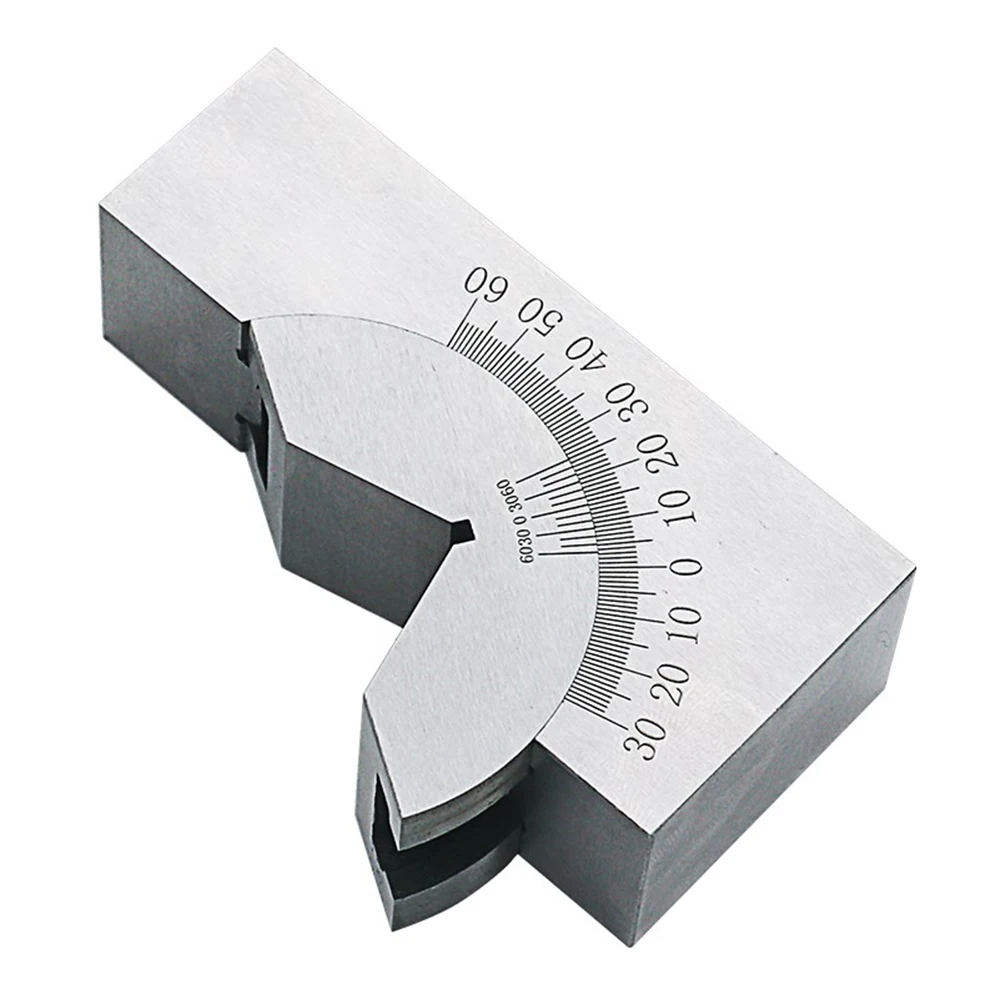

【Product Name】Adjustable Angle Gauge

【Material】: Stainless steel

【Total product weight】 438g

【Scale Process】Laser Scale

【Packing】Plastic box packaging

【Measurement Accuracy】±0.01mm

【Commodity use】Using adjustable angle gauges for tool setting on milling machines, planers, grinding machines, and drilling machines,

Scribing or cooperating with other fixtures to clamp the workpiece and process the workpiece, such as processing inclined surfaces,

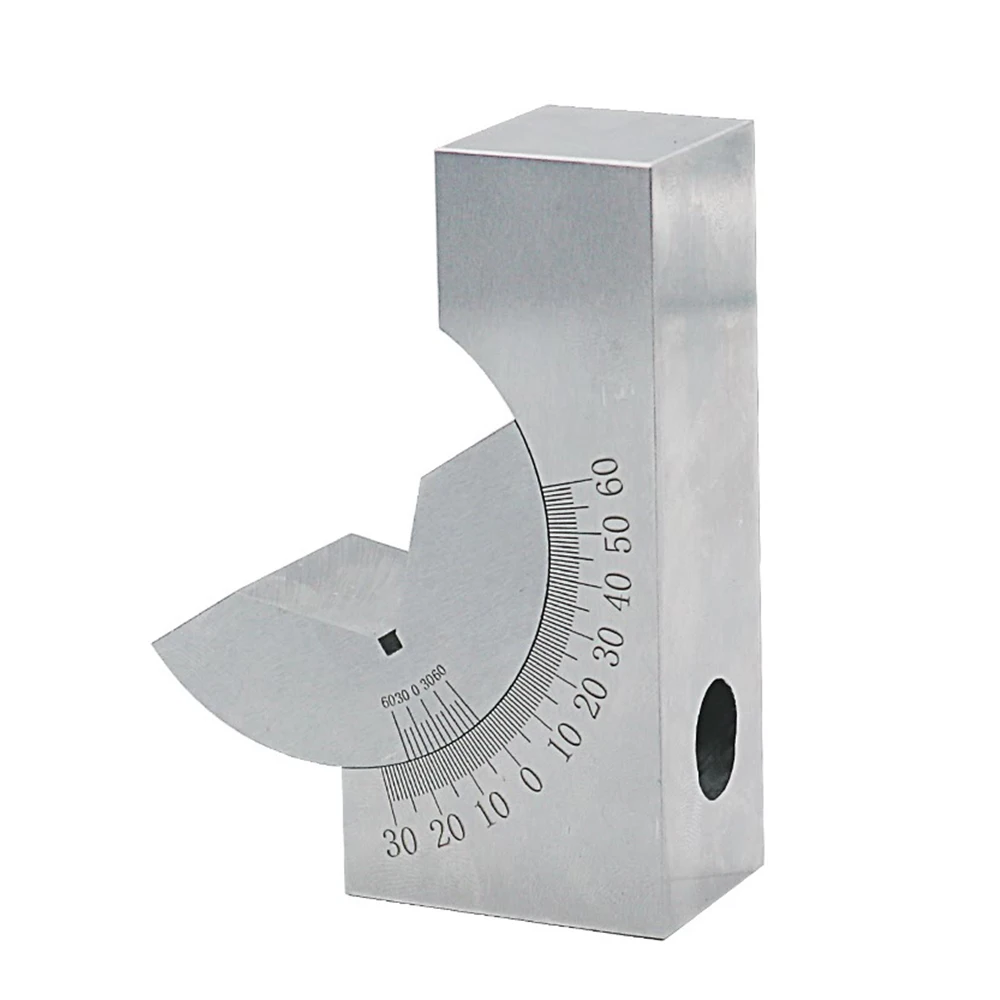

Drilling inclined holes, etc. The division on the main scale is 1°, and the division of the vernier is 10'

Features:

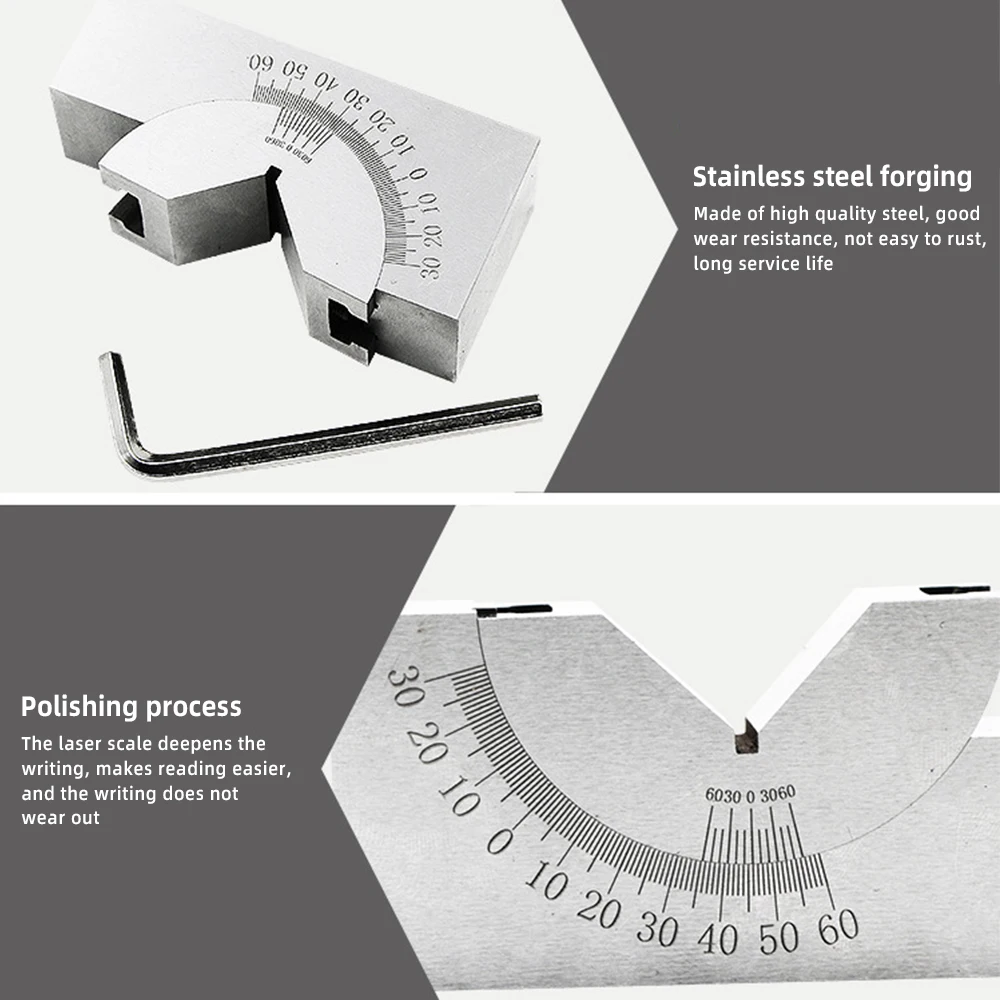

1 Made of high-quality steel, good wear resistance, not easy to rust and long service life

2Laser scale deepens writing, makes reading easier, and writing does not wear out

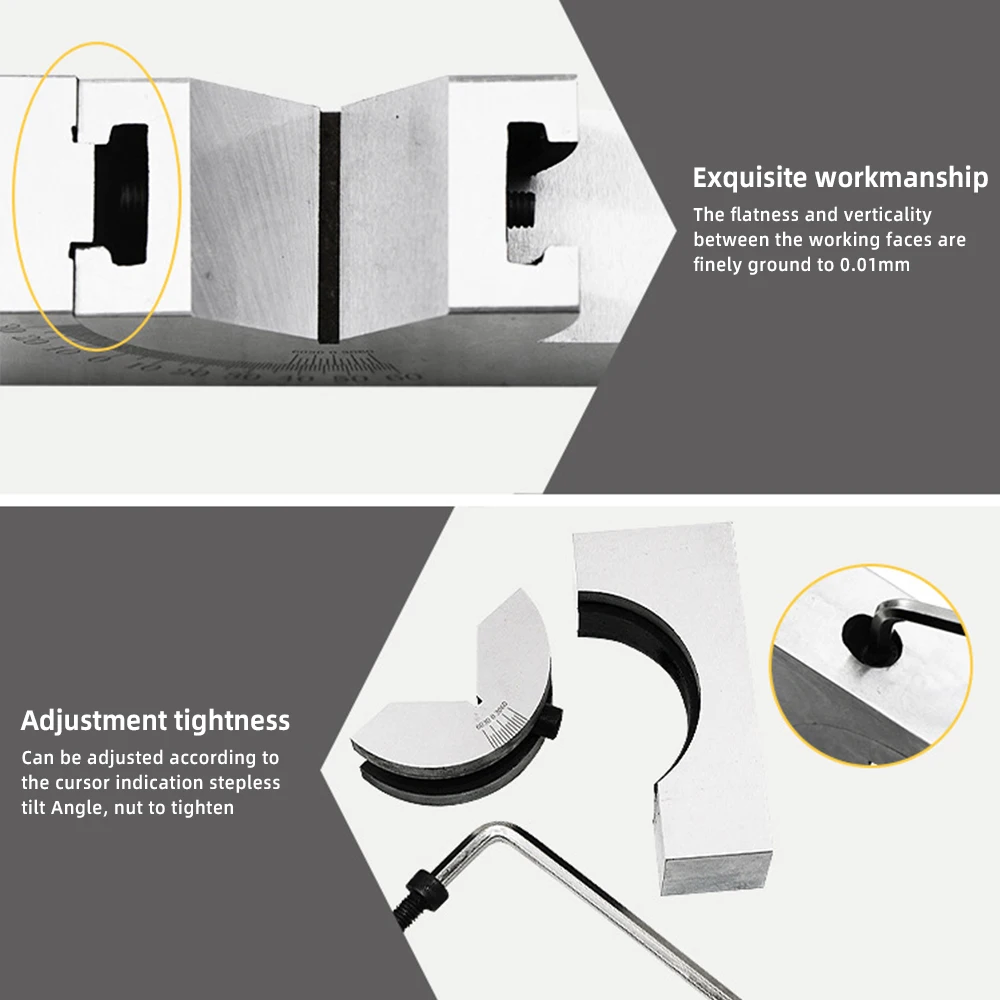

3 The flatness and verticality between the working surfaces are precision ground to 0.01mm

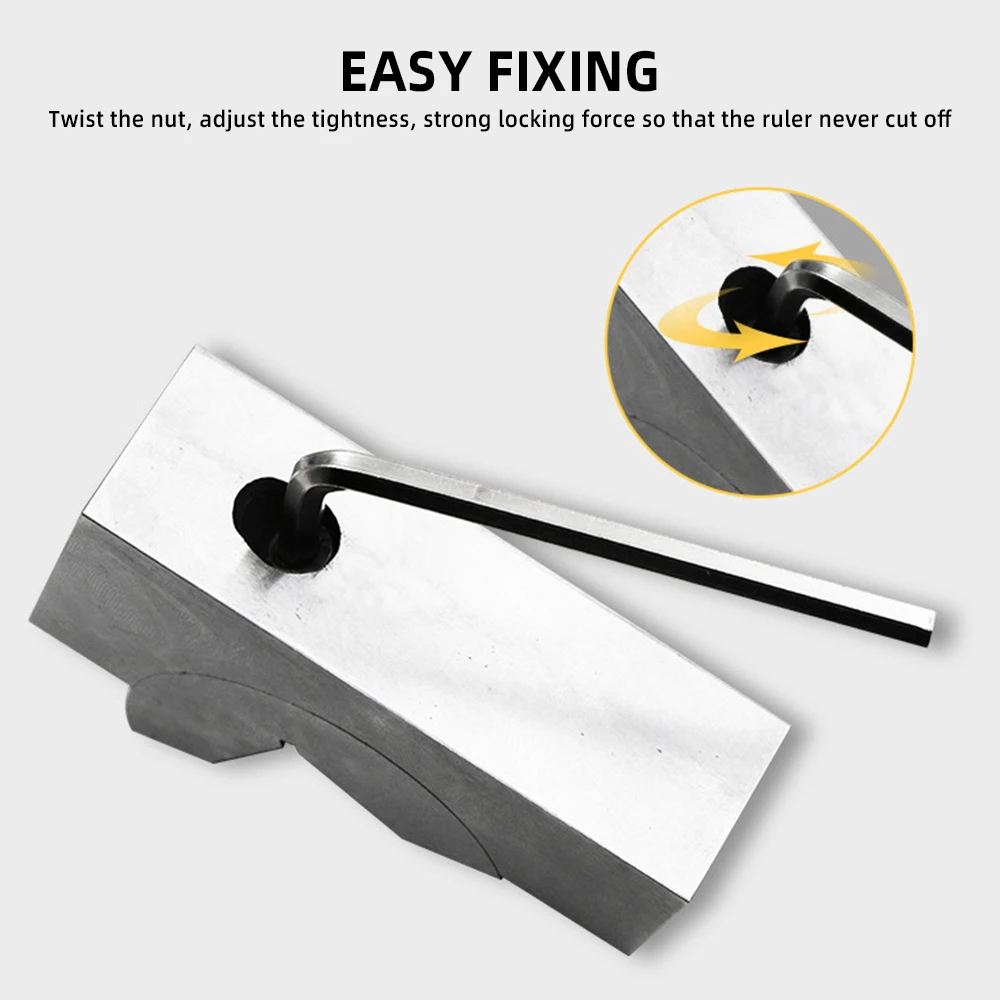

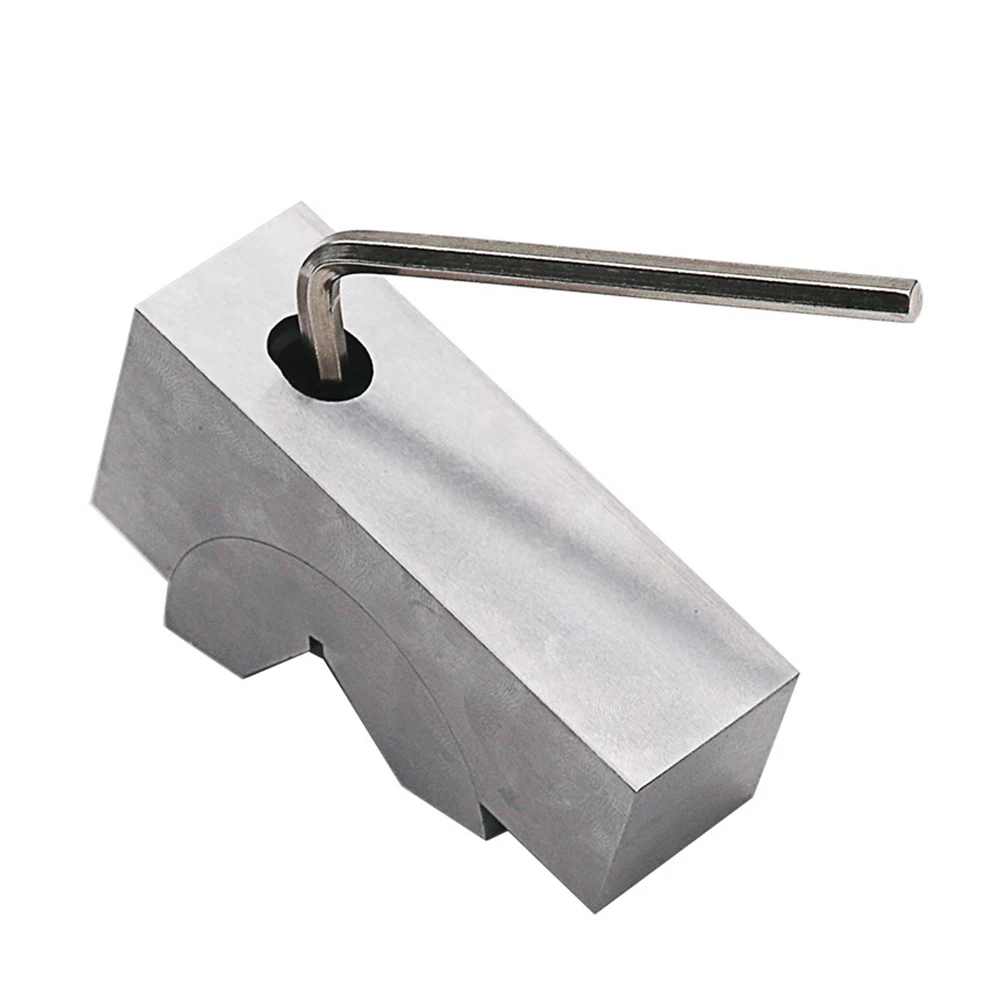

4 The angle can be adjusted steplessly according to the cursor indication, and the nut is tightened

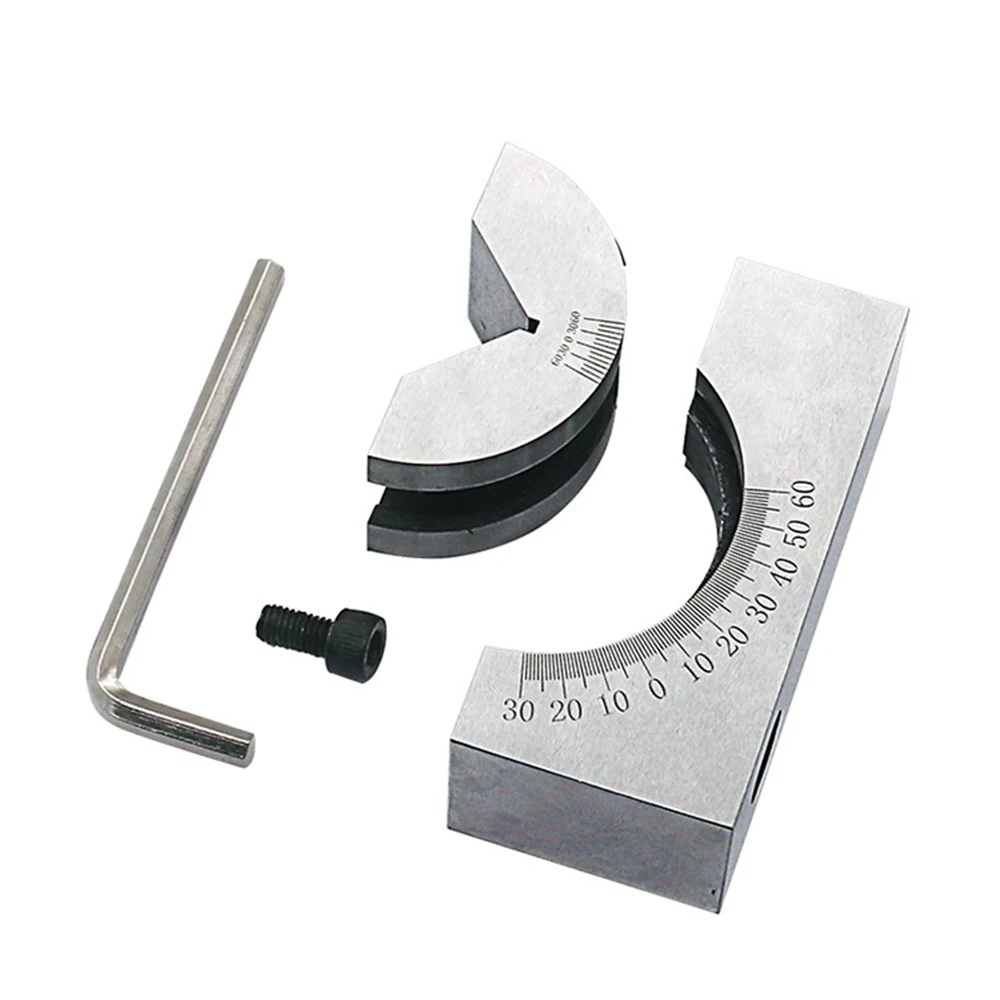

Package: 1* Grinder Adjustable Angle Gauge
