Product Parameters

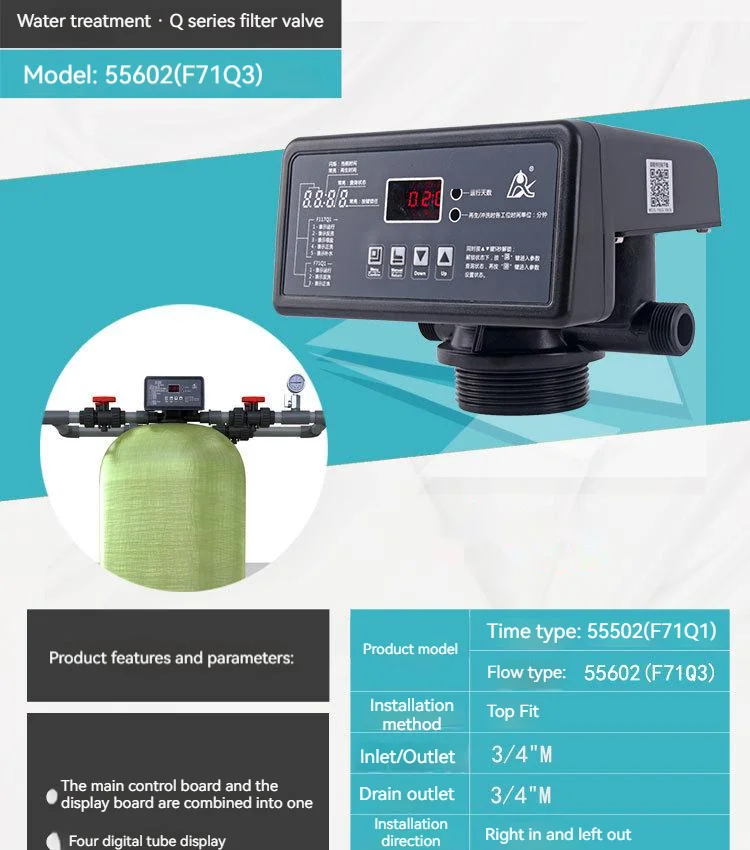

Product name: Automatic filter valve
Time type: 55502(F71Q1)
Flow type: 55602(F71Q3)
Installation method: top mounted
Inlet/Outlet: 3/4''M
Drain: 3/4''M
Installation direction: right in and left out
Base: 2.5''-8NPSM (Tank)
Injector: 1.05''OD
Water production: 2 m³/h
Compatible Tank: 6''-10''
Working pressure: 0.15-0.6MPa
Inlet water temperature: 5- 50°C
Influent Turbidity: < 20FTU
Input: AC100 ~ 240V/50 ~ 60HZ
Adapter power output: DC12V/1.5A

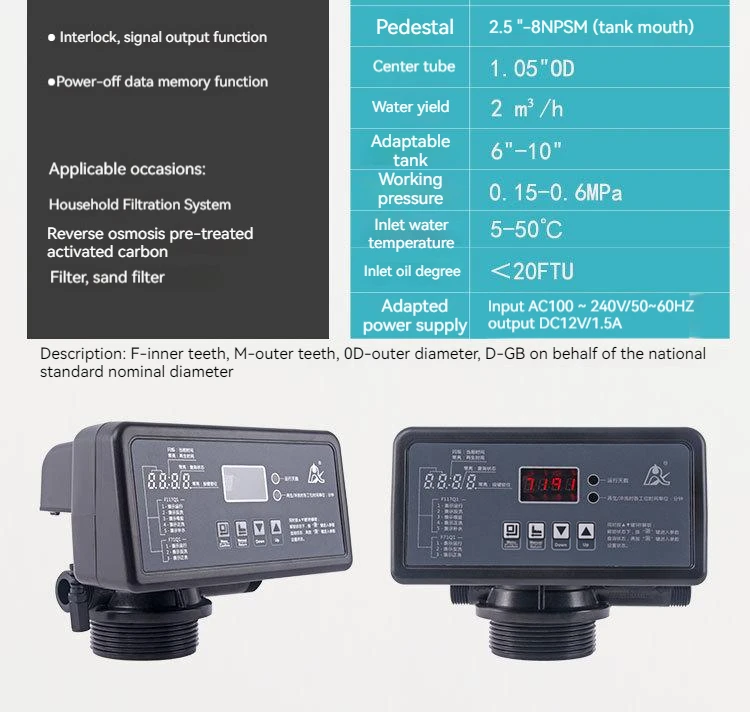

Features
●The main control board and the display board are combined into -
●Four-digit digital tube display
●Interlock, signal output function
●Power-off data memory function
Applications:
Home Filtration System
Activated carbon for reverse osmosis pretreatment
filter, sand filter
