Technical Parameter:
Pressure Range
0-10KG/CM2
Voltage Supply
220Vac(You require a 3 phase AC contactor with 380V pump)
Technical Parameter:
Pressure Range
0-10KG/CM2
Voltage Supply
220Vac(You require a 3 phase AC contactor with 380V pump)
Connection
G1/2(Standard),it also can be customized
Overload Capacity
220V,10A; Pump(≤1.5KW) can be started directly
Product Feature:
environment-friendly:silent design
Safe: IP65,water-proof case,water-shortage protection
Intelligent: Preventing the pump automatically restart frequently
Reliable: Electronic Design, long-life for using, more than 200,000 times operation,anti-vibration
Widely application:Pipeline Pump,Booster Pump,Self-priming pump,Immersible Pump,Circulating Pump ect.,widely using for solar heat pump,air-source heat pump,WILO home booster pump,Grundfos hot water circulating pump and other relevant pumps.

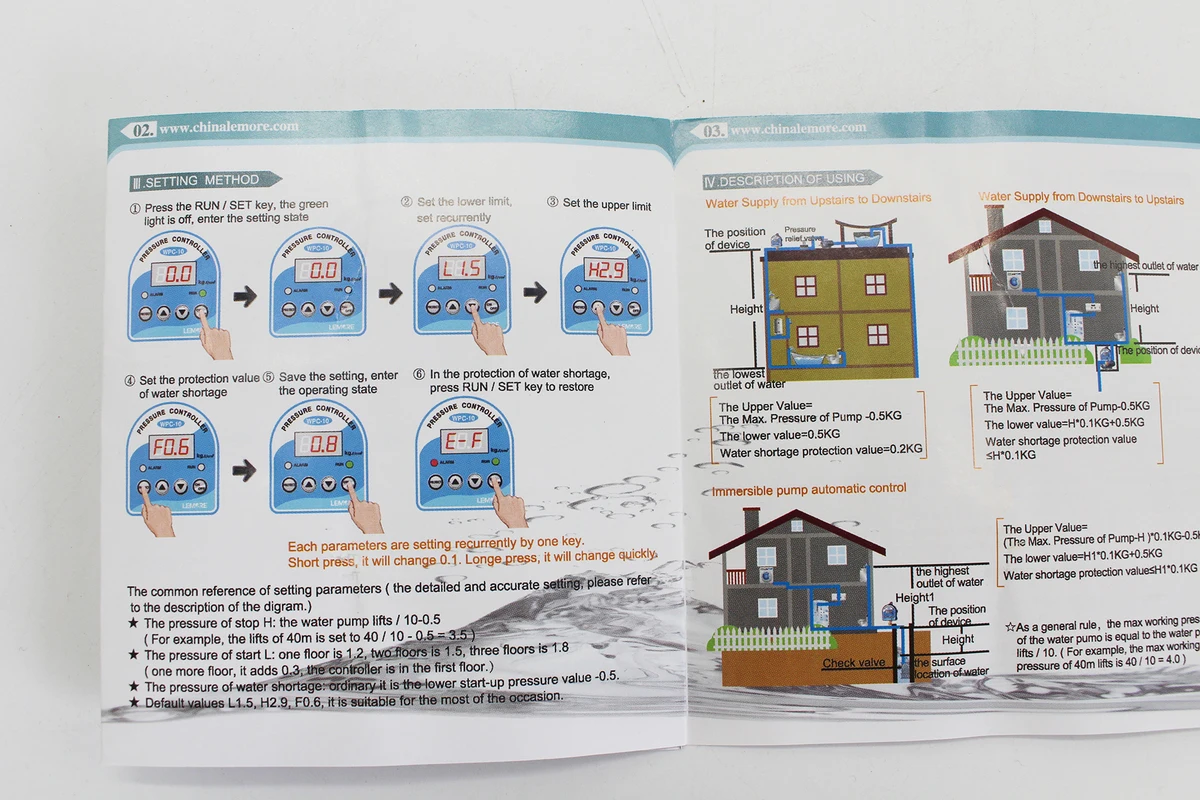

Description of Using:

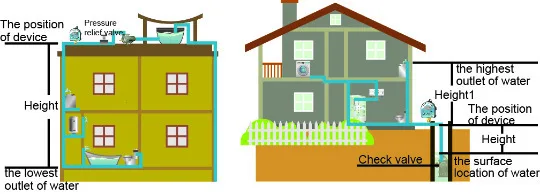

Water Supply from Upstairs to Downstairs
Pressure relief valve
The position of device
Height
the est outlet of water
The Upper =The Max. Pressure of Pump -0.5KG
The er =0.5KG
Water shortage protection =0.2KG
Water Supply from Downstairs to Upstairs:
the highest outlet of water
The Upper =The Max. Pressure of Pump -0.5KG
The er =H*0.1KG+0.5KG
Water shortage protection ≤H*0.1KG
Immersible pump automatic control
The position of device
Height
the highest outlet of water
the surface location of water
The Upper =(The Max. Pressure of Pump-H )*0.1KG-0.5KG
The er =H1*0.1KG+0.5KG
Water shortage protection ≤H1*0.1KG

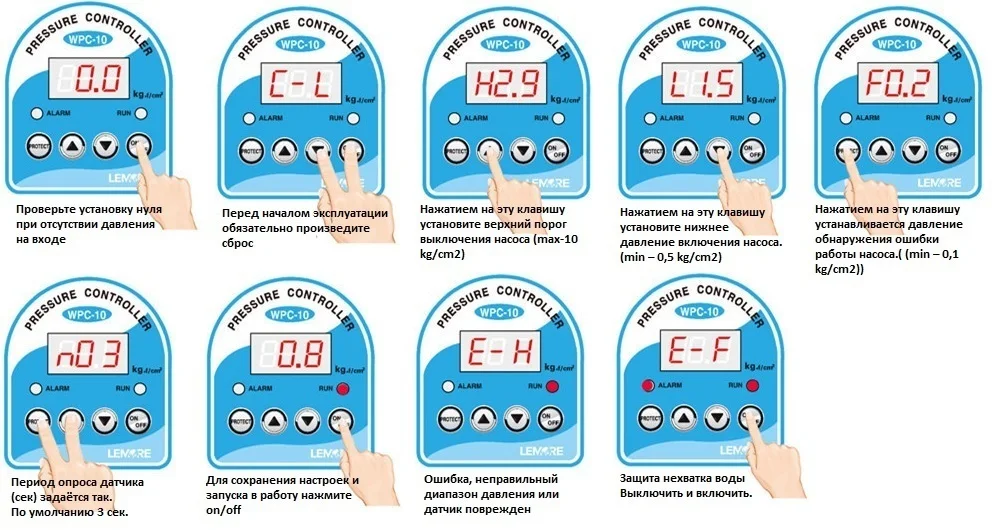

REAR THE CODE
CODE
MEANING
HOW TO USE
H2.9
Upper ,stop 2.9KG
You can set it as instruction
L1.5
er ,stop 1.5KG
You can set it as instruction
F0.2
Water shortage protection 0.2KG
You can set it as instruction
E-F
Water shortage protection
Press ON/OFF to restart or waiting for restart automatically
E-H
Error,over the pressure range or the sensor damaged
Check the pressure source
The wiring
Please see the back of the WPC-10 pressure control, the left is Chinese word "power", you can supply 220Vac from here, the right is Chinese word "motor", please connect it with the pump 220Vac supply terminal.
Description Of Using
Water Supply from Upstairs to Downstairs Immersible pump automatic control
The Upper = The Upper =
The Max. Pressure of Pump -0.5KG (The Max. Pressure of Pump-H )*0.1KG-0.5KG
The er =0.5KG The er =H1*0.1KG+0.5KG
Water shortage protection =0.2KG Water shortage protection ≤H1*0.1KG
Water Supply from Downstairs to Upstairs
The Upper =The Max. Pressure of Pump-0.5KG
The er =H*0.1KG+0.5KG
Water shortage protection ≤H*0.1KG
| Technical Parameter |
| Pressure Range |
0-10KG f/CM |
| Voltage Supply |
220Vac(You require a 3 phase AC contactor with 380V pump) |
| Connection |
G1/2(Standard),it also can be customized |
| Overload Capacity |
220V,10A; Pump(≤1.5KW) can be started directly |
| Read The Code |
| Code |
Meaning |
How To Use |
| H2.9 |
Upper ,stop2.9KG |
You can set it as instruction |
| L1.5 |
er ,stop1.5KG |
You can set it as instruction |
| F0.2 |
Water shortage protection 0.2KG |
You can set it as instruction |
| E-F |
Water shortage protection |
Press ON/OFF to restart or waiting for rest |
