Product Description

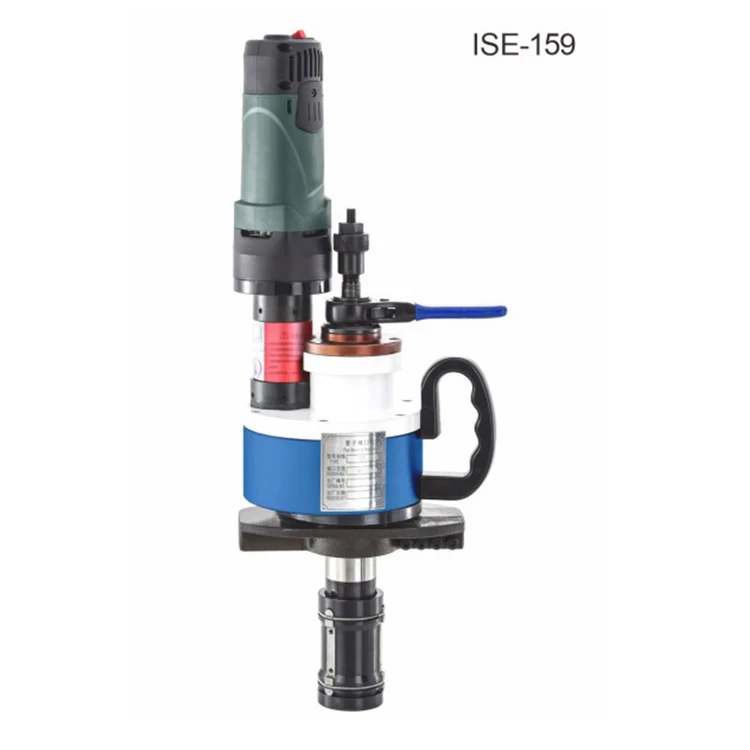

ISE-159 Portable Bevelling Machine Pipe Beveler for Variety of Pipe End Surface Beveling Range 65-159mm
Power Supply : 220-240v 1PH 50-60HZ
Motor Power : 1.4-2kw
Feature : Portable and easy to operate
Advantage:Easy operation,light weight. A draw nut is tightened,Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.It's can work with various material pipe,beveling angle as per your required.
SPECIFICATION:
|
Model
|
Spec.
|
Working Range (ID-OD)
|
Wall thickness (mm)
|
Rotation Speed
|
|
ISE(Electric)
ISP (Pneumatic)
ISM(Metabo)
|
30
|
Φ18-30
|
1/2’’-3/4’’
|
≤15
|
50r/min
|
|
80
|
Φ28-89
|
1’’-3’’
|
≤15
|
55r/min
|
|
120
|
Φ40-120
|
11/4’’-4’’
|
≤15
|
30r/min
|
|
159
|
Φ65-159
|
21/2’’-5’’
|
≤20
|
35r/min
|
|
252-1
|
Φ80-273
|
3’’-10’’
|
≤20
|
16r/min
|
|
252-2
|
≤75
|
|
352-1
|
Φ150-356
|
6’’-14’’
|
≤20
|
14r/min
|
|
352-2
|
≤75
|
|
426-1
|
Φ273-426
|
10’’-16’’
|
≤20
|
12r/min
|
|
426-2
|
≤75
|
|
630-1
|
Φ300-630
|
12’’-24’’
|
≤20
|
10r/min
|
|
630-2
|
≤75
|
|
850-1
|
Φ490-850
|
24’’-34’’
|
≤20
|
9r/min
|
|
850-2
|
≤75
|
