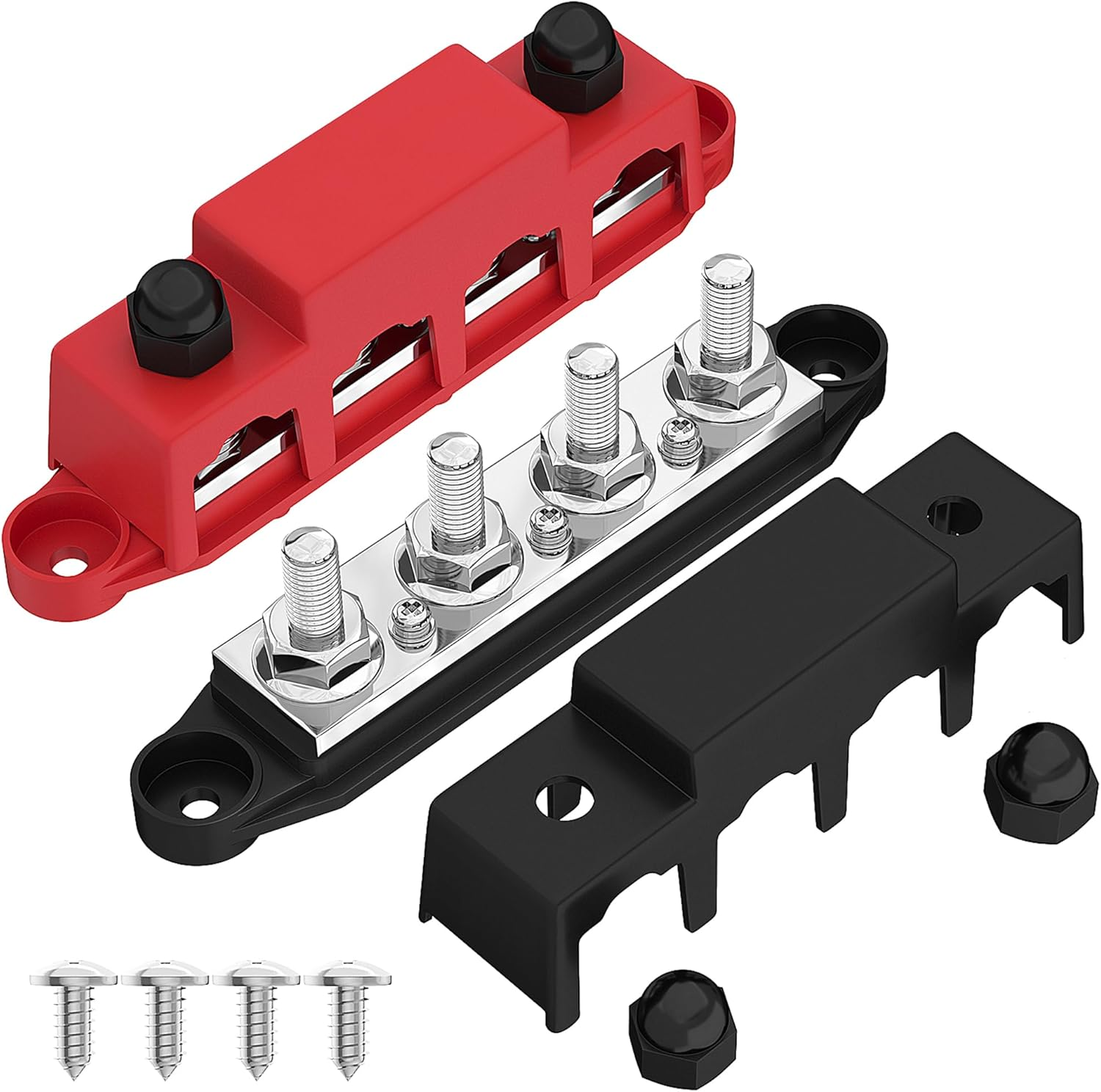

Bus Bar 12V 250A Power Distribution Block 4 X 3/8" Studs 12 Volt Automotive Marine Battery Busbar Terminal Block with Cover - Negative&Positive

Bus Bar 12V 250A Power Distribution Block 4 X 3/8

  • Upgrade & Thicken: A pair of 12V power distribution block, includes a red and a black power distribution block(Positive&Negative). Our 12V Bus Bar also features 4MM Thicker Copper Bus Bar Plate which can be connected to wider range of cables
  • 250A Rating: The battery distribution block rated 250A when work in 12v circuit, and the battery terminal block can handle MAX 48V
  • 3/8" Stud: The battery bus bar terminal block includes 4 x 3/8" studs terminal and 3 x #8 screw terminals, which makes the 12V junction block able to accept large size terminal connectors and wires. The nylon bottom is also secured by M10 post which makes it more fixed and won't strip
  • Protect Cover and Nuts: Each power busbar will come with a protect cover and two nuts, which helps to shelter as much exposed area as possible to reduce the risks of accidental contact and prevent short circuit, makes the circuit safer
  • Wide Application: The 12 volt buss bar with cover aims to make the wiring of circuit become neat and tidy, preventing mess harness from causing electric short circuit, it is suitable for automotive, car, truck, marine, boat, solar wiring

Product Description

Product Details Display

3/8" Stud Terminal

The 12v bus bar is 4 x M10 (3/8") studs and 3 x M4 (#8) screw terminals design, can allow max 250A current pass through the battery terminal block.

Protect Cover & Nuts

Each junction block will come with a cover and two nuts, which will shelter most exposed contact areas to reduce the risks of short circuit or touch.

4MM Thicker Copper Bus Bar

The 12v bus bar features 4MM Thicker Copper Bus Bar Plate, which can be connected to wider range of cables.

M4 (#8) Screw Terminal Design

The 12v bus bar comes with M4 Terminal Screws. You simply insert the wire into the ring terminal and secure the terminal to the terminal block.

Positive Bus Bar - Red

Negative Bus Bar - Black

Joinfworld Automotive Marine Battery Bus Bar

Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.8 out of 5 stars
550
4.8 out of 5 stars
550
4.7 out of 5 stars
38
4.8 out of 5 stars
55
4.8 out of 5 stars
550
4.8 out of 5 stars
35
Price
$28.99$28.99 $27.99$27.99 $25.98$25.98 $52.98$52.98 $54.98$54.98 $79.99$79.99
Current Rating:
250A 250A 250A 300A 400A 500A
Stud Terminal
4×3/8"(M10) Studs 4×5/16"(M8) Studs 3×5/16"(M8) Studs 4×3/8"(M10) Studs 4×5/16"(M8) Studs 4×5/16"(M8)+2×3/8"(M10) Studs
Color
Red&Black Red&Black Red&Black Red&Black Red&Black Red&Black
Features
Protect Cover & Nuts Protect Cover & Nuts Protect Cover & Nuts Protect Cover & Nuts Protect Cover & Nuts Protect Cover & Nuts
Bar Bus Thickness
3.8MM 3.8MM 3.8MM 7MM 8MM 8MM
Material
Copper Copper Copper Copper Copper Copper

  • Item model number BB250-T4M10S3-C-RB-2
    Product Dimensions 6.61"W x 2"H
    Current Rating 2.5E+2 Amps
    Mounting Type Surface Mounting
    Color 250A-Bus Bar
    Upper Temperature Rating 85 Degrees Fahrenheit
    Material PA66, Copper
    Number Of Poles 4
    Connector Type Screw
    Item Weight 1.25 pounds
    Voltage 12 Volts
    Specification Met CE
    Number of Positions 4
    Size 250A 3/8"
