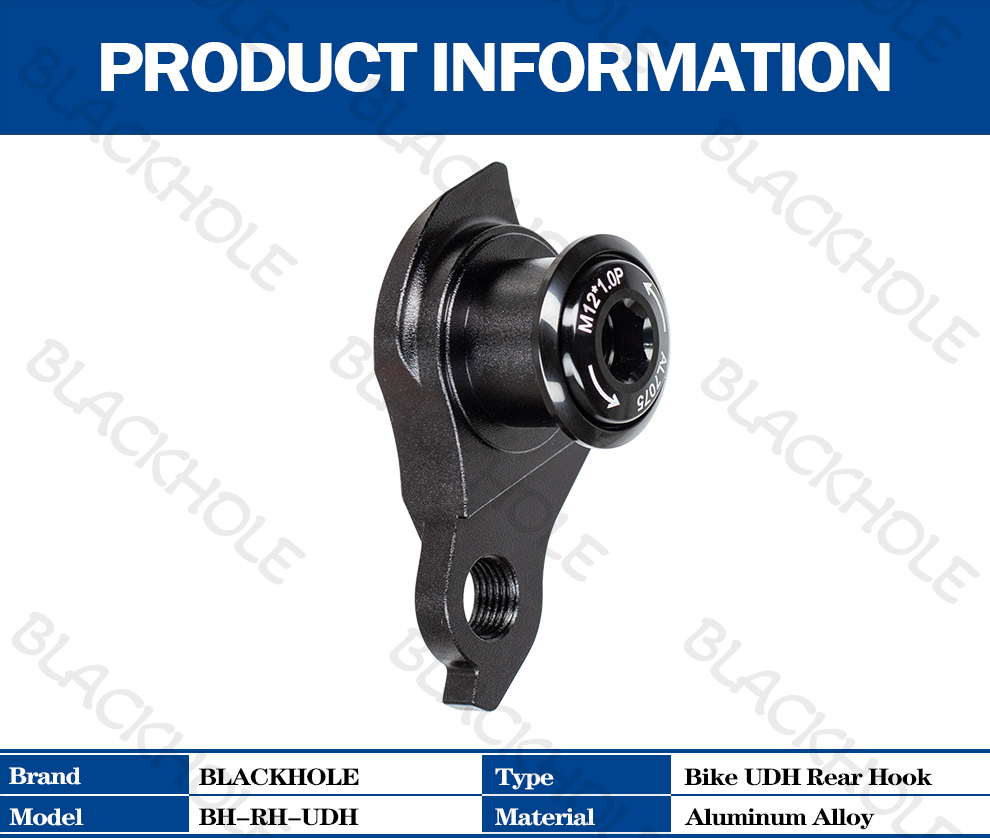

Product Description |
|
Type:Bike Frame SRAM UDH Rear Derailleir Hook; |
|
Material: High-Strength All Aluminum Alloy |
|
Model:Pitch 1.0/Pitch 1.5/Pitch 1.75 |
|
Color: Black |
|
Weight: 31g |
|
Suitable for Thru Axle Skewers: 12mm Outside Diameter,Thread Pitch 1.0/Pitch 1.5/Pitch 1.75 |
|
Order: 1pc UDH Rear Hook |
|
Note |
|
Please purchase according to the tooth pitch of Thru Axle Skewers. Usually the tooth pitch will be written on the surface of Thru Axle Skewers, such as "M12*P1.5", where "P1.5" corresponds to Pitch 1.5 UDH Rear Hook. |
|
Buying Guide |
|

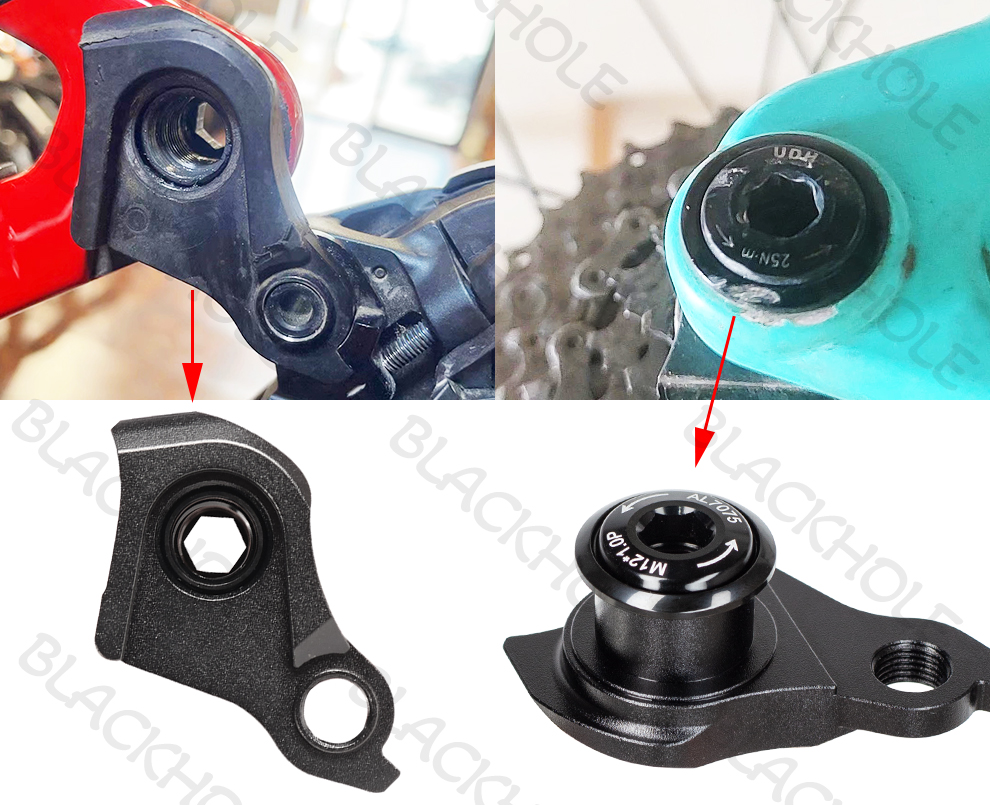

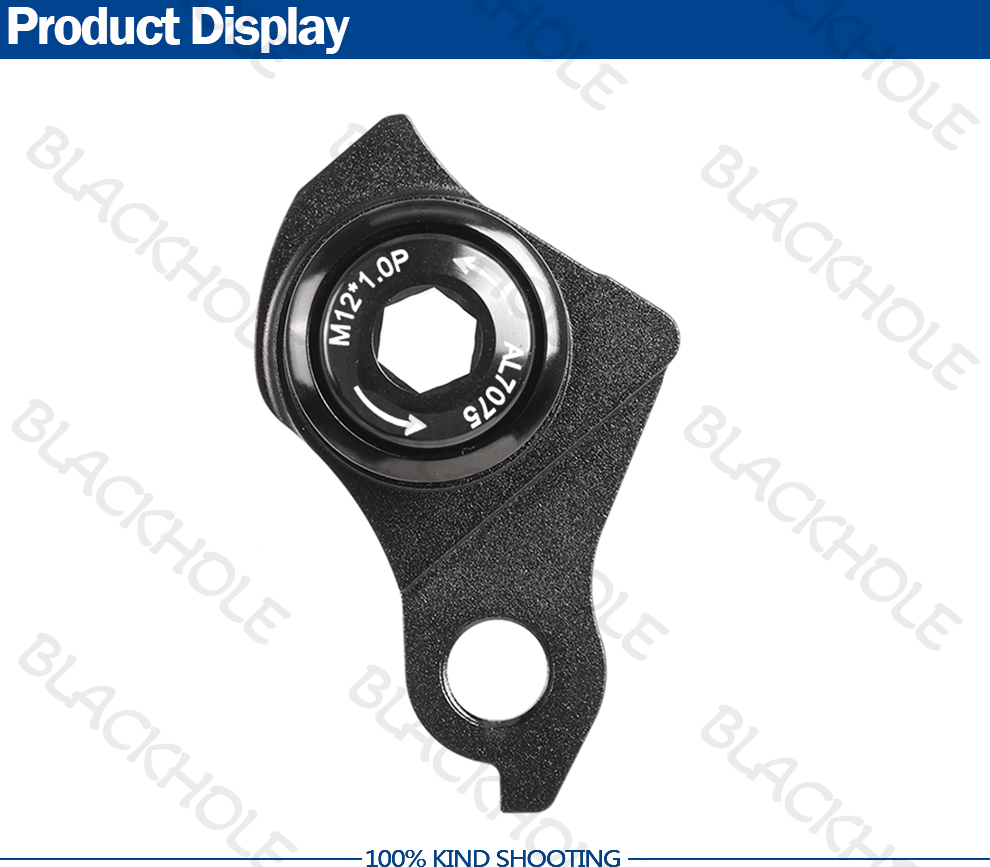

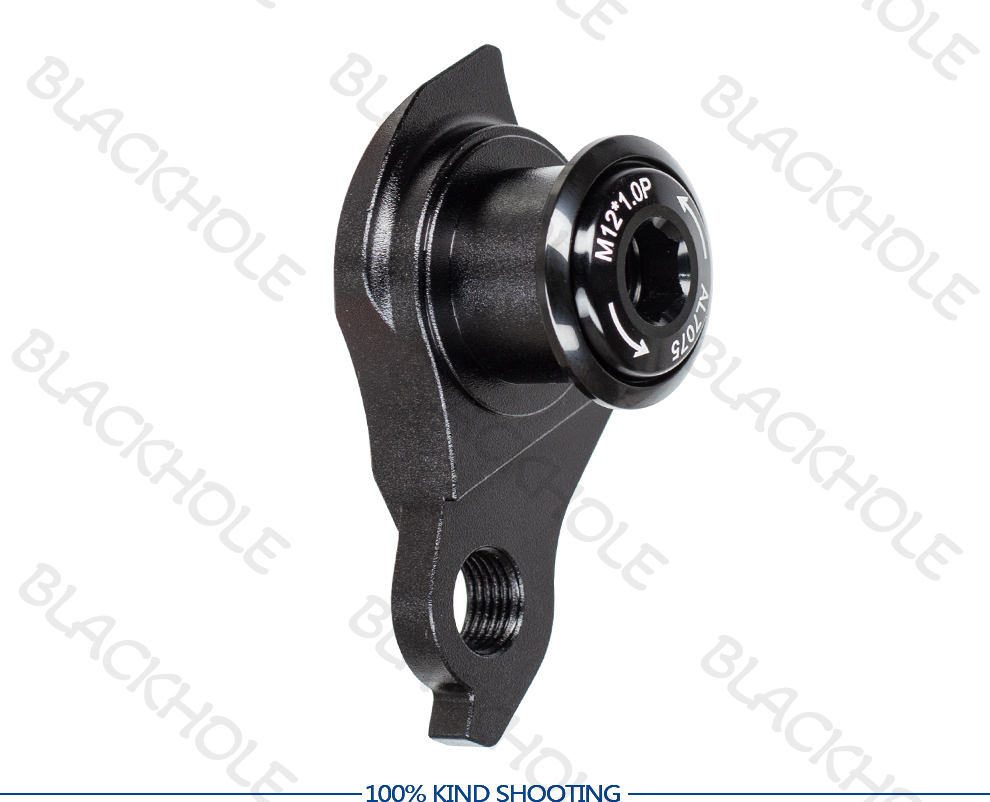

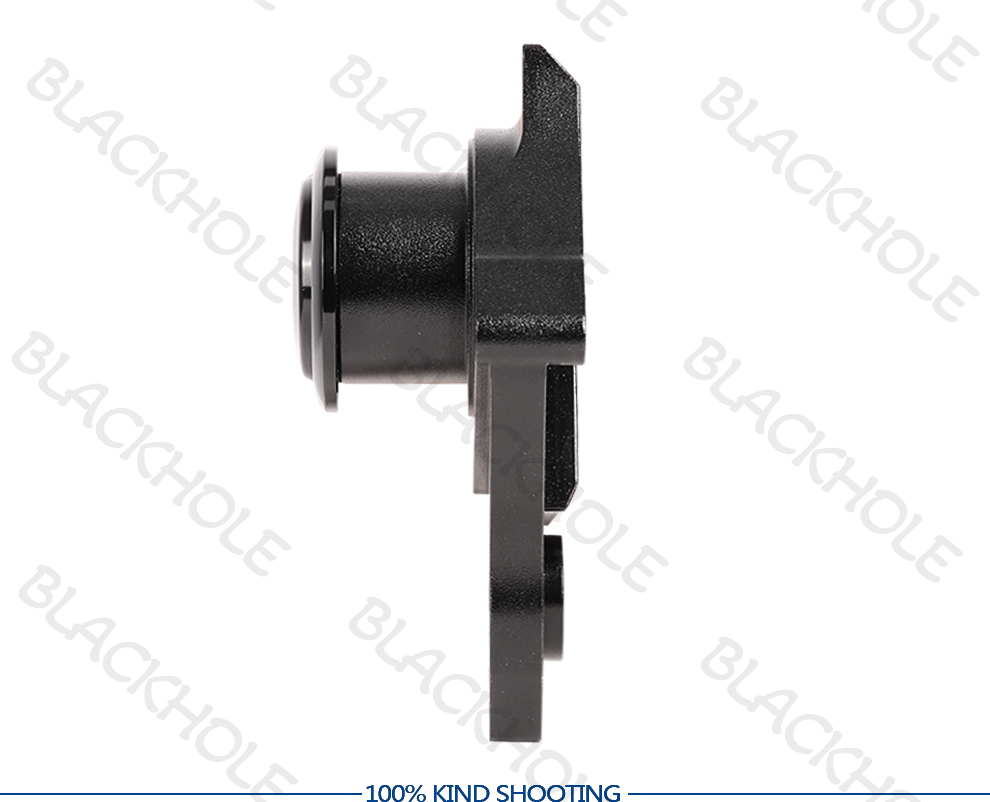

First, you need to confirm whether the shape is the same. There are many pictures of the product in different directions above, which can easily compare whether theyare the same. |
|

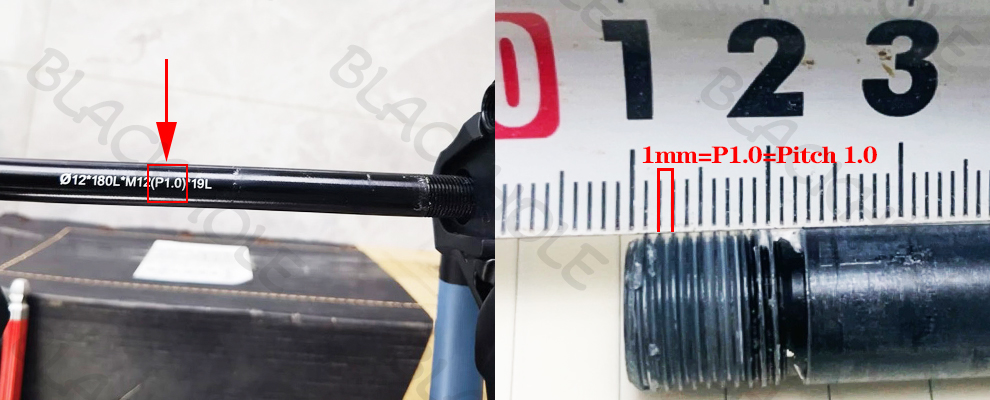

After confirming the same shape, you need to confirm the thread pitch of Thru Axle Skewers. Usually, there are words such as P1.0, P1.5 or P1.75 on the surface of Thru Axle Skewers. If the thread pitch is marked with P1.0, please choose UDH Rear Hook with Pitch 1.0. If there is no marking on Thru Axle Skewers, please measure with a ruler. The distance between two teeth is 1mm, which is P1.0 pitch, and 1.5mm is P1.5 pitch. |
