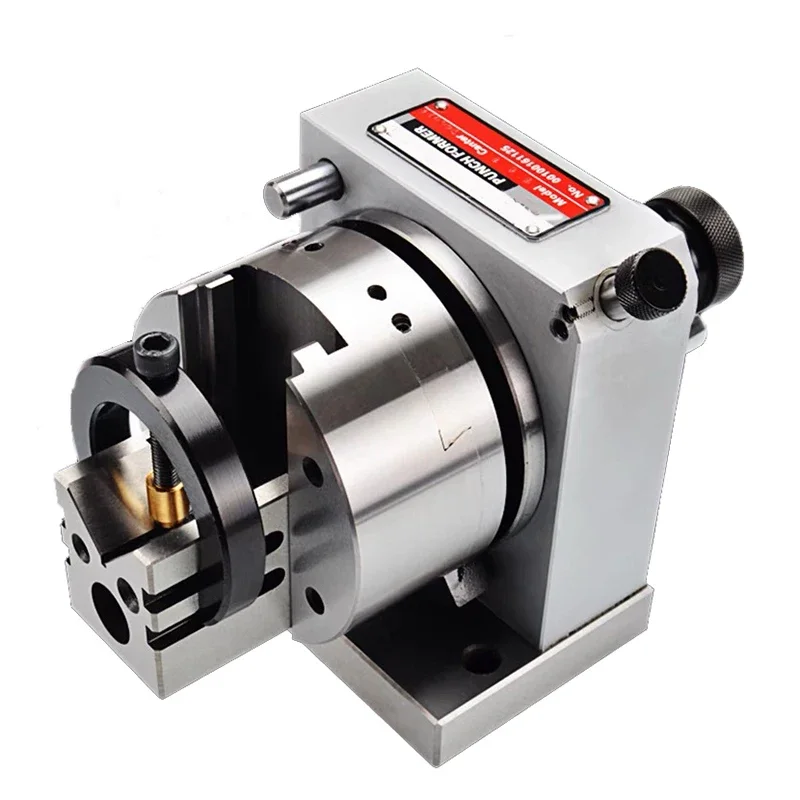

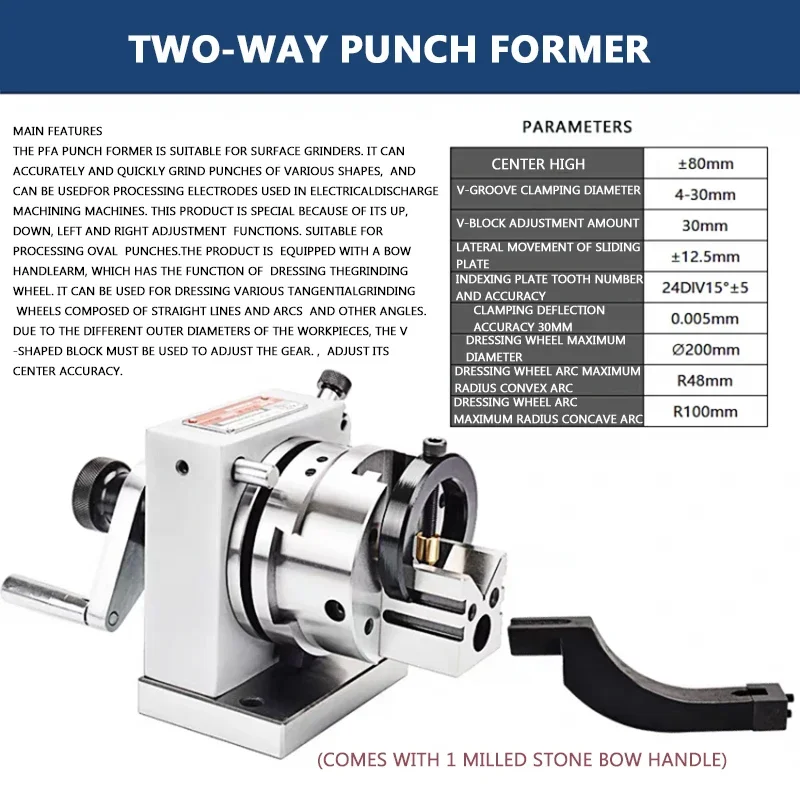

Precision two-way punch former High-precision needle grinding machine One-way punch former 0.005 accuracy

Center height: ±80mm

V-groove clamping diameter: 4-30mm

V-block adjustment amount: 30mm

Lateral movement of sliding plate: ±12.5mm

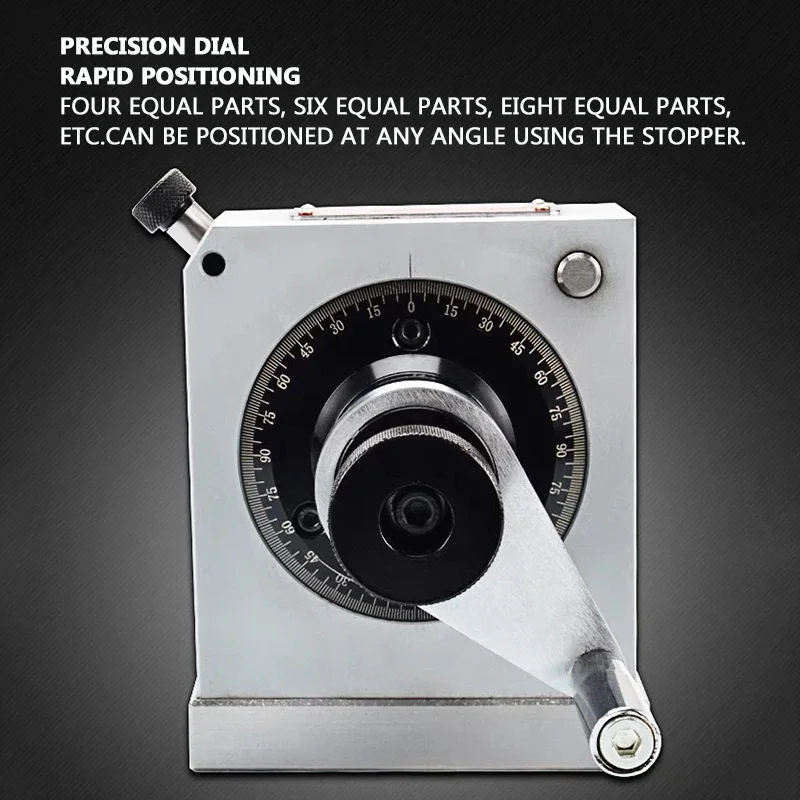

Number of teeth on the indexing plate, accuracy: 24DIV15° ±5

Clamping deflection accuracy 30mm: 0.005mm

Maximum diameter of dressing wheel: ∅200mm

Maximum radius of dressing wheel arc: R48mm

Maximum radius of dressing wheel arc: R100mm
