Slot.it CH31F HRS2 Sidewinder RTR Chassis 1/32 Slot Car SICH31F

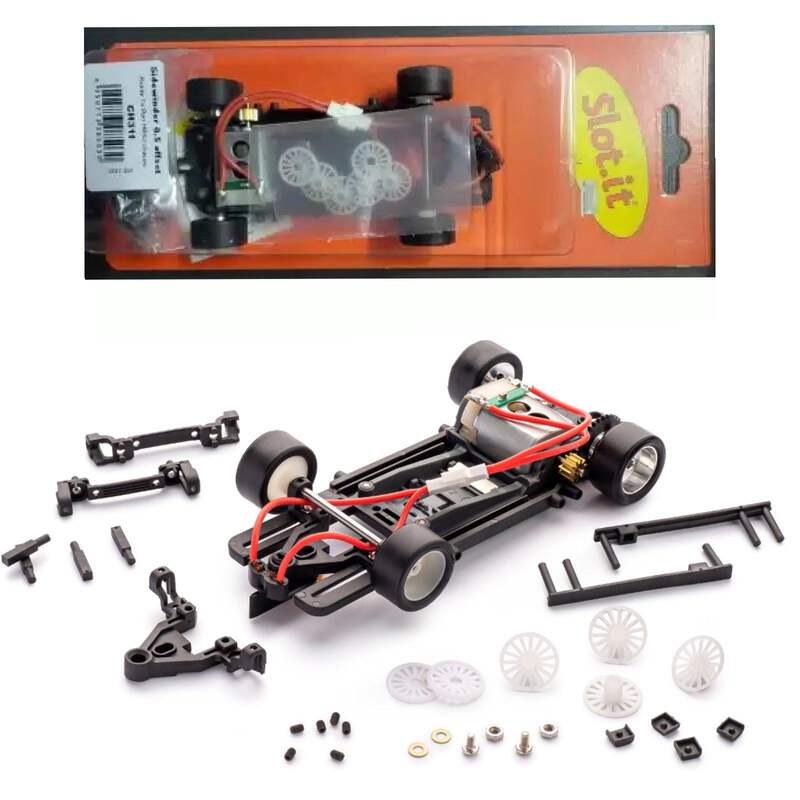

Slot.it HRS2 Sidewinder RTR Chassis

1/32 Scale Analog Slot Car

Slot.it HRS2 complete and ready to run adjustable racing chassis to mount onto a wide range of slot car bodies.

Chassis Data

Adjustable wheelbase: 64mm-90mm
Adjustable wheel width: 60.6mm-64mm
Height: 19mm

Chassis Features

23,000 rpm motor (170 g*cm @ 12V)
sidewinder configuration with 11/32 gear ratio
CN06 neodymium magnet included
57-61mm axle width
64-90mm wheelbase length
19mm height
15.8 x 8.2mm plastic front wheels
15.8 x 8.2mm aluminum rear wheels
unpainted wheel inserts
racing guide w/ copper braid

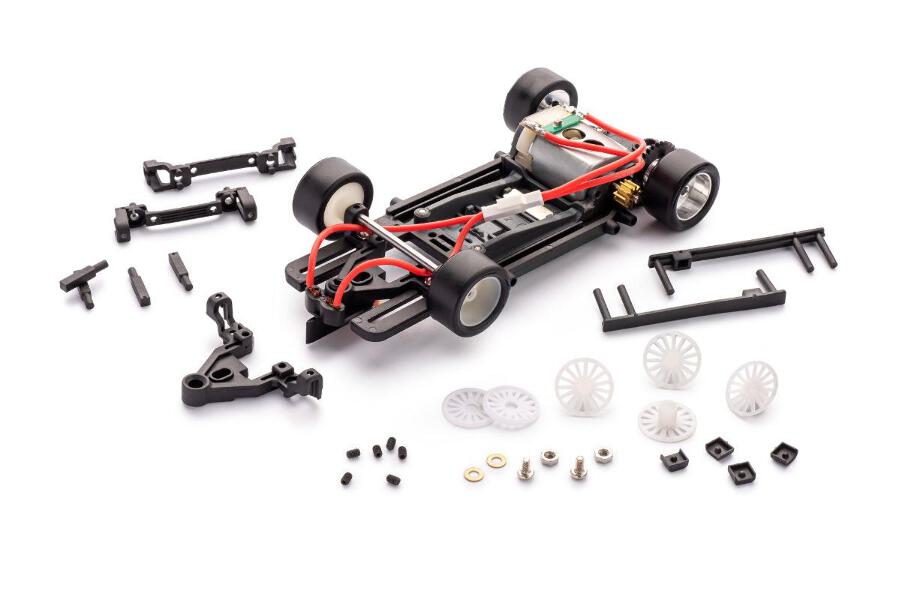

HRS Chassis
The HRS chassis is a fully configurable, universal plastic chassis for slot cars. It comprises four main parts: main chassis, front chassis, motor mount, and body mounting means.

Adjustable Wheelbase
The front chassis can be positioned freely within a wheelbase between 64 and 90mm.

Selectable Front Axle Position
The front axle can be placed in one of two possible positions, one of which completely adjustable, making it easy to adjust the distance from the pickup.

Flexible Assembly System
The chassis and the body can be joined with either four mounting posts and cups (HRS1 style), two three-posts sidebars, or, on some cars, where possible, with the car’s own screw holes.
