1* Laser Head(20W/40W)

1* Connecting Wire

1* fixed focus plate

2*long screws+short screws

1*wrench

Package description:

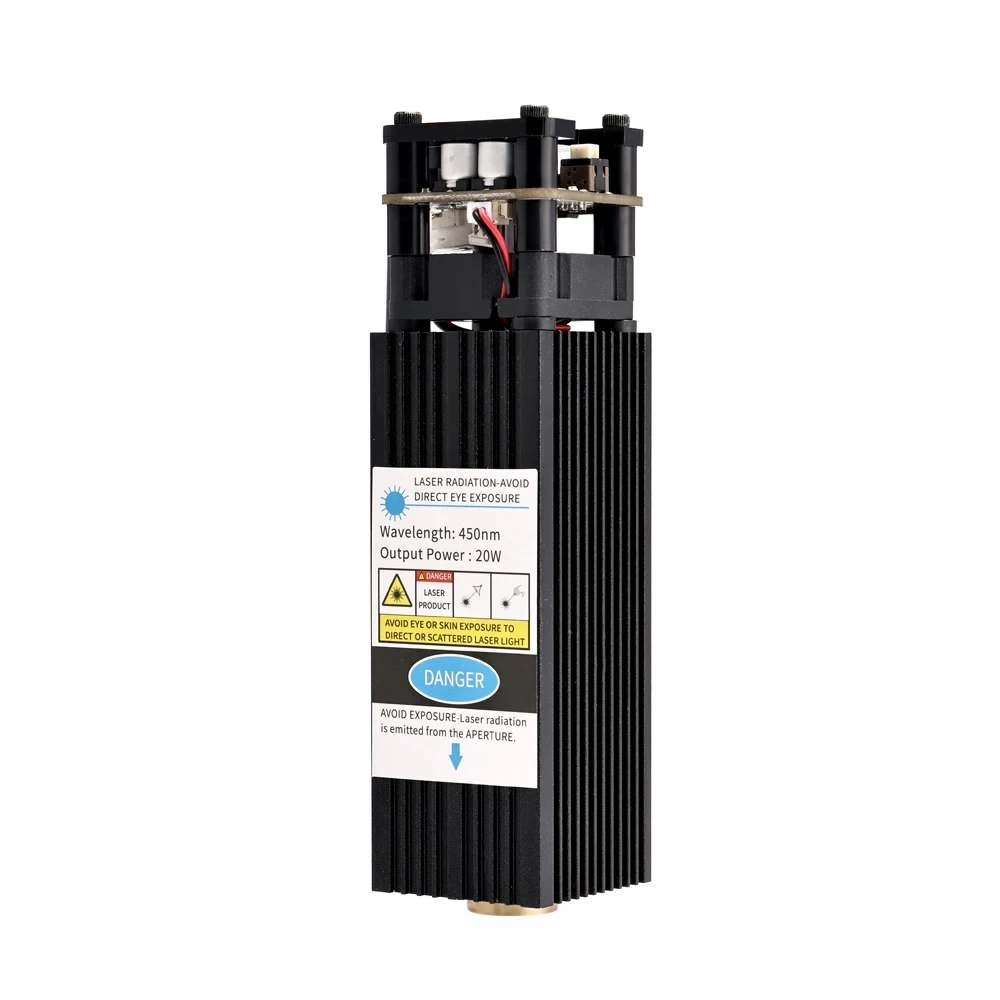

Specification (20W)

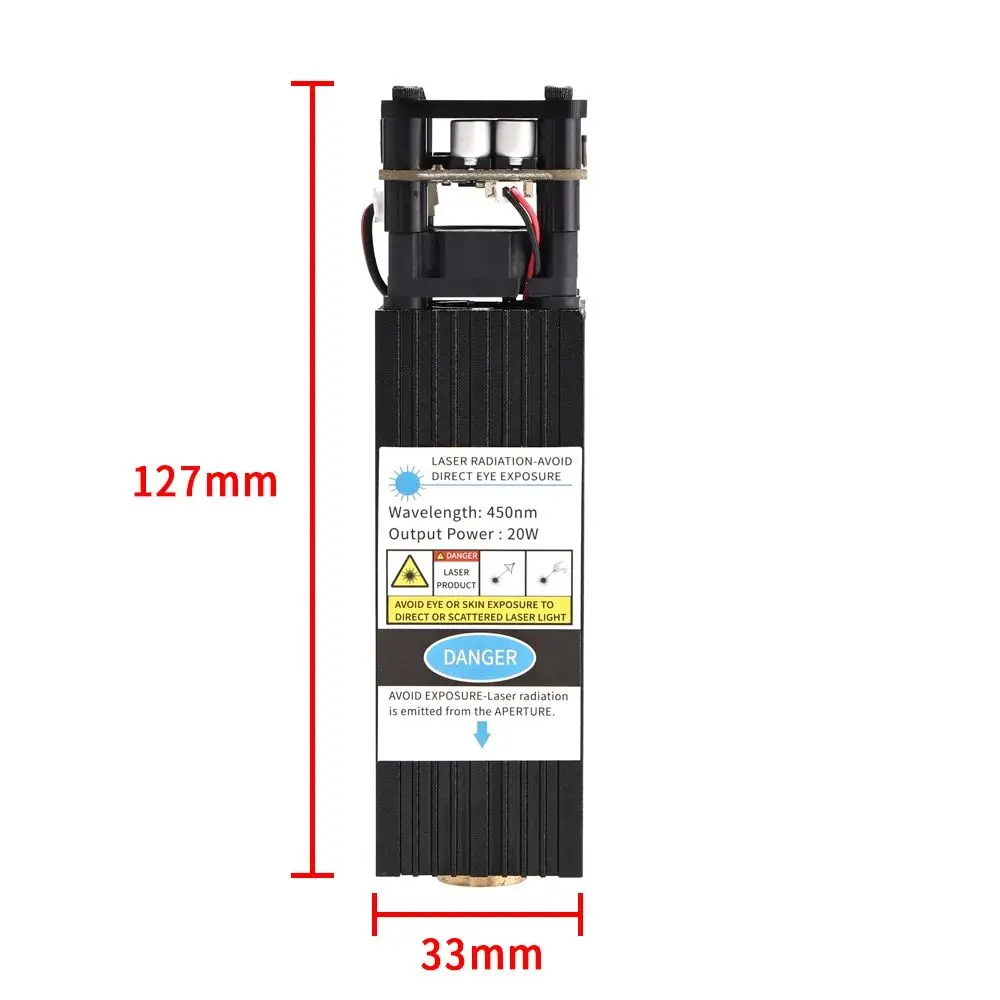

Size of Laser Module: 40*40*130mm

Input Voltage & Current: 12V 3A

Laser Wavelength: 450±5nm

Output Power: 20W

Optical Powe: 5W

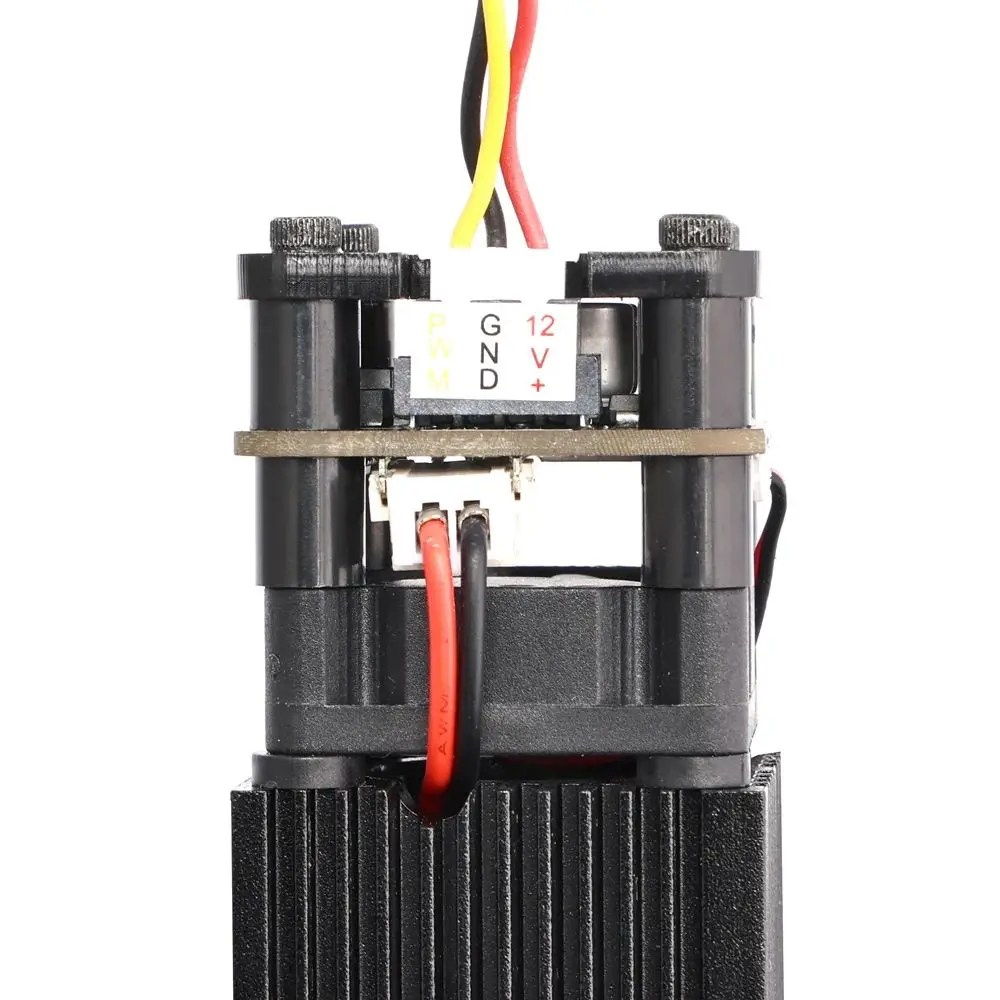

Interface: pin (12V, GND, PWM)

Weight: 380g

Cutting Wood Depth: 1-6mm

Features: High speed engraving (Max. 1.5mm)

Application : Laser engraving machine

Applicable Materials: Plywood、Fabric、Slid wood、Plastic、Bamboo、Paper、Acrylic、Food、

Ceramics、Stainless steel、Leather、Cardboard、Coated Metal、Kraft PGlass

Specification (40W)

Size of Laser Module: 40*40*150mm

Input Voltage & Current: 12V 3A

Laser Wavelength: 450±5nm

Output Power: 40W

Optical Powe: 10W

Interface: pin (12V, GND, PWM)

Weight: 400g

Cutting Wood Depth: 1-12mm

Features: High speed engraving (Max. 1.5mm)

Applicable Materials: Plywood、Fabric、Slid wood、Plastic、Bamboo、Paper、Acrylic、Food、

Ceramics、Stainless steel、Leather、Cardboard、Coated Metal、Kraft Paper、Glass

Note：If you want to engrave glass, please stick glass colored paper first and then engrave

Advantage:

【Compressed Spot Technology】Premium LD-C lens allow the engraver module to form compressed beam spot, mini focus spot size: 0.08* 0.08mm, which is with high accuracy, high efficiency and penetration. Cutting up to 6mm thickness plywood in one pass.

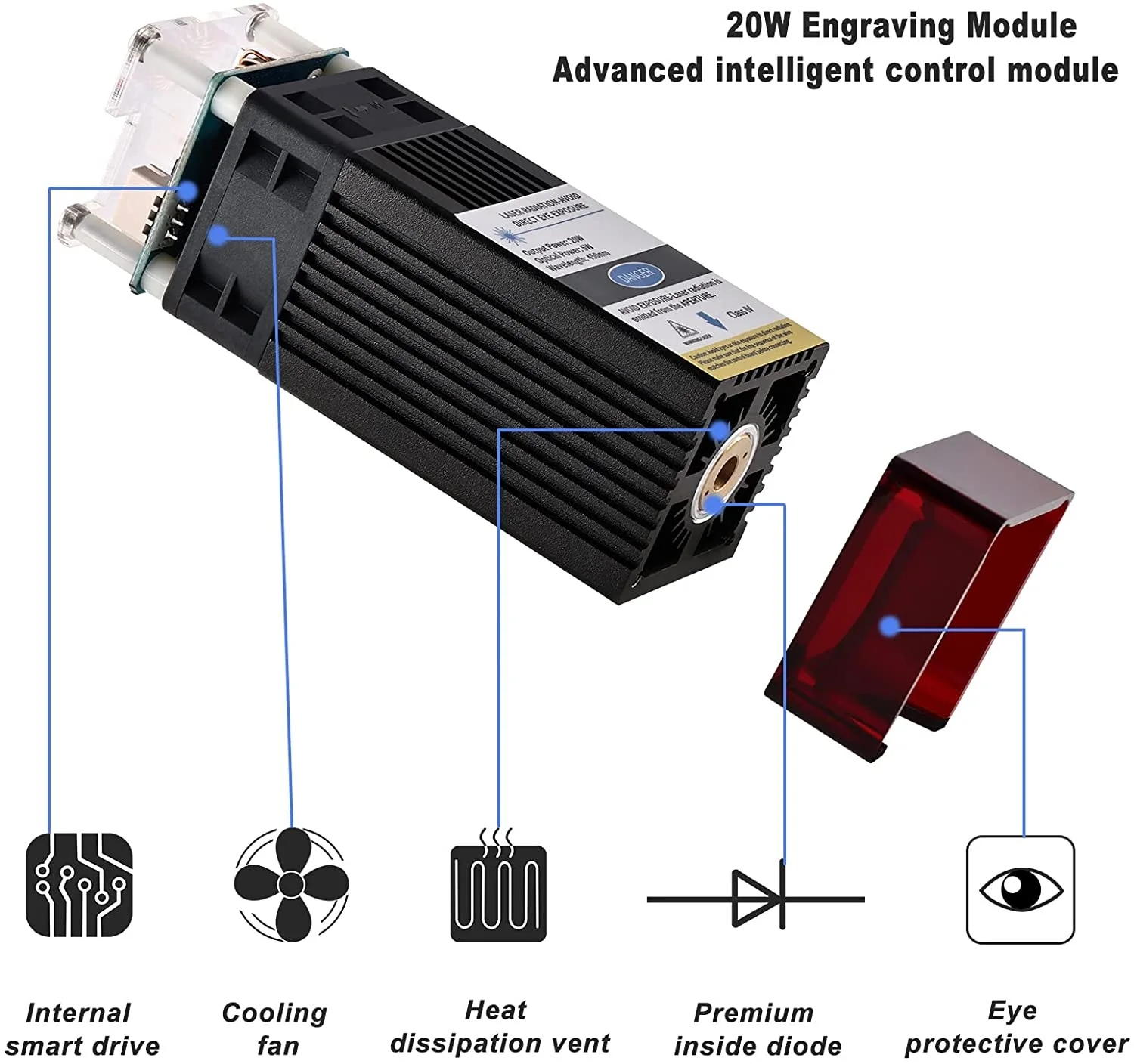

【Safe and Effective】With eye-protection cover, no need to wear goggle, convenient to use. All aluminum alloy shell with cooling fan for heat dissipation, light weight and good performance. Cutting speed: cutting 4mm plywood in one pass at a speed of 100mm/min; engraving speed: 304 stainless steel, up to 100mm/min, fast and efficient.

【Excellent Compatibility】Just need to simply connect to the CNC machine with screws and wire to the motherboard then the installation is finished. Compatible with most of the cnc router machine in the market, including cutting machine, cnc engraving machine, DIY engraver, milling machine.

【Guaranteed Assurance】We offer intimate after-sale service with 1 year warranty. If there is any problem or using inquire related to our engraving module head, just feel free to contact us, we will response within 24 hours.

Application Material:

Carving Objects: All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, stainless steel, non-reflective plating and lacquered metal, glass

Cutting Objects: Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.
