Package include:

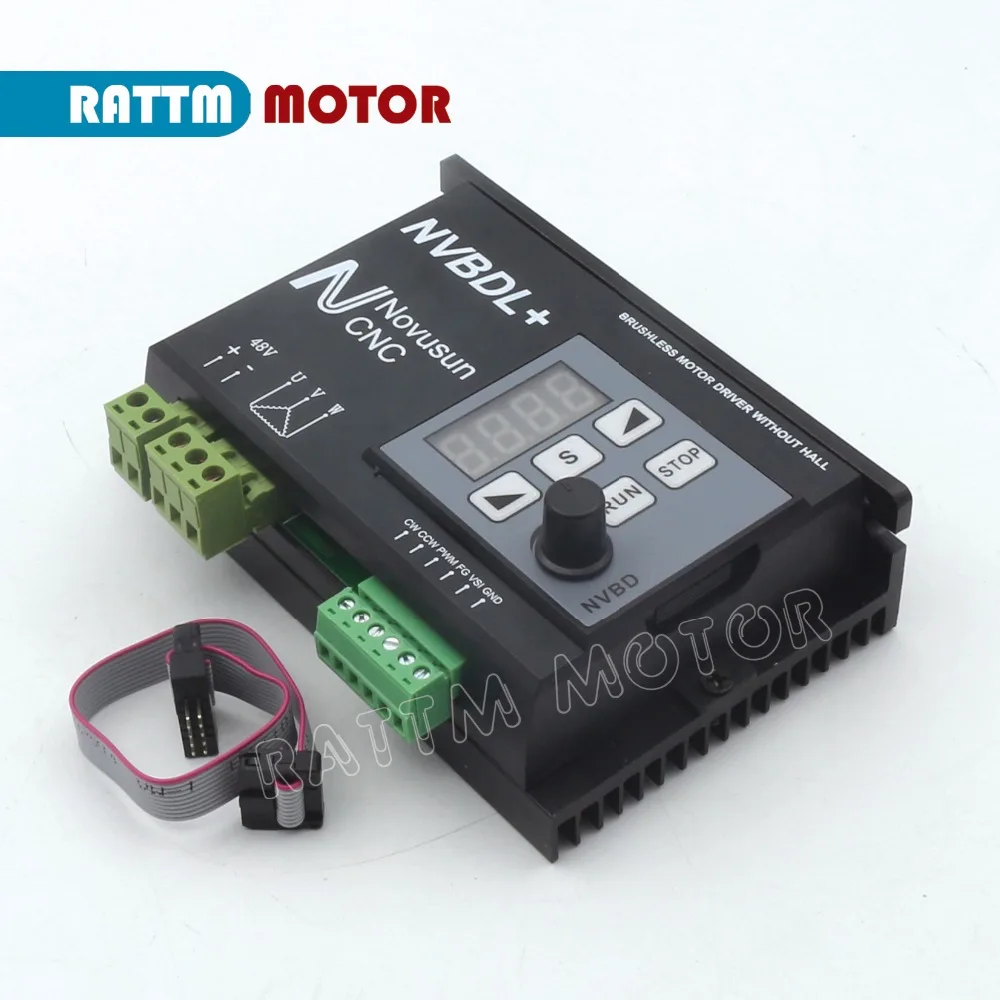

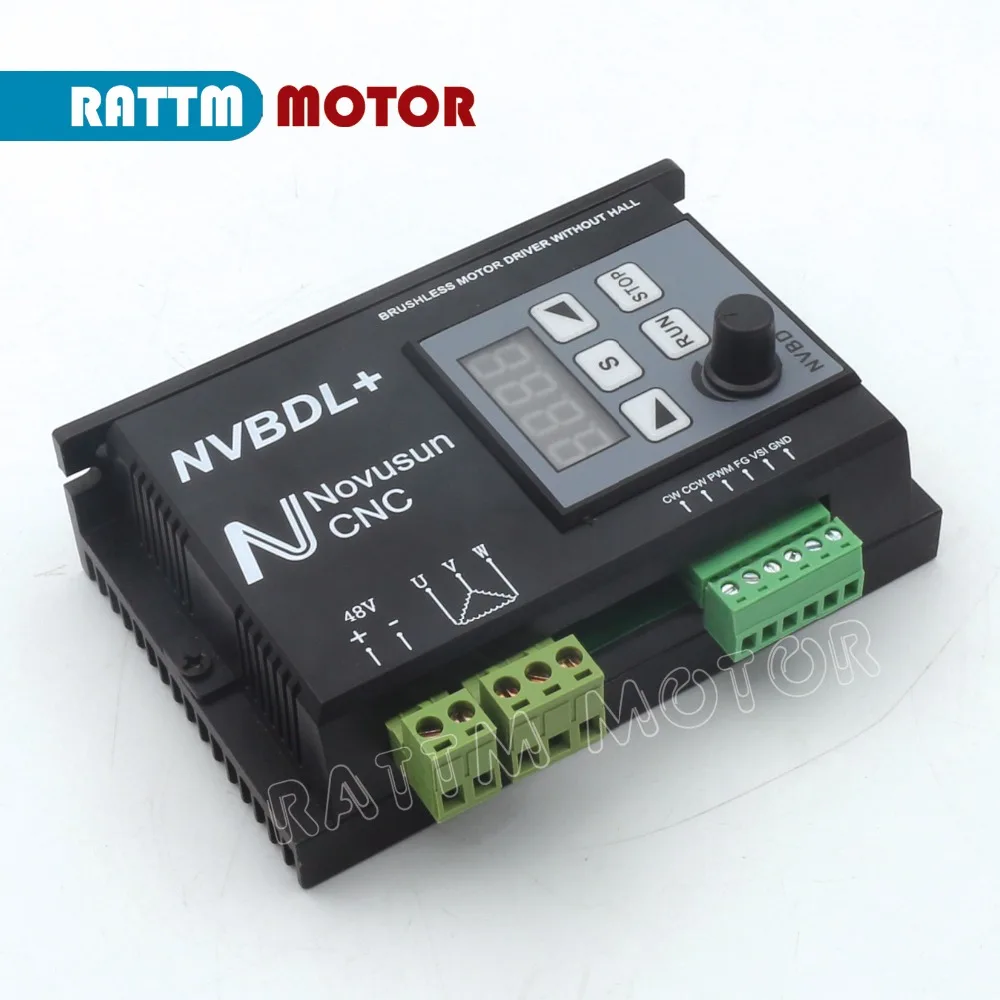

1 x 600w Brushless driver without hall

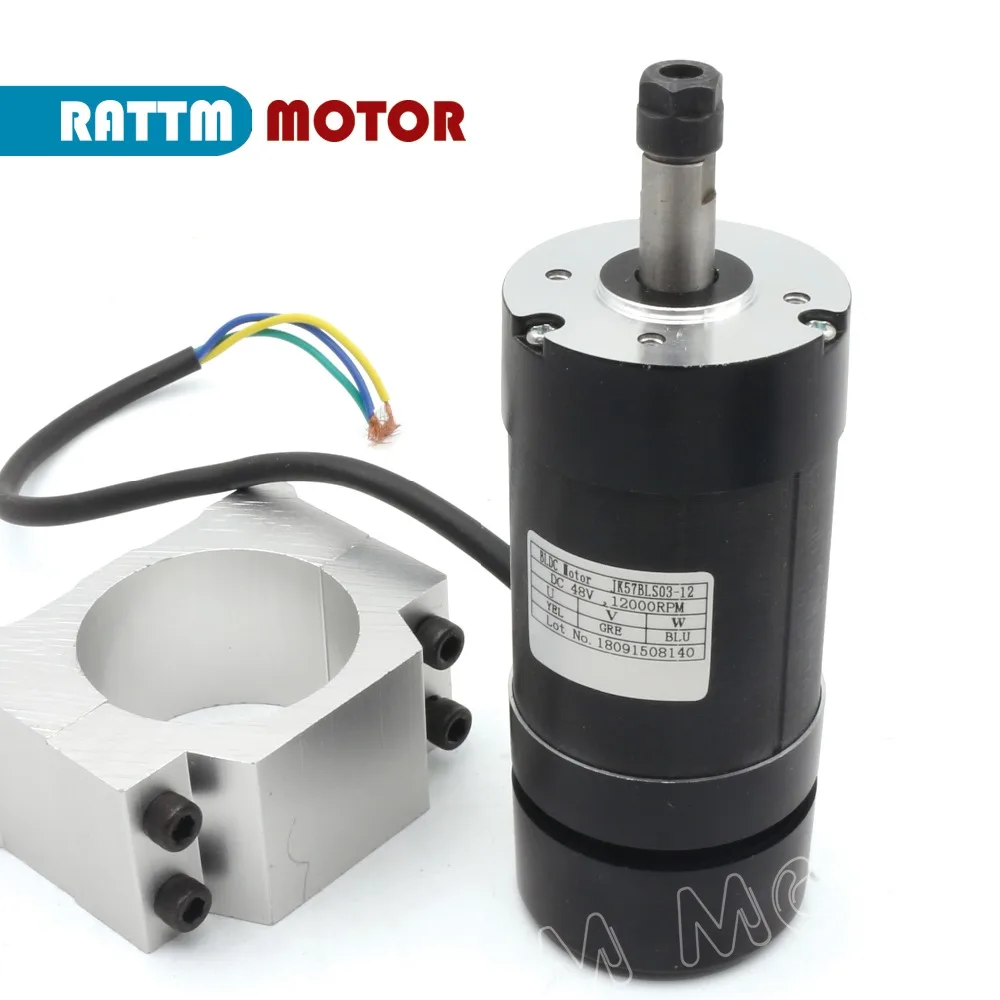

1 x 400w Brushless spindle without hall
1 x 55mmMotor mount
English user manual :https://drive.google.com/file/d/1ayNCr25l_ZhJ5zeEHPct9DGB3XCdCjI4/view?usp=sharing

Driver:

1) High performance, low prices

2) DSP main control module

3) No current passing when no movement

4) Voltage range 24VDC-60VDC

5) Demountable panel

6) Maximum driver power 600W

7) 3 debugging ways: Panel potentiometer, external voltage signal, external PWM Signal

8) Maximum driver motor running speed 12000R/Min.

9) Speed testing port for user to inspect the real speed.

10) Internal over-voltage, over-current and stalling inspection

11) Input signal TTL compatible

Motor:

1)Power: 400W

2) Input Voltage: 48V

3) Rotating speed: 12000 R/Min

4) Torque: 0.45 N.m

5) Insulation resistance: > 2ohms

6) Dielectric strength: 400V

7) Diameter: 55mm

8) Chuck portion length: Arbor parts 35mm, (including the nut and sandwich 43mm)

9) Part chuck diameter: 16mm

10) Total motor length: 172mm (comprising gripping parts and motor)

11) Spindle Weight: 1.1KG

12) Spindle runout: about 0.01-0.03.

13) Mount: Product outline dimension is 118*76*33mm, as picture 1-7 shows. The two installing holes size is 110mm

III. Connection interface definition

NVBDL + without Hall feedback,other parts are same as NVBDH+.

NVBDH+ and NVBDL+ connection table as table 2-1.The green color Hall signal cable is only for NVBDH+.


Mark	Definition		Type
+	Main power supply+	Input voltage range is 24V-60V,our matched spindle is 48V,so here we marked 48V	NVBDH+/NVBDL+
-	Main power supply Ground		NVBDH+/NVBDL+
U	Brushless motor U phase		NVBDH+/NVBDL+
V	Brushless motor V phase		NVBDH+/NVBDL+
W	Brushless motor W phase		NVBDH+/NVBDL+
H+	Hall power supply+,voltage is 12V		NVBDH+
H-	Hall power supply Ground		NVBDH+
HW	Hall feedback W phase signal cable		NVBDH+
HV	Hall feedback V phase signal cable		NVBDH+
HU	Hall feedback U phase signal cable		NVBDH+
CW	Motor clockwise rotate control signal port		NVBDH+/NVBDL+
CCW	Motor couterclockwise rotate control signal port		NVBDH+/NVBDL+
PWM	PWM speed control input port		NVBDH+/NVBDL+
FG	Motor speed inspection output port		NVBDH+/NVBDL+
VSI	Analog speed control input port		NVBDH+/NVBDL+
GND	Control signal common Ground		NVBDH+/NVBDL+

3.1 NVBDL+ connection

NVBDL+ is the driver without Hall feedback,so the connection is easier than NVBDH+.Here we also introduce 3 control modes.

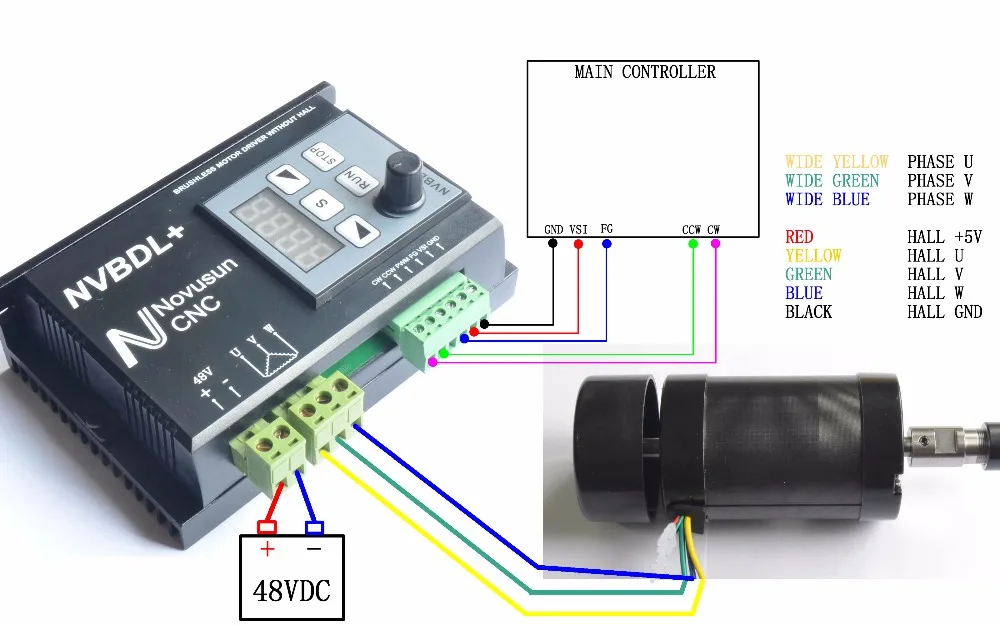

1. NVBDL+ panel button speed control+ Panel start/stop control

NVBDL+ panel button speed control+ Panel start/stop control connection pls see the picture. In this mode,if the control system need to collect motor speed data,then FG,GND port on NVBDH+ need to connect with signal collection port,GND port on controller.Cable thick yellow,thick green and thick blue is the U\V\W phase of the motor,they connect with UVW port on the drivers respectively.No hall connection.
