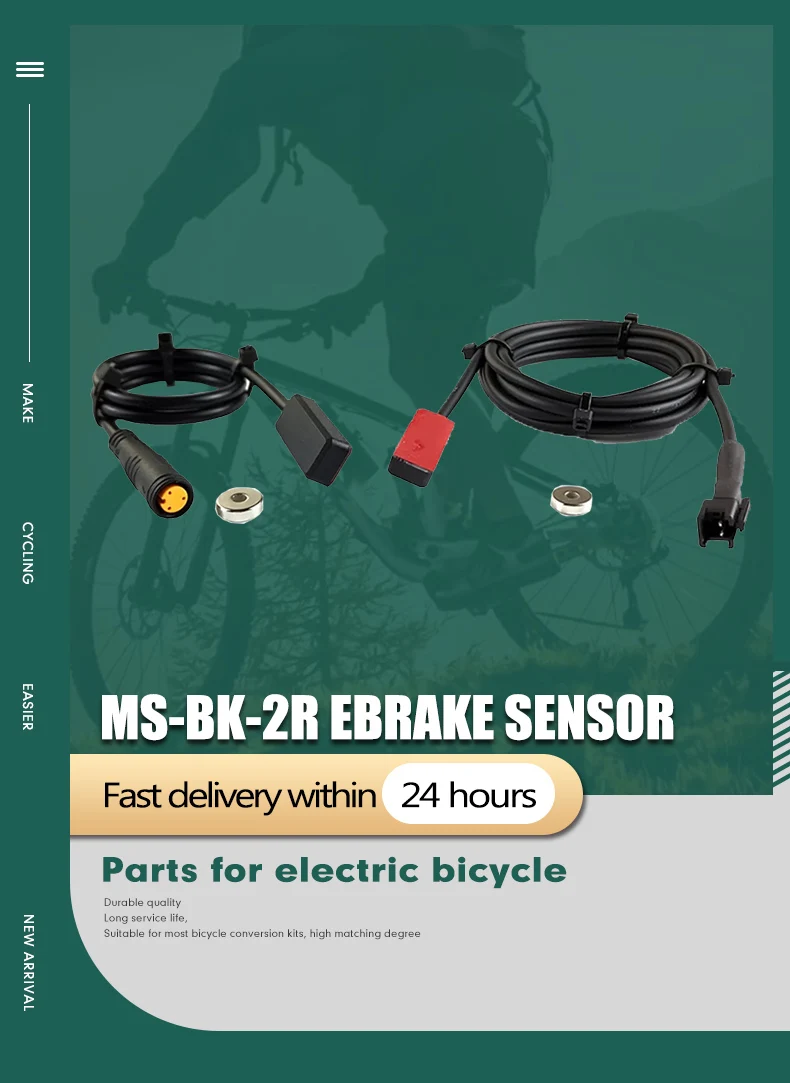

Ebike MS-BK-2R Ebrake Sensor with SM Waterproof Connector Use for 12V-72V Electric Bicycle Conversion Part to Cut Power Off

2 Versions Power would be cut off when braking

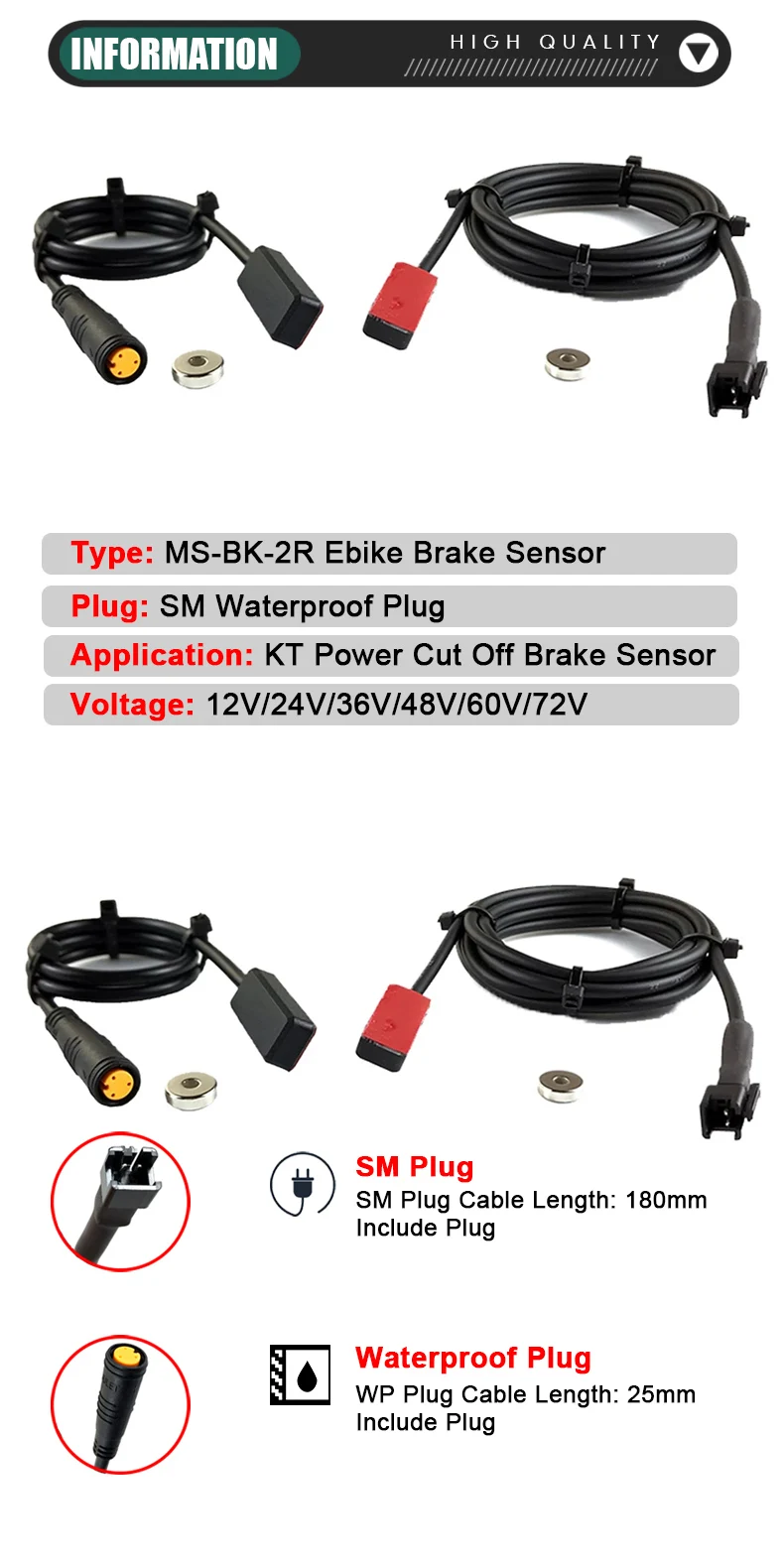

2 Pin Male SM Plug：Wire length: 180 cm. Connected with controller directly.

3 Pin Female Waterproof Plug：Wire length: 25cm. Cannot connected with controller directly. Depend on 1 to 4 bus cable.

Parameter:

Type :MS-BK-2R Cut Off Power Brake Sensor

Material :Plastic

Installation :Left and Right

Size :L26mm W12mm H6mm (All dimensions are measured manually with deviation ranged at 1-3mm. )

Voltage :12V 24V 36V 48V 60V 72V

Color :Black

Weight :30g

Cable Length :SM-180cm including the connector,Waterproof 2pin 25cm including the connector

Plug :3 pin Connector

Waterproof :IP76

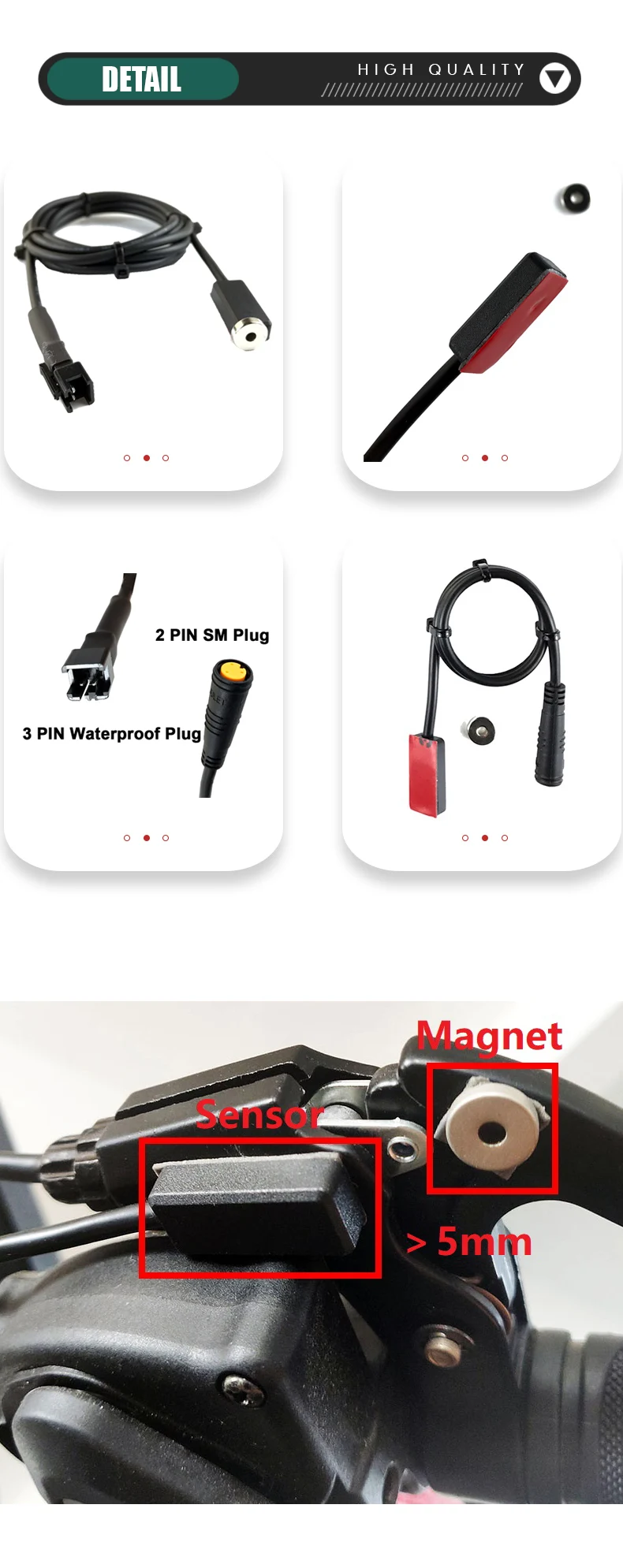

Installation and Working Principle:

When the sensor is close to the magnet, ride normally;

When the distance between the sensor and the magnetic reaches5mm, the sensor's cut off power function will be triggered.
