Shunt Battery Monitor System
XSHR350A High Precision Shunt Battery Monitor
(Coulometer)
Features and further details:
The XSHR350A is a modern High Precision Shunt Battery Monitor that can simultaneously monitor vital battery values in real time. The XSHR350A intelligent battery monitor with the shunt (350A current shunt) measures the discharge/recharge currents and calculates the Ampere-hours (Ah) going in and out of the battery. High-precision Voltage/Amperage measurements are taken and displayed in real-time for lithium, lithium-ion, AGM, GEL, lead-acid and nickel-metal hydride batteries.
- Digital LCD display
- Size: approx. 59mm diameter
- Cable Length: 2m
- Standby current: 0.6mA
- Battery percentage indicator
- Battery voltage indicator
- Voltage Range: 8-80V
- Memory function
- Reverse polarity protection
- PVC screen protector, waterproof surface
- Suitable for lead-acid 12V, 24V, 36V, 48V
- Suitable for Premium Xerom 12V Lithium Batteries
- Easy to use and install
- 1-year warranty
| Parameter | Min | Type | Max | Unit |
| Working voltage | 8.0 | 80.0 | V | |
| Working consumption | 10.0 | 12.0 | mA | |
| Standby consumption | 0.5 | 0.6 | mA | |
| Sleep consumption | 50 | 60 | uA | |
| Voltage accuracy | ± 1.0 | % | ||
| Current accuracy | ± 1.0 | % | ||
| Capacity accuracy | ± 1.0 | % | ||
| Backlight on current (50A) | 30.0 | 60.0 | mA | |
| Backlight on current (>50A) | 80.0 | 120.0 | mA | |
| Preset capacity value | 0.1 | 999 | Ah | |
| Current of 50A sampler | 0.0 | 50.0 | 75.0 | A |
| Current of 100A sampler | 0.0 | 100.0 | 150.0 | A |
| Current of 350A sampler | 0.0 | 350.0 | 400.0 | A |
| Temperature range | 0 | 20 | 35 | ℃ |
| Weight | g | |||
| Size | ø59*20 | mm |
* Free Australia Post Express service is available only within Australia.

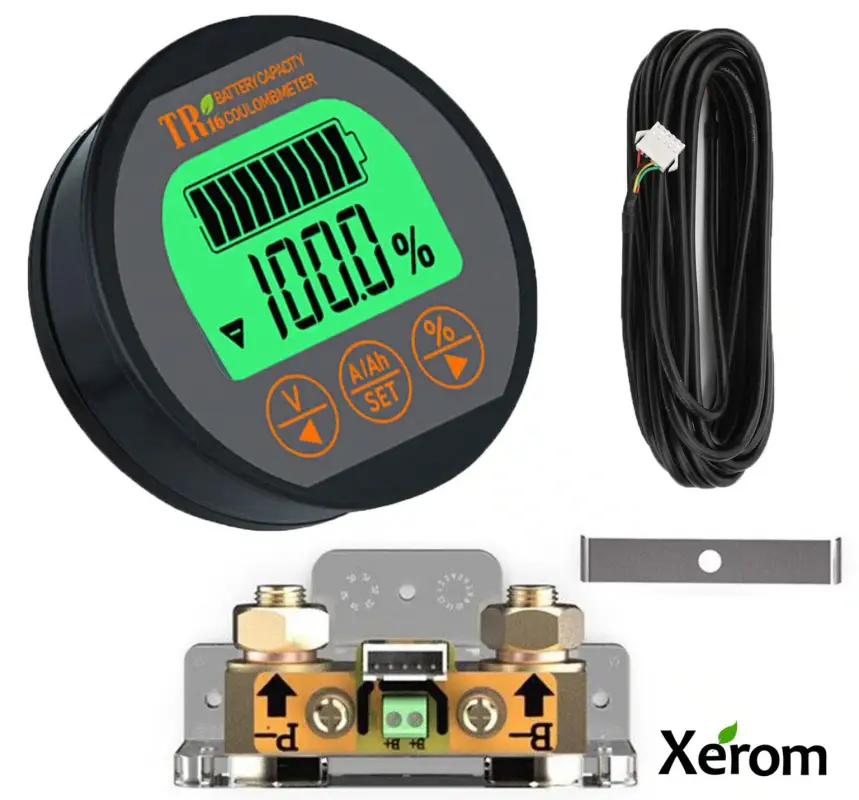

Package Includes:
1 x XSHR350A Battery Monitor
1 x 350 Amp Shunt Current Sampler (with transparent bracket)
1 x Shielded wire (2m)
1 x Butterfly nut
1 x Mounting bracket
1 x User guide
