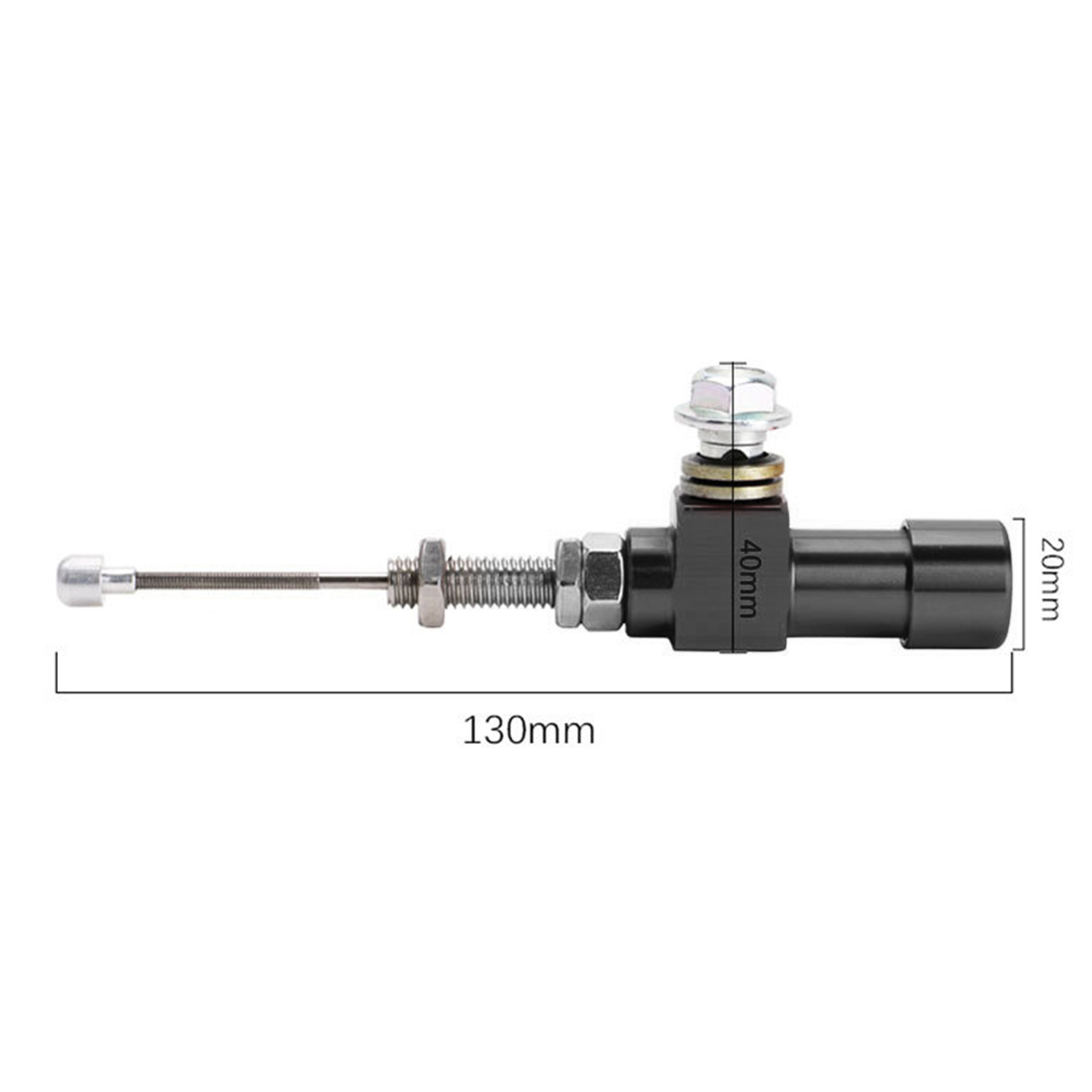

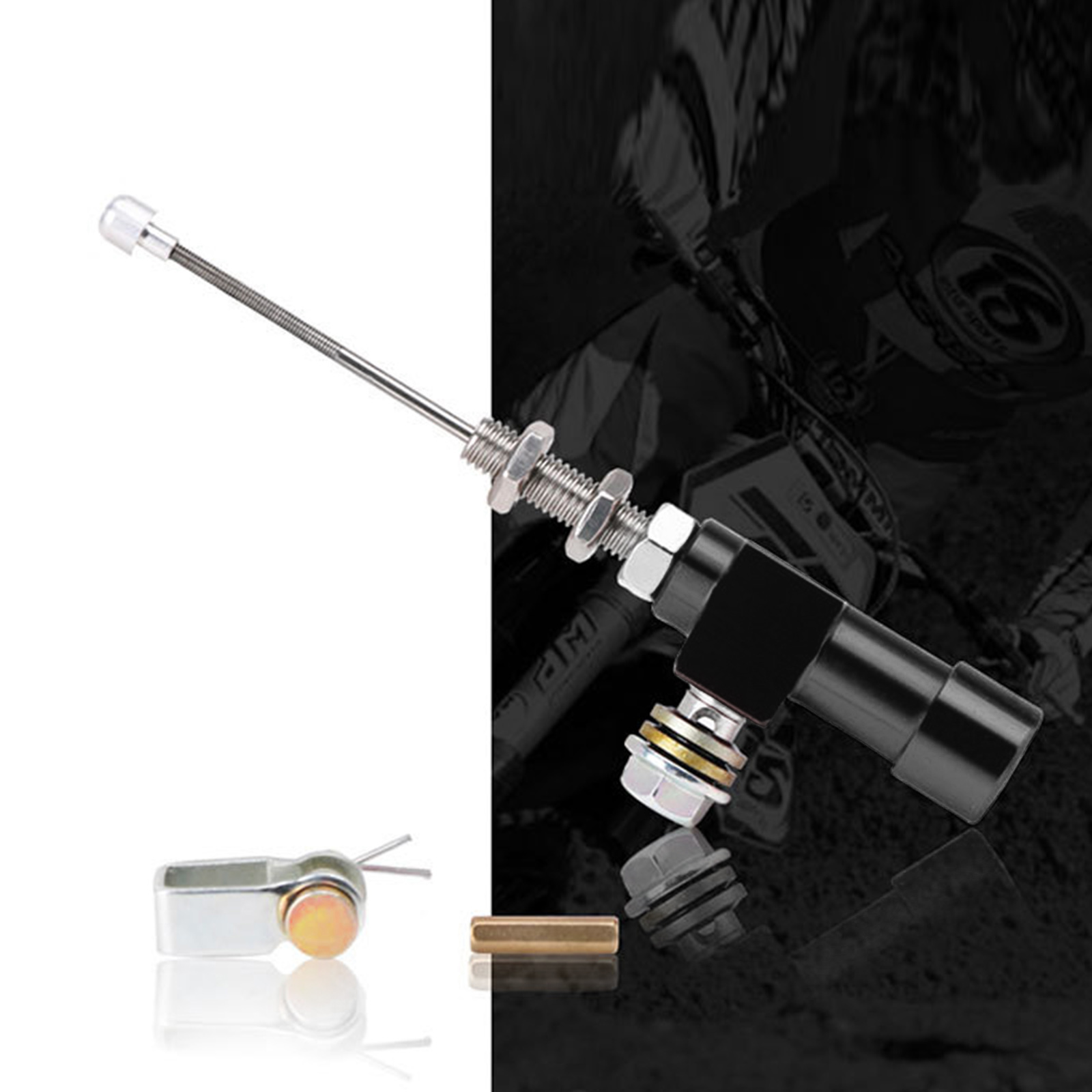

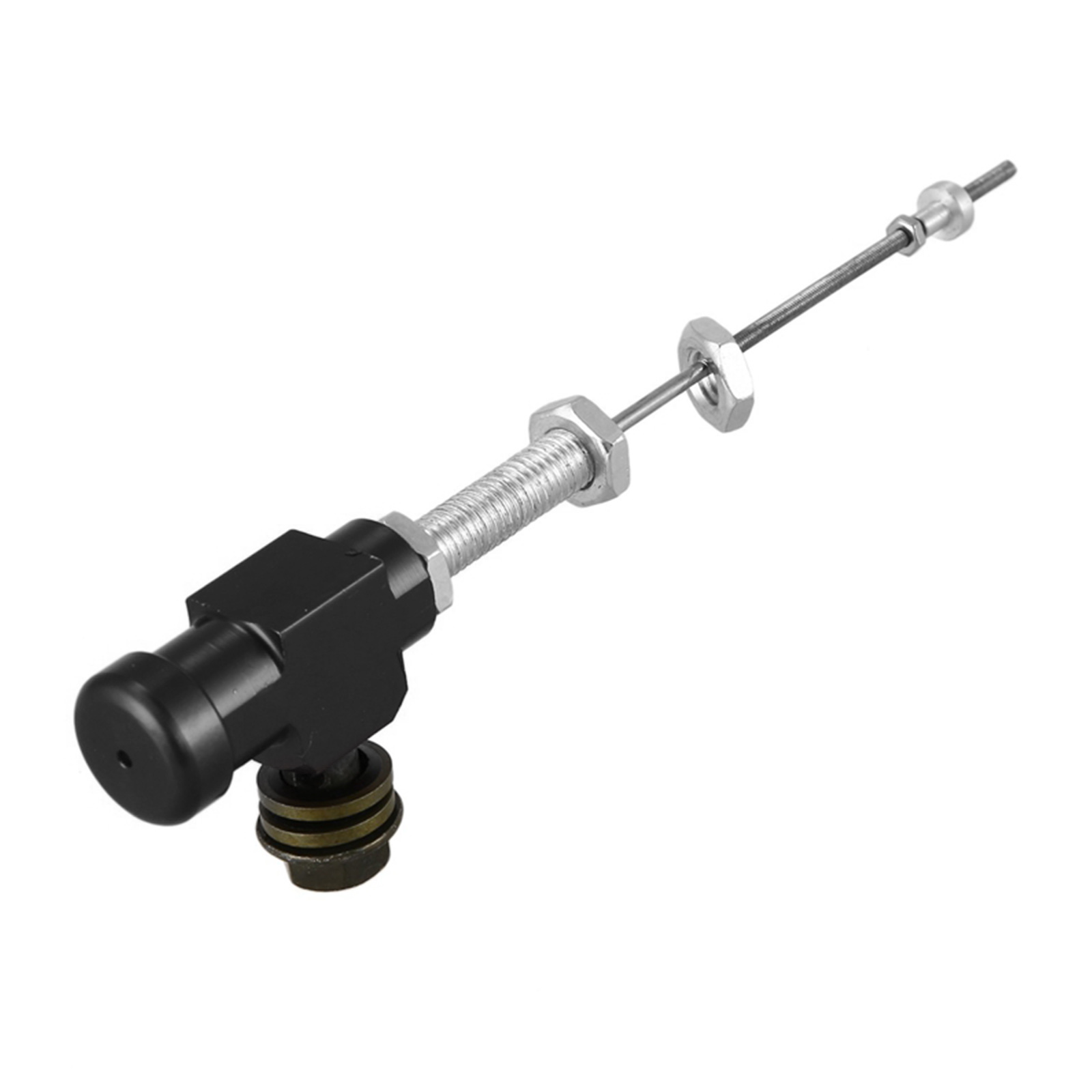

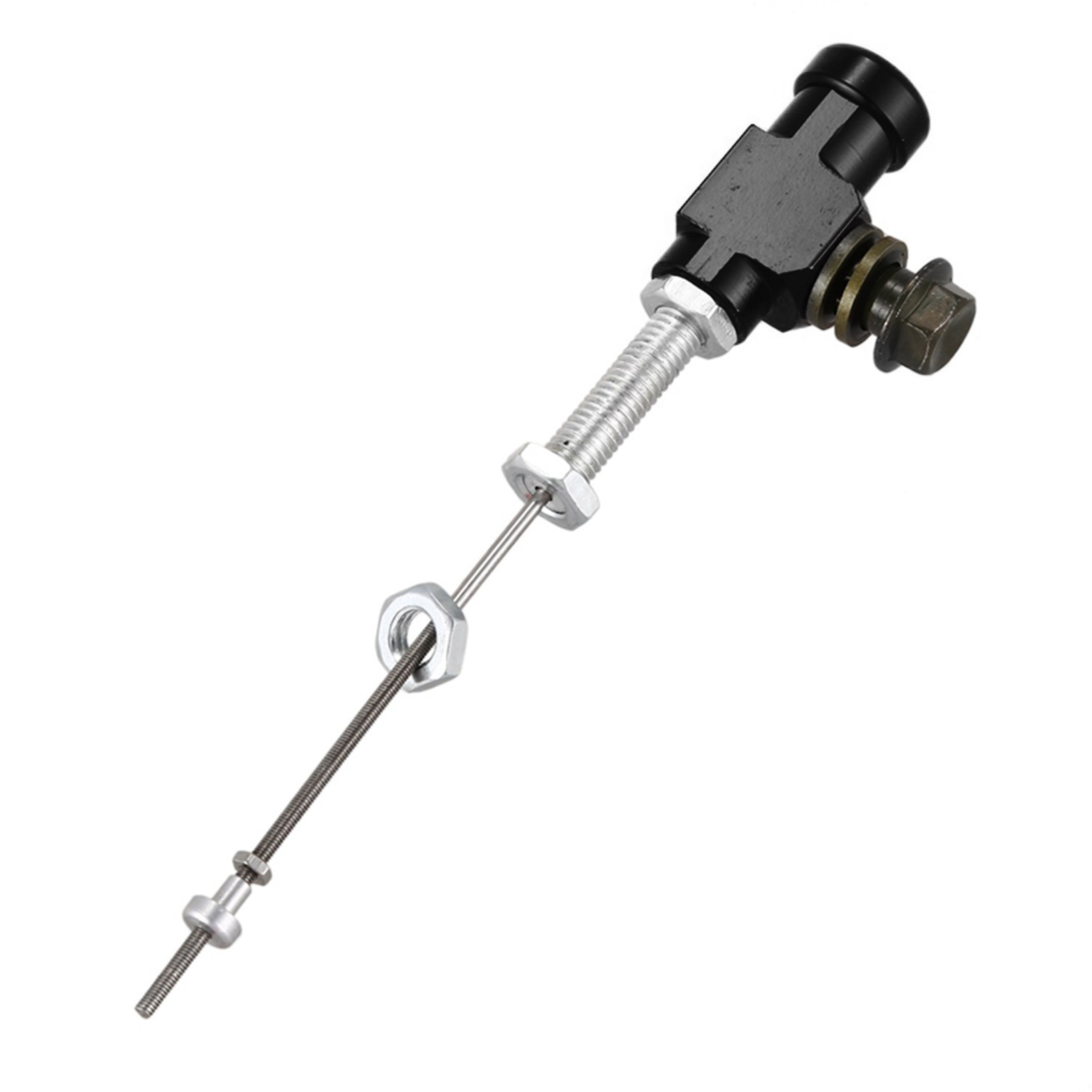

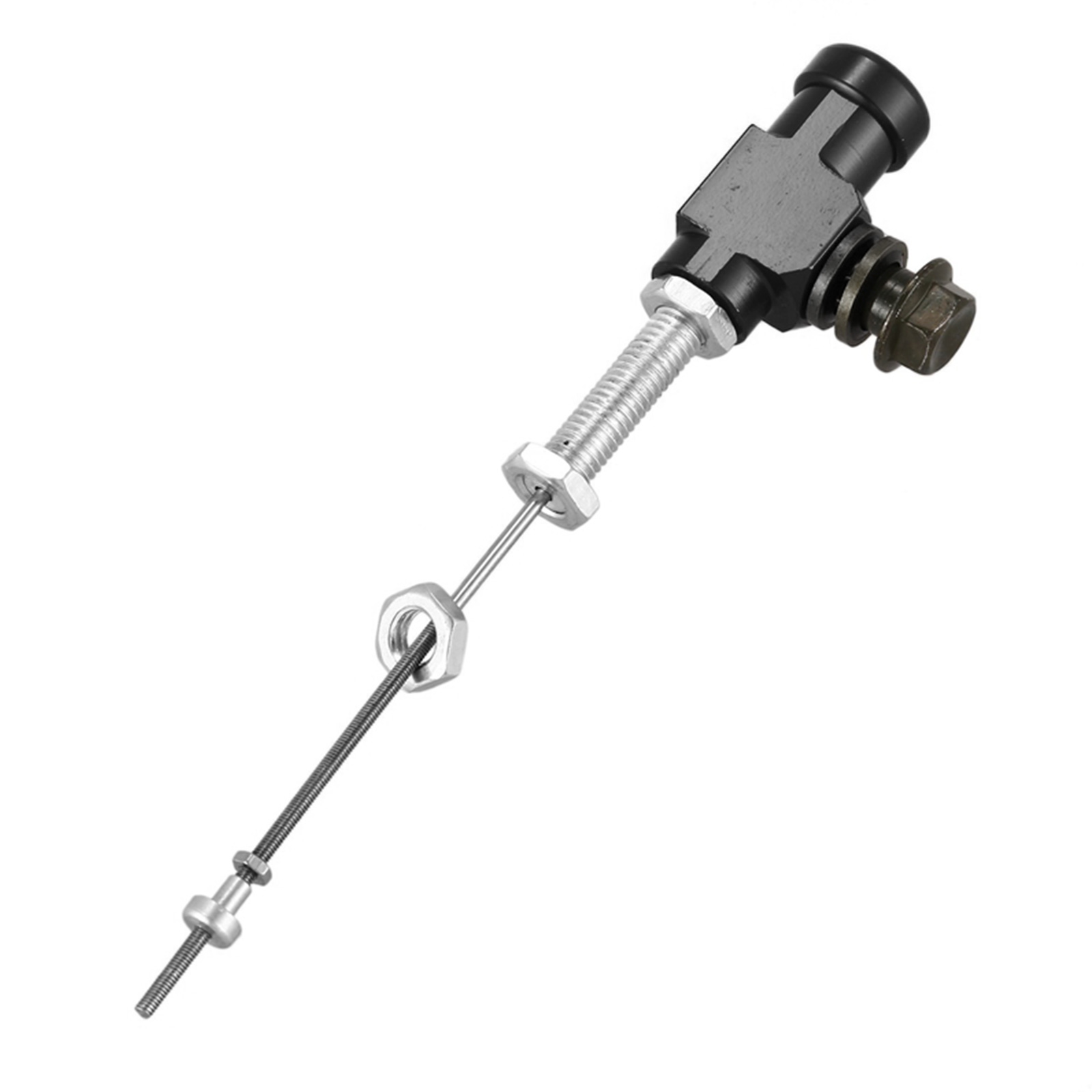

Universal Motorcycle Hydraulic Clutch Master Cylinder Rod Brake Pump M10X1.25Mm
English

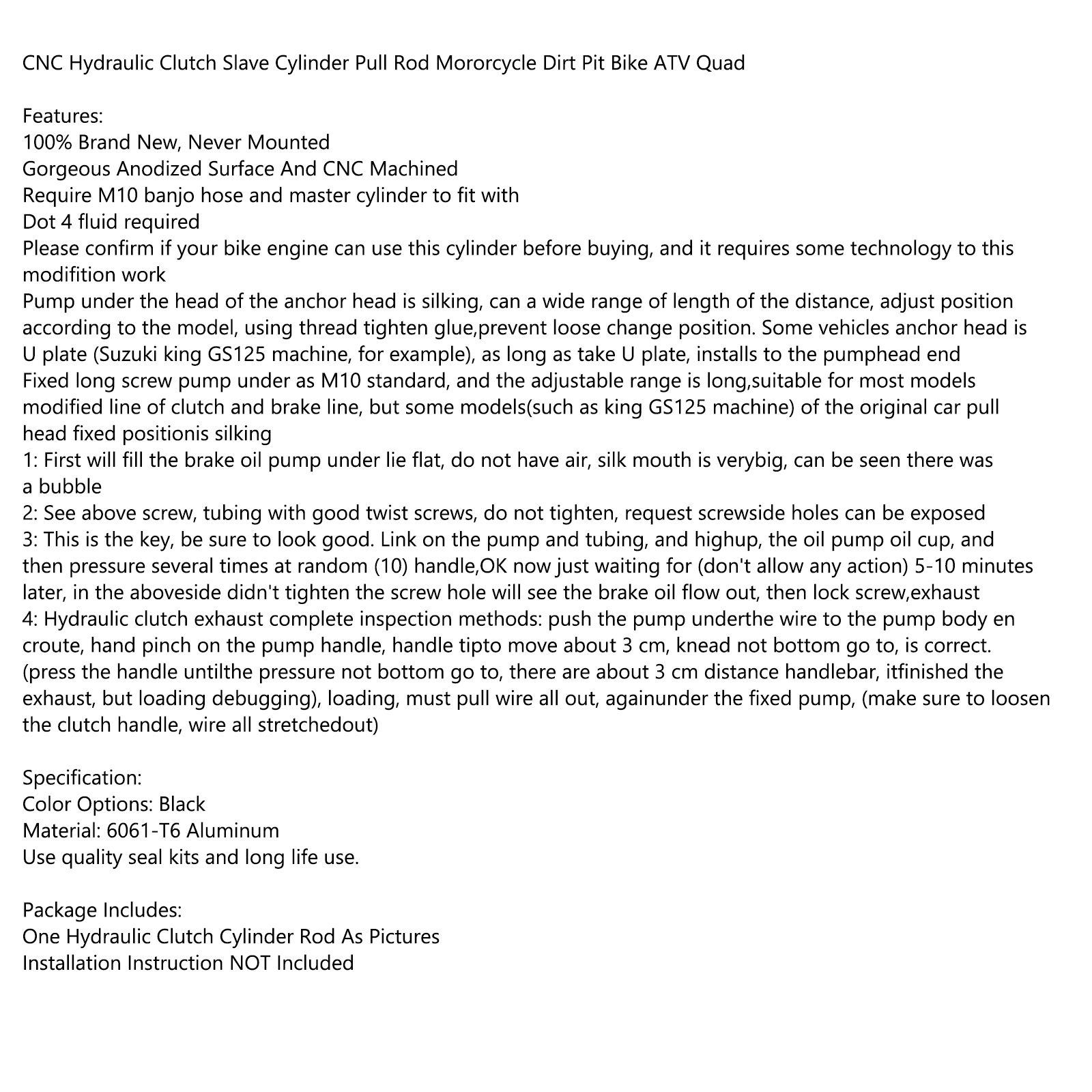

CNC Hydraulic Clutch Slave Cylinder Pull Rod Mororcycle Dirt Pit Bike ATV Quad
Features:
100% Brand New, Never Mounted
Gorgeous Anodized Surface And CNC Machined
Require M10 banjo hose and master cylinder to fit with
Dot 4 fluid required
Please confirm if your bike engine can use this cylinder before buying, and it requires some technology to this modifition work

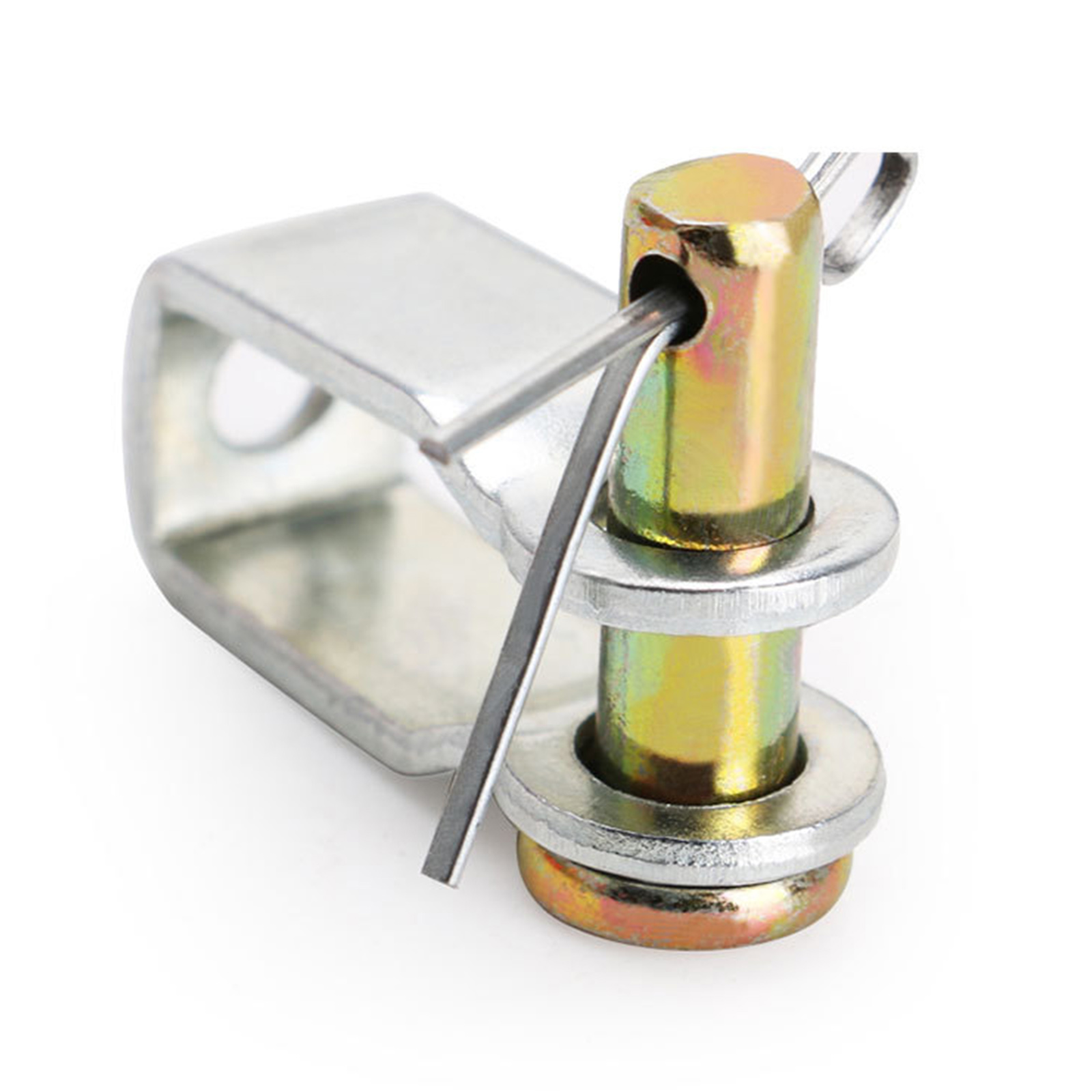

Pump under the head of the anchor head is silking, can a wide range of length of the distance, adjust position according to the model, using thread tighten glue,prevent loose change position. Some vehicles anchor head is U plate (Suzuki king GS125 machine, for example), as long as take U plate, installs to the pumphead end
Fixed long screw pump under as M10 standard, and the adjustable range is long,suitable for most models modified line of clutch and brake line, but some models(such as king GS125 machine) of the original car pull head fixed positionis silking
1: First will fill the brake oil pump under lie flat, do not have air, silk mouth is verybig, can be seen there was a bubble
2: See above screw, tubing with good twist screws, do not tighten, request screwside holes can be exposed
3: This is the key, be sure to look good. Link on the pump and tubing, and highup, the oil pump oil cup, and then pressure several times at random (10) handle,OK now just waiting for (don't allow any action) 5-10 minutes later, in the aboveside didn't tighten the screw hole will see the brake oil flow out, then lock screw,exhaust
4: Hydraulic clutch exhaust complete inspection methods: push the pump underthe wire to the pump body en croute, hand pinch on the pump handle, handle tipto move about 3 cm, knead not bottom go to, is correct. (press the handle untilthe pressure not bottom go to, there are about 3 cm distance handlebar, itfinished the exhaust, but loading debugging), loading, must pull wire all out, againunder the fixed pump, (make sure to loosen the clutch handle, wire all stretchedout)
Specification:
Color Options: Black
Material: 6061-T6 Aluminum
Use quality seal kits and long life use.
Package Includes:
One Hydraulic Clutch Cylinder Rod As Pictures
Installation Instruction NOT Included
⭐ MOTORCYCLE FITMENT TIPS
•This part fits vehicles listed in the description and compatibility chart ONLY
• Always compare:
✓ Year/Make/Model/Engine CC
✓ Mounting bracket positions
✓ Electrical connector types
✓ OEM part numbers on your original component
Need help? Send VIN + OEM number + photos of your current part!
