Package include:

• 1 x 1.5KW ER11 Air-cooled spindle motor (Huajiang)

• 1 x 1.5KW HY inverter VFD

• 1 x 70mm width dust brush

• 1 x Set of ER11 collet

• 1 x 10pcs 3.175mm engraving bits

Product description:

Power:1500W

Voltage:220V

Frequency:0-400Hz

Speed:0-24000rpm

Air Cooling ER11 chuck

Grease Lubrication

Runout off: less than 0.02mm

Grease Lubrication

Bearing C7002 x 2  C7002 x 2

Runout:0.01mm

Suitable for wooden carving , drilling , engraving and milling machinery

Note: When starting-up the spindle, reference frequency and maximum frequency must be set to 400Hz. Then it can be adjusted to a lower frequency slowly.

ProductFeature:

1) PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2) Easy PLC function can realize 16 legs of speed and inverter control function;

3) RS485 communication port, adopting standard international MODBUS main circuit control;

4) With extremely strong anti-jamming capability

5) Low output ratting torque0.5HZ-150%, low speed running ability;

6) Carrier adjustable by 16KHZ, completely soundless working environment;

7) Broad voltage working area, normal running in 304V-456V;

8) Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9) Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

10) With perfect error protection and short circuit starting protection capability;

Tech parameters:
1) Input Voltage: 220V(+/-15%)

2) Output Voltage: 0-220V
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase

6) Output Phase: 3 phase

7) Current: 7A

8) Power: 1.5Kw

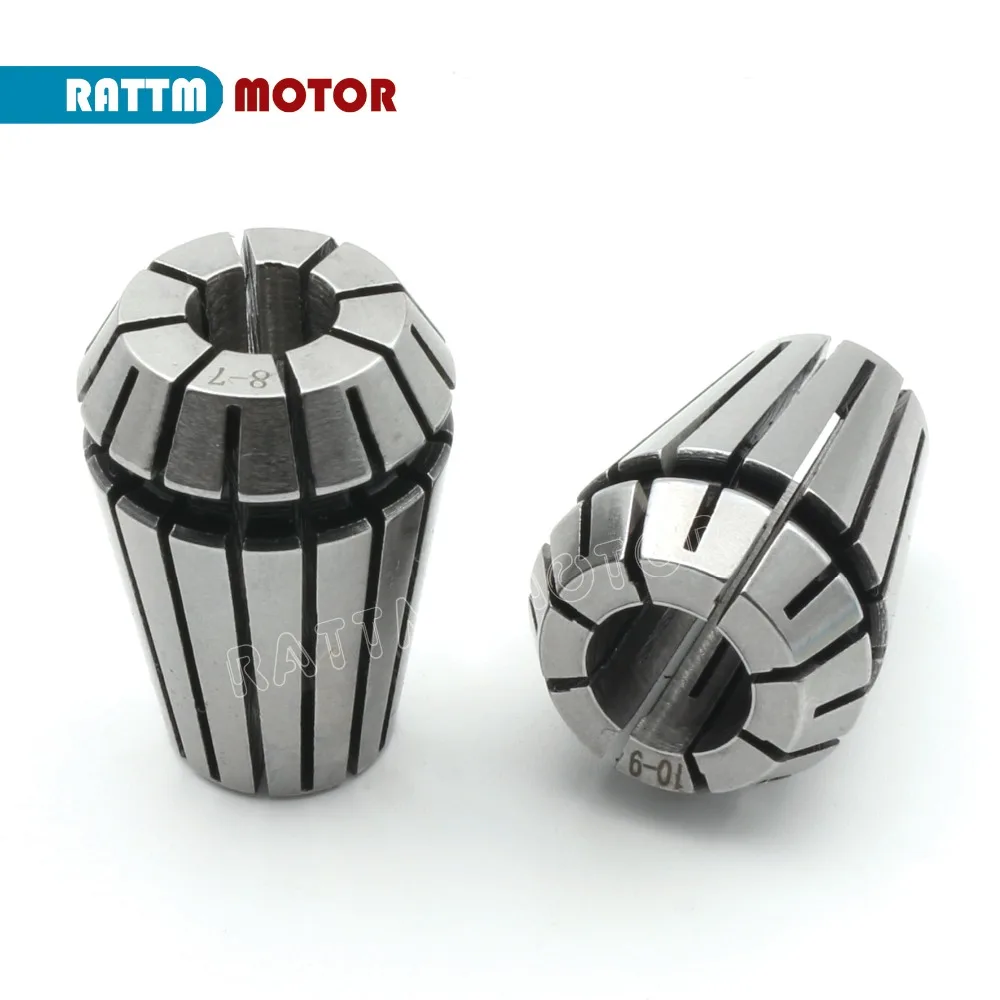

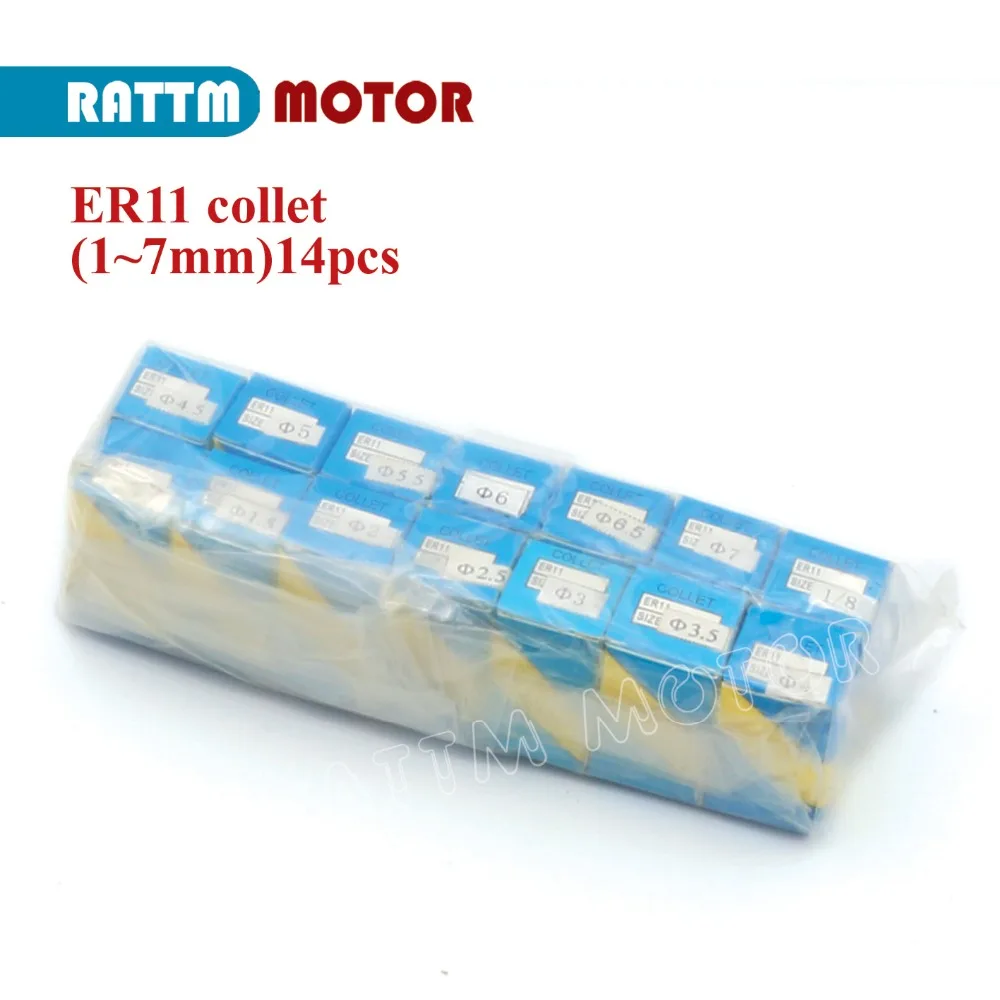

1Set x ER11 Spring Collet,14pcs(1mm~7mm)

(1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm, 3.175mm(1/8")
