Buyers Please Note:

This item located in Europe and only ship to some European Countries.

If you need to return the item for some reasons, please contact us via eBay message at the first time to get the RMA#,and return address instead of sending back directly without permission,I am afraid we can't receive the goods and give you a refund. I hope you can understand and cooperate with us. Thank you so much!

LAUNCH X431 PRO5 PRO 5 Auto Diagnostic Tool Full System OBD2 Scan 2 Year Update

LAUNCH X431 PRO5 PRO 5 Car Diagnostic Tools Automotive Tool Full System OBD2 Scanner Intelligent Diagnosis Tool

launch x431 pro5

Shipping& Warranty About Our X431 PRO5:

2. One Year Warranty and Lifetime Technical Support.
3. 100% Genuine Launch Tool, Global Version, No IP Limited.

Launch X431 PRO5 Highlights:

1. With 2 Years Free Update Online. After 2 years, you can buy the update service from us

2. Upgraded from LAUNCH X431 V+/PRO3/PROS V1.0/TURBO/Throttle – A rich array of future-proof functions for productive works: 1) Smartlink2.0, J2534 EC.U Progarmming, Intelligent AutoVIN & AutoScan, Active Tests, All System Diagnostics, VA-G Guided Function, FCA AutoAuth Access, etc.; 2) advanced Online EC.U Coding & Adaptations brings more personal settings; 3) 50+ service functions with more frequent updates to support more vehicles.

3. J2534 Reprogarmming Tool LAUNCH X431 Smartlink2.0 – 1) Fix the most vehicles’ problems with broad vehicle coverage; meet SAE standards for J2534-1 & -2, CANFD, DOIP and support DC9-36V (Operating voltage) for HD Vehicles (need the extra purchase of HD software, non-16pin HD adaptors); 2) also serves as a wireless VCI.

4. Support J2534 EC.U Progarmming for Mainstream Vehicles: for Audi, for V.W, for Seat, for Skoda... (Need purchase the progarmming application from vehicle manufacturer)

5. Advanced Intelligent Diagnostics – AutoVIN & AutoScan accelerates all-systems DTC scans that clock in at an average of < 3 minutes.

6. FCA AutoAuth Access – Bypass SGM in FCA vehicles seamlessly and within seconds; works on 2017 and later for Chrysler, for Dodge, for Jeep,for Alfa Romeo, for Fiat, etc. *Need AutoAuth subscriptions.

7. V-A-G Guided Function – Skip the routine procedure of entering the sEC.Urity access code & channel number for V.W, for Audi, for Skoda, for Seat vehicles.

8. Great Combination – Android 9.0 OS, 8-core 1.8GHz processor, 3GB RAM & 32GB ROM (128G expandable), 10.1” HD 1920*1200 touchscreen, 8MP rear & 5MP front camera, 7000 mAh battery, etc.

9. Work with Other Extended Modules: ADAS Calibration Toolkit; VSP-600 VideoScope; X431 TPMS TSGUN; BST360 Bluetooth Battery Tester; X-PROG & X-PROG3 Immobilizer.

10. Multilingual Support: English, French, Spanish, Portuguese, Italian, Russian, German, Polish, Dutch, Danish, Greek, Persian , Finnish, Swedish, Chinese, Japanese, Korean

11. NEW! Adds Topology Mapping function since version V7.03.014

12. Supports ADAS Calibration when working with an ADAS Mobile / ADAS PRO.

13. May 2024: available to purchase Europe Professional Software License Pack in Mall (Check- How to Purchase)

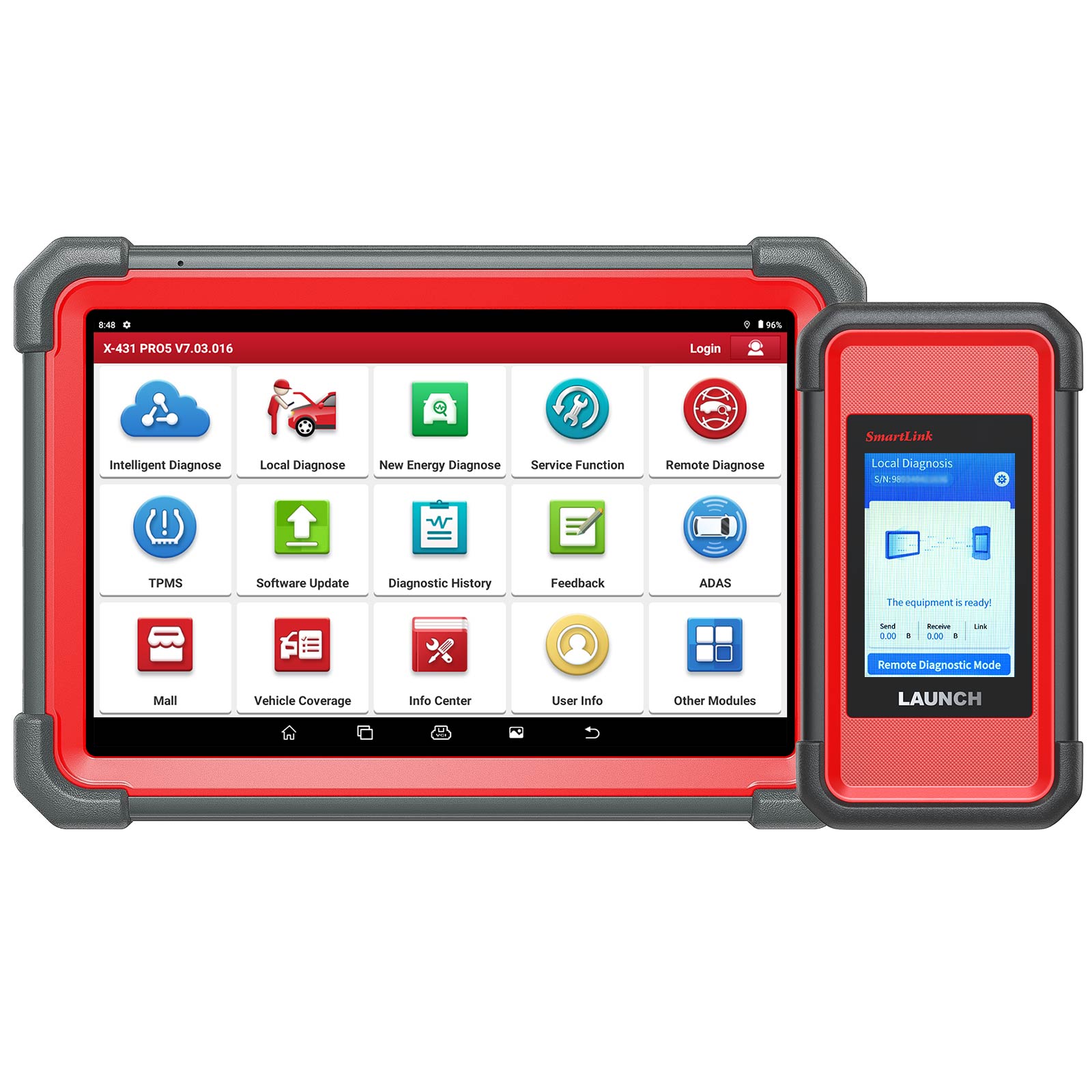

New Pro5 Smartlink vs Old Pro5

New Pro5 comes with Smartlink C 2.0 passthru VCI which supports dual diagnosis mode: local diagnosis and super remote diagnosis. Smartbox only local diagnosis.

NOTE:

*Online progarmming is restricted in Spain, and Portugal.
*Super remote diagnosis requires extra license. The license will be available in May or June 2024.

Extended Modules Create Double Achievement

NEW OPTIONAL FUNCTIONS: (Need Buy-Extra)

1) Videoscope: Check unseen parts and give you a direct image of the engine, gears, compressors, headers and valves, and body components.
2) X431 i-TPMS: Active and relearn TPMS sensors; and progarm LAUNCH TPMS sensor.
3) X-431 ADAS Mobile/PRO: Operate ADAS calibration to vehicle cameras, LKA system, ACC system, LDW system, and AVM system.
4) X431 X-PROG 3: Add, delete, and reprogarm keys; rewrite smart keys; replace key EC.U.
5) X431 WiFi Printer: Print diagnostic data or report for further analyzing and reviewing.
6) BST360: Check the SOH of the on-board battery, functionality of discharge capacity and start-up capacity, etc. Provide a reliable analysis basis for the inspection and maintenance of car batteries.
7) X431 Heavy Duty Module (diagnose gasoline vehicles & 24V Diesel Trucks)
8) EV Diagnostic Kit: New Energy Diagnose

Note: You can purchase these extended modules extra, if needed.

LAUNCH X431 PRO 5 Functions:

1.LAUNCH X431 Smartlink 2.0 Features:

1. Compatible with LAUNCH tools, OE tools or any other diagnostic tools
2. SmartLink C can be used not only remote diagnosis but also local diagnosis by working with particular LAUNCH intelligent diagnostics
3. Supports more advanced protocols like DoIP, CAN FD, CAN 2.0
4. Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform
5. Compared with SmartLink 1.0, the SmartLink V2.0 is:
WIFI signal improved
Better heat dissipation
DB15 connector to get more fastened

J2534 EC.U Progarmming – Level up Your Repair Skills & Work Efficiency

As you can see, auto rep-air shops that need to do high-level repairs, such as replacing or reprogarmming EC.Us, have to cost dearly for the OEM scanners or J2534 compliant pass-thru tools. Launch odb2 scanner X431 PRO5, combined with the J2534 pass-through device Smart Box 3.0 at no charge, allows the repair shops access and progarm vehicle computers the same as OEM, without needing the OEM tools.

Highly Cost-Effective with Advanced EC.U J2534 Progarmming, Same as the OEM Progarmming Tool: this allows you to visit the OEM website and download the OEM software for your application within several minutes through the internet.

What Can J2534 Reprogarmming Tool Do?

Progarm data to a new module
Reprogarm existing data to the used module
Repair EC.U with data loss
Upgrade EC.U software version
Compatible with for BMW, for Benz, for Chrysler, for Ford, for Land Rover, for V-olvo, for Honda,for V.-W, for Nissan, for Toyota, etc.

Warm Tip: J2534 tool is only compatible with Windows-based computers yet. Available progarmming operations vary by the test vehicles.

2. EC.U Coding: Alter the Car on Your Demand

From manufacturer-specific reprogarmming to full diagnostic capability, this LAUNCH diagnostic scanner also has the magic power "EC.U Coding" to keep you on the cutting edge:

1)You can match, relearn, and code the newly installed EC.U module after making repairs or replacements.

2) You can change the market-specific settings to activate higher-level car functions and disable unneeded features, breaking limitations.

3. Active Test----Enhance Your Experience.

This X431 scan tool also functions as a bi-directional car scanner to perform specific tests and functions without using the vehicle’s own controls to save time. For example: using the diagnostic tool to command the fuel pump on. If the fuel pressure gauge shows proper fuel pressure, you'd know the fuel pump circuit and pump are functioning properly. The process just takes < 5 minutes. If test manually, Three times as long!

4. Guided Functions

Guiding you to be an expert in automotive diagnostic.

Compatible with Volkswagen / Audi / Skoda / Seat etc.

5. Advanced ALL Systems Diagnoses

This LAUNCH diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:

1) Retrieve EC.U information including unit type, version numbers, and other specifications, etc.

2) Read & erase DTCs to locate problem areas and clear the codes.

3) View Live Data of each parameter item.

4) This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance performance, save energy, reduce emissions, and everything else.

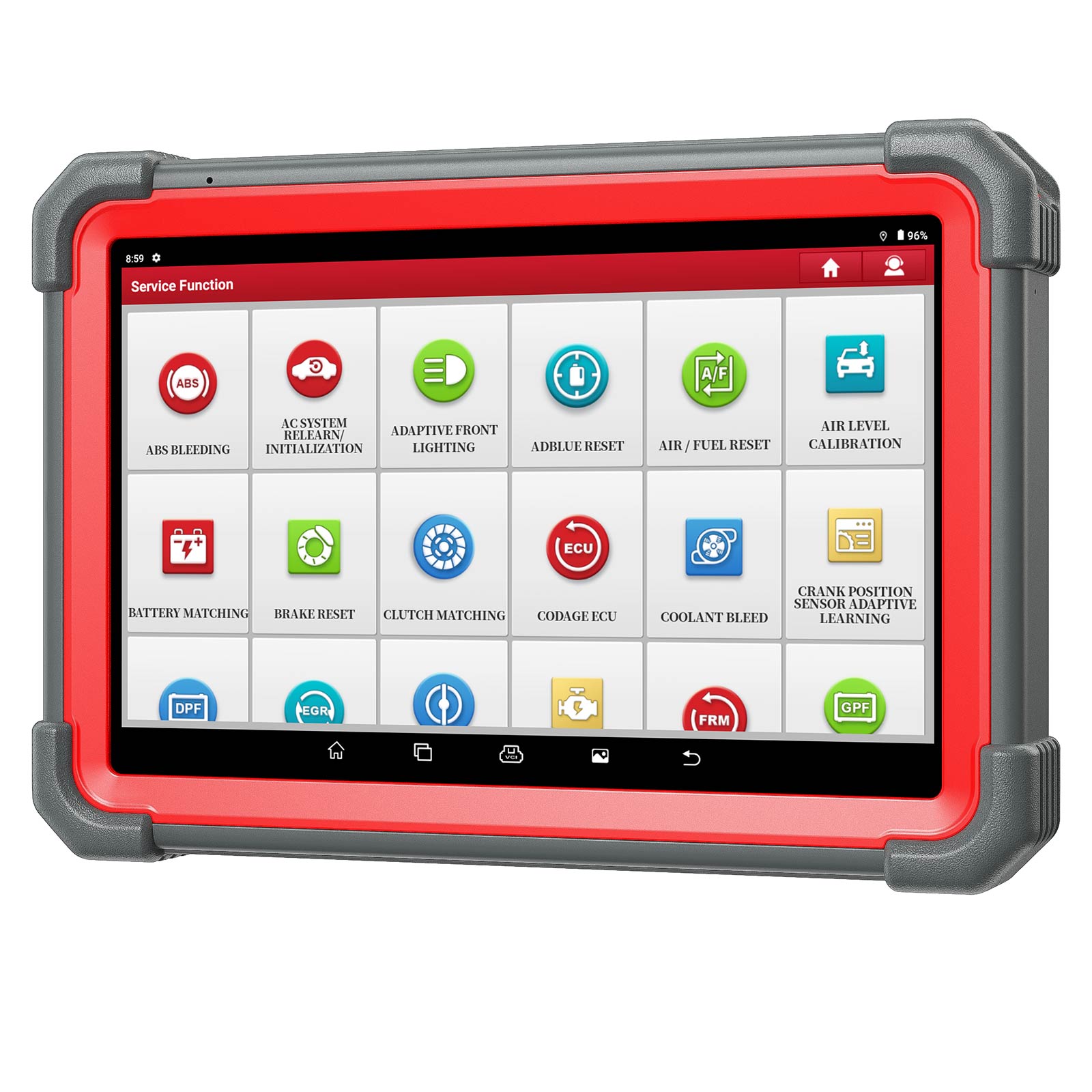

6. 50+ Hot Reset & Relearn Maintenance Services

You can easily choose multiple commonly-used service functions, follow their clear and precise instructions to complete complex projects much faster, including but not limited to the following:

-Oil Maintenance Light Reset: reset the oil service lamp; re-calculate the optimal oil life change interval.

-Steering Angle Reset: reset the steering angle to zero to keep the car running straight.

-Injector Coding: write the new injector code into the system to correct cylinder injection quantity.

-Electronic Parking Brake Reset: help replace and reset the brake pad.

-ABS Bleeding: help exhaust the air in ABS system in an easy way.

-Throttle Matching: initialize the throttle actuators to the default state.

-Battery Matching: register the battery after replacement.

-DPF Regeneration: help remove the particulate matter to keep the trap stable.

-Anti-theft Matching (IMMO Service): disable lost keys to prevent the car from being stolen, and add new keys. *Limited in default; can be fully upgraded with X-PROG & X-PROG3.

-Tire Pressure Reset: reset the tire pressure.

-Suspension Level Calibration: adjust the vehicle body height sensor for level calibration.

-Headlight Matching: initialize the adaptive headlamp system.

-Gearbox Matching: help complete the gearbox self-learning to improve gear shifting quality.

-Sunroof Initialization: initialize the sunroof when to be locked off, or closed.

-Tooth Learning: help to finish tooth learning after changing crankshaft in the car engine.

And many more with expanding. Function menus vary by manufacturer, year, and model. Reach us for compatibility check.

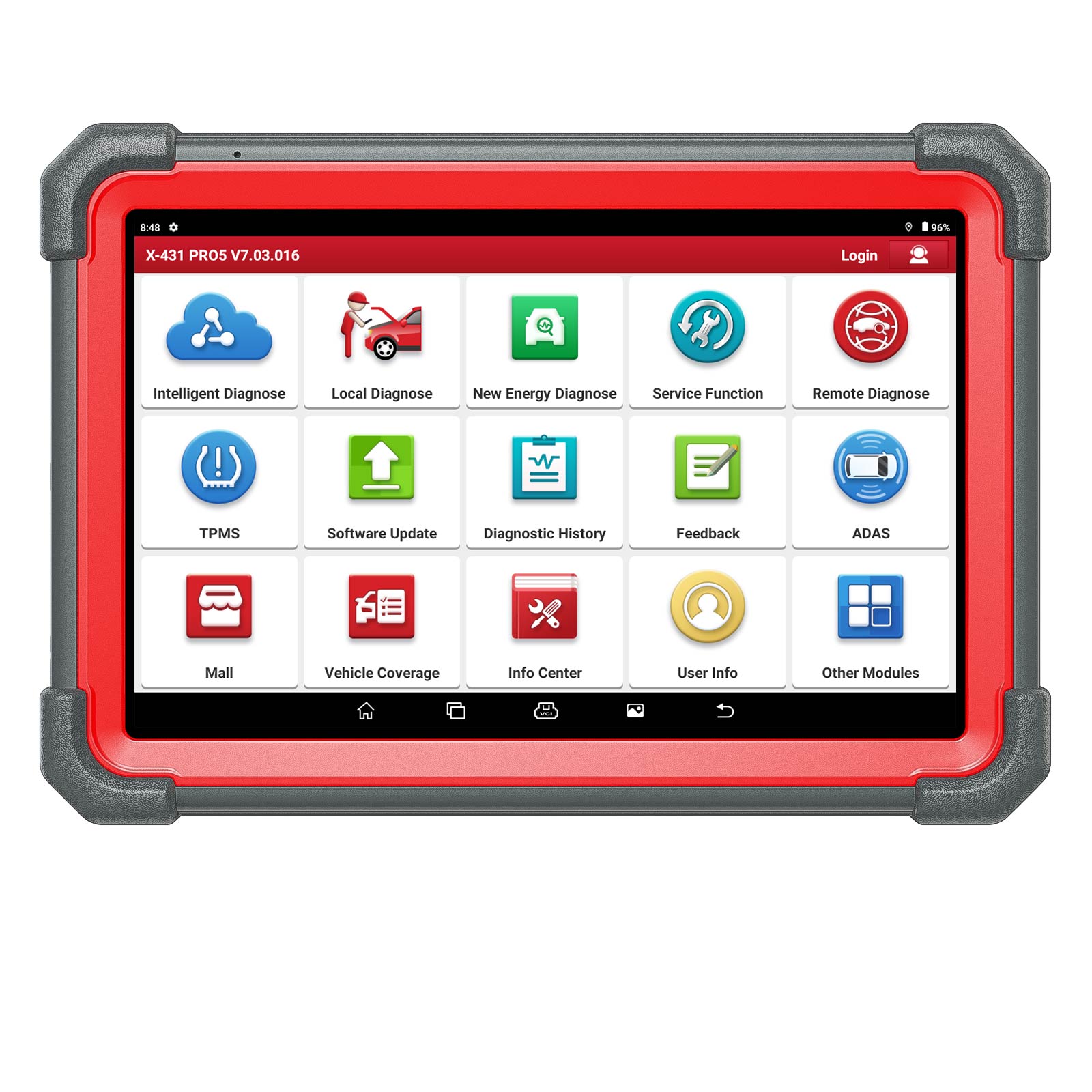

LAUNCH X431 PRO5

7. TPMS Progarmming

Activate all sensors,TPMS relearn,Progarm

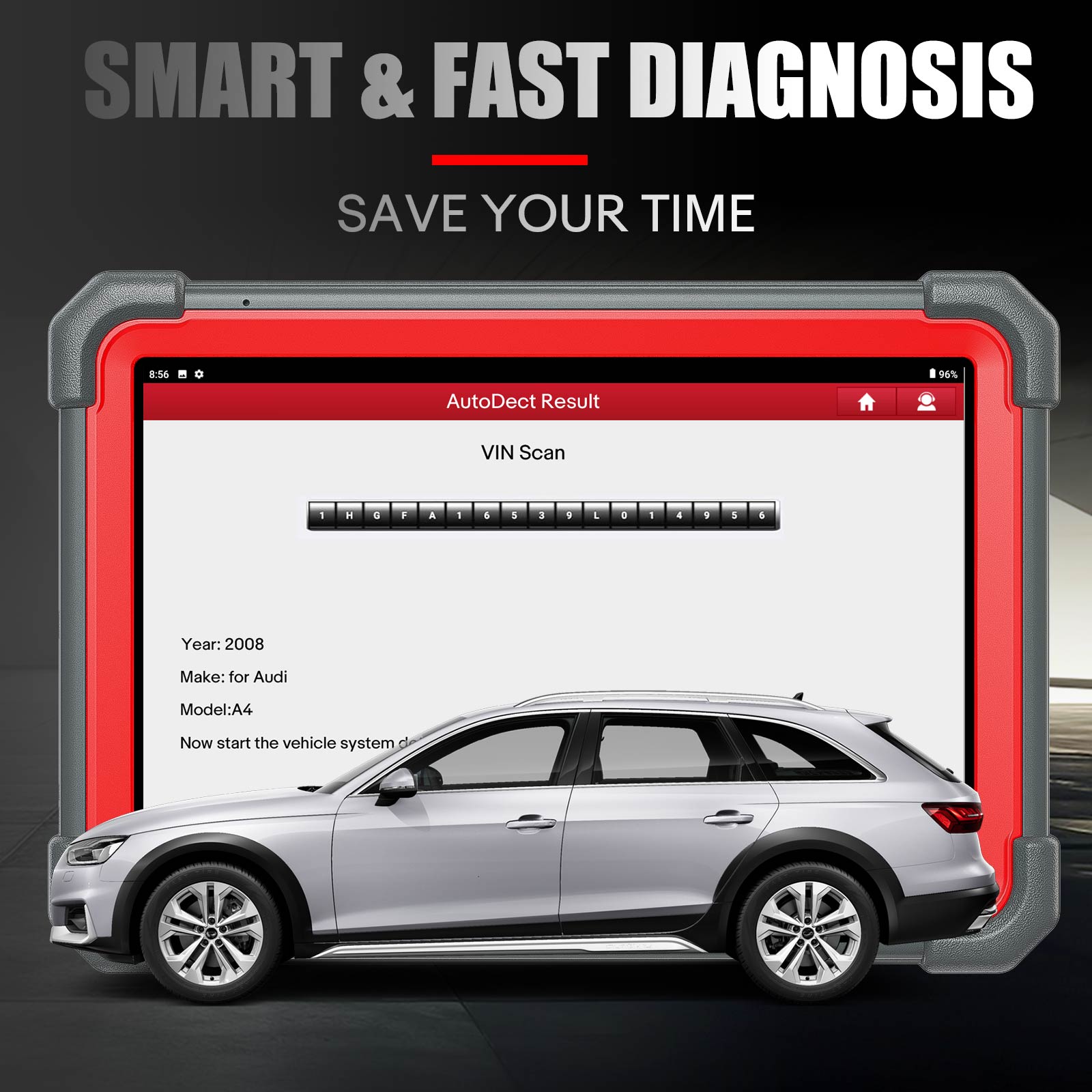

AUTOVIN--- Maximize Your Intelligence

This intelligent scanner will automatically identify the make, model, and manufacture year in one touch; help you match the right software so the diagnosis will be carried out fast and efficiently. You will also enjoy how smart it would be to record the test results as Inspection Report, being done by itself, letting you maintain vehicle health logs and share the information easily.

8. Health Report Generate and Share

With LAUNCH X431 pro 5, you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card.

9. Print Diagnostic Result

You can share car diagnostic data via email ,then print it via PC , or optional wifi , and you can order Launch x431 mini wifi printer , then one-key printing.

Wide Vehicle Coverage across the Global -American Cars

10. Boost Your Efficiency

See what your car is doing in real time; get car performance, sensor data and more at one glance! This diagnostic scanner presents the live data stream in 3 modes: a. Numbers and lists (default); b. Wave patterns (max. 12 channels in one screen); c. Merged graph (max. 4 data can be merged) for you to quickly identify if the data are in normal conditions, ranges or not.、

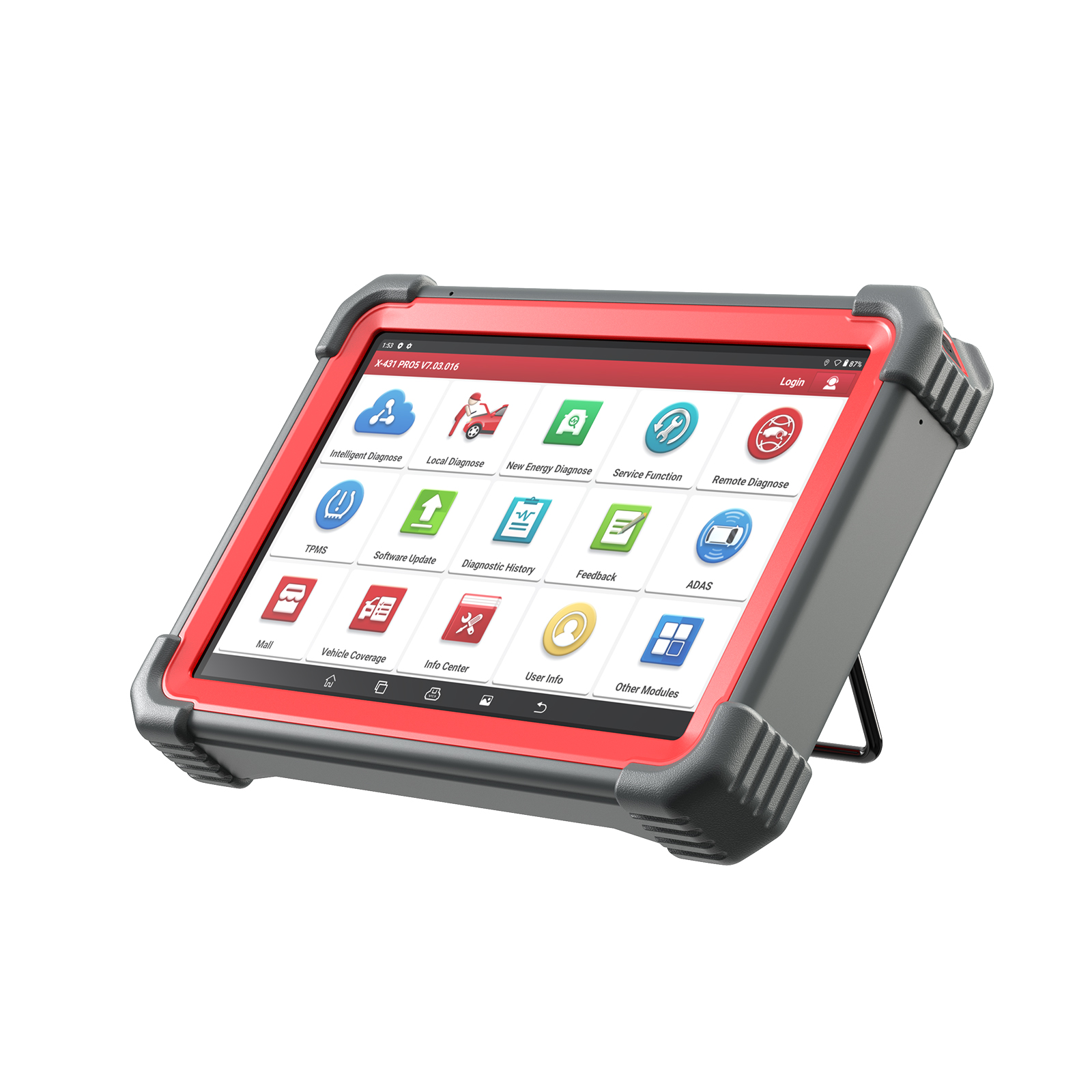

Specification for Launch X431 PRO5 Tablet

Display	10.1-Inch ，1920x1200 FHD IPS
CPU	8-Core Processor, 1.8 GHz
Camera	500，800
WI-FI	2.4GHz /5GHz
Android	9.0
RAM	4G, ROM 64G
Battery	000 mAh / 3.8V
Operating voltage	9~36V
Storage Temperature	-20℃~70℃ (-4℉~158℉
Working Temperature	0℃~50℃ (32℉~122℉)
Dimension	26719133 mm (10.517.521.30 inch)
Package size	594164410 mm (23.396.4616.14 inch)

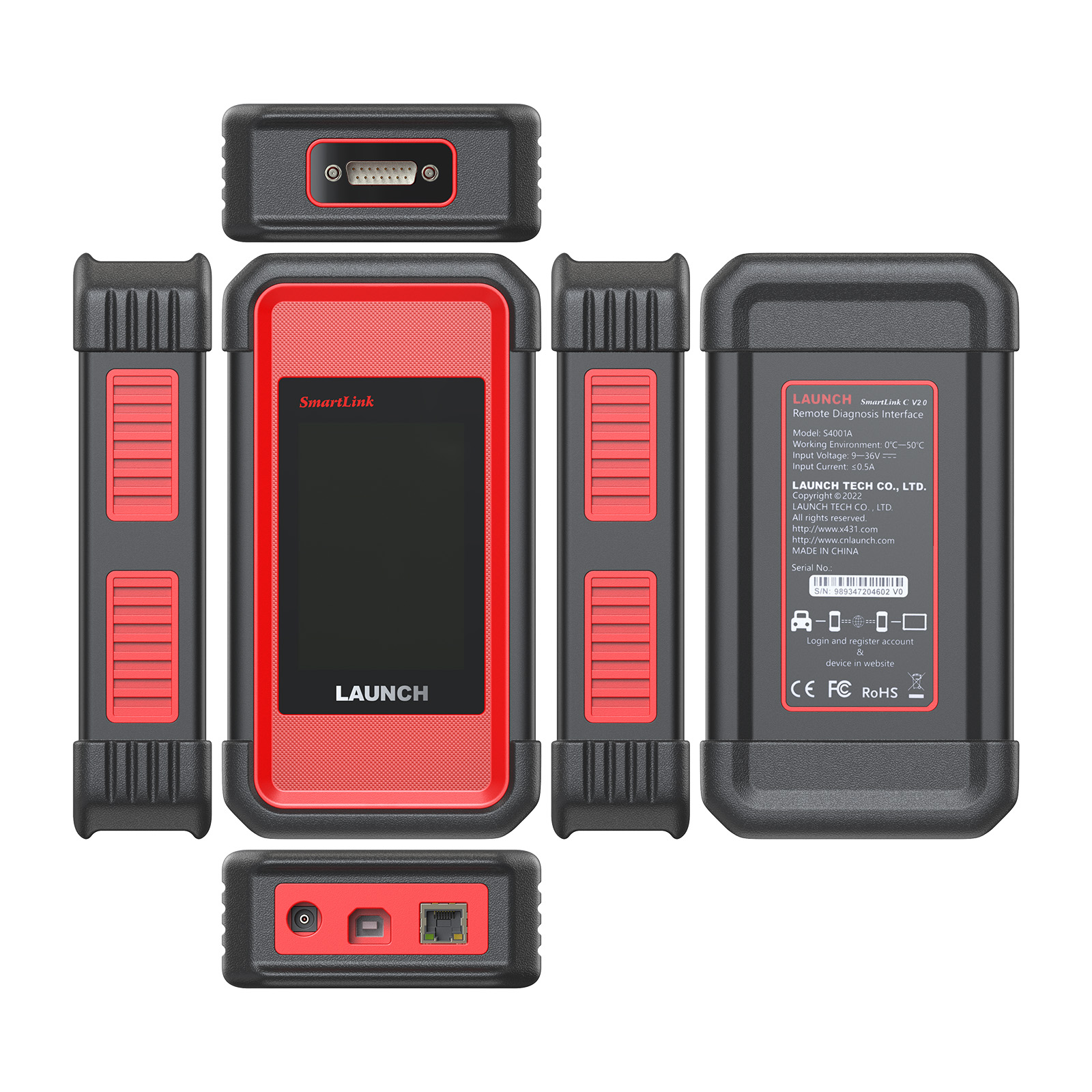

Specification for Smartlink 2.0

Display	3.95'' 320*480
Memory	256M
Storage	8GB
Remote Communication	Local Diagnosis: WiFi/BT/USB SmartLink Remote Diagnosis: WiFi/Ethernet
Working Voltage	9V DC ~ 36V DC
Dimension	20011047 mm
New protocol support	J2534, CANFD, DOIP

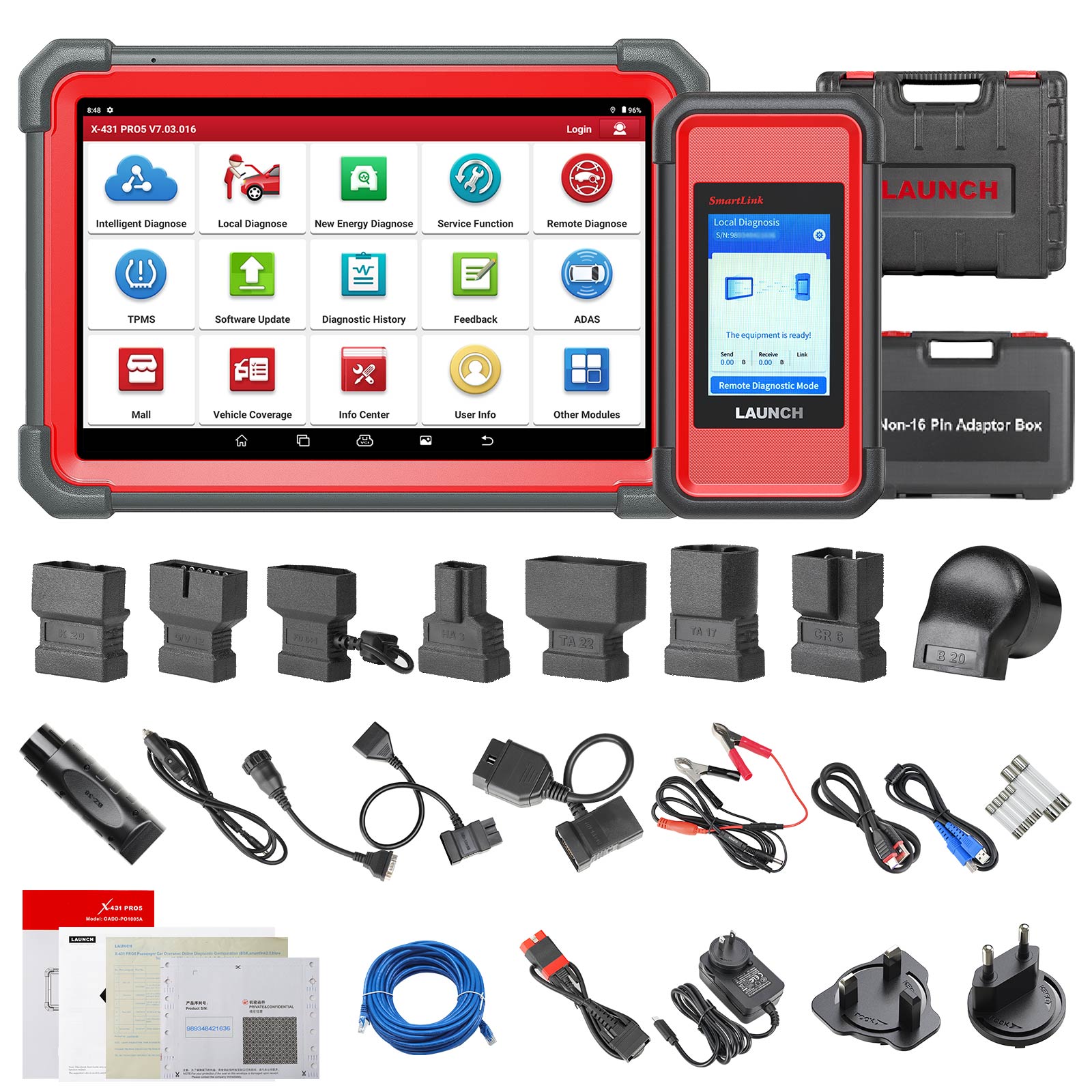

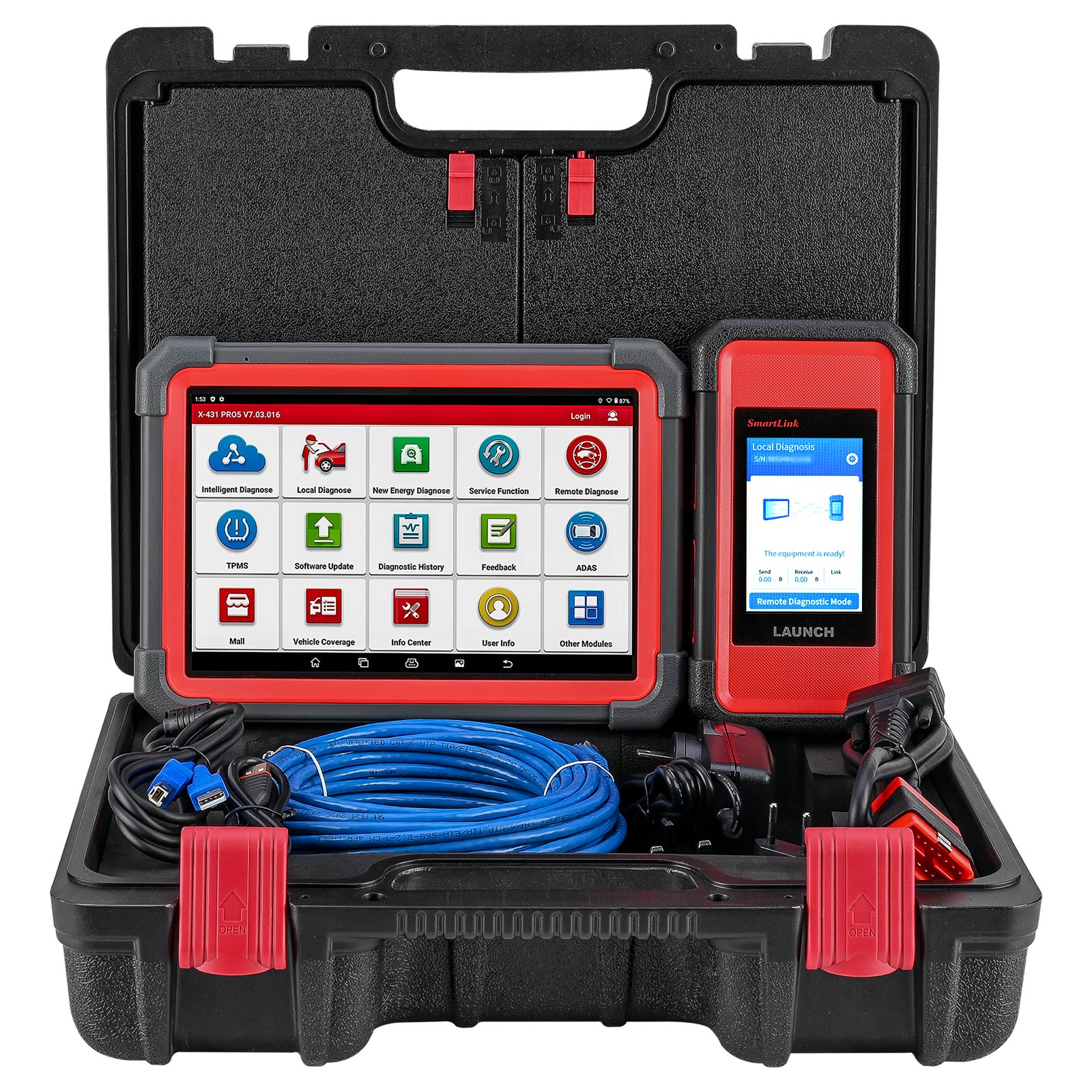

Package List:

1pc x X431 PRO5 tablet
1pc x SmartLink 2.0 device
1pc x Power adaptor
1pc x OBD II extension cable
1pc x Charging cable (Type A-Micro)
1pc x Data cable (Type A- Type B)
1pc x Crossover cable
