P2.5mm

◆ Technical Specification of P2.5mm:

Pixel configuration

SMD2121 3 in 1

LEDs configuration

Red:wave length: 625~630nm;700-800mcd

Green:wave length: 525~530nm;1500-1800mcd

Blue:wave length: 470~475nm;400-500mcd

Pixel pitch(mm)

2.5

Pixel density(dots/㎡)

160000

Calibrated brightness(cd/sqm,nit)

800 nits(adjustable)

Calibrated brightness proportion ratio

R: G: B = 30%:60%:10%(adjustable)

Color temperature

3,500° — 9,500° K(adjustable)

Contrast ratio

4,000:1(adjustable)

Brightness adjustment(dimming)

100 grade auto/manual-adjustment

View angle(degree)(50% brightness)

Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)

Readability viewing angle

Horizontal: 150° (75° off center); Vertical: 90° (+35°/-55° off center)

Color capability

4.4 trillion

Refresh rate(Hz)

>600 Hz(adjustable)

Frame frequency(Hz)

>60 Hz

Interface port

Protection grade

LED Drive

Constant-current drive

Lifetime(hours)(50% brightness)

100,000 hours

Signal transmission direction

Horizontal

Operating temperature(Celsius degree)

-10～+40'

Storage temperature(Celsius degree)

-15～+50'

Operation humidity(RH)

10-75%

Operation humidity(RH)

10-75%

Servicing

Front and back serving optional

Control mode

Synchronous & asynchronous available

Communication options

Power

5 V DC

Maximum power consumption(W/SQM)

780

Average power consumption(W/SQM)

312

Screen operation mode(scan/static)

1 / 16

Module configuration(Pixels quantities of the module)

Length

64

Height

32

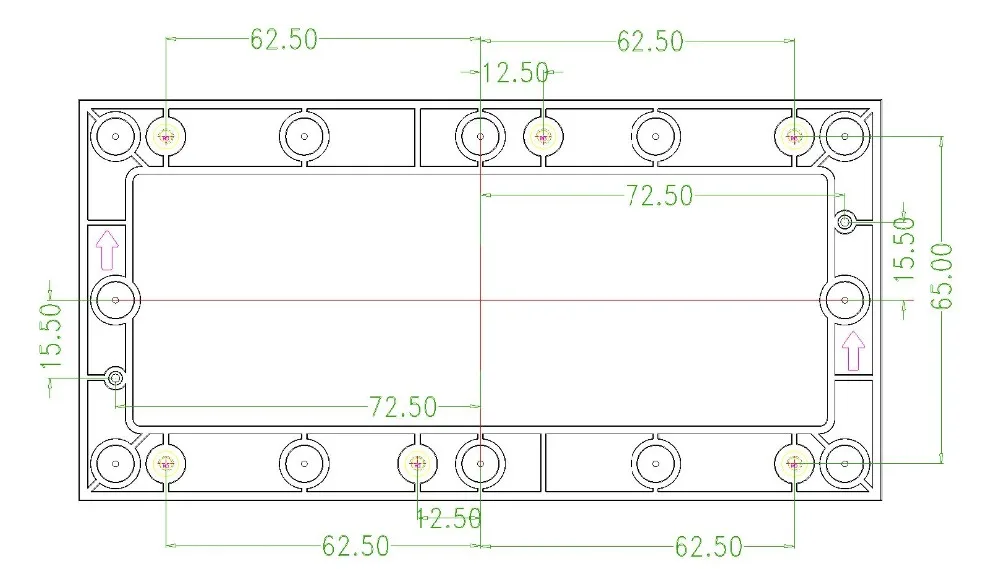

Module dimensions(mm)

Length

160

Height

80
