Product Description

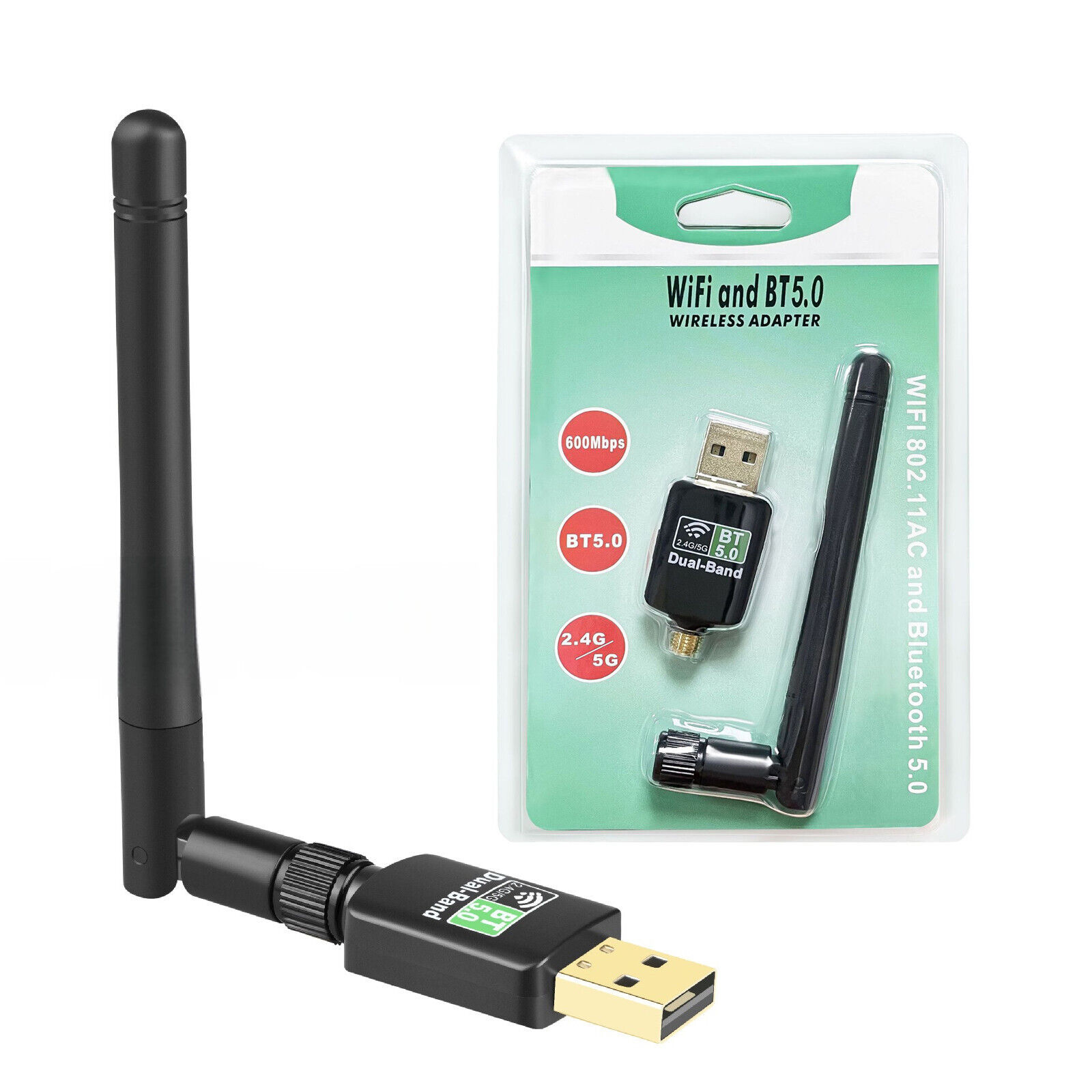

WB601 wifi bluetooth 2-in-1 wireless card, support computer wifi reception and bluetooth function. With 11AC as the technical support, both dual-frequency advantages, 2.4GH band and 5GHz band wireless transmission rate of up to 150Mbps and 433Mbps, 2.4GHz band is characterized by high compatibility and long transmission distance; 5GHz band channel pure interference less, low latency. Users can freely choose one of the frequency bands according to the actual use of the environment and equipment, to avoid wireless interference, smooth Internet access.

ps: It is recommended to use with a dual-frequency wireless router to give full play to the performance.

Bluetooth Spec

• Bluetooth version: Bluetooth 5.0
• Interface: USB 2.0
• Frequency range: 2.412-2.482GHz
• Working channel: 0-78
• Modulation type: GFSK DPSK
• Transmission distance: 20 meters
• RF Power: 10dBm(MAX EIRP）
• Antenna gain: 2dBi
• Working current: 100mA-200mA
• Supported OS: Windows7/8/8.1/10/11

WiFi Spec

• IEEE Standards: IEEE 802.11a/b/g/n/ac
• Operating Frequencies: 2.4GHz-2.4835GHz / 5.15GHz-5.85GHz
• Working Mode: Infrastructure, Ad-Hoc
• RX Sensitivity: -96dBm(Min)
• TX Power: 18.5dBm(Max)
• Power Supply: 5V±0.2V
• Power Consumption: Stanby 192mA@5V(Max); TX mode 908mA@5V(Max)
• Support system: Windows XP/Vista/Win7/8/10/11/Mac OS

Packing List

1. 1* 600Mbps Wireless Adapter
2. 1* Driver CD
3. 1* Quick Installation Manual
