Product Introduction:



Item Model :Upgrade Loaded HSH Guitar Pickguard Set
Place of Origin : China Factory OEM
Material:Alnico V Humbucker Pickups
Pickups DC Resistance (approx.):
Neck Pickups 8.6 K ;Middle Pickups 6.8 K; Bridge Pickups 13.58 K
(K resistance is for reference only, which will change as the temperature changes)

Hole distance :N:50mm M:50mm B:52mm

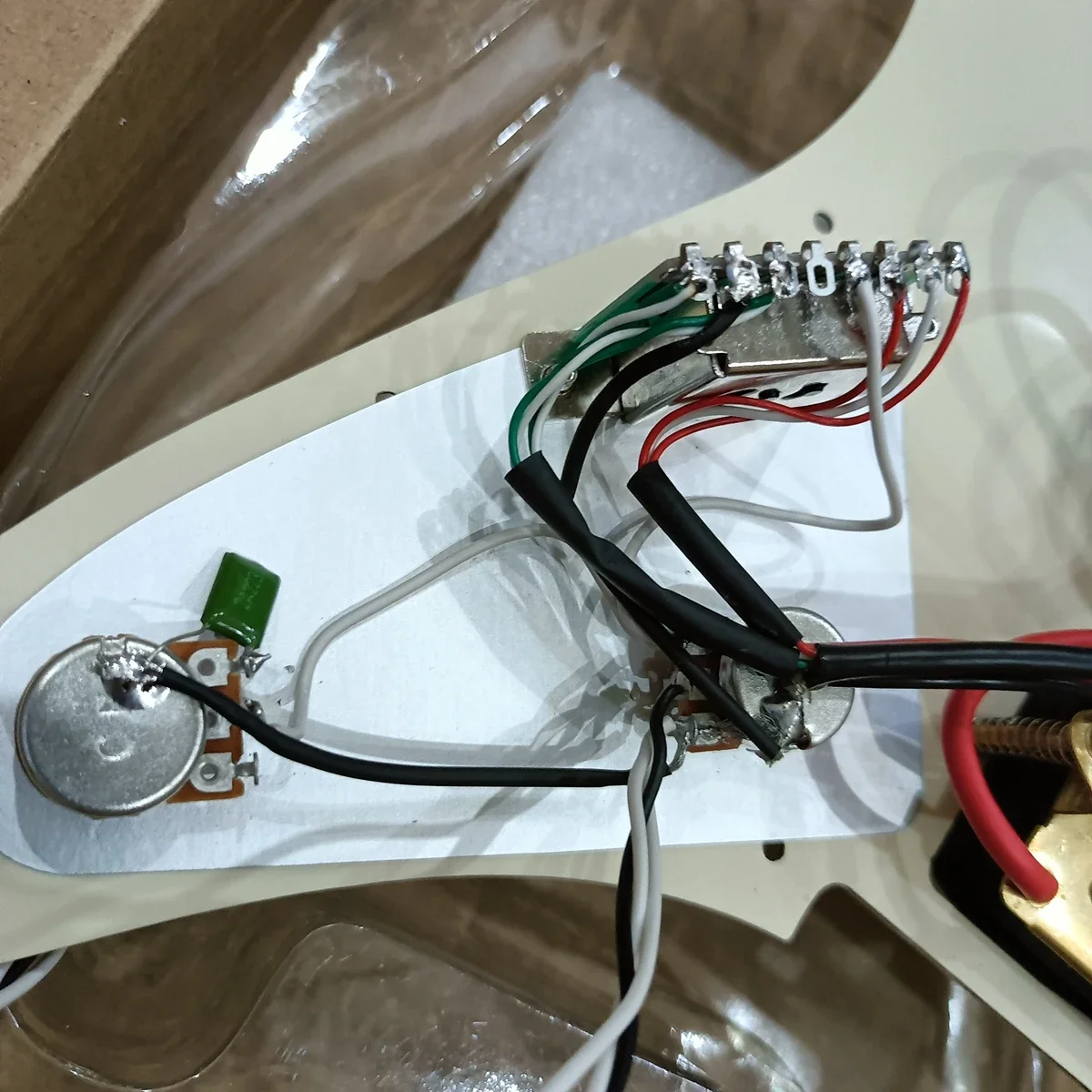

2× Potentiometer,1V 1T
1× Epiphone Output Jack
Function and Feature: 5 way switch, can get  Different Style Sounds, perfect replacement for upgrading any common guitars configuration
Scope of use :Suitable for most Ibz RG Guitar
Difficulty Of Use:simple, solder the reserved wire to the guitar spring claw
Weight :700g / set
Accessories: 11 screws
