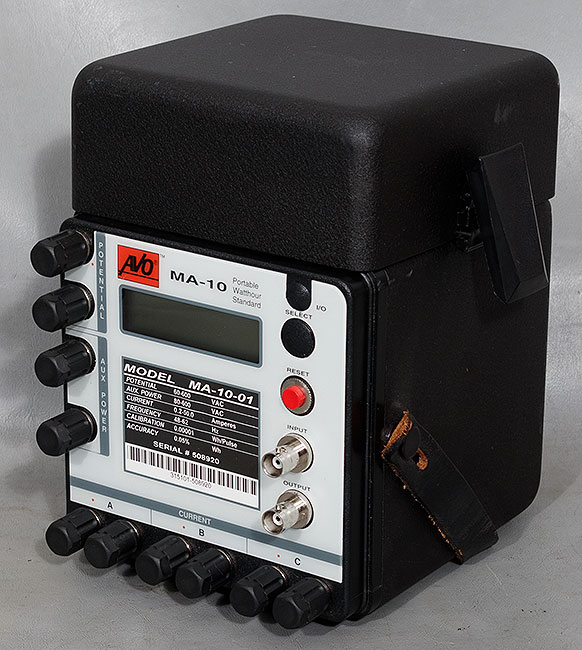

Megger AVO MA-10-01 Portable Watthour Wattmeter Calibration Standard
Comes with what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from AVO/Megger and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
This unit ships fully tested and guaranteed to work for 30-days, parts and labor, excluding freight.

The Unit's Serial Number Tag Reads:
Model Number: MA-10-01
Serial Number: 508920
Specifications:
Potential: 60-600 VAC
Aux. Power: 80-600 VAC
Current: 0.2-50.0 Amps
Frequency: 48-62 Hz
Calibration: 0.00001 Wh/Pulse
Accuracy: 0.05% WH

Key Features:

  • Autoranging potential, current and auxiliary power
  • Backlit, six-digit LCD display
  • Floating decimal point for direct reading in watthours
  • Three current inputs support closed link testing
  • Logic gate control to keep potential away from the operator, as well as a case ground terminal

    • Description:
    The MA-10 watthour standards are rugged, portable and specifically designed to test watthour meters, using the comparison method, in the field or the laboratory.

    The MA-10 standards are engineered to meet the most stringent quality measurements in regard to accuracy, stability and reliability. They are one of the top selling, most accurate standards available.

    Applications:
    The standards provide a true watthour display with a Kh of 1 for the entire operating range. This feature allows for a much simpler percent registration calculation.

    The MA-10 series are totally autoranging on the potential input, current input and auxiliary power input. Totally autoranging inputs make it impossible to damage the unit by applying a signal to the wrong input. The three summing current inputs can be used to perform closed link testing.

    Specifications:
    Normal Operating Conditions:
      Input Voltage: 60 to 600 VAC (Autoranging)
      Input Current: 0.2 to 50 Amps (Autoranging). 150 Amps max when paralleling 3 inputs.
      Power Factor: See accuracy definition
      Ambient Temperature: 68°F to 86°F (20°C to 30°C)
      Relative Humidity: 0 to 95%
      Auxilliary Power Voltage: 80 to 600 VAC (Autoranging)
      Frequency: 48 to 62 Hz
      Orientation: Unrestricted
      Recalibration Interval: 365 days
      Warmup Time: 30 seconds
      Shock and Vibration: Any which is nondestructive
    Input:
      Terminal: BNC, digital display gate
    Output:
      Digital Display: 6-digit, LCD, 12.7 mm (0.5") high character with floating decimal point and LED backlight.
      Terminal: BNC
      Pulse Value (Wh/pulse): 0.00001
    Influences Affectign Accuracy:
      Temperature: ±0.001%/°C typical, ±0.003%/°maximum to -20°C to +70°C (-4°F to +158°F)
      Protection:
        Isolation: Complete: Input/Output/Power/Case/Control
        Dielectric Withstand: 2.3 kVrms, 60 Hz, 60 seconds
        Surge Withstand: IEEE 472 and ANSI 37.90
        Fuses: Schurter #0342516 or Radian #3001000 for potential input and auxilliary power
    Dimensions: 7.5" H x 5.5" W x 5.5" D (190.5 mm x 139.7 mm x 139.7 mm) - excluding latches and strap
    Weight: 3.6 kg (8 lb)
