With design of anti-pressure bi-directional bearing, have high precision and good stability.The design of cover plate, fully protect the sensor chip, use nut fixed interface, avoid strong drag to cause the interface to fall off.

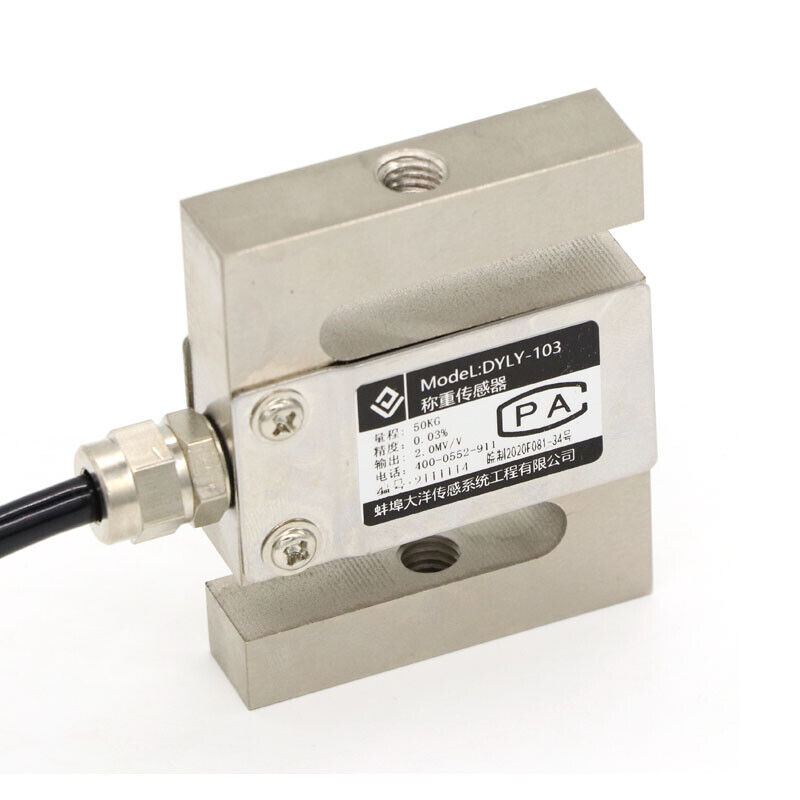

Equipped with international superior sensor range.S beam design,tension and/or compression loading (0-5000KG) possible.
The sensor is a high-precision test component,easy to install. In order to ensure the accuracy of the measurement, the transmission of the control force should not be affected by the eccentric load and the lateral direction.
Alloy steel, hermetically welded/sealed by adhesive inside,oil-proof, waterproof and anti-corrosion.Safe and anti-explosive product, can be used in bad environment and hazardous areas. Suitable for mixing station, batching machine, asphalt station, etc.
Specifications:
Physical properties of materials: conductors
Output signal: analog
Protection grade: IP67
Linearity: ±0.02（%F.S.）
Delaying: ±0.02（%F.S.）
Repeatability: ±0.02（%F.S.）
Sensitivity: 2.0mv/v
Drifting: ±0.02%F.S
Resolution: ±0.02%F.S
Input impedance: 400±20Ω

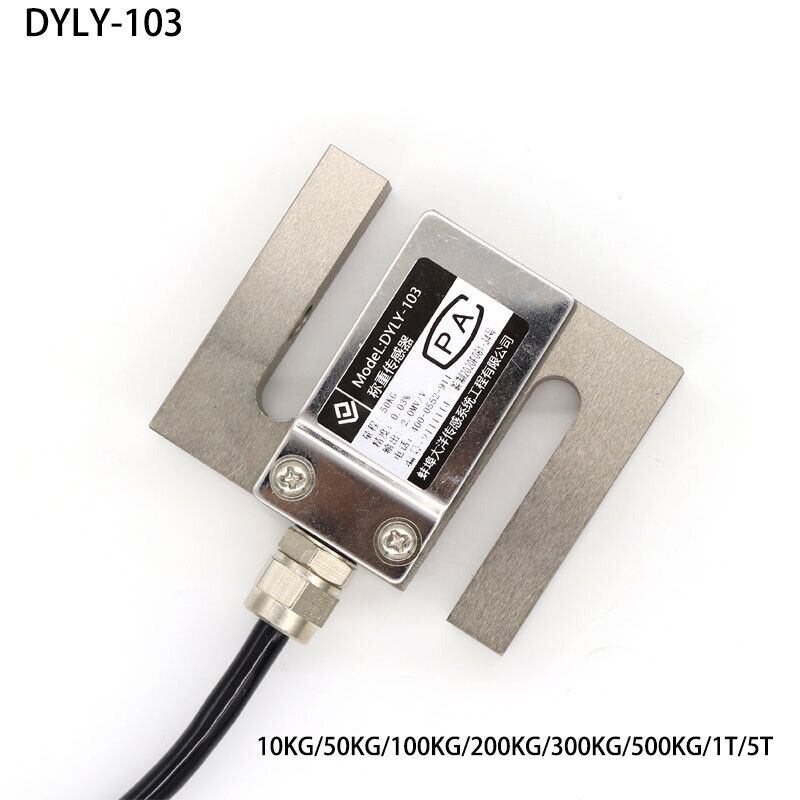

Measuring range: 0-5000kg
Application: Mixing station, batching machine, asphalt station, etc.
Wire connection method:
Red--Power supply positive
Black--Power supply positive
Green--Signal positive
White--Signal negative
Yellow(Covered by heat shrink tube)--shielded
Package Included:
1 x Weighting Sensor
