X96 MAX Plus Amlogic S905x3 Android 9.0 TV BOX Quad Core 4GB 64GB TV Box 8K WIFI
- CPU: Amlogic S905X3 64-bit Quad Core ARM Cortex A55
- GPU: ARM Mali-G31
- Android 9.0 OS
- RAM/ROM: 2GB/16GB, 4GB/32GB, 4GB/64GB
- Support HD: 8K@24fps, 4K@60fps, UHD, HDR+,
- Suppoty HD:DLNAAirplay,
- Support HD 2.1, USB3.0, USB2.0
- Support 2.4GHz Wifi/2.4G+5.8GHz Dual Wifi, BT4.1
- Support Firmware Online Upgrade

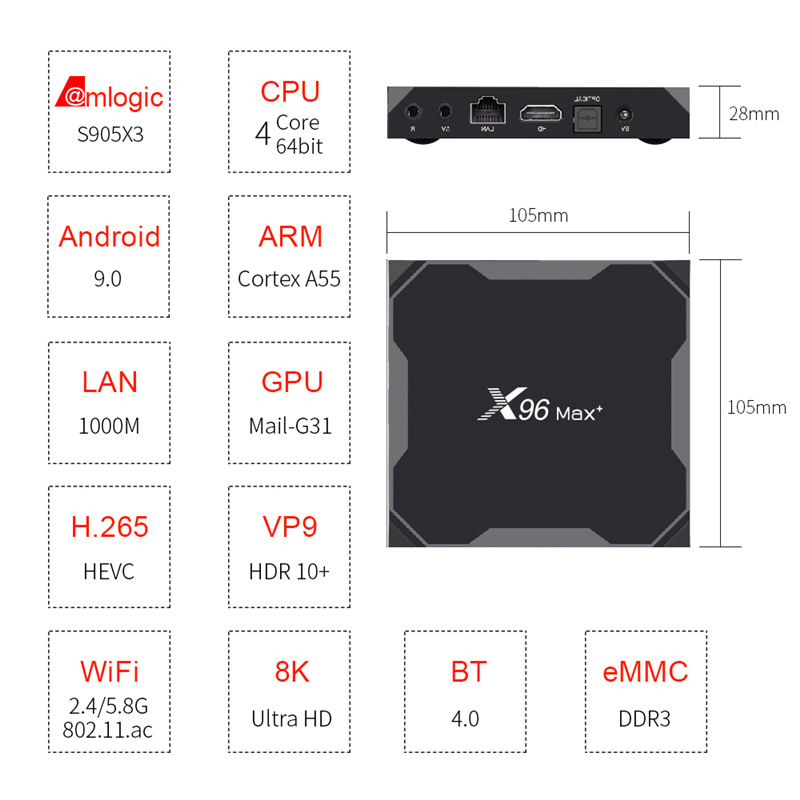

| CPU | Amlogic S905X3 64-bit quad core ARM® Cortex™ A55 CPU | |||||||
| GPU | G31™ MP2 GPU processor | |||||||
| Memory | LPDDR4: 2GB/4GB | |||||||
| Flash | eMMC：32GB(Option: 16GB/64GB ) | |||||||
| WiFi | IEEE 802.11 a/b/g/n/ac ; 2.4G / 5G | |||||||
| Bluetooth | BT ; Support Voice Remote | |||||||
| Moudle | Plastic : Black Color | |||||||

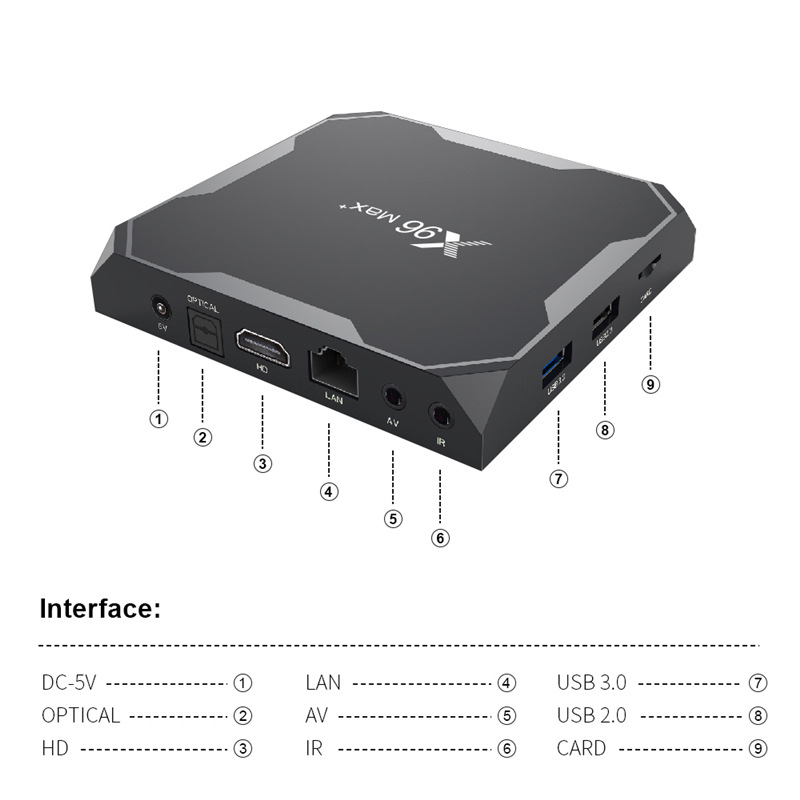

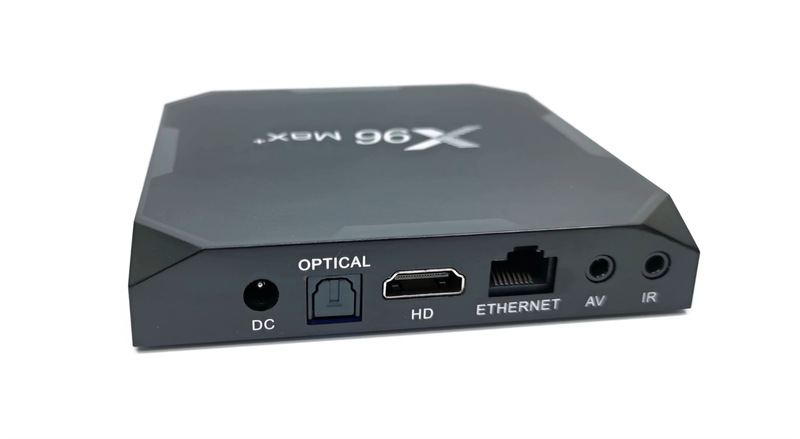

| I/O | 1*HDMI | HDMI 2.1 ,Support HDMI CEC, Dynamic HDR and and 8Kx4K@24 max resolution output | ||||||
| 1*AV OUT | 480i/576i standard definition output | |||||||

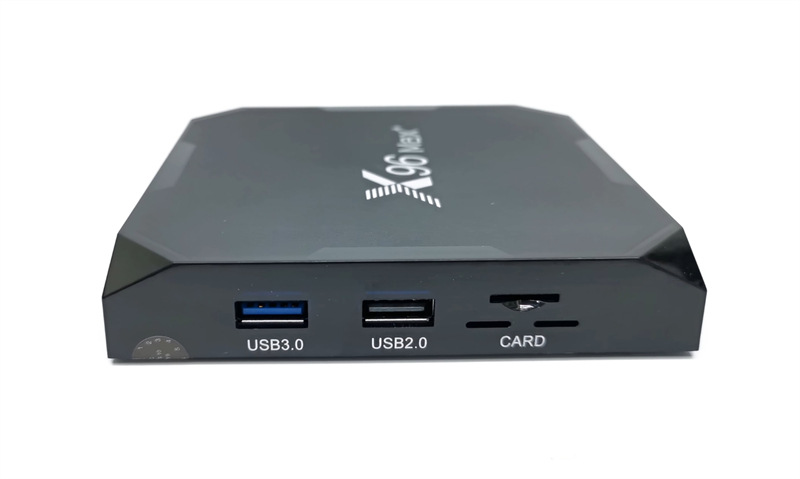

| 2*USB | 1 * USB 3.0 ; 1*USB 2.0 | |||||||
| 1*IR Reciver | Remote Reciver Connect | |||||||
| 1*RJ45 | Ethernet Interface;Support 10/100M | |||||||
| 1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB | |||||||
| DC 5V/2A； | ||||||||
| OS | Android 9.0 | |||||||
| Video | ?8?6 Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders ?8?6 Support multi-video decoder up to 4x1080P@60fps ?8?6 Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding ?8?6 Video/Picture Decoding - VP9 Profile-2 up to 8Kx4K@24 fps - H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps - AVS2-P2 Profile up to 8Kx4K@24 fps - H.264 AVC HP@L5.1 up to 4Kx2K@30fps - MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) - WMV/VC-1 SP/MP/AP up to 1080P@60fps - AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps - MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) - MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) - RealVideo 8/9/10 up to 1080P@60fps - Multiple language and multiple format sub-title video support - MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) - Supports JPEG thumbnail, scaling, rotation and transition effects - Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | |||||||
| Audio | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing Low-power VAD Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output 3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs Built-in stereo audio DAC Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM | |||||||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||||||
| Language | English French German Spanish Italian etc multilateral languages | |||||||
| Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard | |||||||
| Accessories ： | ||||||||
| 1、HDMI cable *1 | ||||||||
| 2、IR Remote *1 | ||||||||
| 3、User Manual *1 | ||||||||
| 4、Package box *1 | ||||||||
| 5、Power adapter *1 | ||||||||
