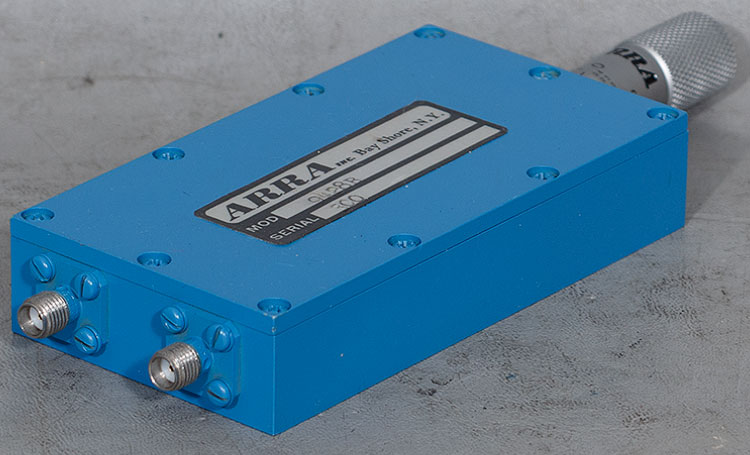

ARRA 9428B DC-18 GHz SMA Micrometer Driven Phase Shifter
Comes with what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from ARRA and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
These units are guaranteed to work.

Description:
Phase Shifters are invaluable coaxial components. These microwave devices are used to adjust the phase of RF/microwave signals over a specific frequency range.

ARRA designs and manufactures a wide range of broadband, low-loss, phase shifters covering a total frequency range from DC to 18 GHz, are available in calibrated and uncalibrated models. ARRA phase shifters feature less than 1-dB insertion loss to 18 GHz, and provide a minimum adjustment range of 60°/GHz, with 360° minimum phase adjustment range at 6 GHz.

Specifications:
Frequency Range: DC-18 GHz
VSWR:
  To 4 GHz: 1.3
  4 - 12 GHz: 1.5
  12 - 18 GHz: 1.6
Insertion Loss:
  To 8 GHz: 0.5 dB
  8 - 12 GHz: 0.75 dB
  12 - 18 GHz: 1.0 dB
RF Power: 100 Watts average, 5 kW peak
Connectors: SMA Female standard
Control: 1/4" Non-Translating
Material:
  Body: Aluminum
  Connectors: Stainless Steel
Mounting Provisions: 4 thru holes
Finish: ARRA Blue per MIL-C-22750
Insertion Delay (Approx.): 0.68 nsec min to 0.78 nsec max.
Minimum Phase Adjustment: 30°/GHz, 180° at 6 GHz
Form Factor: 4350
Dimensions: 5.75" D x .75" H x 2.0" W
